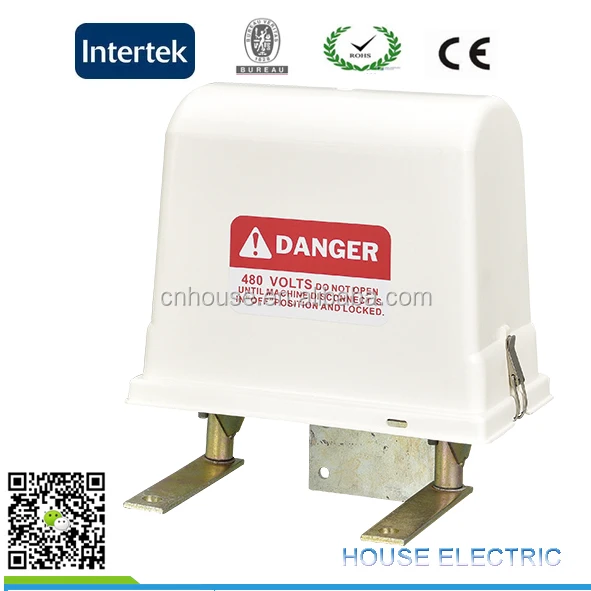

Solar panel energy water saving linear irrigtion system auto reverse tower control box

Model No.:  AUTO REVERSE TOWER BOX HS-8160

Feature:

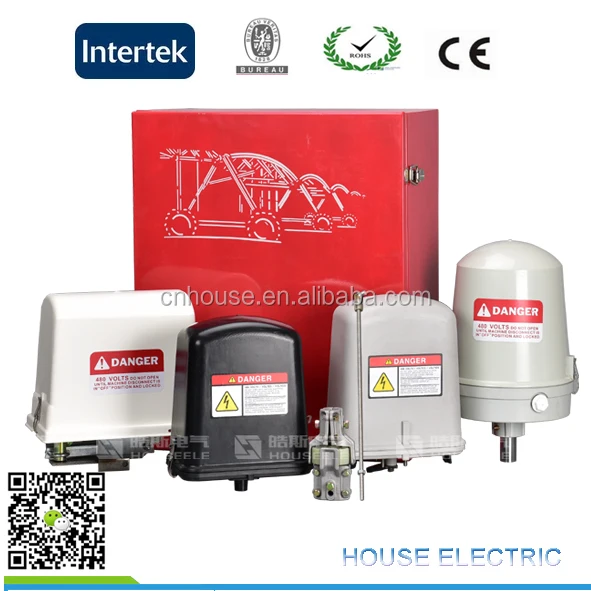

1.Intermediate tower box,end tower box,and booster tower box,auto reverse tower box

2.Galvanized steel construction,stainless steel shaft and bearing assembly helps to assure long time .

3.High quality electrical element and circuits to extend life

4.ABS tower box cover

Specification:

.1.Working temperature:

2.Temperature: -20℃~80℃

3.Relative humidity:<95%

4.Contactor coil Voltage:110V/220VAC

5.Current:09A,12A,25A

6.House material:metal base with galvanized & pp cover

Installation:

Install the equipment through the mounting panel of the tower box,if the mounting hole needs to be special,pls provide addtional drawings or instructions.

Note:

1.Safety and crash prevention

2.Allows machine to stop from any tower

3.Unique 4 piece control arm configuration for ease of shipping and assembly

4.Adjustable for broader base beams

5.Kit inclueds:Arm assembly ,control box mounting bracket,control box ,spring turn.

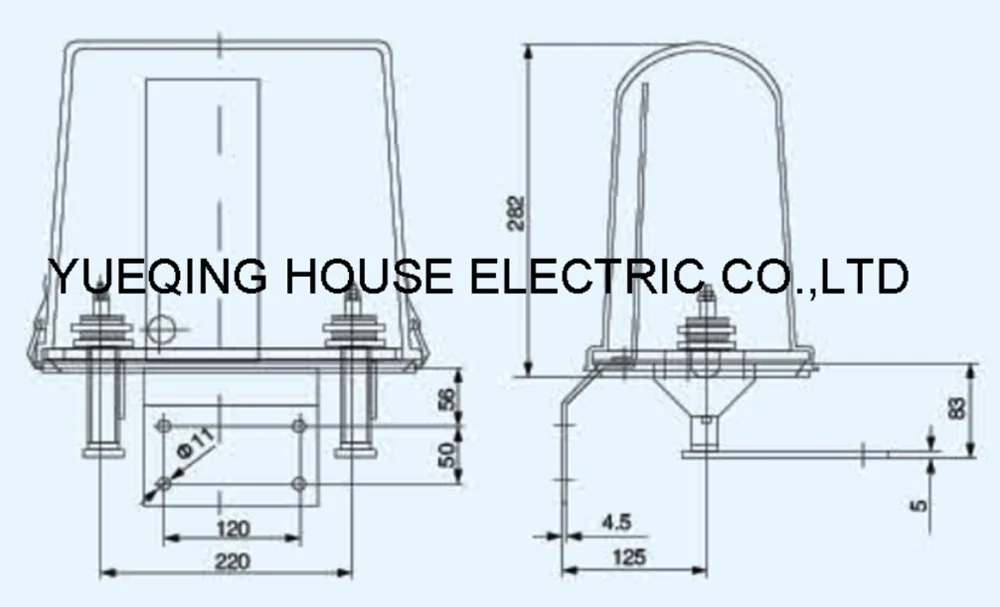

Drawing:

Features:

Electric controlers parts:
