Промышленный ультразвуковой распылитель, устройство для создания тумана, ультразвуковой распылитель для парка, ландшафта, пруда, грибов, 12 дисков, 6000 мл в час
- Category: Industrial Humidifier >>>
- Supplier: Beijing Quanxin Ultrasonic Co. Ltd.
Share on (60705964100):
Product Overview
Description
Products Description
working principle：
Ultrasonic atomizer using high frequency oscillation. The water spray device, the connecting piece and the circuit, high frequencyoscillatory fog atomizing force will be produced under the. Containing air ion in thick fog can increase the air humidity and fresh air.
This brand new 12 Head Mist Maker Humidifier utilizes electrical oscillation at ultrasonic frequencies. The ceramic changes electrical oscillation into mechanical oscillation, which creates the mist and water spray.This oscillation also produces negative ions, which help to freshen air and the mist will add humidity to a room.
Our Advantage：
Design Features：Simple and convenient operation* Safe and reliable, It is the 20mm disc, Bigger disc = Bigger output!
Piezo Material：Silver electrode. Compared to Nickel or titanium electrode, the piezoelectric ceramic with silver electrode has the advantages of Acid .alkali resistant,and resistant to cavitation corrosion.The electrode strength high,not easy to scale,the actual characteristics of long service life
Atomizing Quantity：A large amount of fog and low requirement for water quality,longer life etc
Product application：
This product uses the advanced large room, generated ideal of good decorative effect, in the rockery,fountain, potted landscape.These can be used in countless applications. Many use these to raise the humidity level in their greenhouse's or even in their homes. It can also be used in the hydroponic propagation of plants,
Product parameters：
Atomizing Quantity：Above 6000ML
Size：150*55MM
Working Frequency：1.7MHZ
Working Temperature：1-45 ℃
Over-temperature Protect：50℃
Water Level：40-90MM
Power Supply：100-120v.220-240v
Working Voltage：AC 36V
Power：150w LED：1pcs
Diameter of piezoceramics：20mm
Cable：1.4m
Material：Stainless Steel
Size：150*55MM
Working Frequency：1.7MHZ
Working Temperature：1-45 ℃
Over-temperature Protect：50℃
Water Level：40-90MM
Power Supply：100-120v.220-240v
Working Voltage：AC 36V
Power：150w LED：1pcs
Diameter of piezoceramics：20mm
Cable：1.4m
Material：Stainless Steel
Why Choose Us
Product Features：
1）The stronger adaptability of atomized water quality, using pure water or tap water can work normally.
Transformer scope is wide,guarantee it can still normal use even if the voltage of power supply has big change.
2）Equipped with transformer polarity protection circuit,which can prevent damage atomizer when we connect the wrong the negative and positive.(if we connect the wrong negative and positive, it will not work )
3）Start delay circuit, to avoid damage to the circuit because of big current when we let them work.
4）A single nozzle line using the independent design,and adopt the over-current protection circuit, so if there is any one of nozzle which was damaged,which will not affect the other nozzle.
5）The machine current affected by voltage and temperature is less, because of current of each nozzle adopt electronic automatic adjustment, then working voltage and temperature will have less effect for the total working current.
6）The working current will reduce with temperature increasing.but it does not affect the mist amount
7）It is to avoid the power tube which is too hot,and current increase. Then damage to ultrasonic atomizer.
8）Adopts the high thermal conductivity, corrosion resistant ability, good mechanical strength of the metal shell, reducing
temperature difference between ultrasonic atomizer interna and water. then prolong the service life of the product.
temperature difference between ultrasonic atomizer interna and water. then prolong the service life of the product.

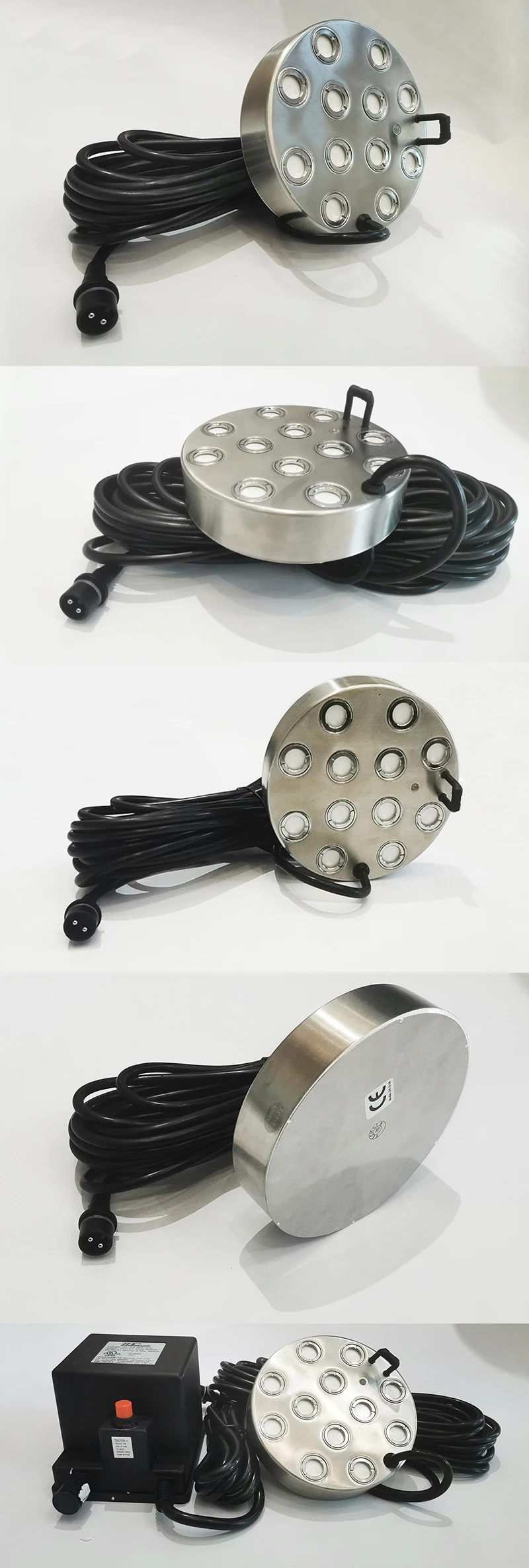

Product Picture
：We will supply the required different standard plug as need.

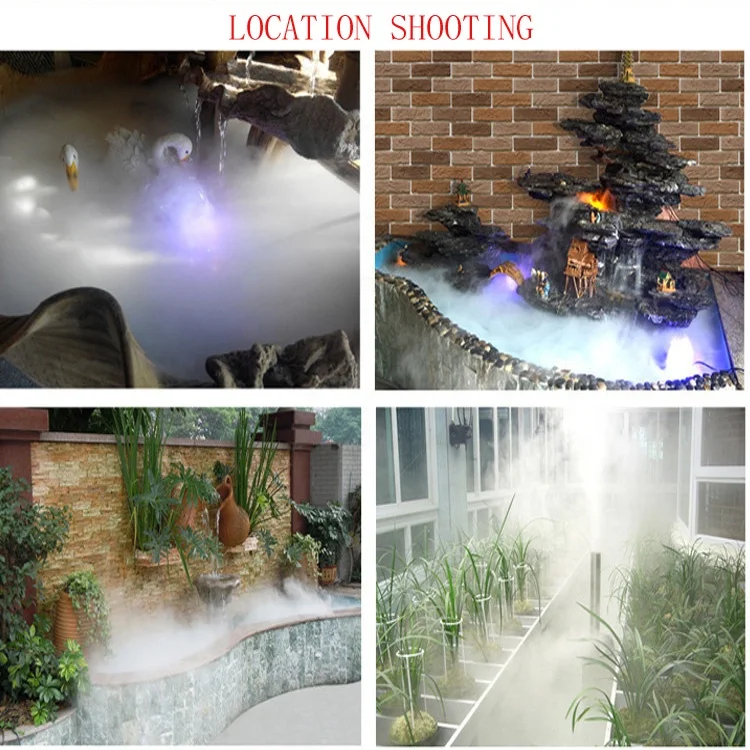

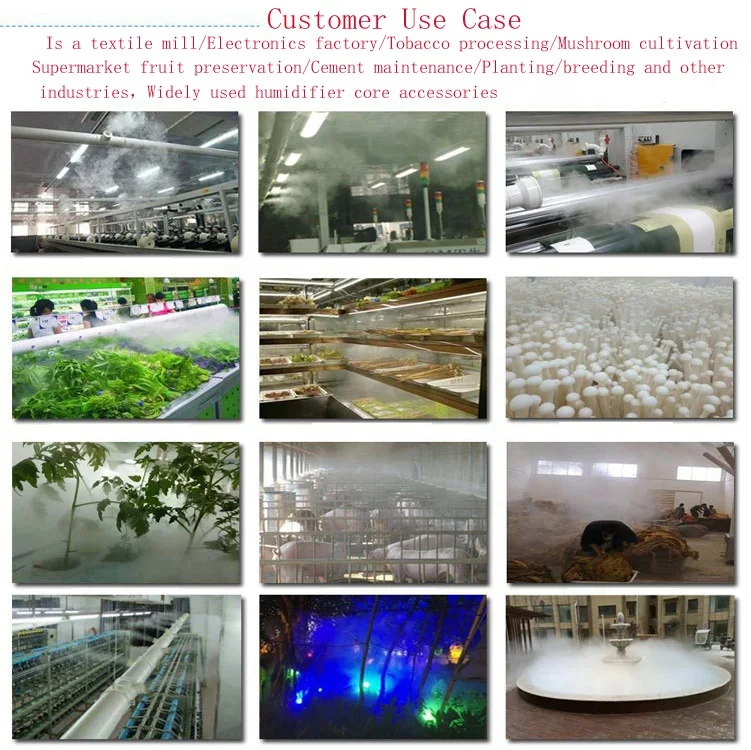

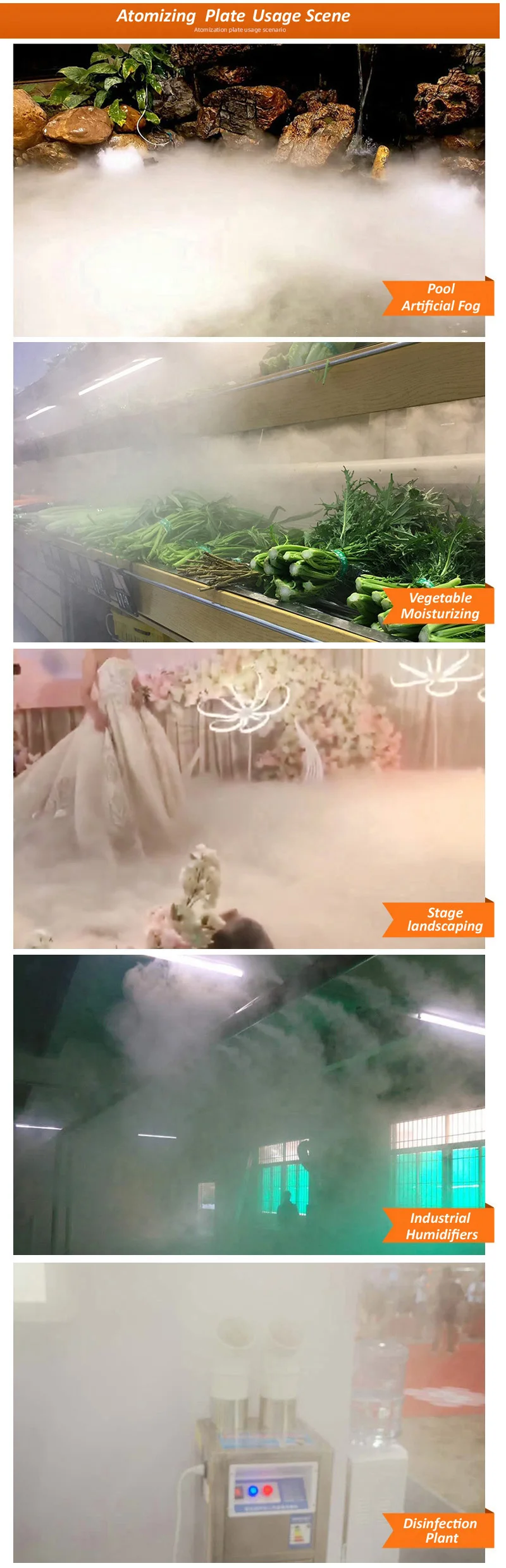

Product Usage Scenarios
：We will supply the required different standard plug as need.
Recommend Products
More Informations to Build High Quality Ultrasonic Mist Maker . Pls Contact Us Now
Company Profile
FAQ
Q：What is the MOQ ?
A：1pcs as you need.
A：1pcs as you need.
Q： When will you send out the goods after receiving the order?
A： Based on the order quantity, the goods will be sent out within 2-7 days
Q：Can I get a lower price if I order large quantities?
A：Yes, cheaper prices with more bigger size orders.
Q：Can I add or delete items from my order if I change my mind ?
A：Yes,of course. but you need to tell us asap.but If your order has been done in our production line, we can not change。
Q：How about the quality guarantee period?
A：One year!
Q：How can you guarantee the production quality ?
A：Our production quality follow CQC.CE and Rosh, We have more 10 years experience of QCteam. We have strictly quality control system in our production process. and 4 times inspection for each finished product before package. Third part inspection accepxable.
Q：Can I get a lower price if I order large quantities?
A：Yes, cheaper prices with more bigger size orders.
Q：Can I add or delete items from my order if I change my mind ?
A：Yes,of course. but you need to tell us asap.but If your order has been done in our production line, we can not change。
Q：How about the quality guarantee period?
A：One year!
Q：How can you guarantee the production quality ?
A：Our production quality follow CQC.CE and Rosh, We have more 10 years experience of QCteam. We have strictly quality control system in our production process. and 4 times inspection for each finished product before package. Third part inspection accepxable.
