Factory Industrial fast digital glass ceramic tile plastic aluminum flatbed UV printer

Product Overview

Description

Factory Industrial fast digital glass ceramic tile plastic aluminum flatbed UV printer





Technical Parameters

Model TP-2513G5

Print head  Ricoh G5

Qty of head G5 2+1/G5 3+1(Optional 2-8print head)

Print Height 1-10cm

Power 110V 220V/50-60HZ 7500W

Printing size 250*130cm

Contact interface High Speed USB 3.0 Transmission

Print method Unidirectional/be-directional

Printing environment Temperature20-30 ℃ humidity 40-60%

Operation system Win7/XP/XP64/Vista etc

Colors:CMYKWW(Varnish)+Optional

Printing Speed  Standard model 18-25m²/h

               Production model 15-18m²/h

               High Precison model 8-15m²/h

Resolution:600dpi,720dpi,900dpi 1200dpi

Servo system  Three-axis integrated servo full closed-loop control

system,precision control to 0.1mm

Curing system Imported LED UV light curing system

Ink droplet: 7PL

Lift function: Intelligent ink carriage lift

Printing weight:Non destructive weight 400kg/Table

Cleaning system  Auto Negative Pressure Printing

Software: Photoprint

Weight:1080KG

Machine size:L194*W440*H135cm

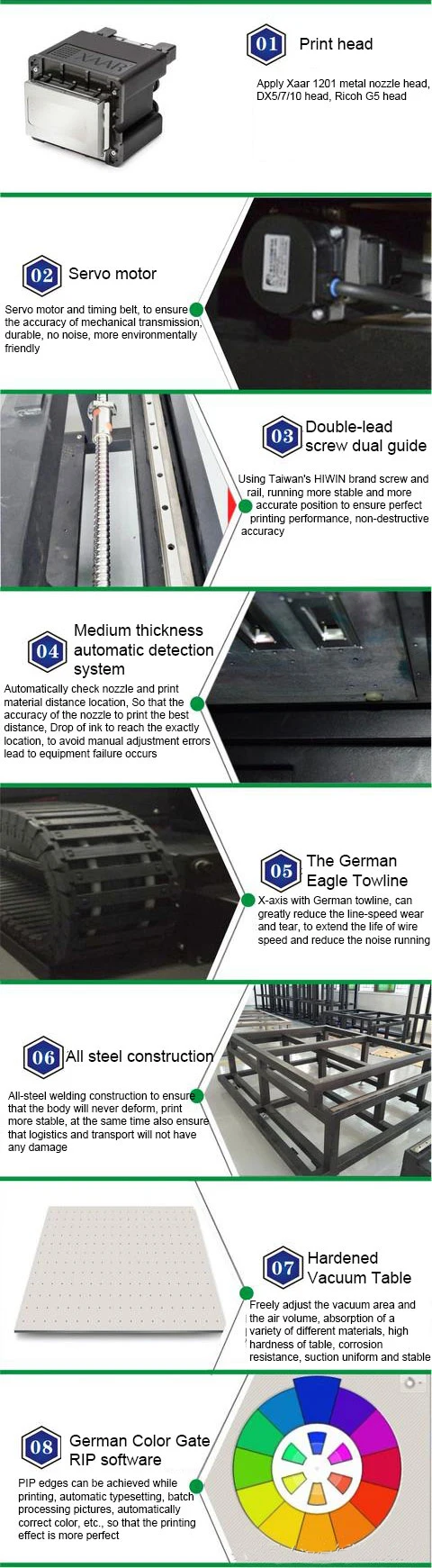

Main Features:

• Japanese imported Ricoh GEN5 head for industrial production

• Hard anodized vacuum platform to avoid rigid material damaging

• With3-8 heads as optional

• Vacuum Bed to hold the flexible media like Leather, foam board etc.

• Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material

· Y axis adopts imported wire rod and guide rail.
· XY axis adopts high quality servo motor.

 · Printer head with inner heating temperature controller.

 • Can print on EVA,Glass, Banner,Ceramic Tiles, PVC, Acrylic, Wood, Metal, etc.
