CY01+CYT6 315 Audio rf Transmitter and 433mhz rf Receiver Module
Product Description
2. APPLICATION:
Smart home system
Remote controls
Remote fan and light control
Garage door and gate openers
Alarm and security system

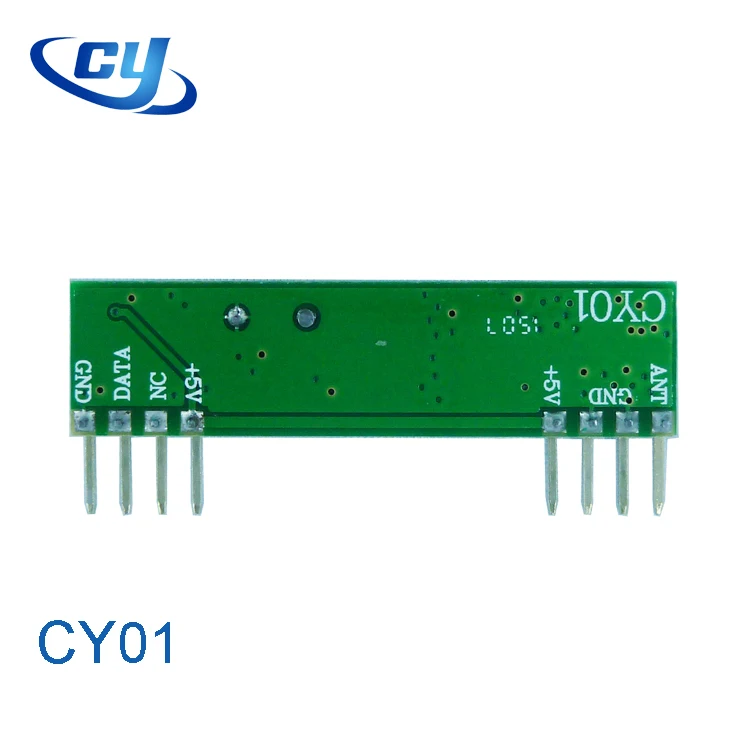

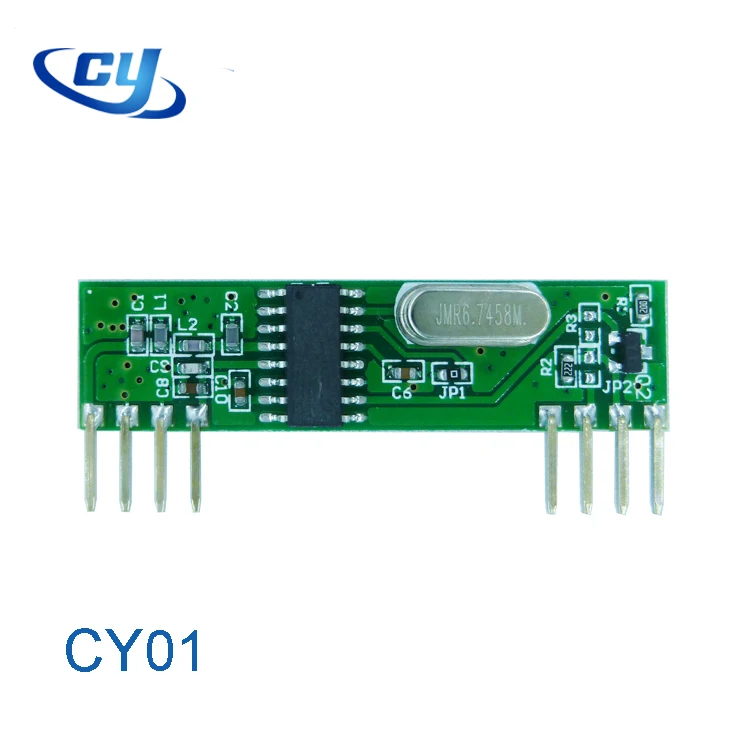

3. PIN DEFINITION:
![4]$M]BIORB1`EI(1P0X[83.png](http://sc01.alicdn.com/kf/HTB1JdD9LVXXXXXjXXXX760XFXXXz/227642278/HTB1JdD9LVXXXXXjXXXX760XFXXXz.png)
Pin Name | Pin Definition |
ANT | RF signal input pin, connect antenna outside(Note1) |
GND | Connect to negative power supply |
GND | Connect to negative power supply |
VDD | Connect to positive power supply |
VDD | Connect to positive power supply |
NC | No connect |
DATA | Data output pin, connect to MCU or decoder’s input pin |
GND | Connect to negative power supply |
Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz
4. ELECTRICAL CHARACTERISTICS:
Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz
Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz
5. MECHANICAL SIZE: (UNIT: mm)
![Q~[0HNFYU1O~)]027{QHB~S.png](http://sc02.alicdn.com/kf/HTB1nPBLLVXXXXb.aXXX760XFXXX8/227642278/HTB1nPBLLVXXXXb.aXXX760XFXXX8.png)

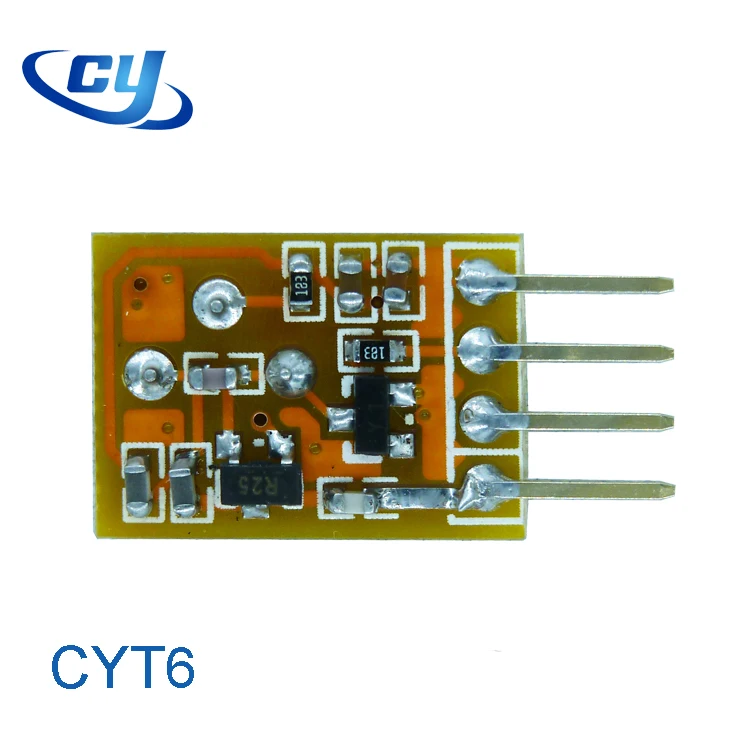

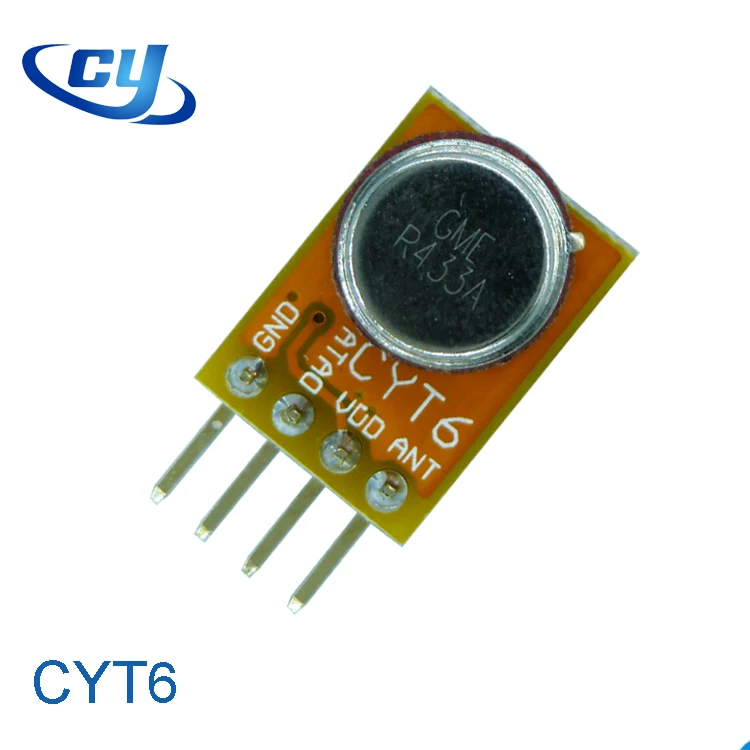

CYT6 Transmitter
1. DESCRIPTION:
The CYT6 is an ASK transmitter module. CYT6 is designed by the saw resonator, with an effective low cost, small size, and simple-to-use for designing.
2. FEATURES:
· The range can be 500m when matching with CY11;
· Operation voltage: VCC=2.6 to 12V;
· Frequency: 315MHz/433.92MHz (custom frequency is available);
· High output power: 15dBm(MAX);
· Frequency tolerance: ±75KHz;
· Current:12mA;
· Operating temperature: -20℃ ~ +70℃
· Bit rate: <4.8kbps;
3. APPLICATION:
- Car Security System
- Remote Keyless Entry
- Garage Door Controller
- Home Security
- Wireless Mouse
- Automation System
4. PIN DEFINITION:
Pin-out as showed in Fingure1 above.
Pin | Name | Function |
1 | GND | Connect to negative power supply |
2 | DATA | Data connected to MCU |
3 | VDD | Positive Power Supply |
4 | ANT | Antenna Out |
5.ELECTRICAL CHARACTERISTICS:
Condition:Ta=25℃ Vcc=5.0V
Characteristics | Symbol | Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Frequency | Fc |
|
| 315/433.92 |
| MHz |
Modulation Mode |
|
| ASK/OOK |
| ||
Output power |
| 5V/50Ω |
| 12 |
| dBm |
Data-rate |
|
|
| 1.2 |
| Kbps |
Frequency Tolerate | Fc |
|
| ±75 |
| kHz |
Current | IRC |
|
|
| 12 | mA |
Working Voltage | VCC |
| 2.6 |
| 12 | V |
Working Temperature | TC |
| -20 |
| +70 | ℃ |
6. MECHANICAL SIZE: (unit: mm)
