high pressure Atlas Copco XATS1200 Portable diesel air compressor
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (60706073210):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable diesel air compressor technical data
| Compressor Data | XATS1200 |
| Free Air Delivery @ Normal Working Pressure | 34.6 m³/min ----31.2m³/min |
| Normal Working Pressure | 8.6bar------------10.3Bar |
| Air Receiver Capacity | 89L |
| Fuel Tank Capacity | 420L |
| Outlet Valve Configuration | 1 x 2” G, 1x 3/4” G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 80 dB(A) |
| Maximum Ambient Temperature at sea level | 50 °C |
| Diesel Engine Data | Cummins QSL8.9-C360-30 |
| Horsepower Developed @ Rated Speed | 264 kW |
| Cylinders | 6 |
| Engine Coolant Capacity | 58L |
| Engine Oil Capacity | 21L |
| Maximum Loaded Speed | 1700 / 1900RPM |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 4100 mm ( within towbar ) |
| Width | 2100 mm |
| Height | 2500 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 4550kg |

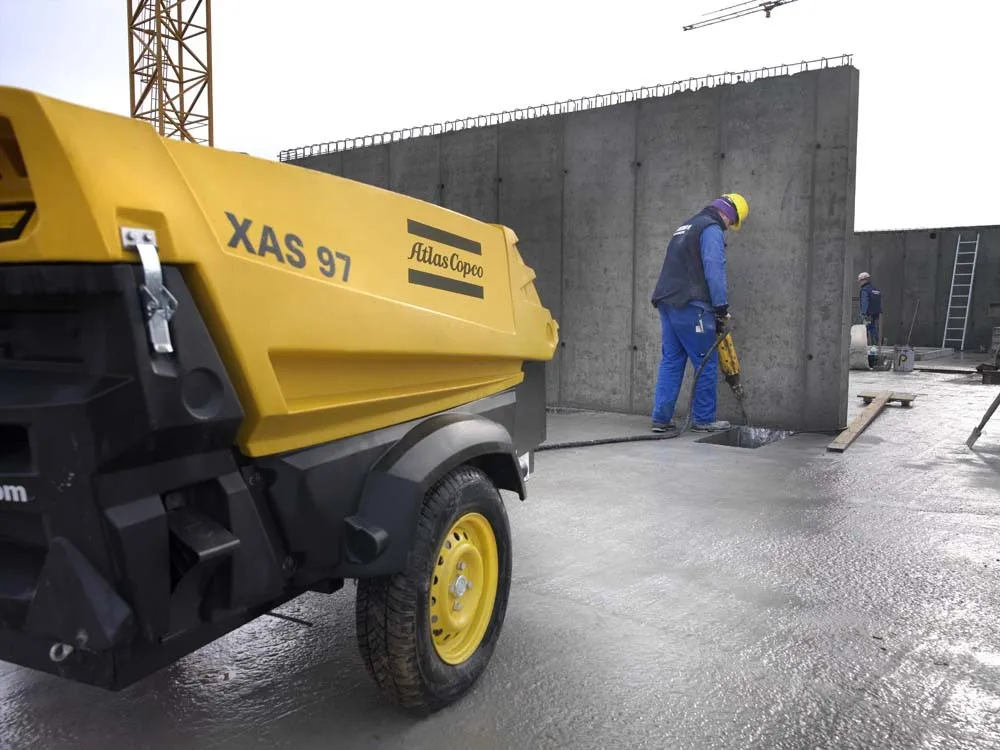

Working show:
