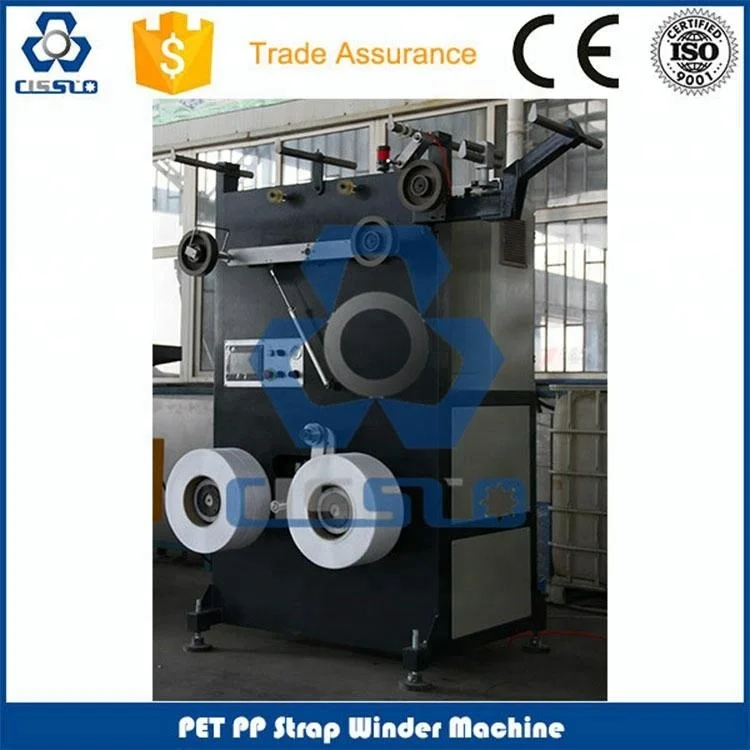

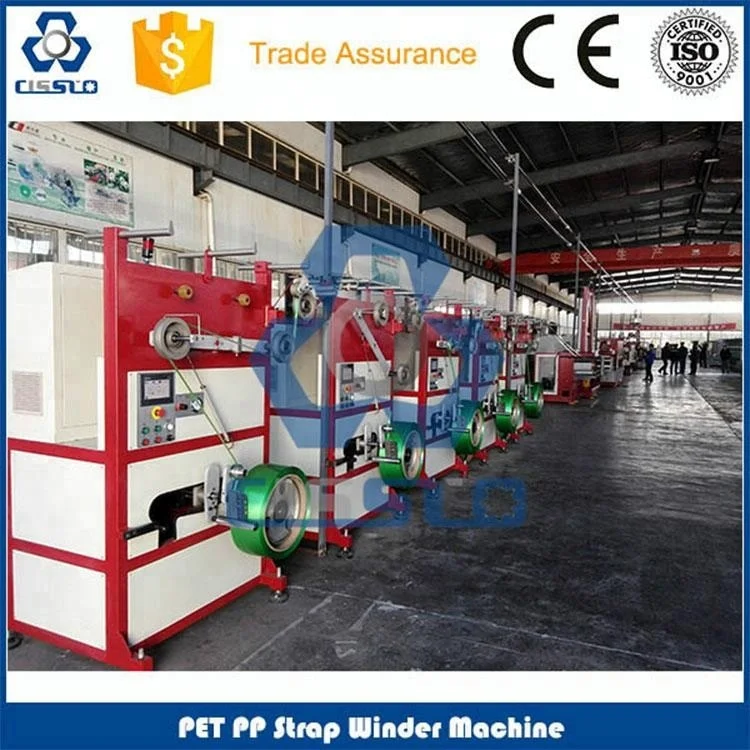

Automatic Single Position PET PP Strap Winder From China

I. Working Principle

1. The series of strap winder for extrusion speeds up to 180m/min (590.55fpm) have one spindle per machine. The machines have reinforced dancer arms for winding tensions. The inclinometer fixed to reinforced dancer arm transforms the physical location signals of the dancer arm into electric signals and sends to the programmable logic controller (PLC). After data operation, PLC controls the running speed of the winding motor, driving the paper drum fixed around the winding axis to wind the straps evenly with constant tension.

2. The straps thread through the traversing unit. Traversing motor runs proportionally to the winding motor. So the straps are evenly wound around the cylindrical tubes.

3. A meter recording encoder is connected to the traction motor. It reports the linear speed and the length which has been wound already to PLC, and the PLC will display the linear speed and the length on the screen. Users can know well about the equipment operation condition currently.

II. Technical Specifications

1. The machine of strap winders is used for winding PET/PP straps up to 31.75 mm (1 1/4") width in parallel winding directly from extruder line.

2. Strap feed from left to right (from operator’s side)

3. Each machine mounted on a frame

4. Machine specification Each winder is equipped with:

4.1 For the PET strap packing into a roll. The center automatically arranged winding. Consists of: closing reel, core, transmission unit, winding displacement unit, rack, electrical control parts, etc.

4.2 Automatic computer control winding disk diameter and length of the winding.

4.3 Winding parameters, cable parameters can be set according to the product specifications by computer.

4.4 Servo motors are used to control the width and spacing of winding displacement.

4.5 Straps entrance with protection device.

4.6 Torque arm directly separately checks the location and pneumatic plug to maintain the tension of straps.

III.Technical Parameters

IV.Pictures

• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.

CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
