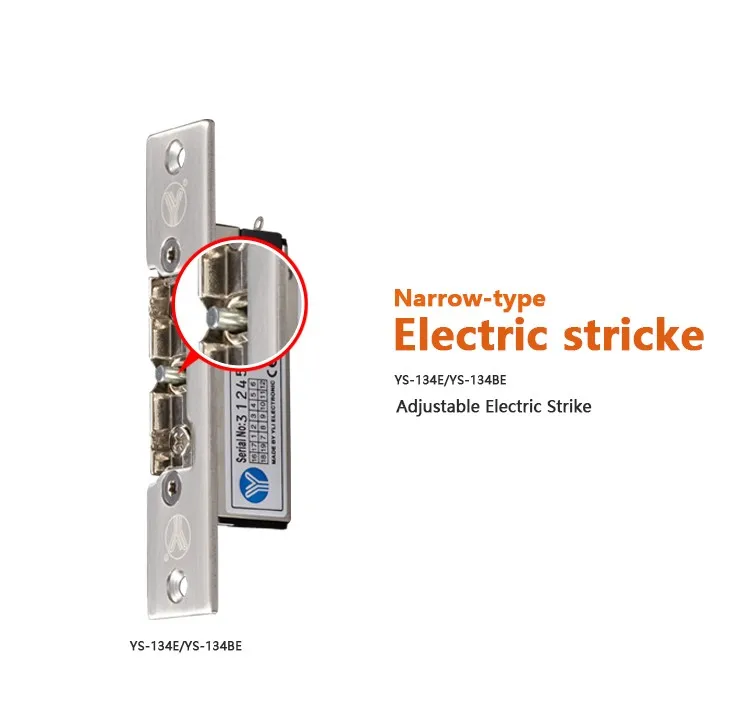

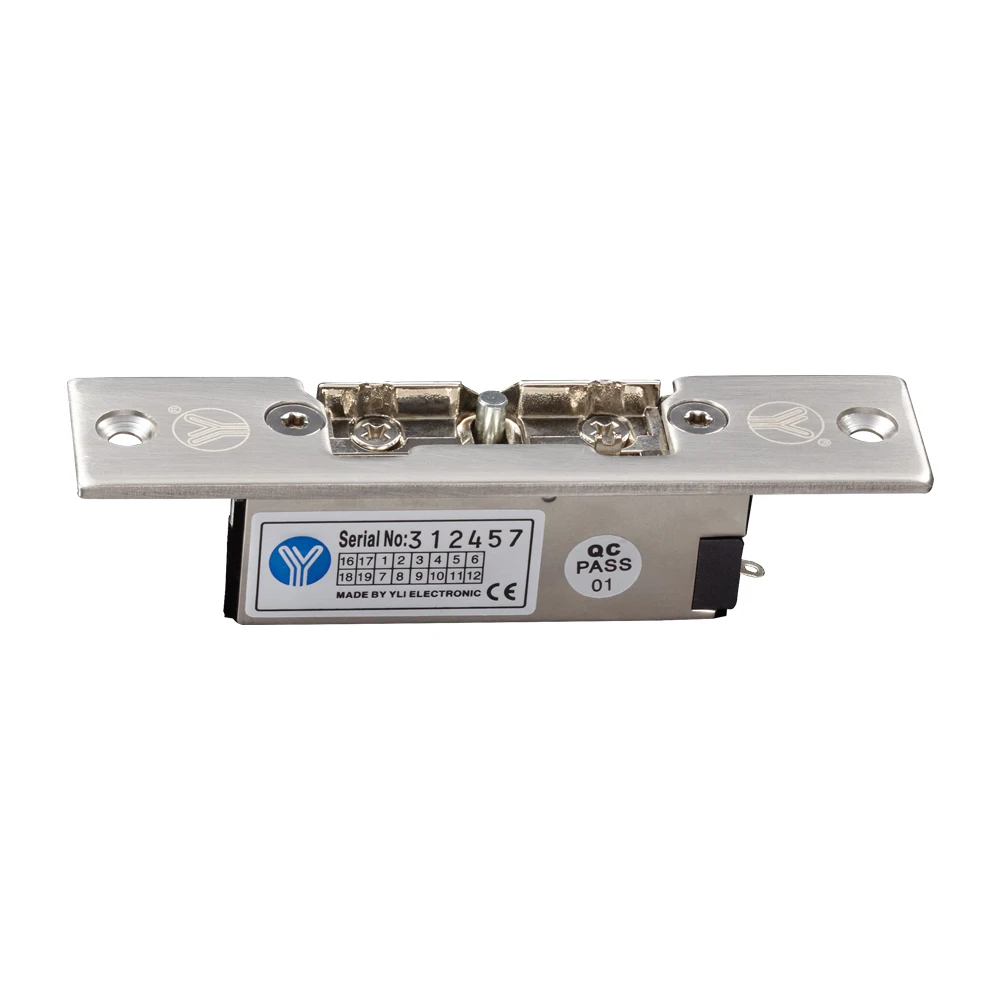

Adjustable Narrow type Electric Strike YS 134E
Adjustable Narrow-type Electric Strike YS-134E
Adjustable Narrow-type Electric Strike YS-134E
Adjustable Narrow-type Electric Strike YS-134E
Adjustable Narrow-type Electric Strike YS-134E

Adjustable Narrow type Electric Strike YS 134E

Share on (60706177591):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

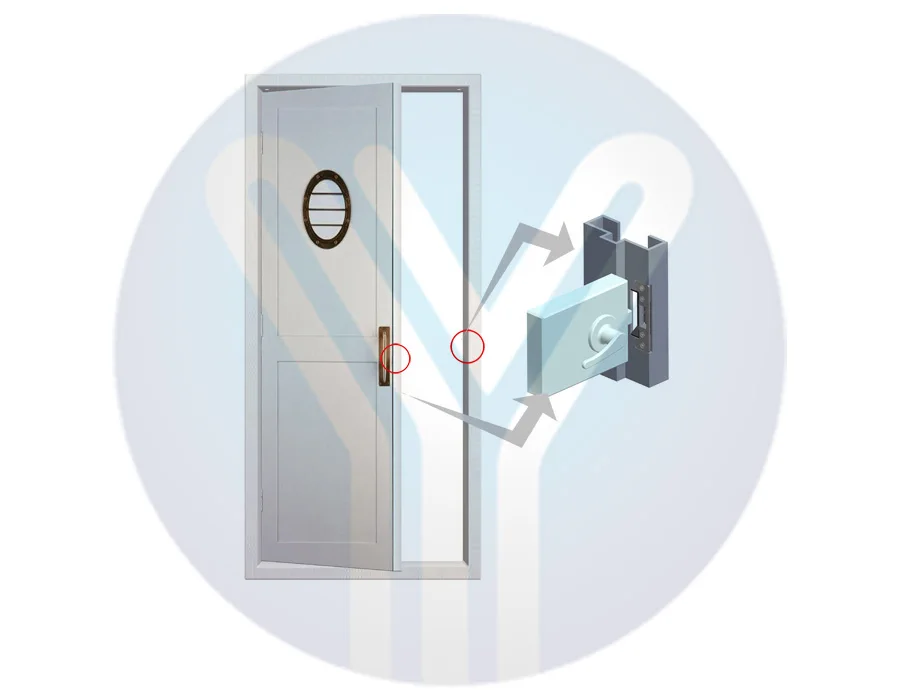

YS-134E/134BE is designed for the glass door without frame.The special design is that the spring bolt can be adjusted to be open all the time.The products of our company is variety and full-equipped.

\t

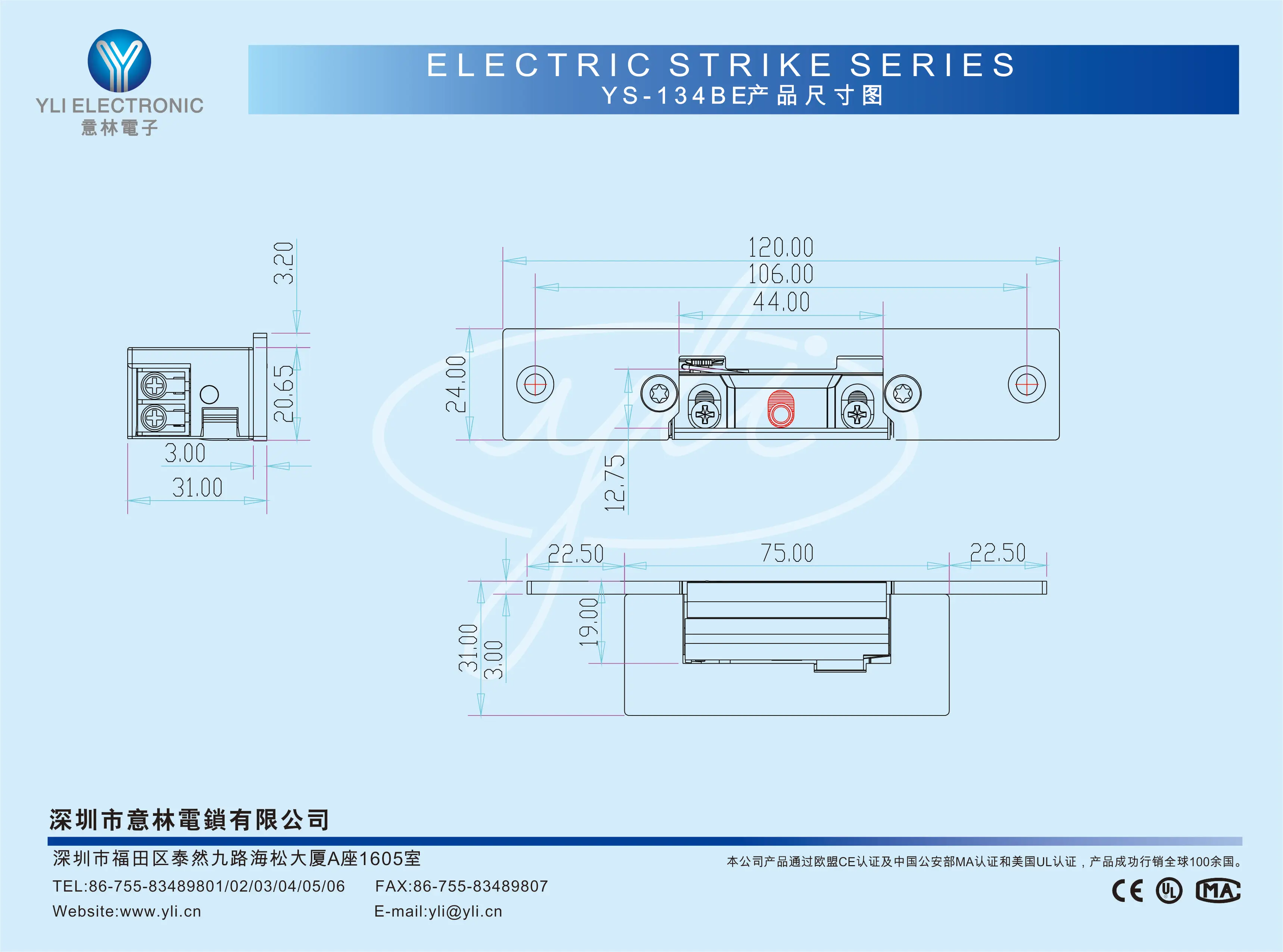

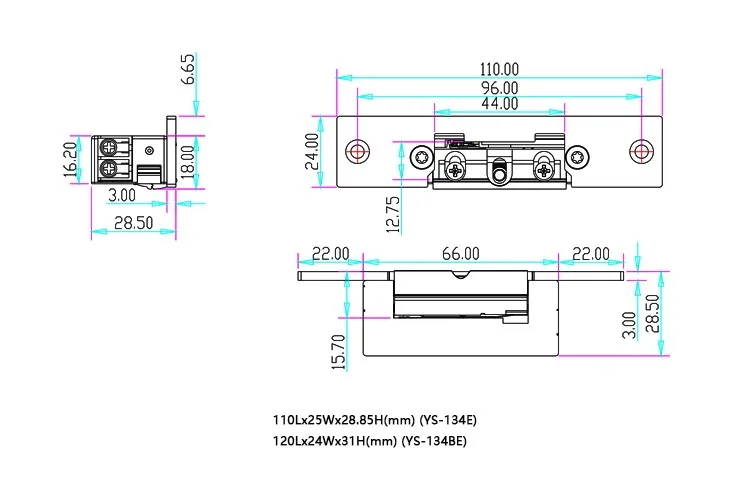

Lock Size
\t
110Lx25Wx28.85H(mm)
\t
Strike Structure
\t
Zinc die-casting
\t
Holding Stength
\t
300kg
\t

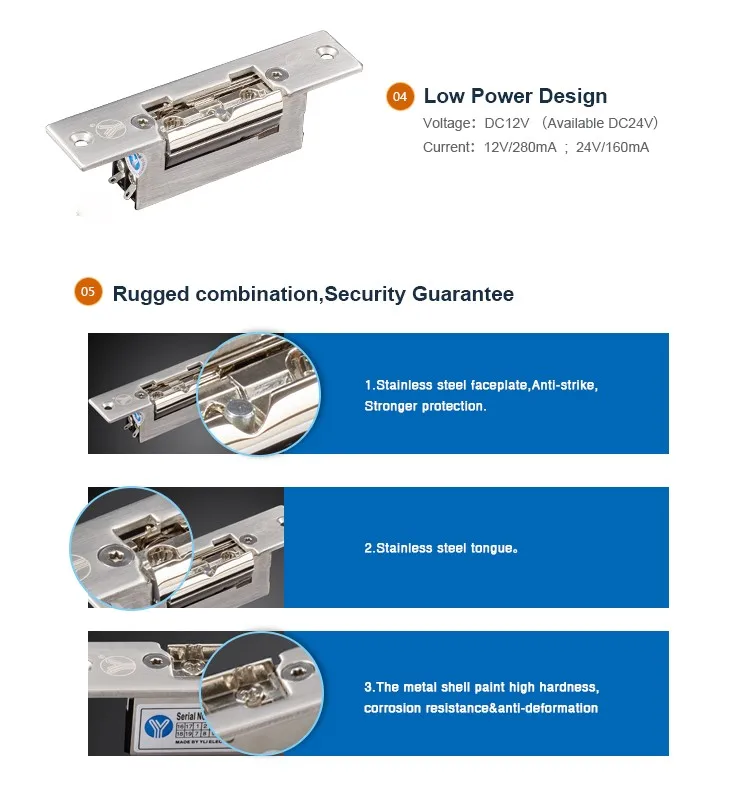

Voltage
\t
DC12V (Available DC24V)
\t
Current
\t
12V/280mA ; 24V/160mA
\t

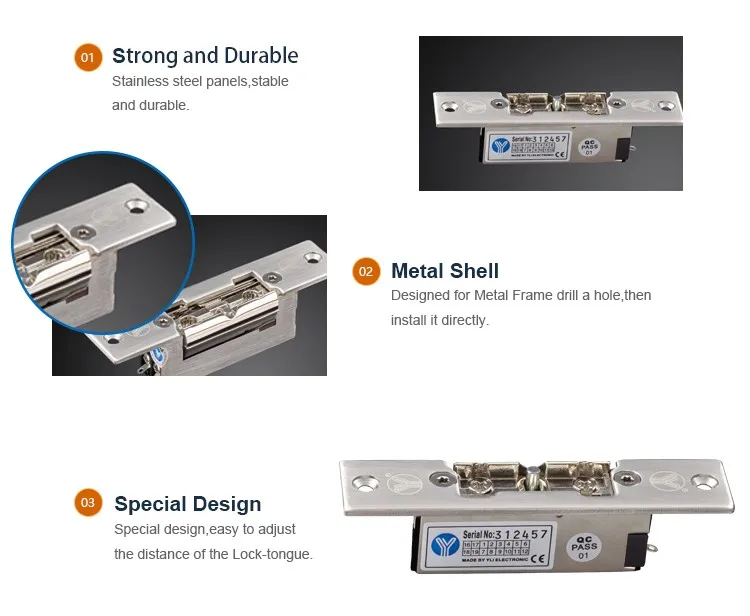

Special Design
\t
Adjust Lock-tongue to NO style
\t

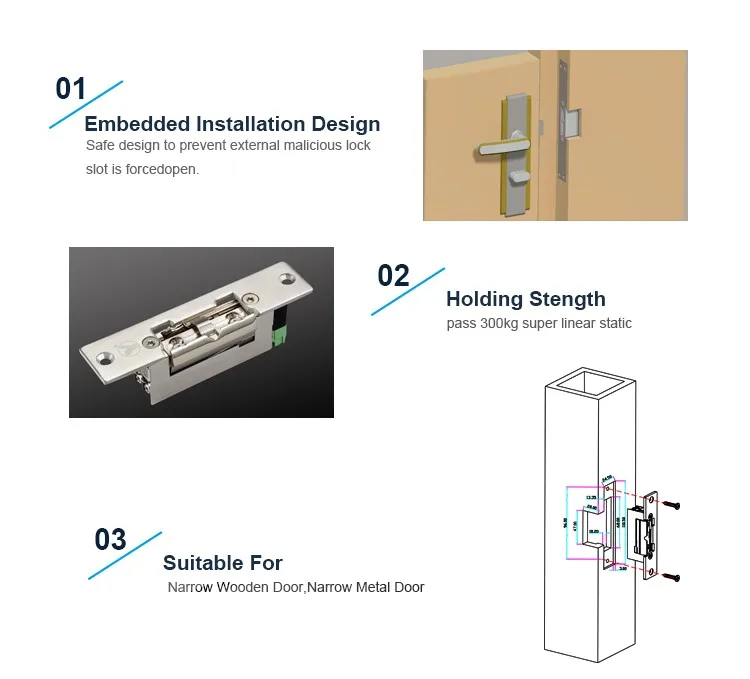

Suitable For
\t
Narrow Wooden Door,Narrow Metal Door
\t
Surface Temperature
\t
Within +20℃
\t
Suitable Temperature
\t
-10~+55℃(14-131F)
\t
Operating Humidity
\t
0~90%(non-condensing)
\t
Face plate Housing
\t
Surface by coating nickel
\t
Function
\t
Built-out MOV
\t
Fail Safe
\t
Fail Secure(NO)
\t
Optional Accessories
\t
YS-307
\t
Weight
\t
0.28kg
