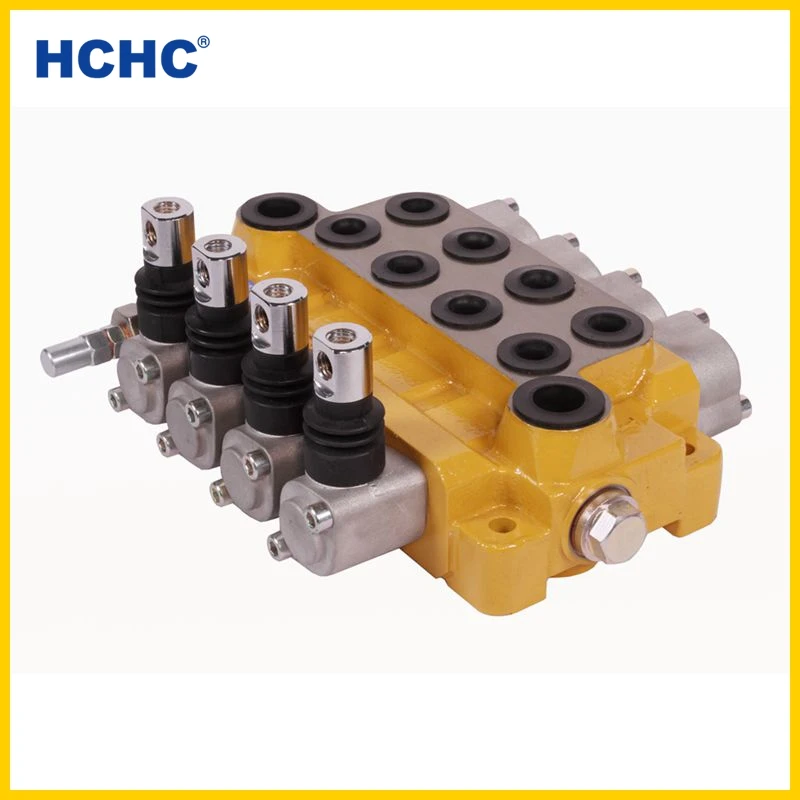

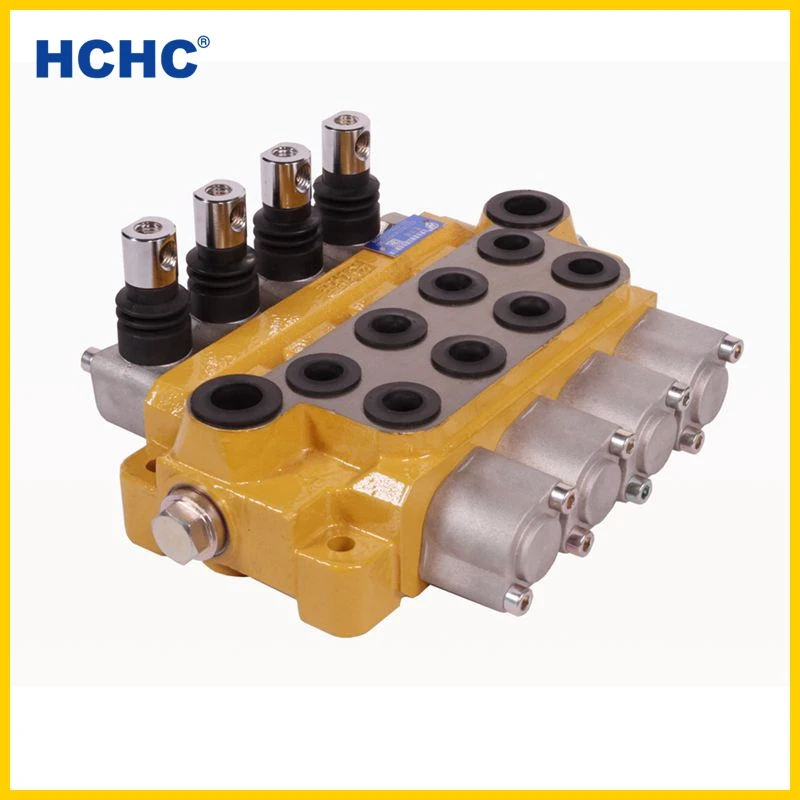

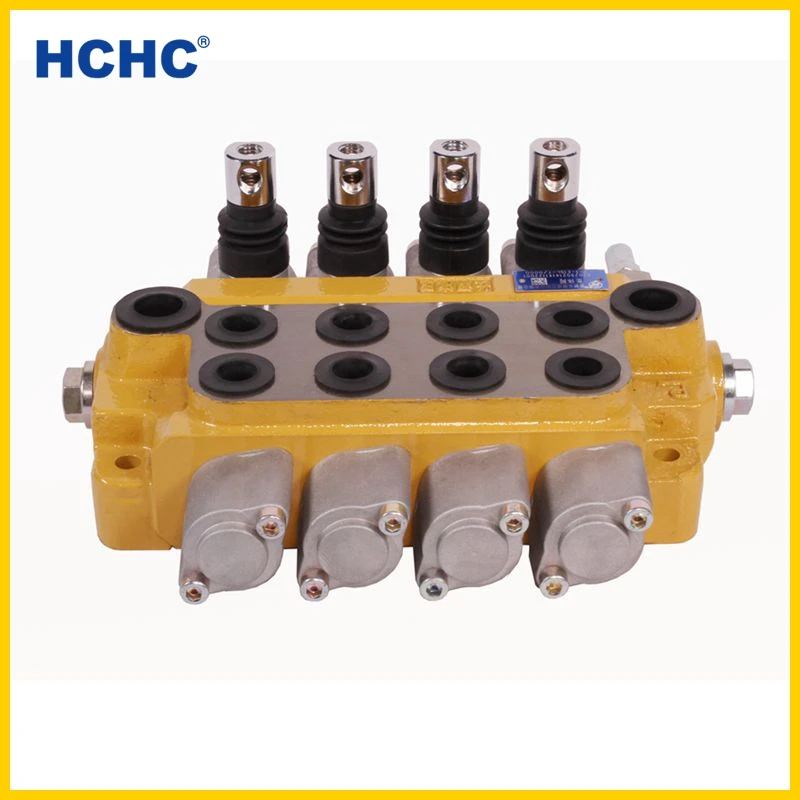

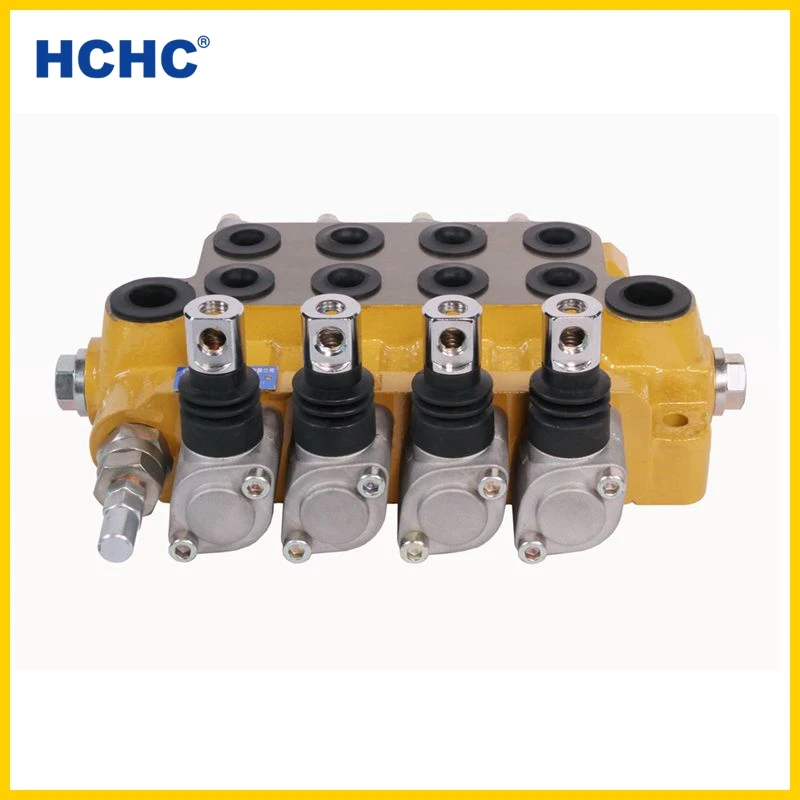

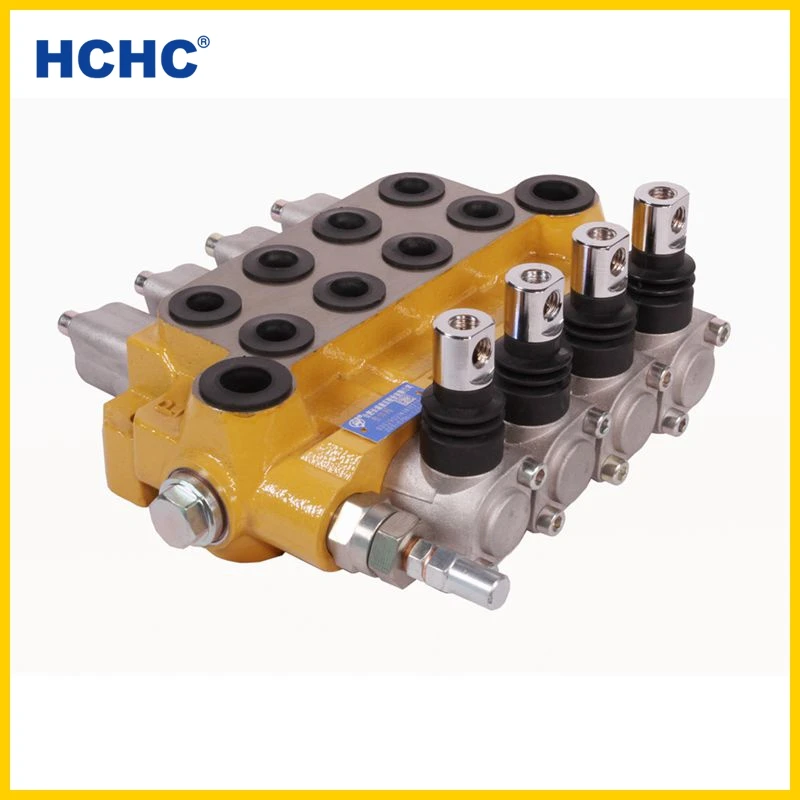

manual operated hydraulic control valve directional valve ZD5-E15L for sale
ZD5-E15L-T-YYYY multi-way valve is mainly used for construction machinery.
Product Characteristics:
★ advanced features
★ complete functions
★ compact structure
★ reliable work
★ high security
Specification
Model Code
ZD 5-E 15 L - * / * - * / *
① ② ③ ④ ⑤ ⑥ ⑦ ⑥ ⑧
① Product code
② Design code
③ Pressure grade: E=160 bar
④ Nominal size: 15mm
⑤ Joining port type: L=thread
⑥ Spool control type: T=spring, W=ball
⑦ Spool function type of block 1
⑧ Spool function type of block 2
Nominal pressure (bar) | 200 | ||||
Nominal size (mm) | 15 | ||||
Nominal flow (L/min) | 50 | ||||
Valve shaft stroke (mm) | 5.5+5.5 | ||||

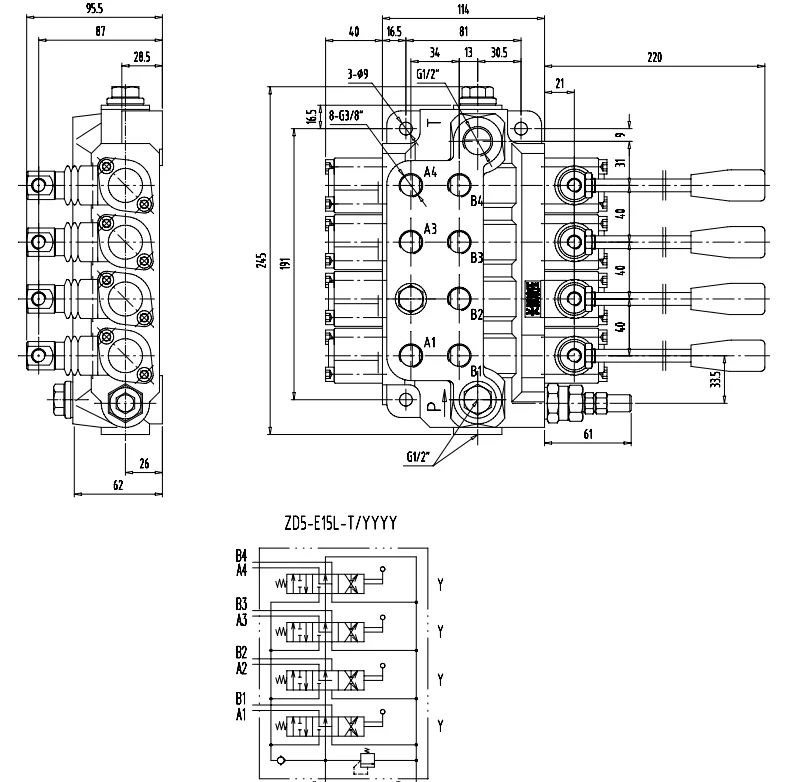

Outline Dimension
Production Process
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking and Shipping \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ & Contacts \t\t\t\t\t\t\t
