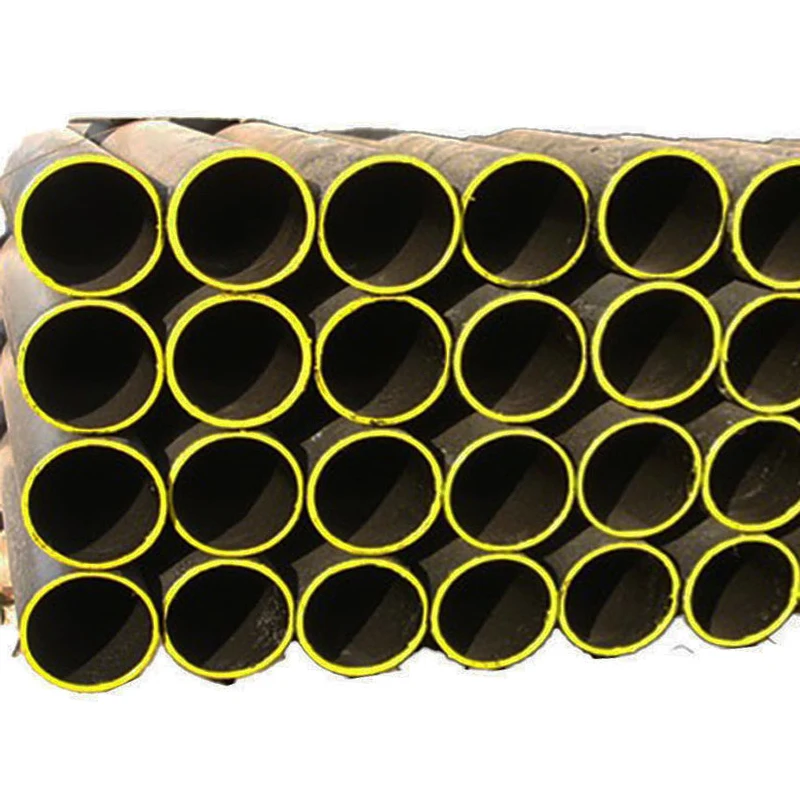

grey No Hub,hubless Cast Iron Pipe and fittings
- Category: Iron Pipes >>>
- Supplier: Dalian Metal I/E Co. Ltd.
Share on (60706321880):
Product Overview
Description
Product Description
Size Information
Standard | ASTM A888 | ||||
Origin | Hebei, China. | ||||
Brand | LINO & OEM | ||||
Material | grey cast iron | ||||
Size | 1.5''-15'' | ||||
Length/PC | 3.048M | ||||
Thickness | 1.5'': 3.3-4.0mm | 2'': 3.3-4.0mm | 3'': 3.3-4.0mm | ||
4'': 3.81-4.81mm | 5'':3.81-4.81mm | 6'': 3.81-4.83mm | |||
8'': 4.32-5.84mm | 10'': 5.59-7.44mm | 12'': 5.59-7.44mm | |||
Inside Diameter | 1.5'': 38.1+/-2.29mm | 2'': 49.8+/-2.29mm | 3'': 75.2+/-2.29mm | ||
4'':100.08+/-2.29mm | 5'': 125.48+/-2.29mm | 6'': 150.88+/-2.29mm | |||
8'': 201.68+/-3.3mm | 10'': 254+/-3.3mm | 12'': 303.28+/-2.29mm | |||
Outside Diameter | 1.5'': 48.26+/-1.52mm | 2'': 59.69+/-2.29mm | 3'': 85.09+/-2.29mm | ||
4'':109.98-113.54mm | 5'': 133.55-136.91mm | 6'': 158.75-162.31mm | |||
8'': 210.56-216.15mm | 10'': 268.22+/-2.29mm | 12'': 317.50+/-2.29mm | |||
Paint | black bitumen paint | ||||
Packing QTY | 1.5'': 82pcs/pallet | 2'':66pcs/pallet | 3'':58pcs/pallet | ||
4'': 34pcs/pallet | 5'': 20pcs/pallet | 6'': 17pcs/pallet | |||
8'': 14pcs/pallet | 10'': 8 pcs/pallet | ||||
Approval | UPC approval | ||||
MOQ | 1X40'GP | ||||
