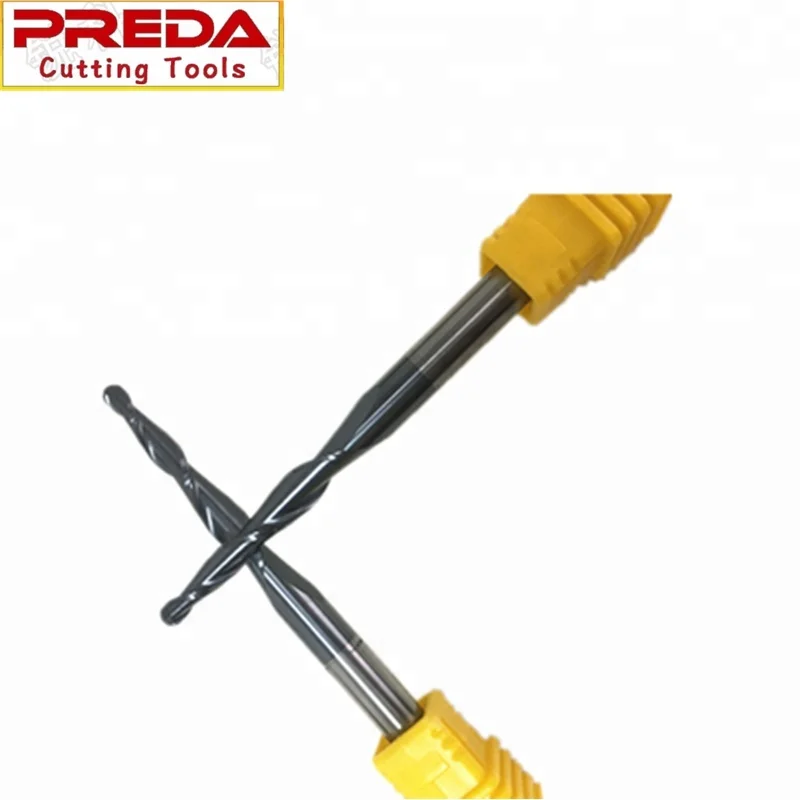

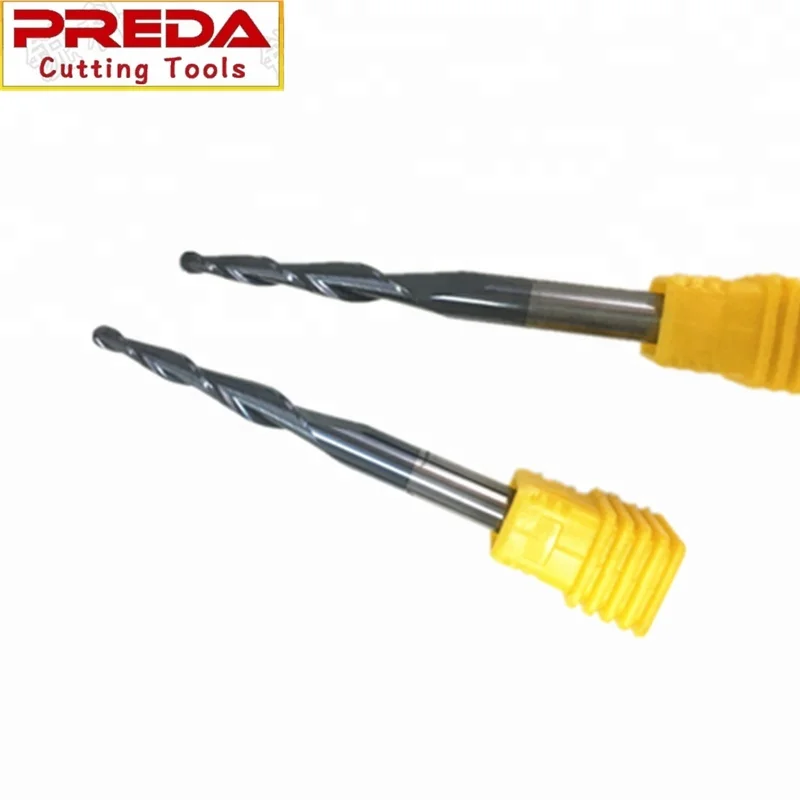

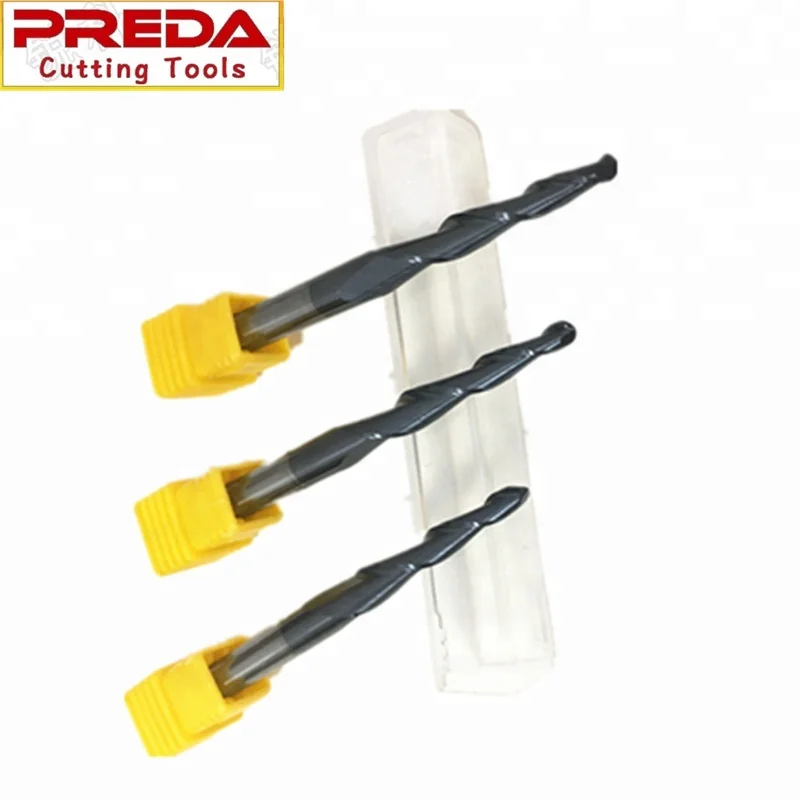

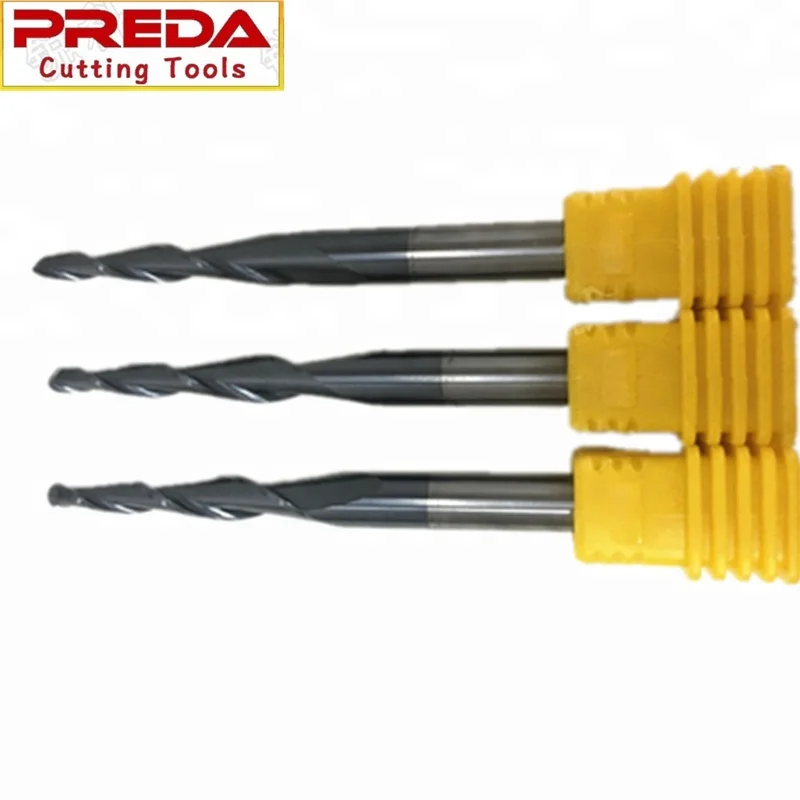

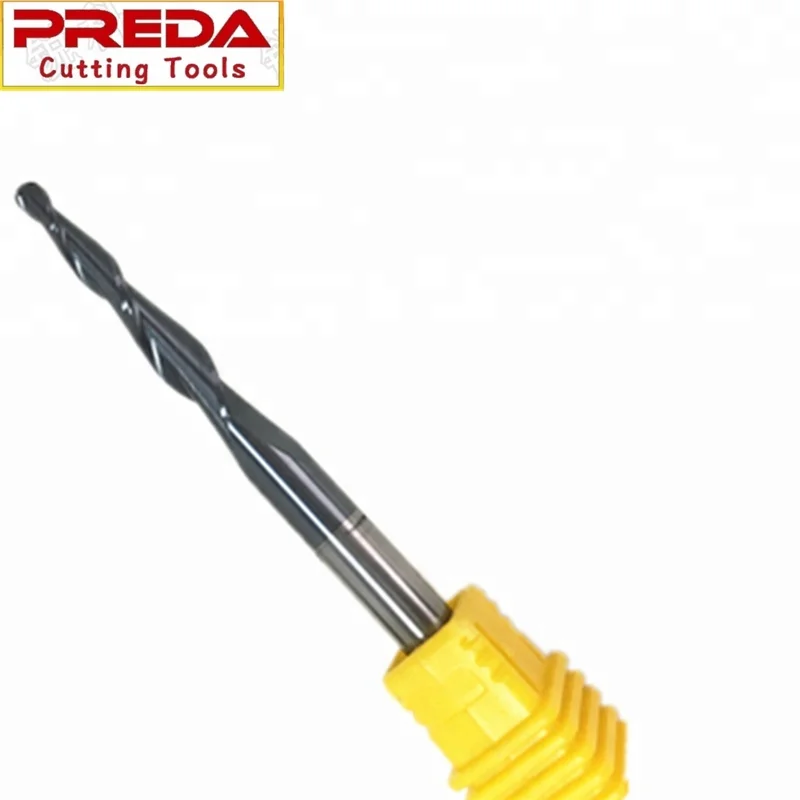

Tungsten Cutting Tools TiAlN Coating 2 Flutes Solid Carbide Taper Ball Nose End Mill for Wood
- Category: >>>
- Supplier: Changzhou Raiko Cutting Tools Co. Ltd.
Share on (60706347577):
Product Overview
Description
Product Description
1. Tungsten Cutting Tools TiAlN Coating 2 Flutes Solid Carbide Taper Ball Nose End Mill for Wood
2. HRC: 55
3. Micro Grain carbide
4. Customer drawings is acceptable
5. High quality
6: workpiece material for steel , stainless steel, aluminium and so on .
2. HRC: 55
3. Micro Grain carbide
4. Customer drawings is acceptable
5. High quality
6: workpiece material for steel , stainless steel, aluminium and so on .
Detailed Images
Excellent surface roughness thanks to Mirror Face of cutting edges.
Special flute geometry eliminates vibrations
Precise tolerance of outside diameter is applied.
Specifications
Roduct code | Flute dia | Flute length | Angle | Overall length | Shank dia |
XDD2T0505L10 | 0.5 | 10 | 0.5 | 50 | 4 |
XDD2T0510L10 | 1 | ||||
XDD2T0515L10 | 1.5 | ||||
XDD2T0520L10 | 2 | ||||
XDD2T0530L10 | 2.5 | ||||
XDD2T0540L10 | 3 | ||||
XDD2T0550L10 | 5 | ||||
XDD2T0570L10 | 7 | ||||
XDD2T05100L10 | 10 | 6 | |||
XDD2T07505L10 | 0.8 | 10 | 0.5 | 4 | |
XDD2T07510L10 | 1 | ||||
XDD2T07515L10 | 1.5 | ||||
XDD2T07520L10 | 2 | ||||
XDD2T07530L10 | 2.5 | ||||
XDD2T07540L10 | 3 | ||||
XDD2T07550L10 | 5 | ||||
XDD2T07570L10 | 7 | ||||
XDD2T075100L10 | 10 | 6 | |||
XDD2T1005L13 | 1 | 13 | 0.5 | 4 | |
XDD2T1010L13 | 1 | ||||
XDD2T1015L13 | 1.5 | ||||
XDD2T1020L13 | 2 | ||||
XDD2T1030L13 | 2.5 | ||||
XDD2T1040L13 | 3 | ||||
XDD2T1050L13 | 5 | 6 | |||
XDD2T1070L13 | 7 | ||||
XDD2T10130L13 | 10 | 8 | |||
XDD2T12505L15 | 1.25 | 15 | 0.5 | 4 | |
XDD2T12510L15 | 1 | ||||
XDD2T12515L15 | 1.5 | ||||
XDD2T12520L15 | 2 | ||||
XDD2T12530L15 | 2.5 | ||||
XDD2T12540L15 | 3 | 6 | |||
XDD2T12550L15 | 5 | ||||
XDD2T12570L15 | 7 | ||||
XDD2T125150L15 | 10 | 60 | 8 | ||
XDD2T1505L20 | 1.5 | 20 | 0.5 | 50 | 4 |
XDD2T1510L20 | 1 | ||||
XDD2T1515L20 | 1.5 | ||||
XDD2T1520L20 | 2 | 6 | |||
XDD2T1530L20 | 2.5 | ||||
XDD2T1540L20 | 3 | ||||
XDD2T1550L20 | 5 | 60 | 8 | ||
XDD2T1570L20 | 7 | ||||
XDD2T15200L20 | 10 | 75 | 10 |
