Factory supply stamping pellet and briquette making machine 1t/h

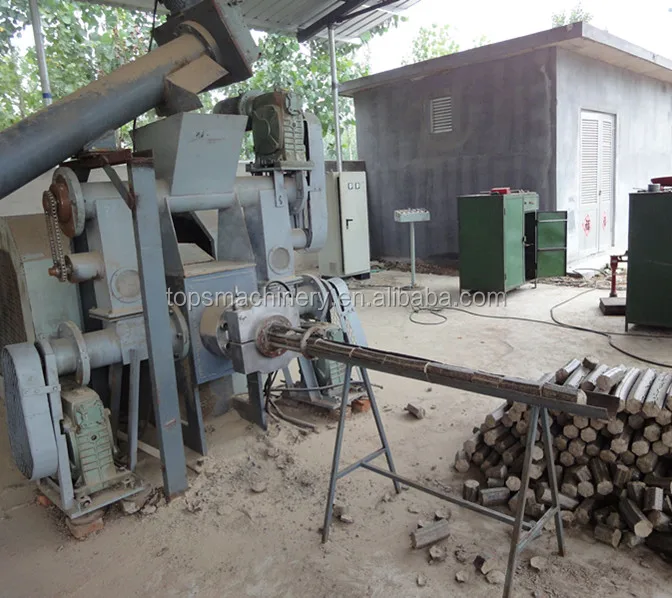

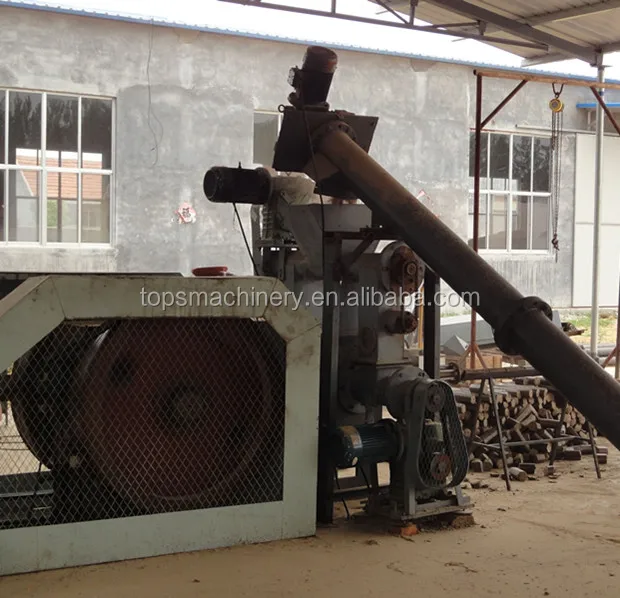

It is a die and ram type mechanical press with two flywheels. Each flywheel is driven by belts with motors. Material is continuously fed through a hopper by belt conveyor with its own gearbox and a motor. From feeding chamber, raw material is compressed by ram through taper bore die. Briquettes comes out from cooling track. Total process is continuous and controlled by electric panel. Briquetting press is used for producing high density fuel briquettes

Specification of the stamping pellet and briquette making machine

Model	TOPS45	TOPS75
Main power	45kw	75kw
Total power	61.1kw	91.1kw
Pellet capacity	0.8-1.2 t/h	1.5-1.8 t/h
Briquette capacity	1.2-1.5 t/h	1.8-2.5 t/h
Mold hole diameter	8-75mm	8-110mm
Water tank volume	≥2m³	≥3m³
Weight	7 t	9.5 t
Size	200*180*150cm	300*220*200cm

Advantages of machine

 I. The main body was designed according to the car engine's working principle, reciprocating stamping, water-cooled circulation which covering the machine, so that sustainable 24 hours of uninterrupted working in a day.
II. Multifunctional. The one machine can achieve two machine's function, it can make both pellets and briquettes.
III. Low consumption, high capacity. Low malfunction rate and easy operate.

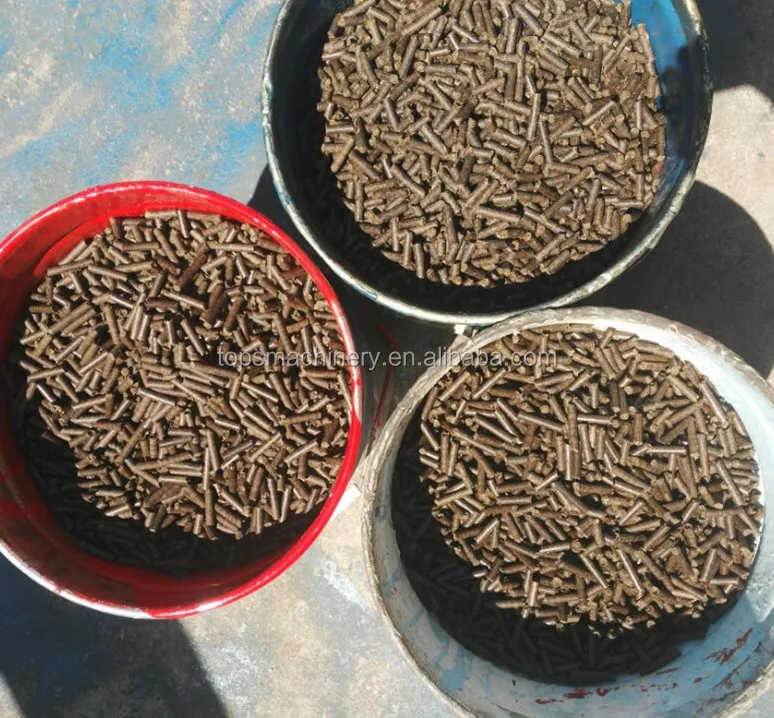

Main Features of pellet&briquette

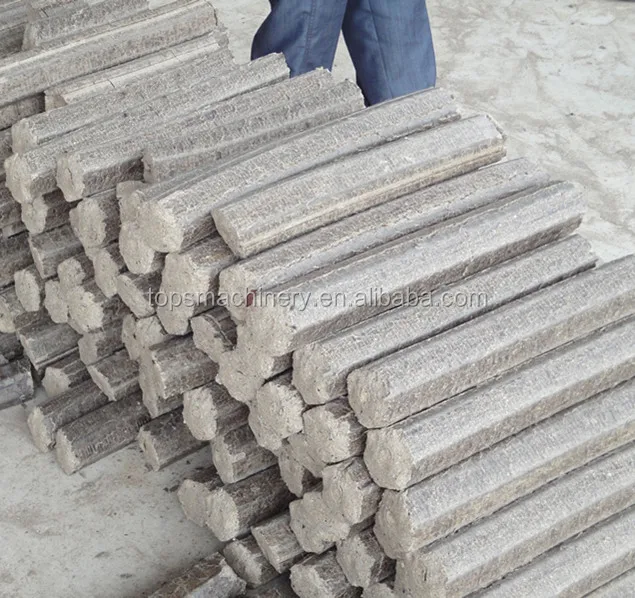

1. Density of briquette :1-1.3g/cubic centimeters
2. Heating value :3700-5000kcal
3. Sulfur dioxide emissions: 0.38%
4. Carbon dioxide emissions: 0.22%
5. Ash content 3.6%, and the ash could be recycled as agricultural potash,which can realizes green recycling.

Certifications

Detailed Images

Machine Parts

Name: Mold

Brand: TOPS

Original: Shandong, China

Smaller mold hole diameter between 8-21mm.

Main Features

Name: Mold
Brand: TOPS
Original: Shandong, China
This is bigger diameter mold which diameter for 70-75mm.

Our Service

1. The TM is avaliable for 12 hours in a day and will reply you within 12 hours if you have any inquiry about our products.
2. We provide 1 year guarantee.
3. We provide english manual and video for installation and operation.
4. Our technicians is available to serve abroad.

Packing & Delivery

Packaging
Size	200 (L) * 180 (W) * 150 (D)
Weight	7.5 T
Packaging Details	The normal package is plywood box, it can export directly, no need fumigate.
