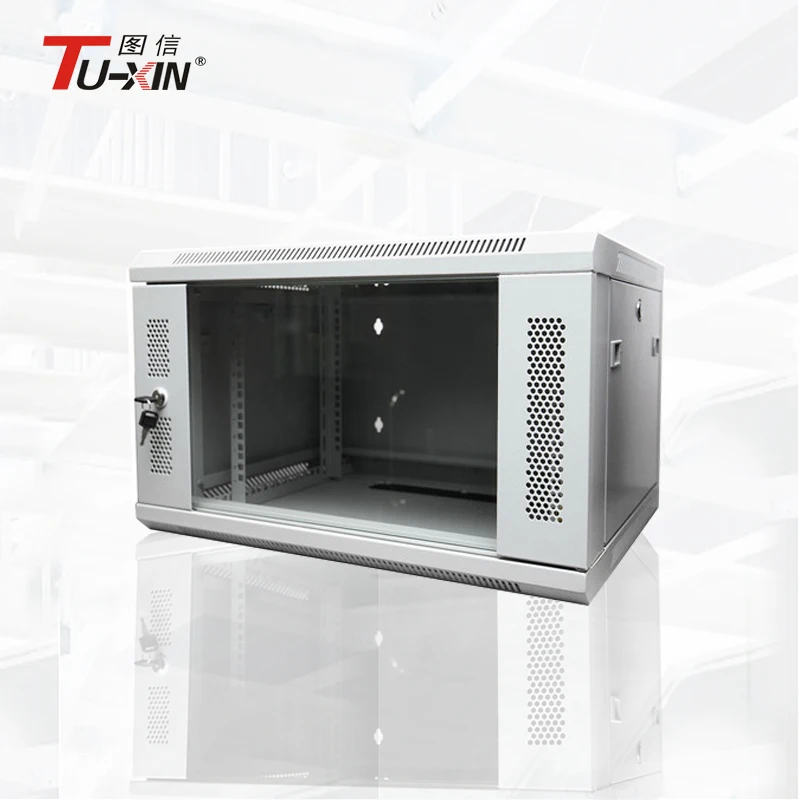

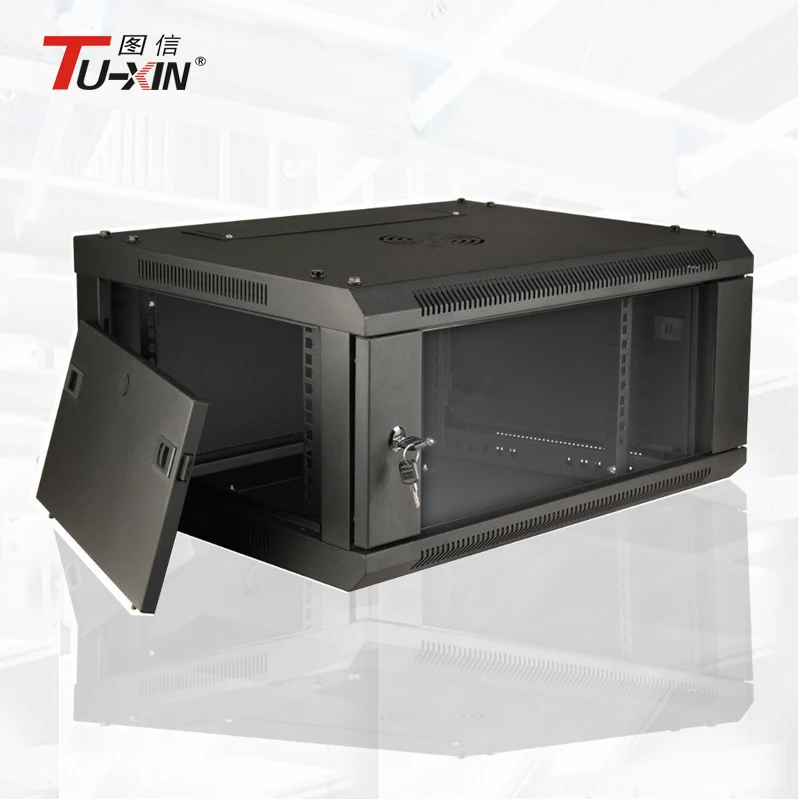

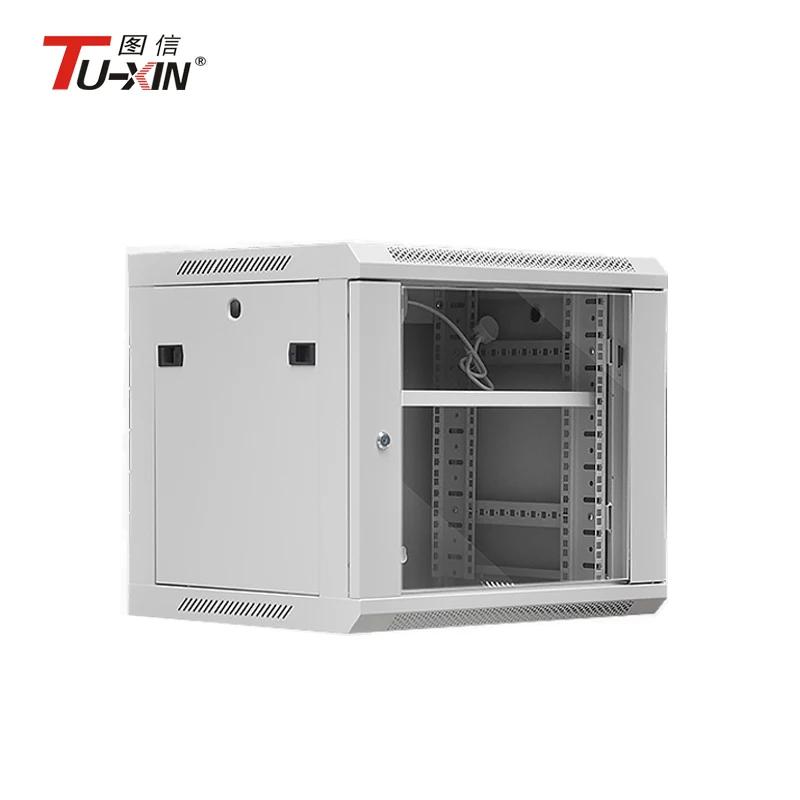

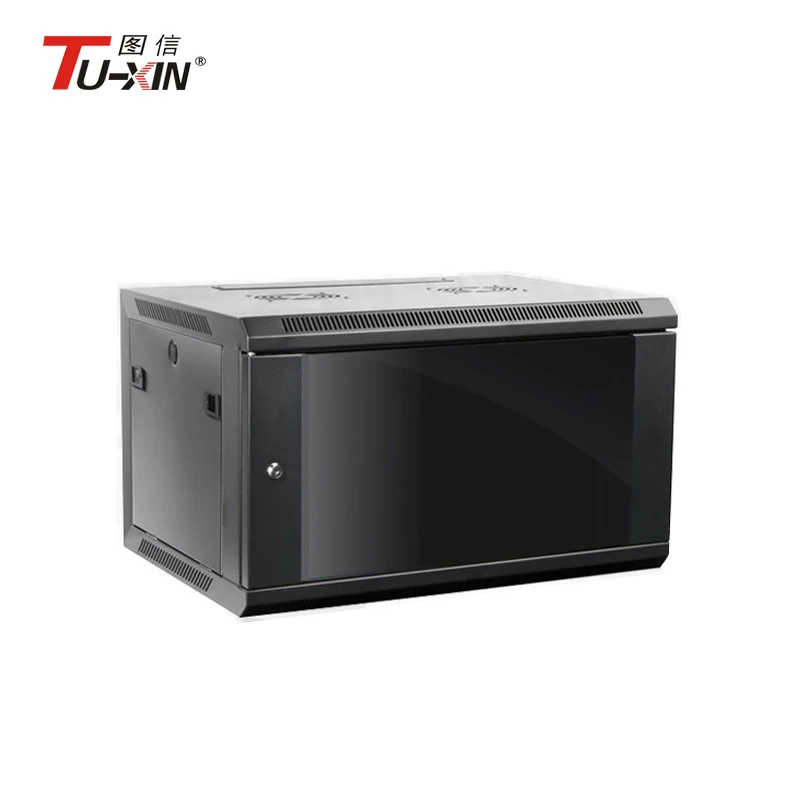

6u rack size 600*600 wall mount cabinet 19 inch 6u server rack cabinet

Product Overview

Description

6u rack size 600*600 wall mount cabinet 19 inch 6u server rack cabinet

Brand:	TUXIN	Column spacing:	465mm (19 inch)
No:	TX-WF-6606	Material:	SPCC cold rolled steel
Size:	600mm*600mm*6U	Function:	Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test:	Pass ISO9001:2008 Qualtiy System	Thickness:	Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment:	Degreasing,pickling,phosphating,power coating,etc.	Configuration:	Cage nuts and M6 screws: 10 sets.
Standard:	Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PARTI,DIN41494;PART7,GB/T3047.2-92 standard; compatible with ETSI standard.	Device Installation:	It is recommended to install network equipment/server device within 350 mm depth.





Order Codes	Capacity	W*D*H(mm)
TX-WF-6404	4	600*450*220
TX-WF-6406	6	600*450*358
TX-WF-6606	6	600*600*358
TX-WF-6409	9	600*450*492
TX-WF-6612	12	600*600*625
TX-WF-6415	15	600*450*730
TX-WF-6418	18	600*450*820
TX-WF-6422	22	600*450*960
TX-WF-6427	27	600*450*1280
