Rotary punching machine
US $55900
Press Making Machine Of Stainless Steel/steel Cabinet Door Hinge / Flag Welding Hinge
- Category: Punching Machines >>>
- Supplier: Anhui Lifu Machinery Technology Co. Ltd.
Share on (60706474234):
Product Overview
Description
J23 series open press is a sheet metal Universal presses for shearing, punching, blanking, bending and shallow drawing work. Usually used for ( communications, computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming).

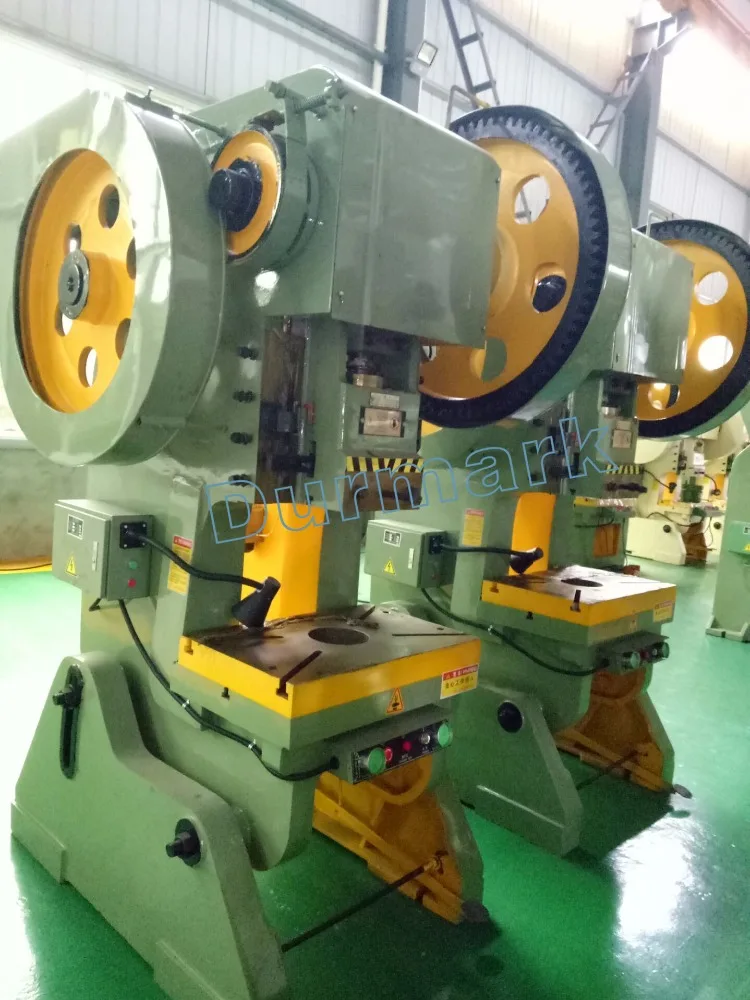

J23 SERIES POWER PRESS
Video on YouTube
https://www.youtube.com/watch?v=1e7vlanOuFo
NO | NAME | J23-80T |
1 | Nominal force(KN) | 800 |
2 | Nominal force stroke(mm) | 5 |
3 | Slider stroke(mm) | 115 |
4 | Slider stroke times(time\\min) | 45 |
5 | Maximum height for die loading | 410 |
6 | Adjustment range for die loading height | 60 |
7 | Distance between slider center line and the fuselage | 280 |

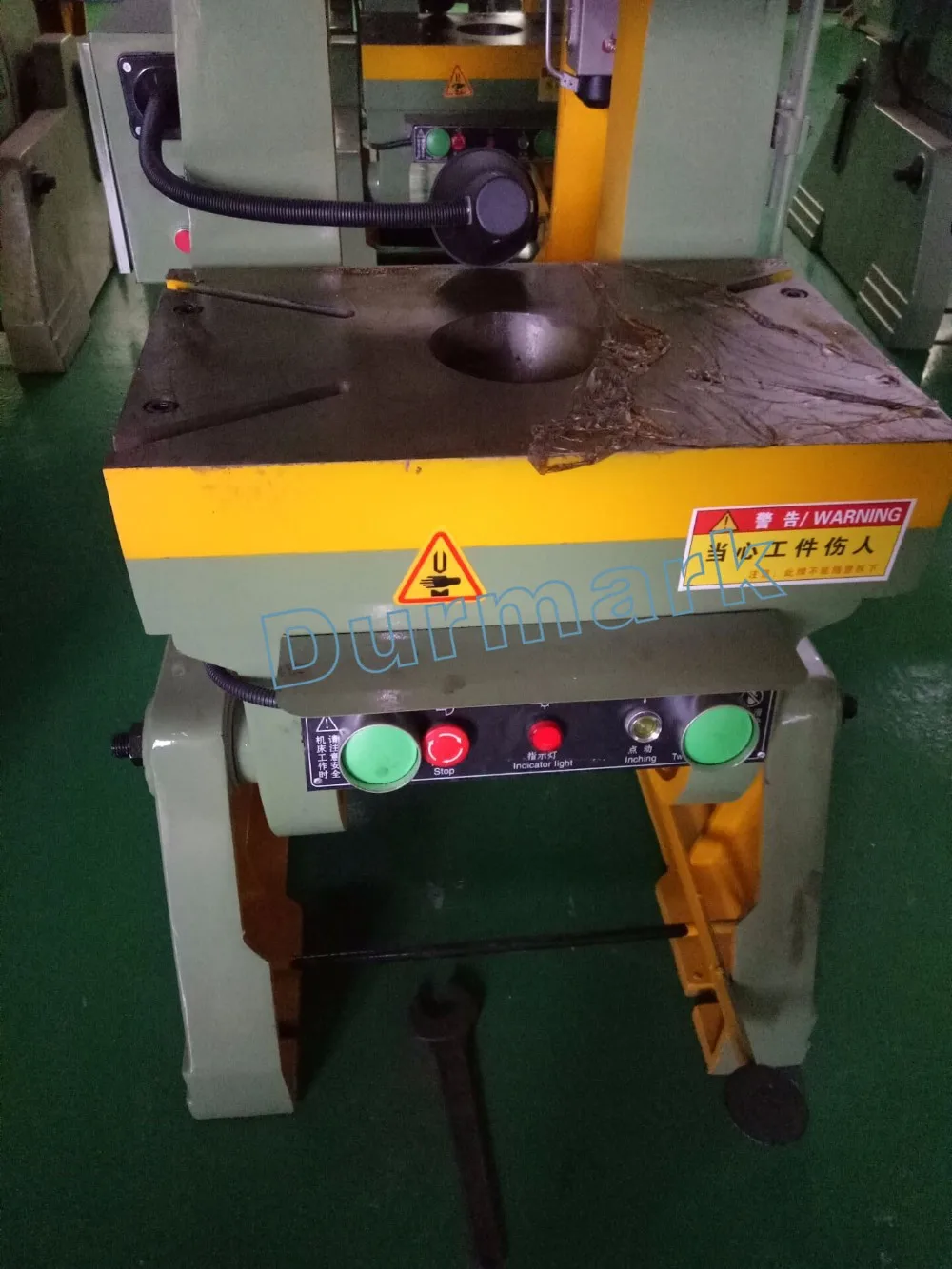

8 | Worktable size | 500x750 |
9 | Work table blanking hole size | D200x250x375 |
10 | Slider bottom size | 250x300 |
11 | Shank hole size | D60xDepth100 |
12 | Distance between columns(mm) | 360 |
13 | Bolster thickness(mm) | 90 |
14 | Tilting degree(degree) | 20 |
15 | Motor(kw) | 7.5 |
Main Features
1. With foundry structure for better vibration resistance.
2. Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.

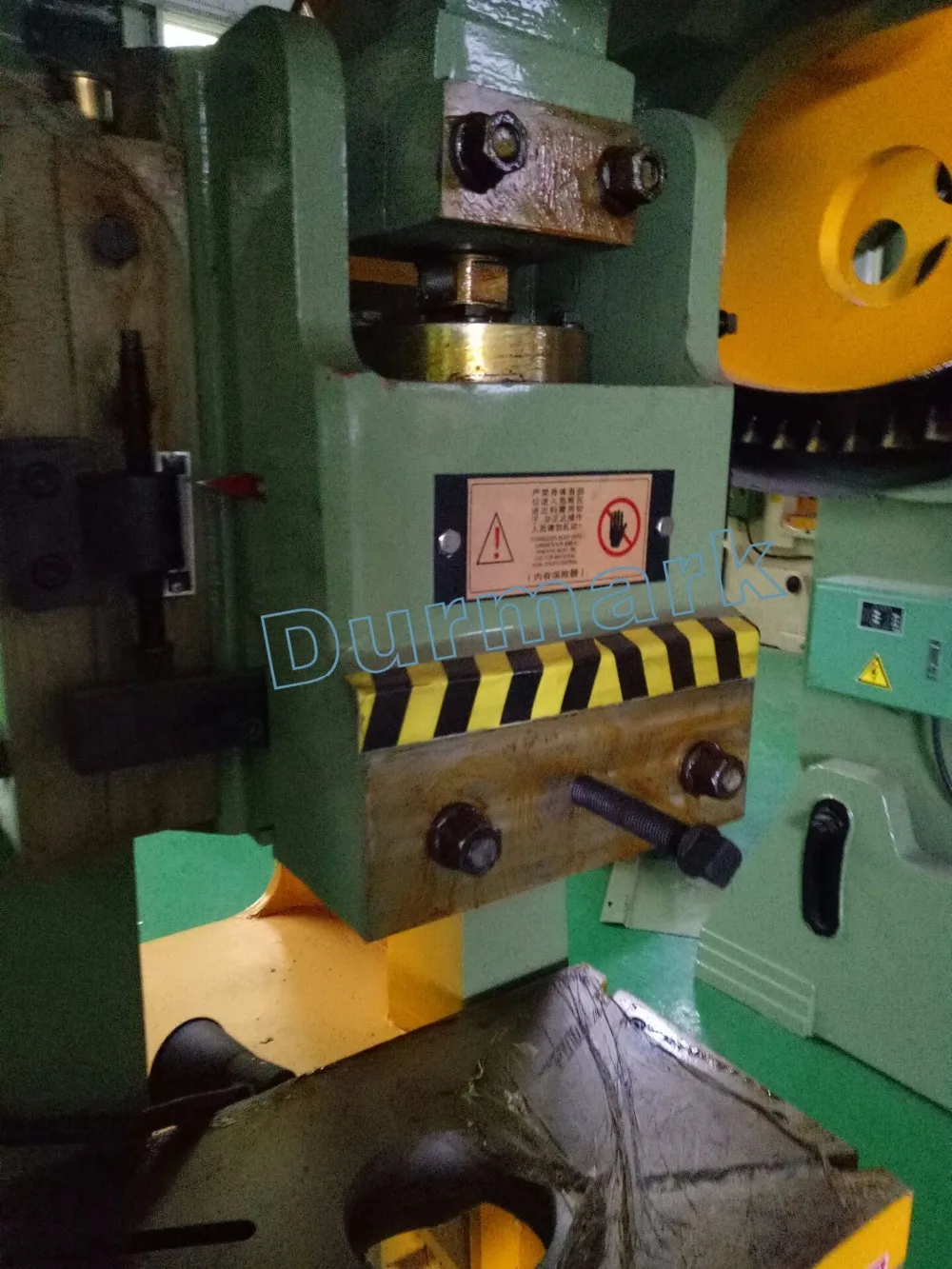

3. The good rigidity of Casting box structure slider
4. Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage
5. Four elongated triangular rail, easy for adjustment.

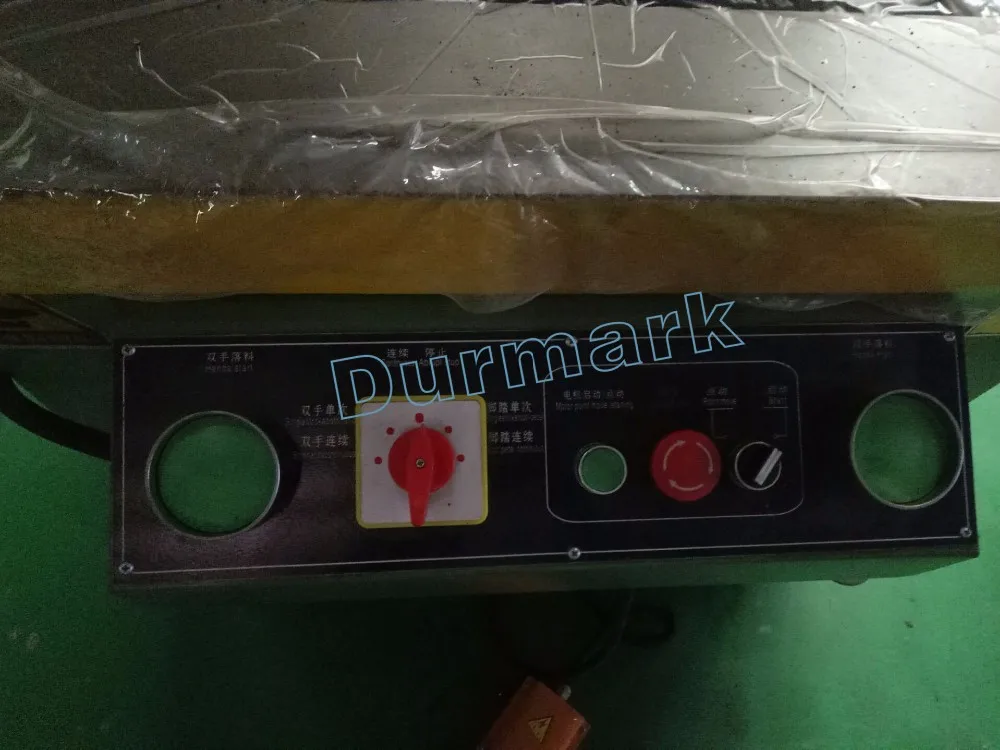

6. Adopts hands and foot switch operation buttons design, it's easy to activate continuous, single and adjustment practices.
7. Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.

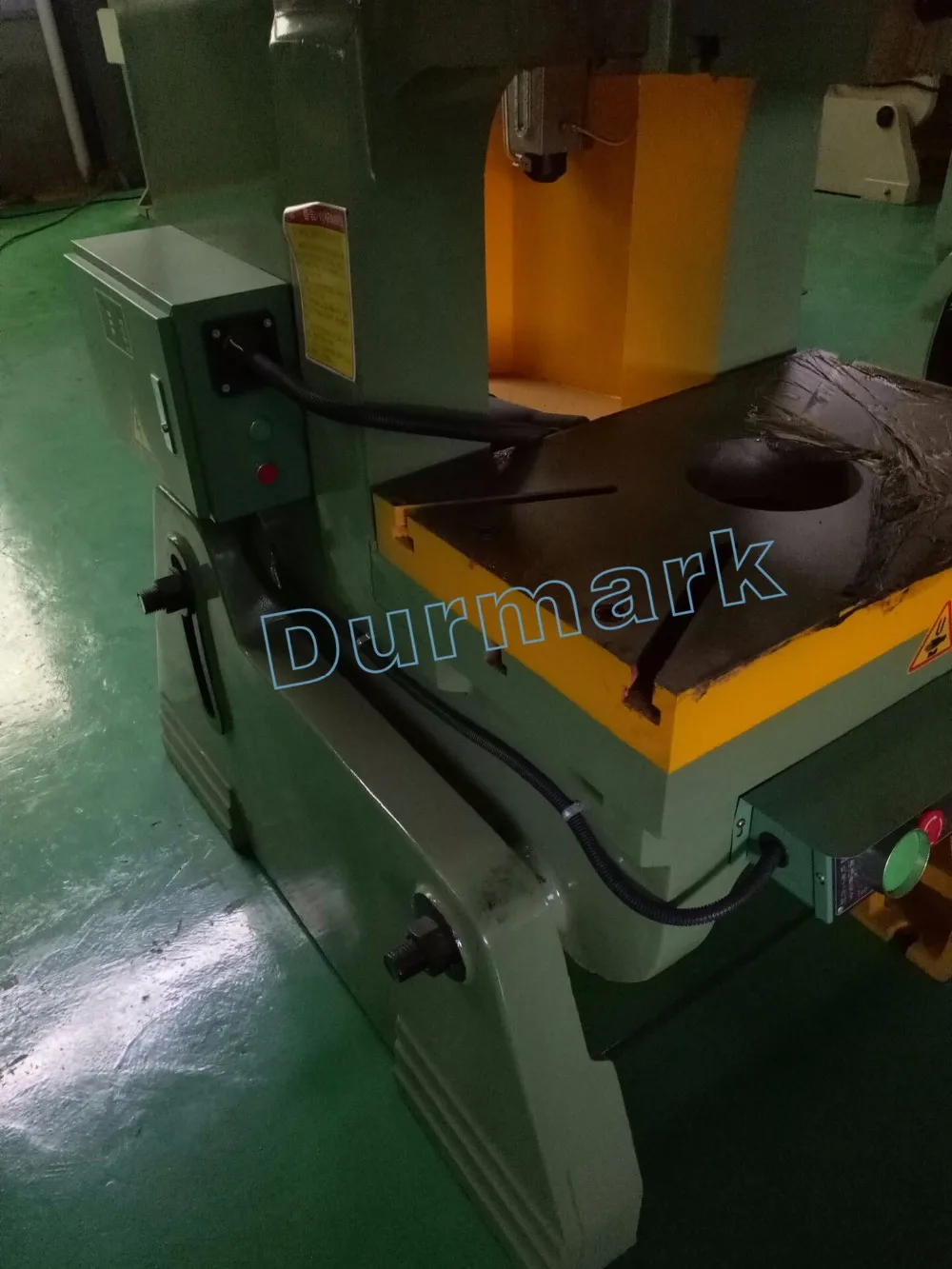

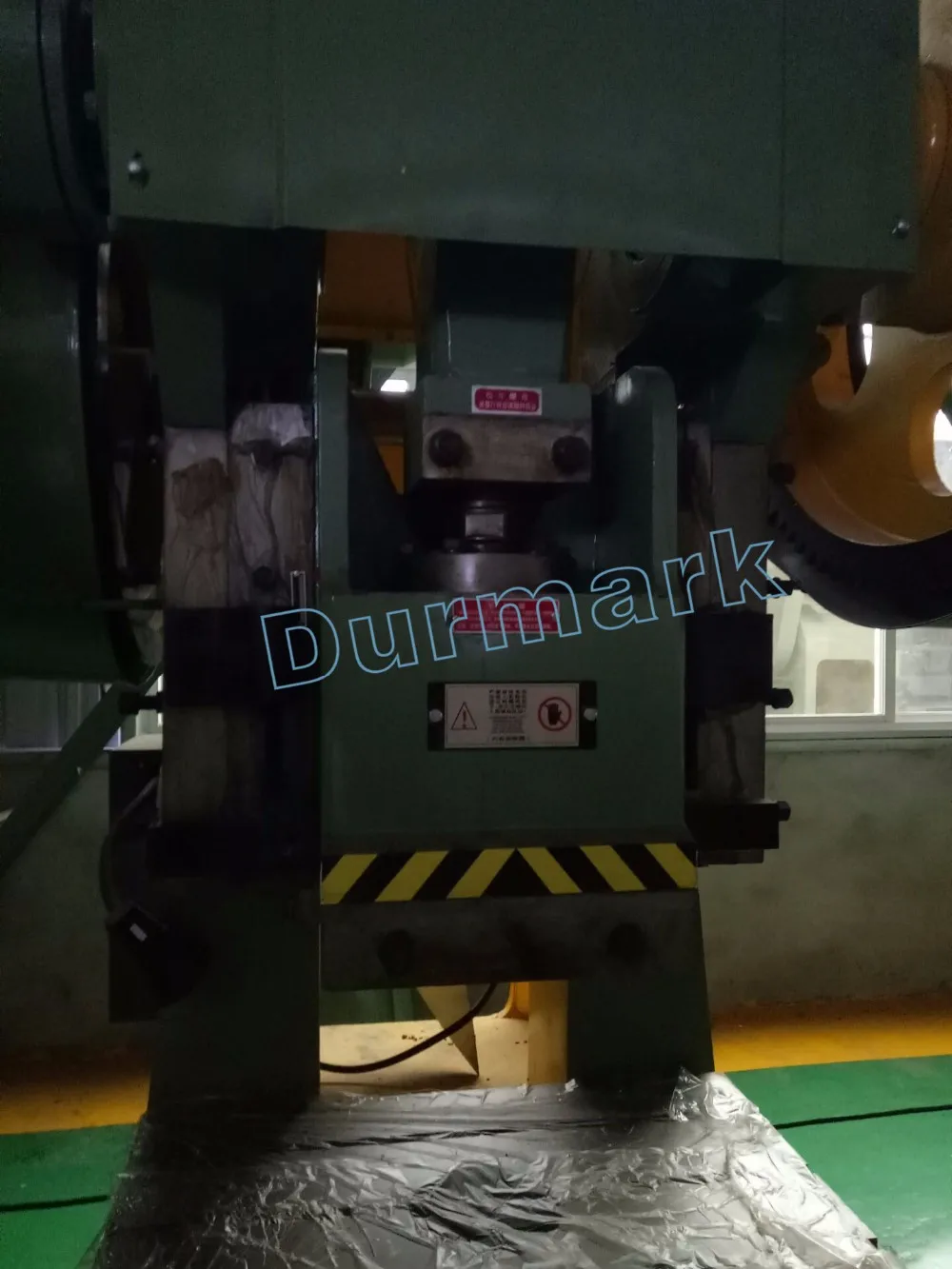

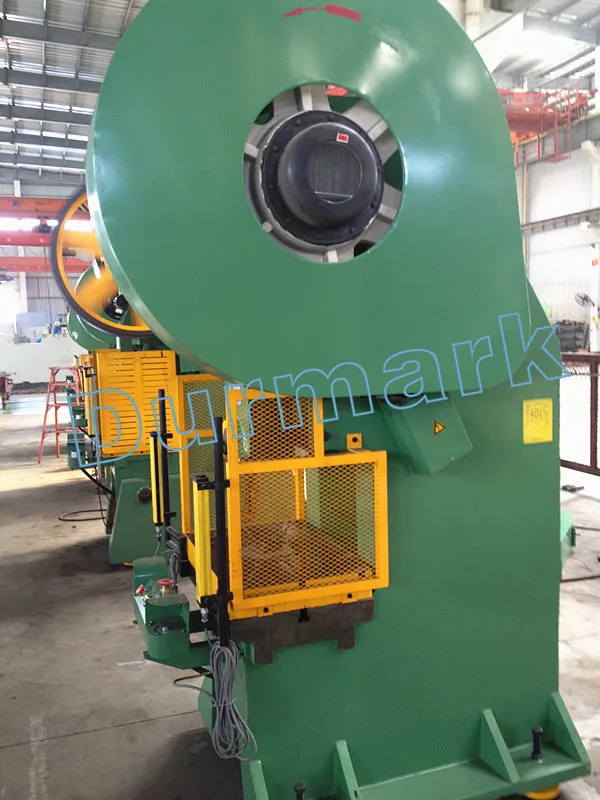

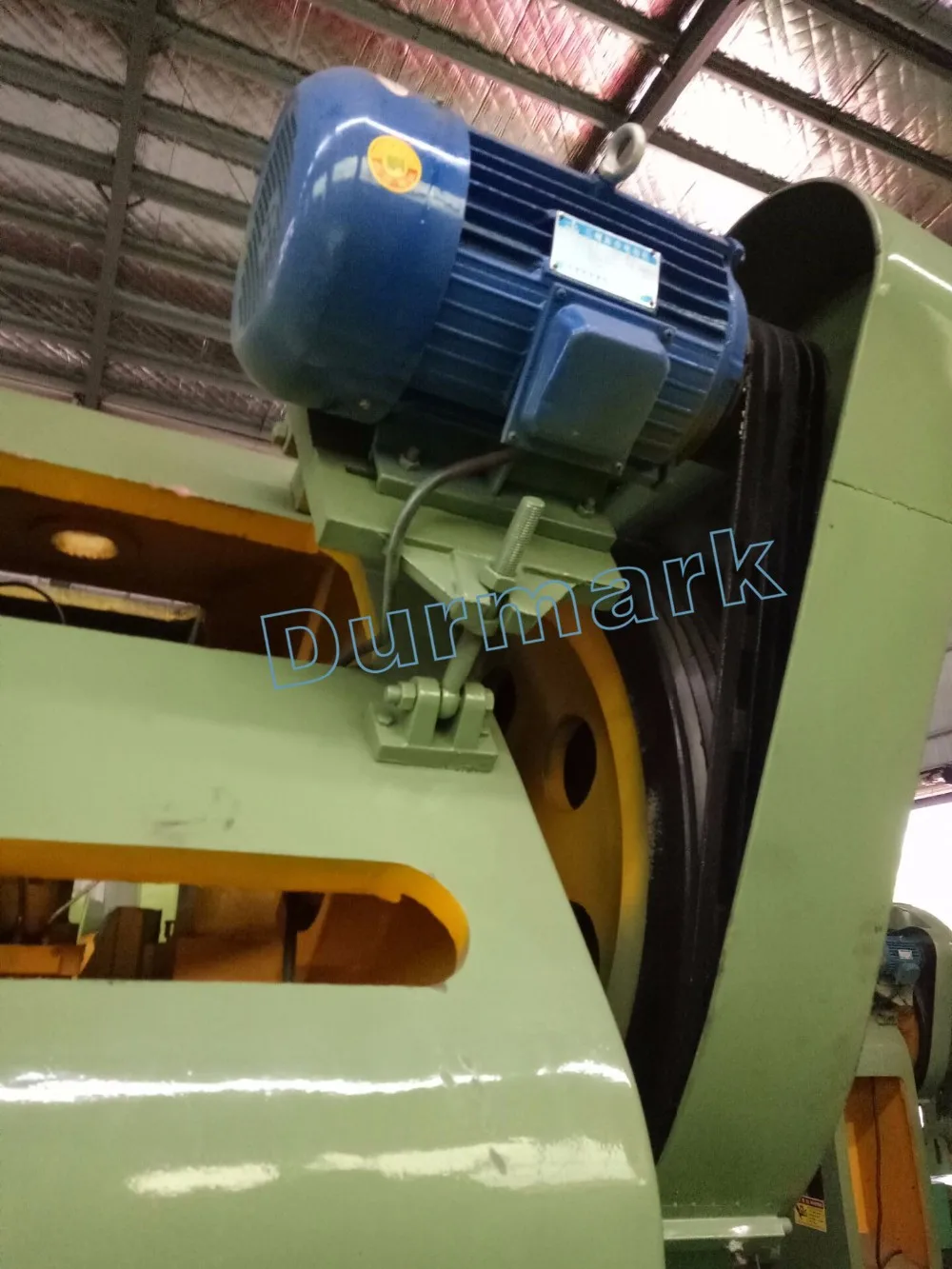

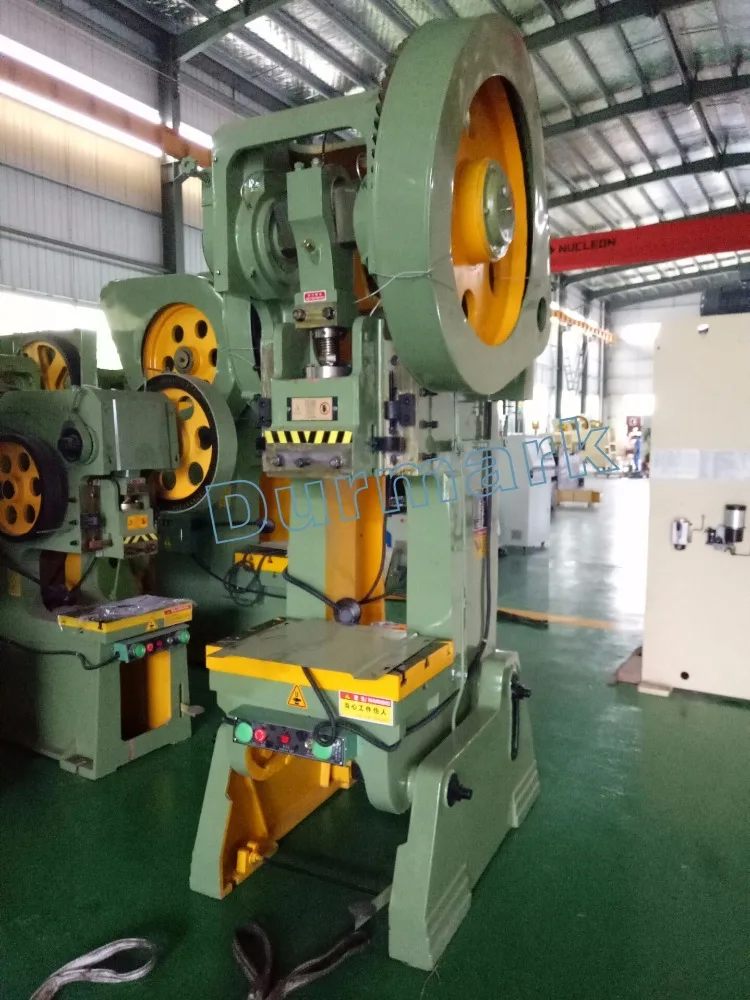

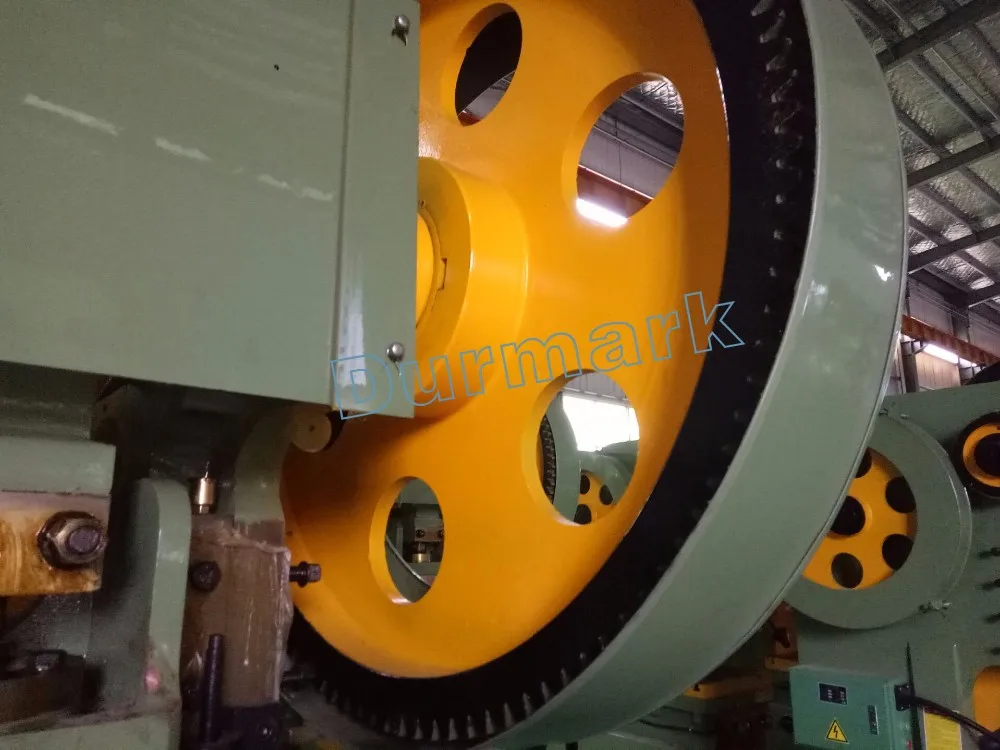

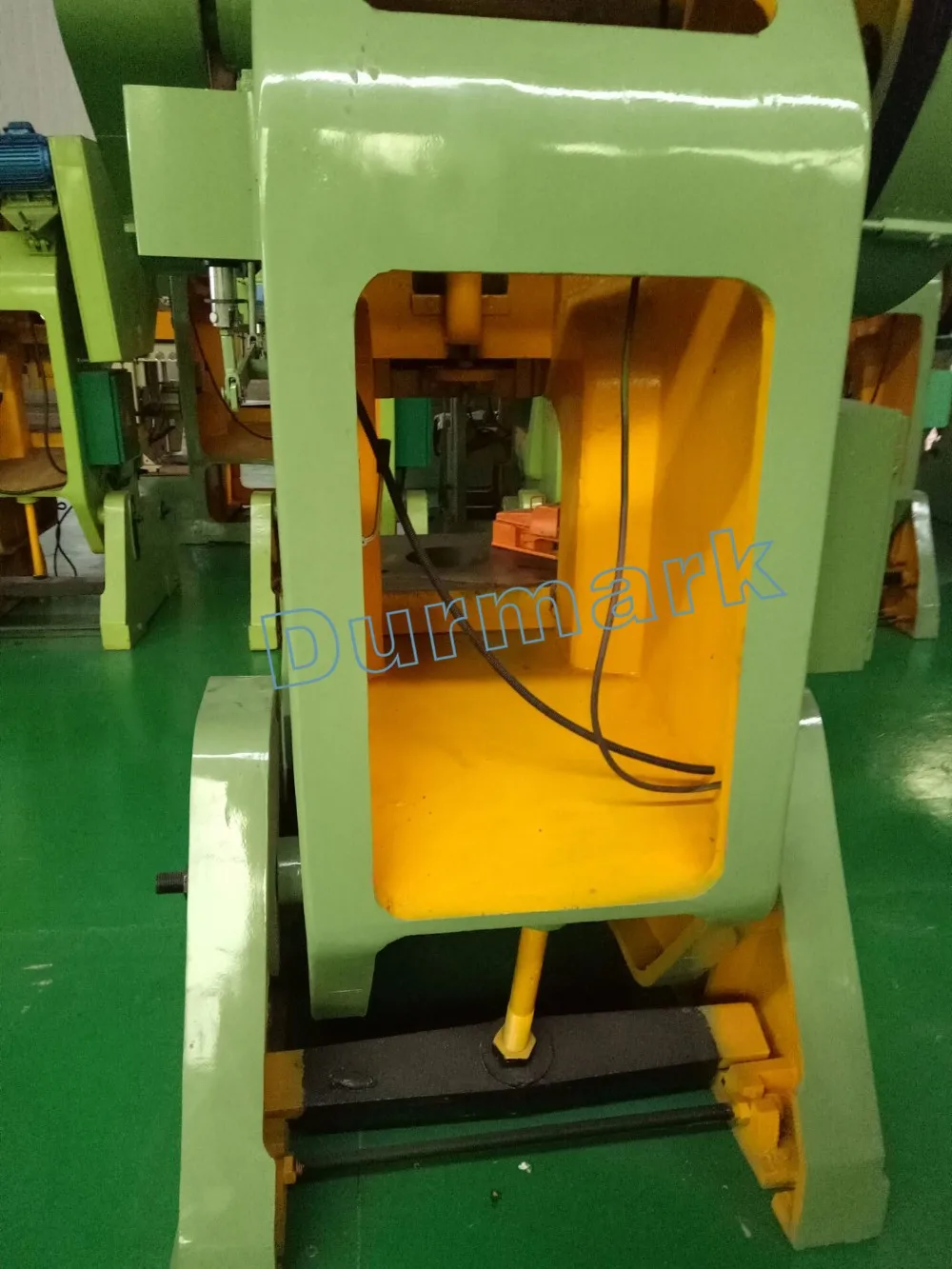

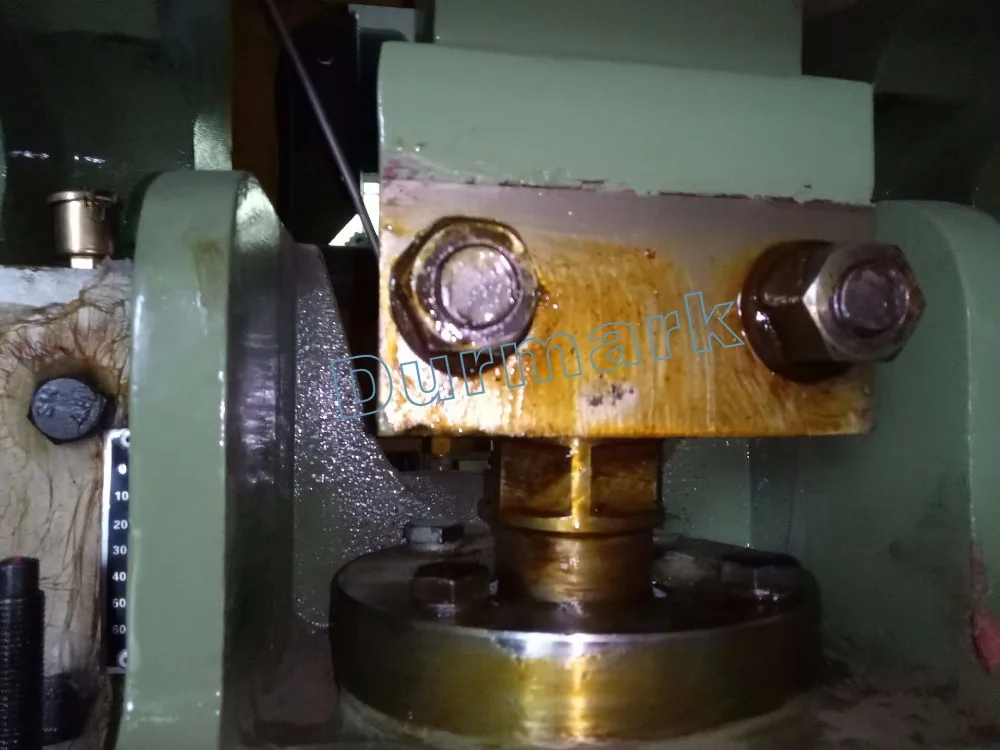

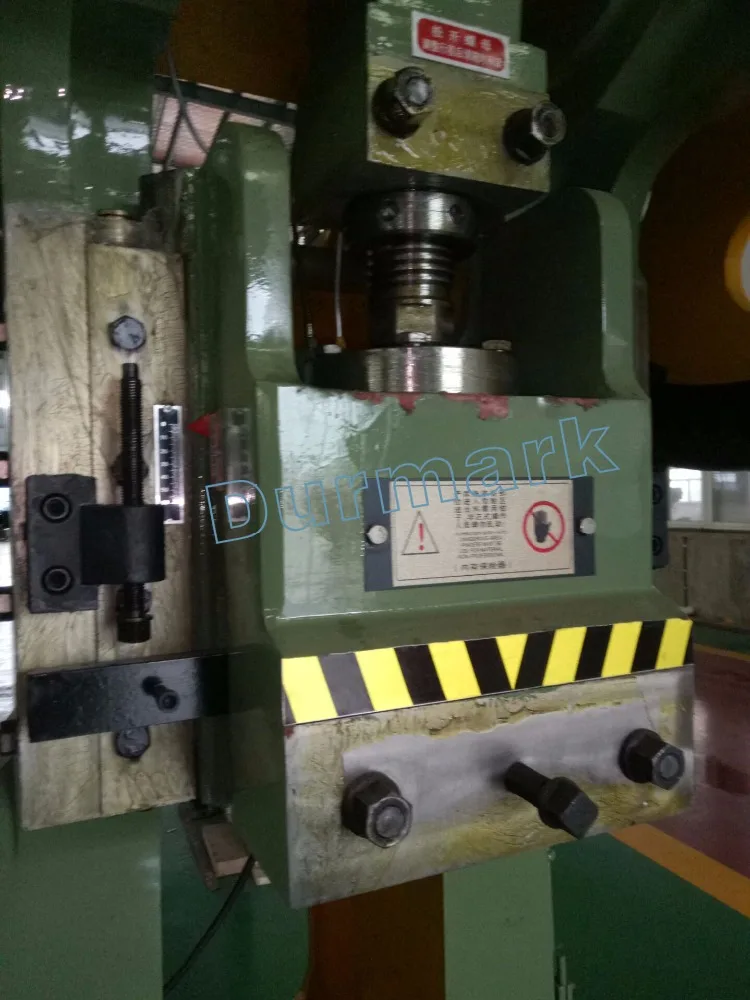

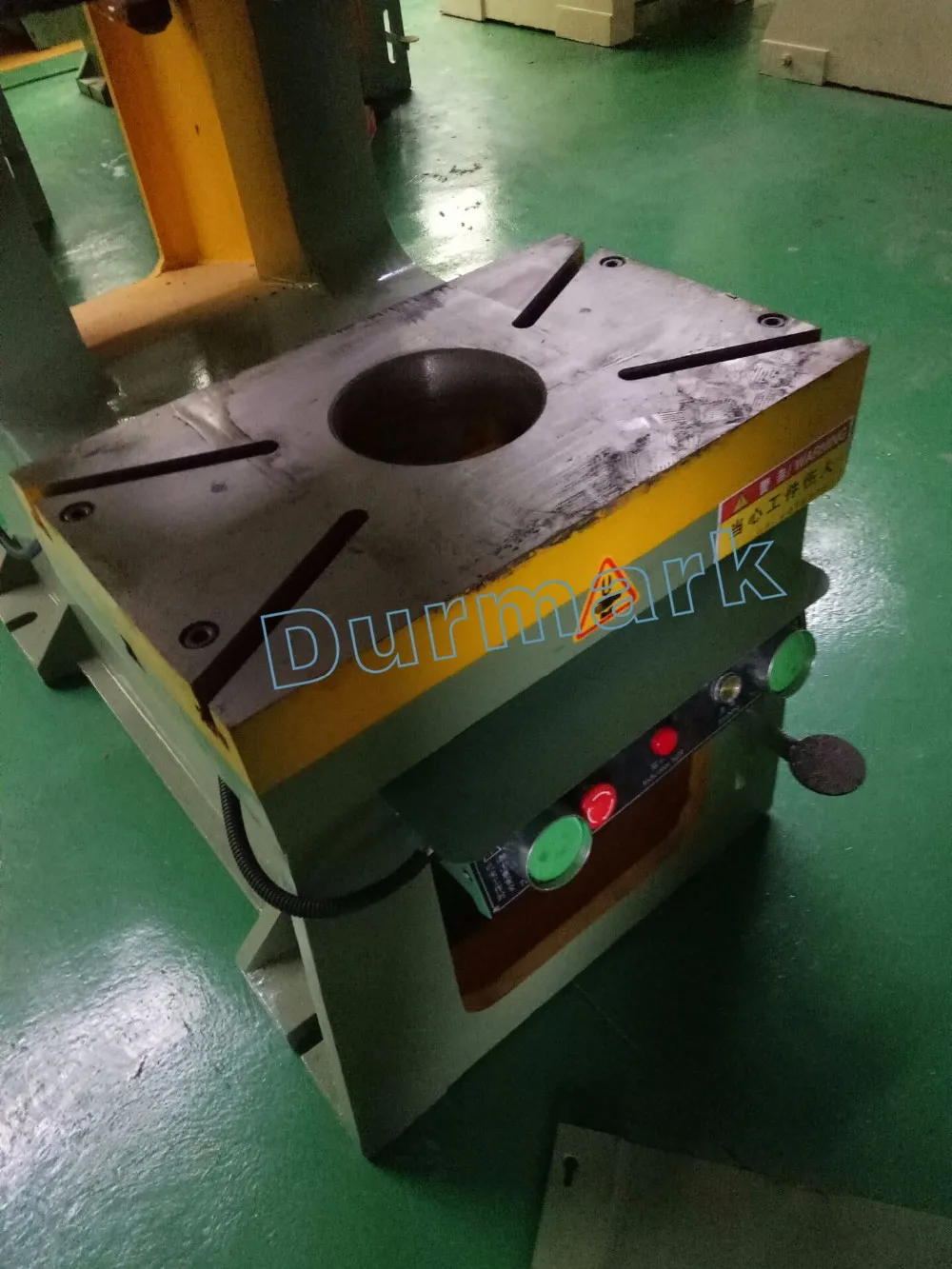

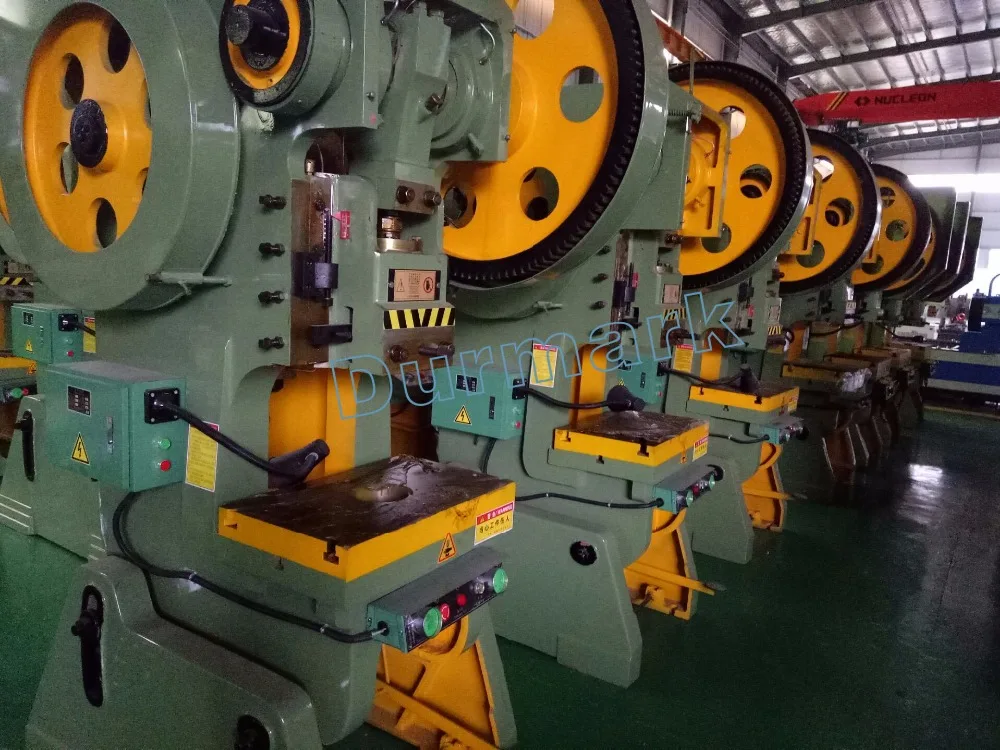

Product Display
