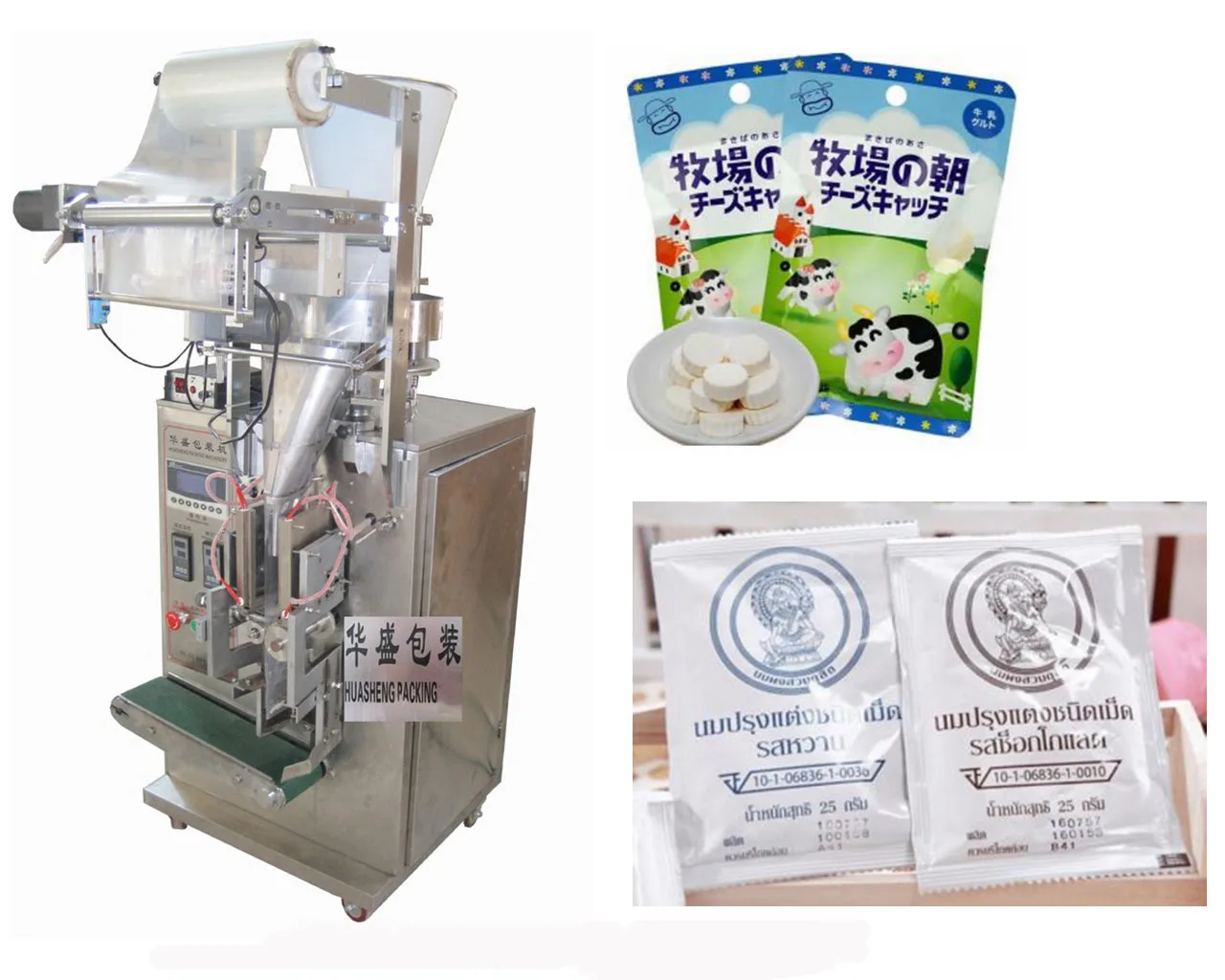

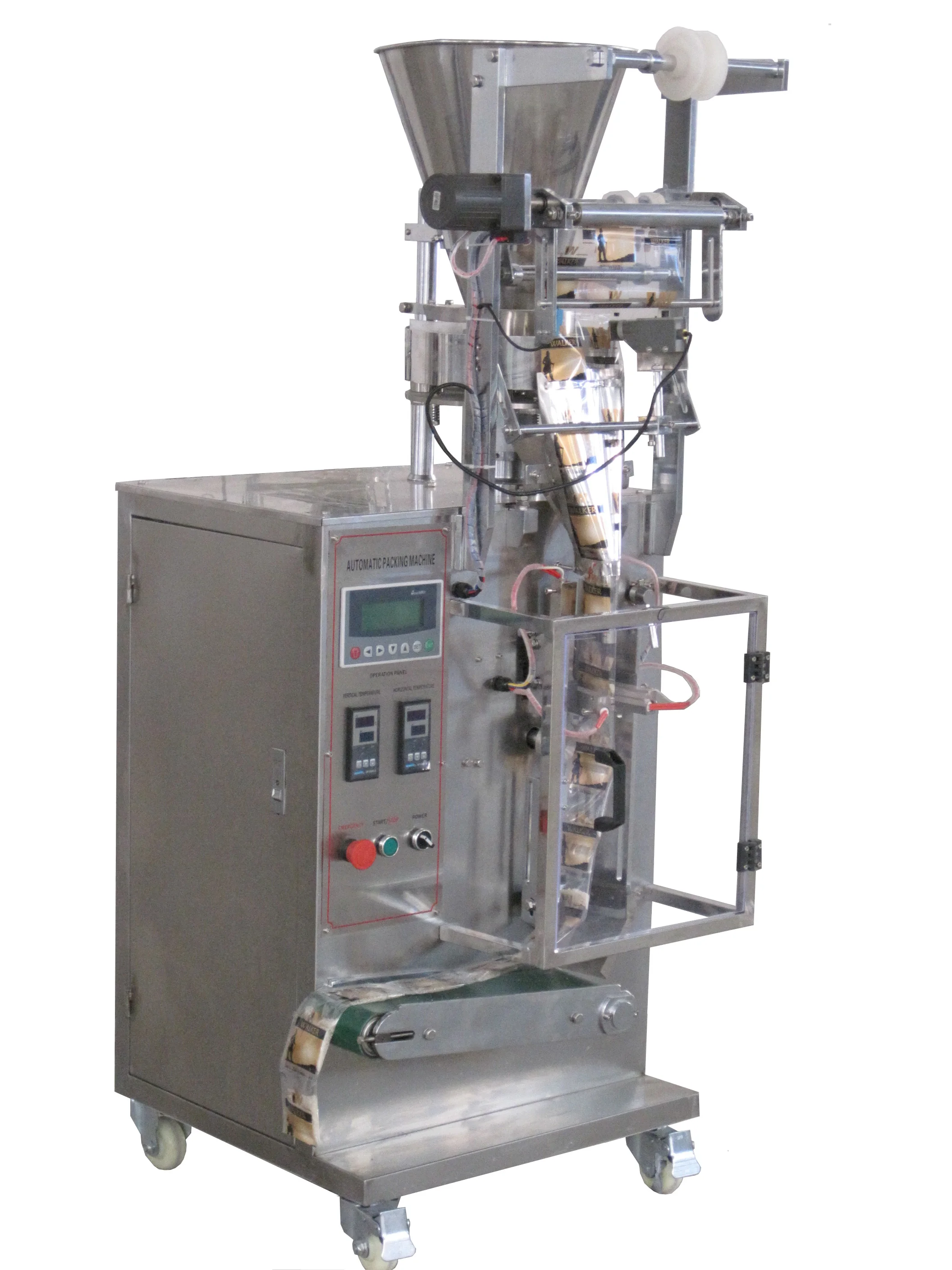

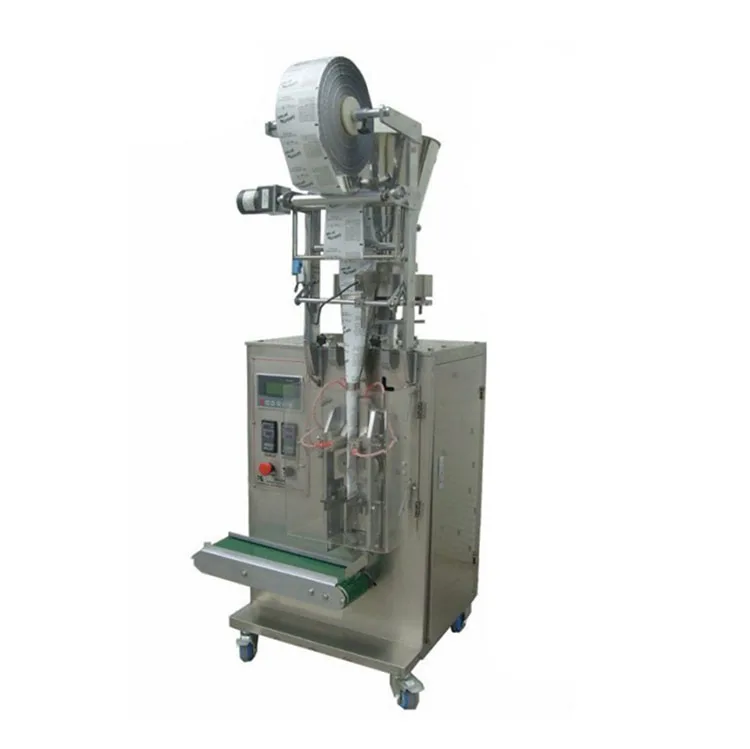

Automatic granule packaging machine small scale paper capping machine for salt sugar tea beans HS240K
- Category: >>>
- Supplier: Guangzhou Huasheng Packaging Machinery Manufacturing Co. Ltd.
Share on (60706480153):
Product Overview
Description
Products Description
Feature

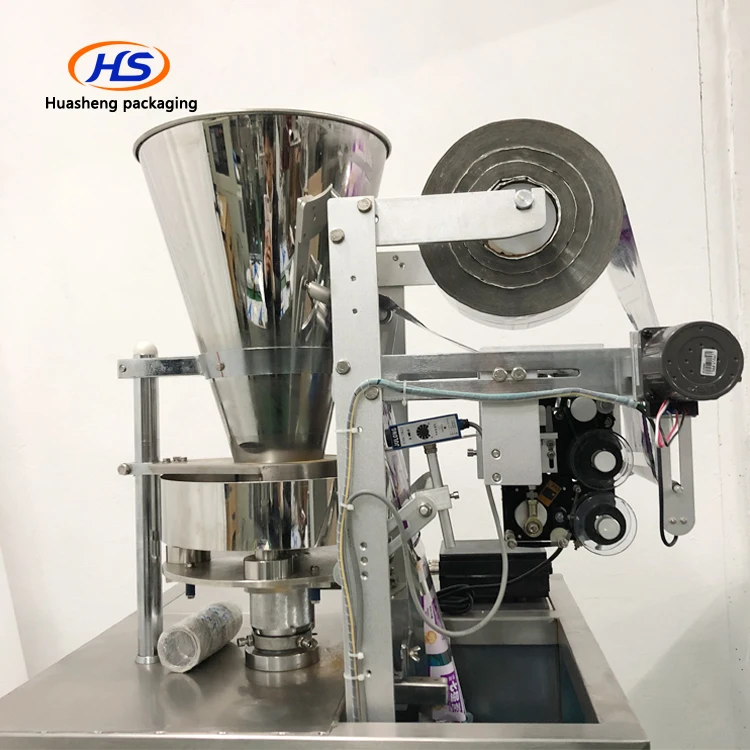

HS240K Automatic Granular packaging machine:
1. Granular sachet packing machine
2. Granular sachet filling machine
3. 4 side seal (3 seal ) bag packing machine
4. Granular manufacturing machinery
5. Vertical form fill seal machine
1. Granular sachet packing machine
2. Granular sachet filling machine
3. 4 side seal (3 seal ) bag packing machine
4. Granular manufacturing machinery
5. Vertical form fill seal machine
Name | Granule packing machine | Granule packing machine | |
Model | HS240K | HS240BK | |

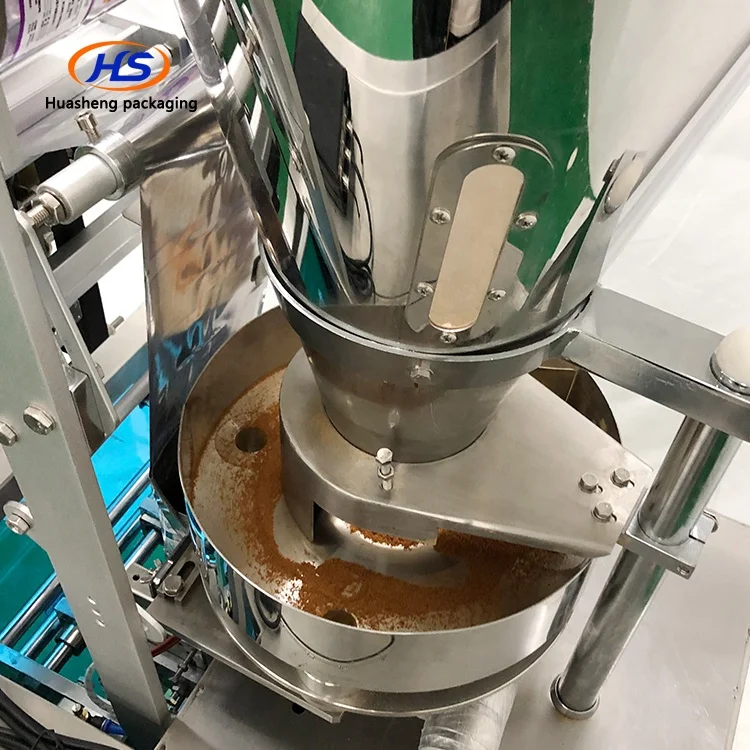

Dosing Method | Volume cups | Volume cups | |
Measure range | 1-50ml | 1-100ml | |
Packing speed | 30-60 bags/min | 35-75 bags/min | |
Bag size range | L 40-150mm ; W 15-100mm | ||
Bag Style | 3- side/4 side sealing sachet | back sealing/stick sachet | |
Film thickness | 0.05-0.1mm | ||
Film material | Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper | ||
Drive method | Electricity | ||
Control style | PLC control system+English/Chinese screen | ||
Power | Main motor 370W, Heating power 720W | ||
Power supply | AC220V Single phase 50Hz/ AC380V Three phases 50Hz | ||
Dimension | 750X670X1600 mm | ||
Machine weight | 250kg | 260kg | |

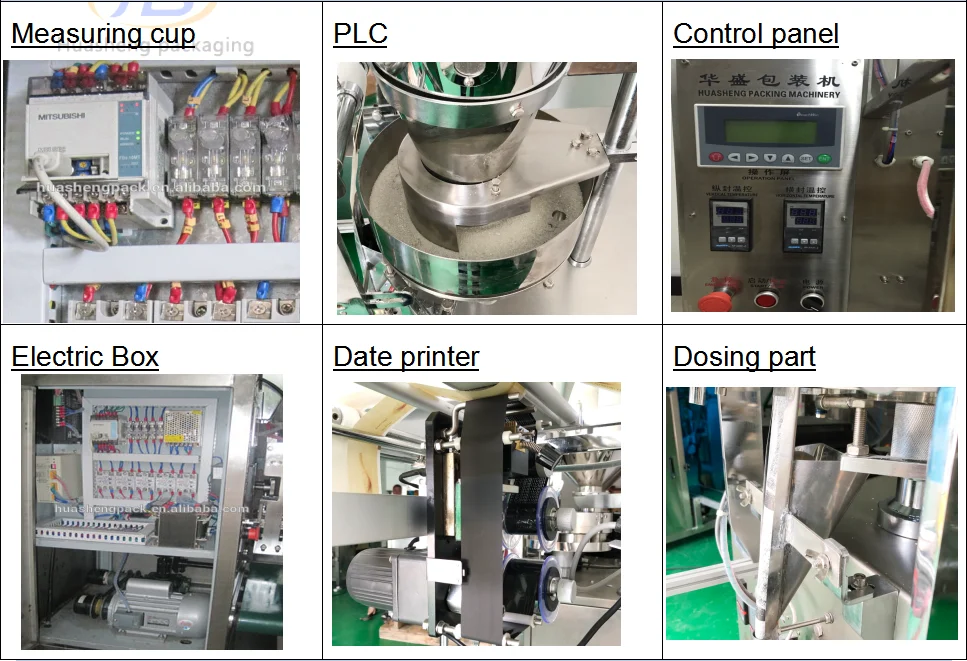

Machine details:
1. Machine auto does bag-making, measuring volume&filling, bag sealing, cutting and counting
capacity,etc.
2. PLC control system combined with touch screen, can easily set can change the packing
2. PLC control system combined with touch screen, can easily set can change the packing
parameters.
3. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
4. Photocell sensor x 2pcs equipped for tracking the colormark designed on the bag material, so
make sure the logo designing at same position on each bag.
5. 304 Stainless steel contact part & machine shell.
6. Machine will stop automatically if it is out of film.
7. Fine packaging performance, low noise, clear sealing texture and strong sealing performance
8. Straight line easy tearing cut & Emboss code as FREE options.
5. 304 Stainless steel contact part & machine shell.
6. Machine will stop automatically if it is out of film.
7. Fine packaging performance, low noise, clear sealing texture and strong sealing performance
8. Straight line easy tearing cut & Emboss code as FREE options.
Product Applications
Application:

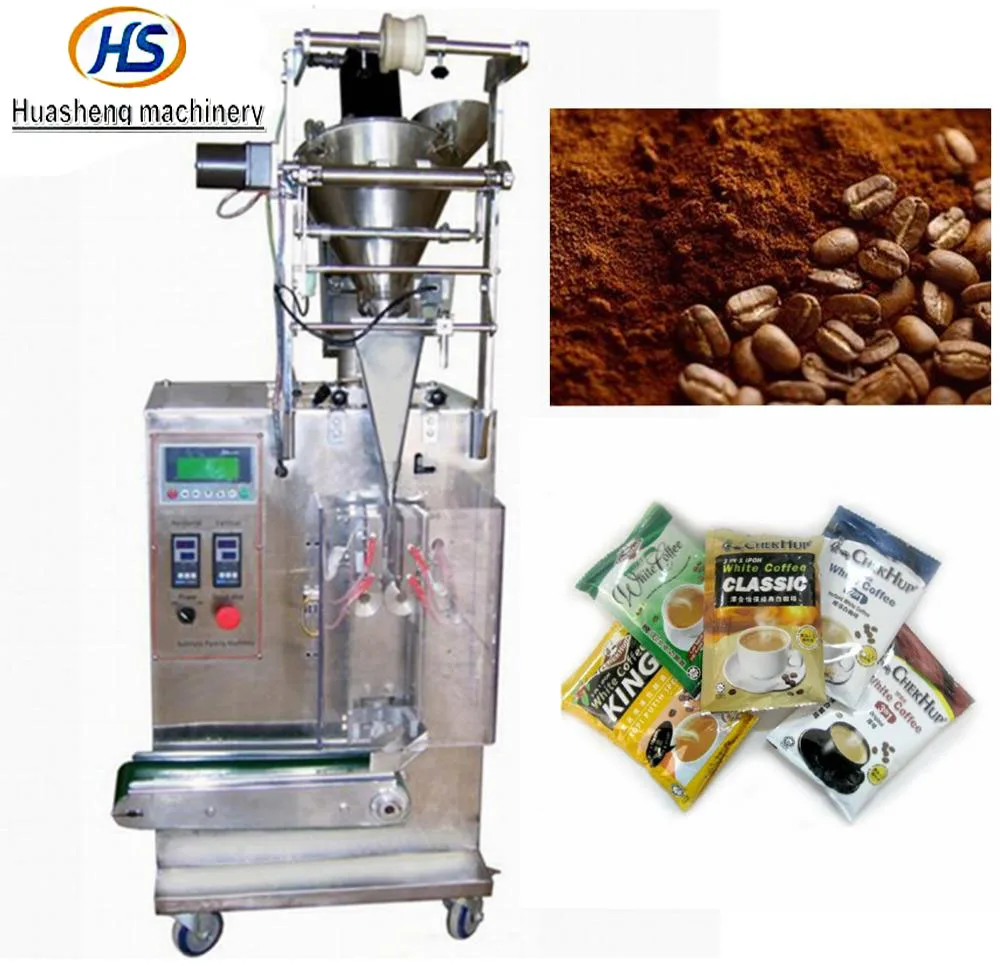

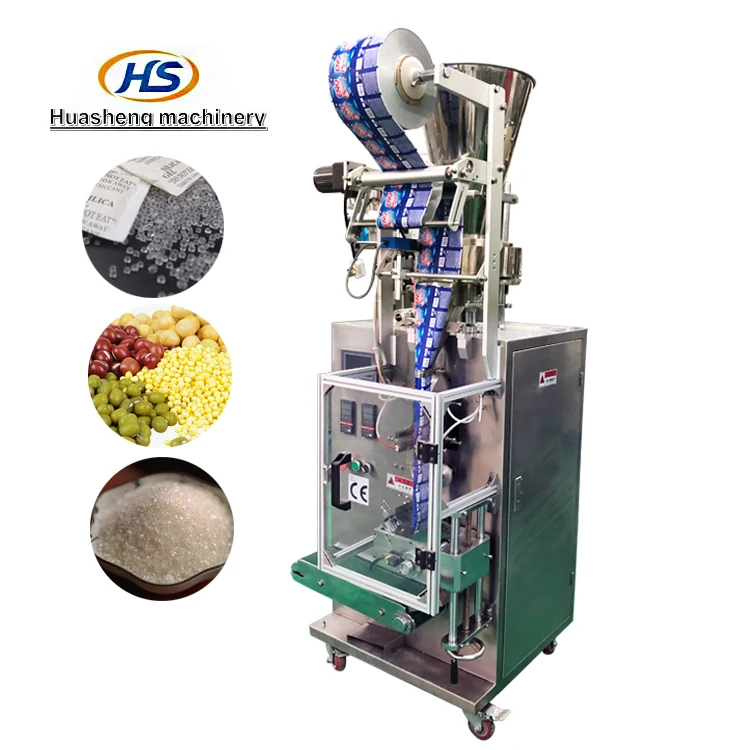

Suitable ofr packing granule and some powder with good fluidity, such as sugar, salt, juice powder, cereal, coffee, rice, beans, peanuts, seeds, grain etc.

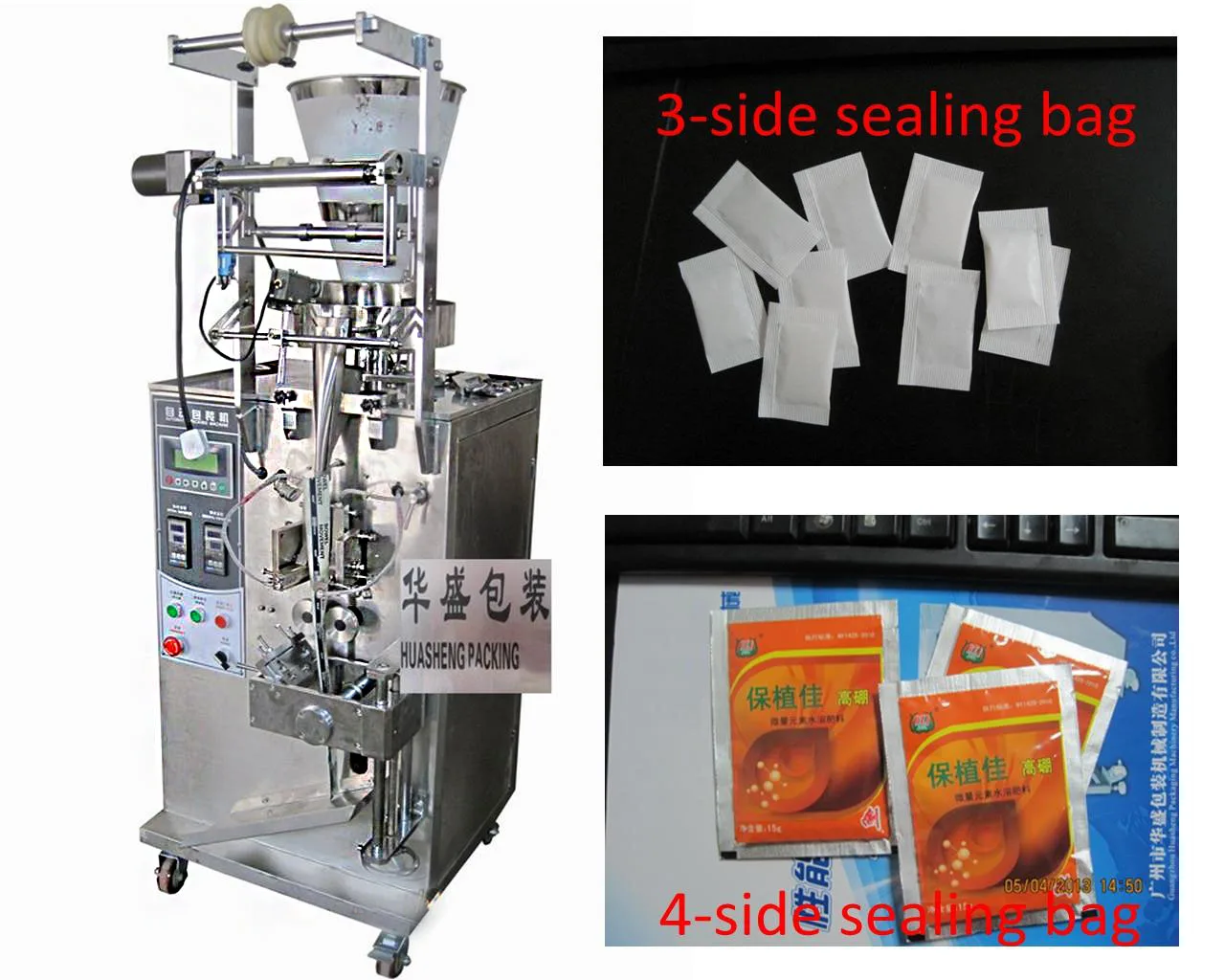

Bag Type
3- side sealing sachet
4-side sealing sachet
Back sealing stick
Back sealing sachet
Recommend Products
Packing & Delivery
Shippment:
1. Upon receipt of payment , delivery date will be in 10-30 working days
2. First, the machine will be wrapped by the pretective film;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, shipment way and the weight of the goods
2. First, the machine will be wrapped by the pretective film;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, shipment way and the weight of the goods
About us
Our service
Pre-sale service
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-15 calendar day after deposit and confirming details;
2. Payment term: 30% deposit and 70% when machine ready for shipment;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period: 12month since on board date but no more than 13monthes.
2. Training how to install the machine, training how to use the machine in Guangzhou huasheng factory
3. During warranty period, factory would provide new parts with free charge when parts damage caused by non-man-made reason or force majeure; Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade)
4. Factory would provide all parts on the machine during the whole machine running time.After warranty time, we still supply repairing service. we can supply the parts for customers or service to customers' companies. But the freight or the fee to customers' companies will be paid by users.
5. On door service term: Machine price do not cover on door service; When needs go abroad to do on door service, buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
6. Inspection method: Online inspection (manufacturer will provide machine testing video/ sample tear video /sample close view pictures or delivery by courier) OR on site inspection (Inspection fee would be charged on buyer’s account);
7. Online tech support: Wechat/ QQ/ Whatsapp /Email
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-15 calendar day after deposit and confirming details;
2. Payment term: 30% deposit and 70% when machine ready for shipment;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period: 12month since on board date but no more than 13monthes.
2. Training how to install the machine, training how to use the machine in Guangzhou huasheng factory
3. During warranty period, factory would provide new parts with free charge when parts damage caused by non-man-made reason or force majeure; Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade)
4. Factory would provide all parts on the machine during the whole machine running time.After warranty time, we still supply repairing service. we can supply the parts for customers or service to customers' companies. But the freight or the fee to customers' companies will be paid by users.
5. On door service term: Machine price do not cover on door service; When needs go abroad to do on door service, buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
6. Inspection method: Online inspection (manufacturer will provide machine testing video/ sample tear video /sample close view pictures or delivery by courier) OR on site inspection (Inspection fee would be charged on buyer’s account);
7. Online tech support: Wechat/ QQ/ Whatsapp /Email
FAQ
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality :
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is
favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality :
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is
favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
