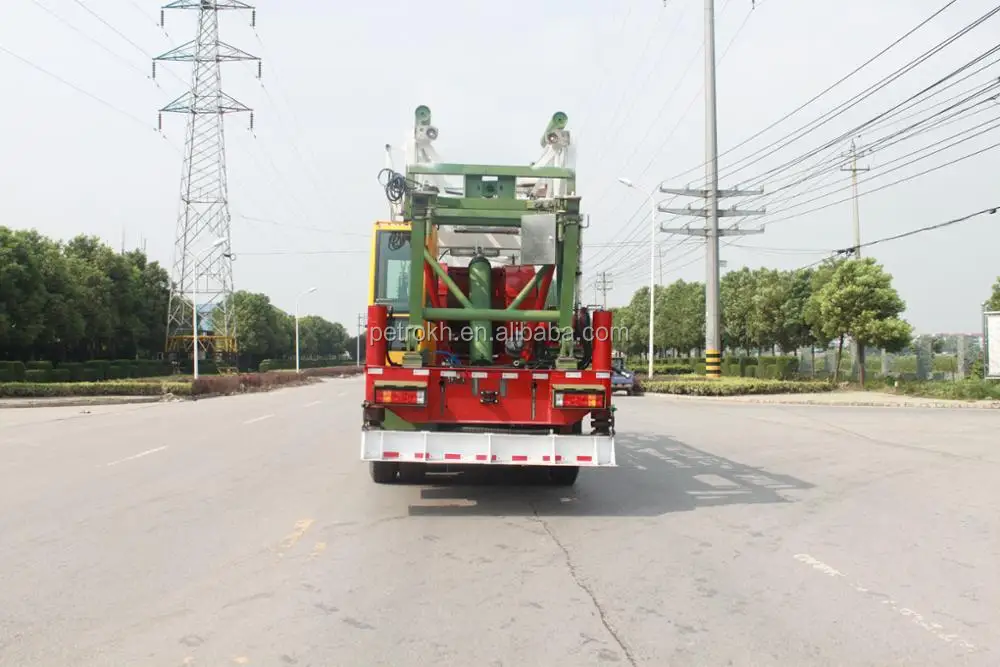

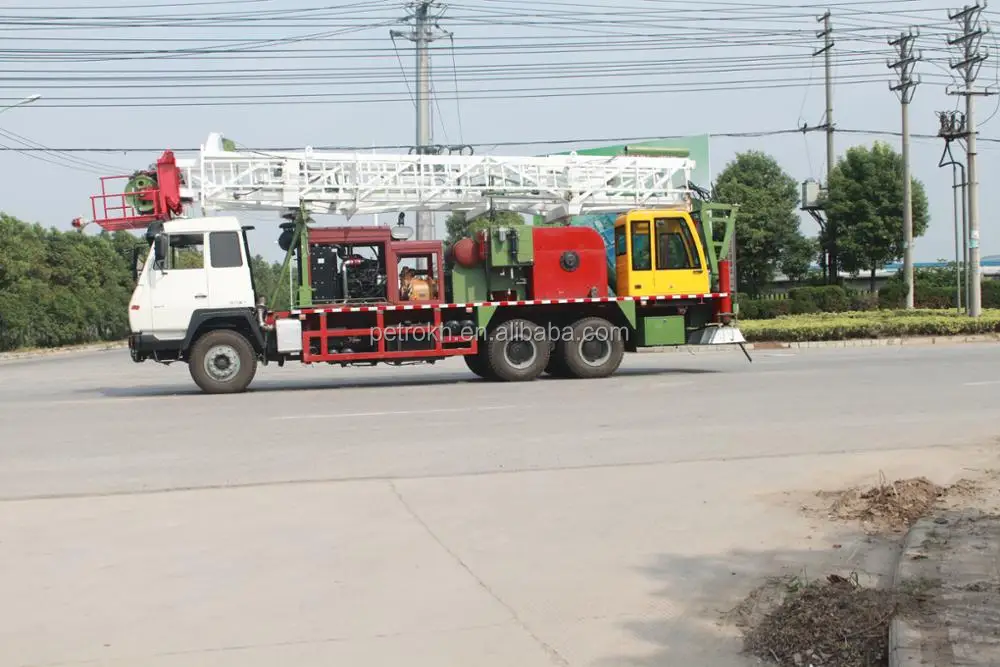

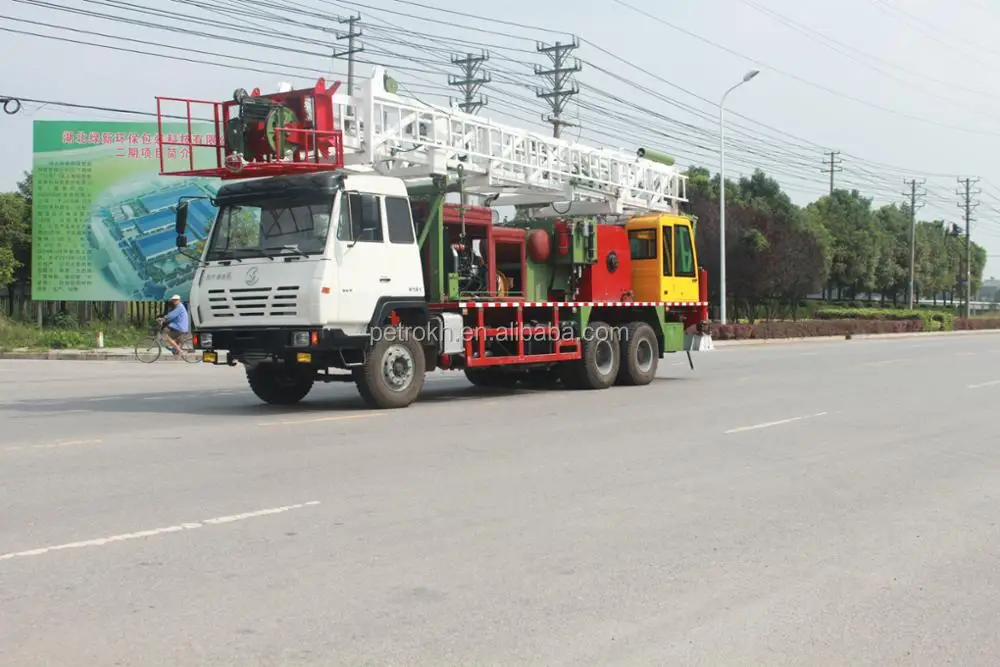

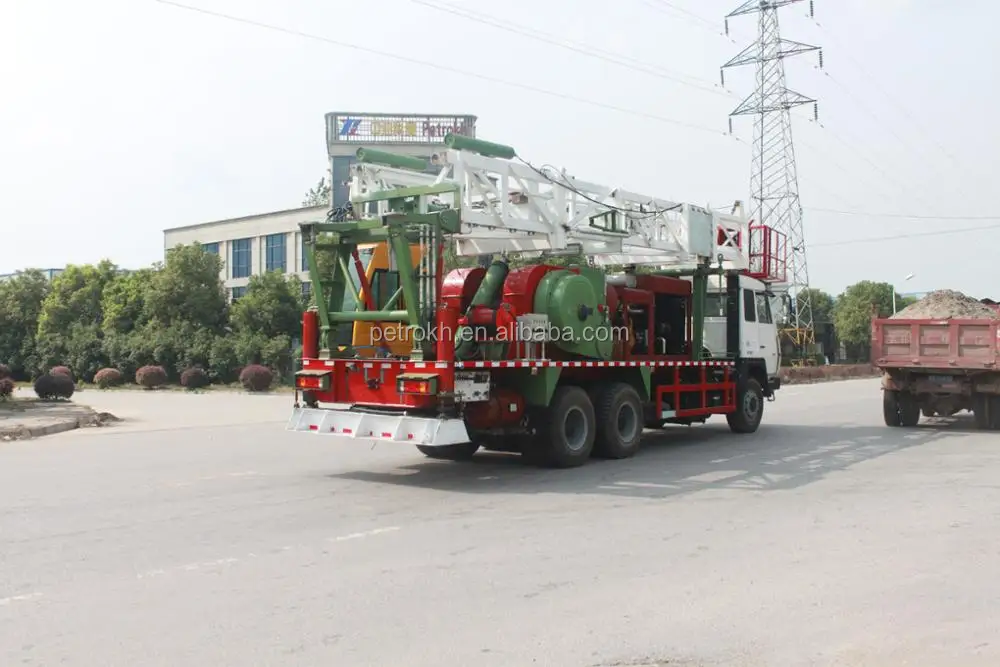

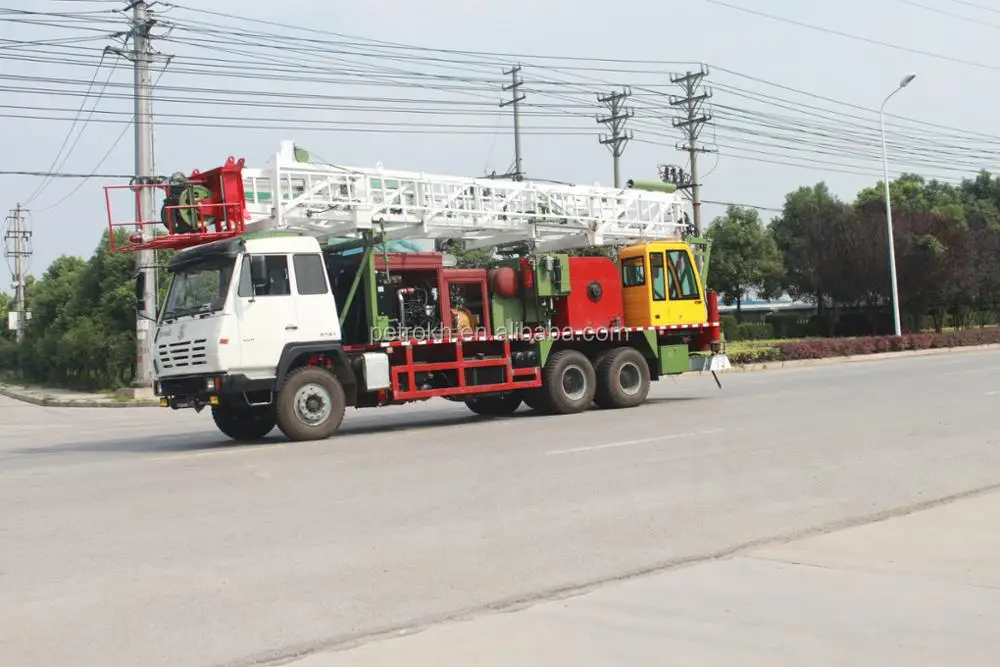

250 HP 40t workover rig for oilfield API petroleum processing petroliferous bed petroleum mining machinery

Product Application

XJ250 workover rig contains a single drum drawworks and a hydraulic lifting double (or single) derrick. The design is economic that using GE engine and Allison engine and Allison  hydraulic transmission box. The whole machine has simple structure,  fast removement, on-site installation and maintenance is very convenient .We can offer the assembly and spare parts fro XJ250--XJ750.

Service depth: 3200m(27/8 EUE tubing)

Workover depth: 2000m(27/8 DP)

 Nominal hook load: 400kN

Max. static load: 675kN

Drawworks horsepower: 250hp

Traveling system: 3×4

Drive type, carrier: 6×6

Dia., wireline: φ22mm

Traveling dimensions:15.4m×3m×3.85m(16m single stage mast)

12m×3m×4.1m(18m double stage mast)

13.4m×3m×4.1m(21m double stage mast)

Max. speed: 60km/h(Limiting speed: 45km/h)

Min. turning radius: 14m

Traveling weight: 29410kg(Total weight varies according to different configurations)

Ambient temperature: -25 ~ +50 ℃

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

Name:  Chassis

Brand: North Benz

Original: China

Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name: 3ZB-265 horizontal triplex plunger pump
Brand: KH
Original: China
Domestic famous fluid end, strong driving force, low fuel consumption, high economic benefits.

Machine Parts

Name: ACM-III Automatic Mixing System or Digital display mixing system
Brand: KH
Original: China
Domestic famous, strong driving force, low fuel consumption, high economic benefits.
