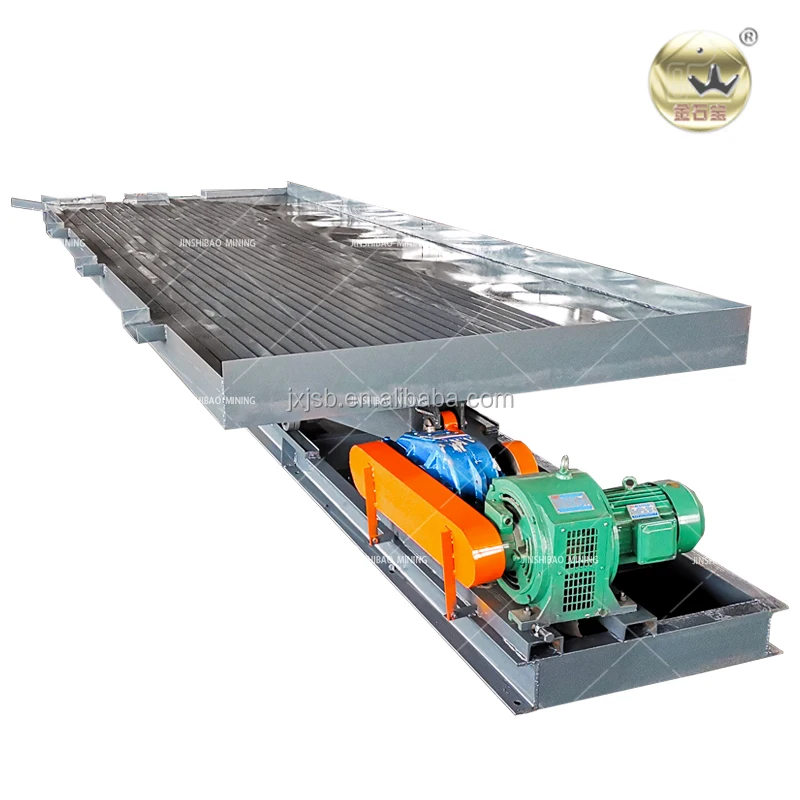

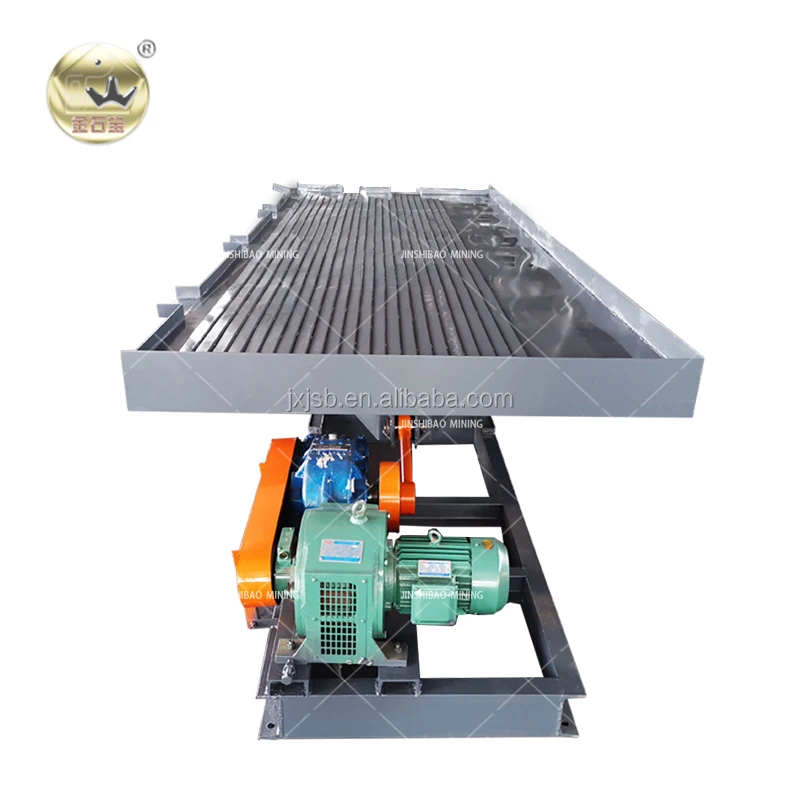

Pro-environment Metal deck type of Shaking table is mainly used for trash sorting and recyling of copper , aluminum, garbage , plastic waste and other raw material . Small investment grows huge in the near future !

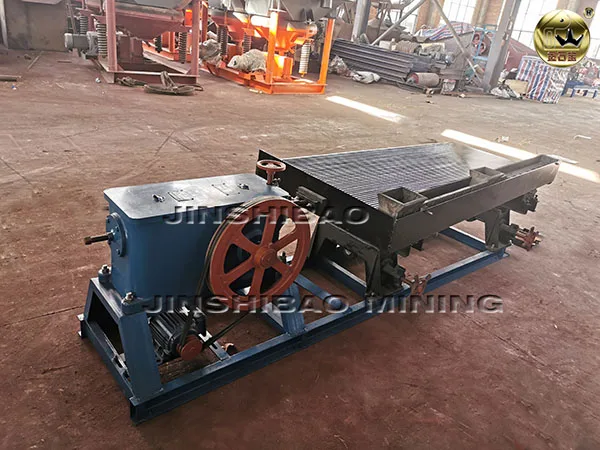

Shaking Table is one of the main equipment of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
Technical parameters
Model
LY(S)4500-2
LY3000-2
LY2100-2
Deck Size(mm)
4500×1850×1560
3000×1680×1380
2100×1050×850
Separation Area(m²)
7.67*2
4.08*2
2*2
Feeding size (mm)
Coarse
2-0.5
2-0.5
2-0.5
Fine
0.5-0.074
0.5-0.074
0.5-0.074
Slime
0.074-0.037
0.074-0.037
0.074-0.037
Capacity
(t/h)
Coarse
2-5
1.2-3
0.8-1.6
Fine
1.6-2.4
0.6-1.6
0.4-1
Slime
0.6-1.8
0.4-1.2
0.2-0.8
Water Consumption(t/h)
3-8
2.5-7.5
2-5
Power (kw)
2.2
2.2
1.5
Dimension (mm)
5630×1850×1260
(#28 support)
4130×1680×1260
(#28 support)
3040×1050×1060
(#28 support)

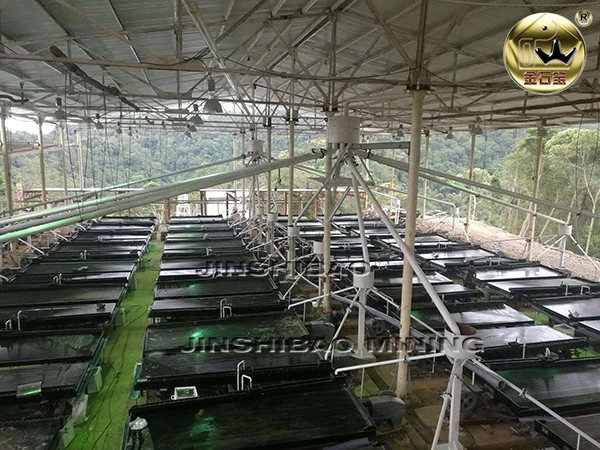

Successful case

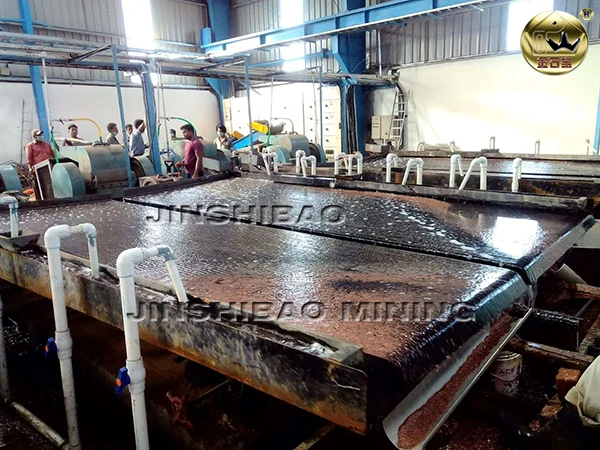

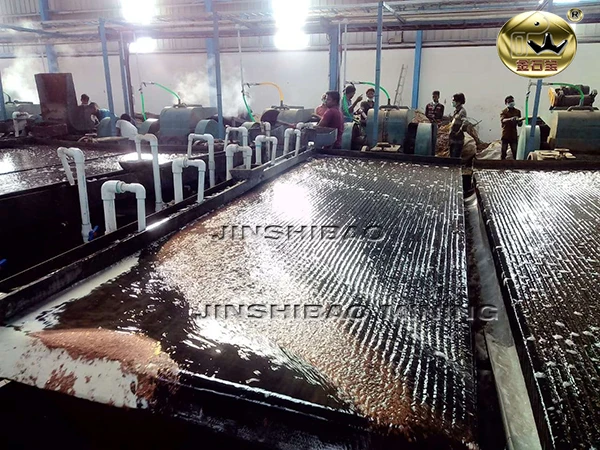

Copper ore separation processing plant of India and Zimbabwe Client :
