GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON network provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables fiber to the home (FTTH) deployments economically resulting to accelerated growth worldwide.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing)
CATV
Item
Parameter
Wavelength
1100-1600nm
Optical return loss
>45dB
Input optical power
-18dBm~0dBm
RF frequency
47MHz~1000MHz
RF output lever
78dBuV (@-12~-2dBm@85MHz)
CNR
>41dB (@-10dBm@DS22 Channel)
CSO
>60dBc (@-10dBm@DS22 Channel)
CTB
>60dBc (@-10dBm@DS22 Channel)
RF output return loss
>12dB
RF impedance
75Ohm
AGC function
Support
WIFI Specification (Suitable for the WIFI devices)
Item
Parameter
Performance parameters
Operating Mode
Router or bridge
WIFI antenna
1 external antennas, 1 built in antennas
Throughput
IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 300Mbps
Frequency
2.412 ~ 2.472 GHz
Channel
13*Channel, configurable to meet the standard of USA, Canada, Japan and China
Modulation
DSSS , CCK and OFDM
Coding
BPSK, QPSK, 16QAM and 64QAM
RF receive sensitivity
802.11b:
-83dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-79dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g:
-85dBm @ 6 Mbps; -84dBm @ 9 Mbps;
-82dBm @ 12 Mbps; -80dBm @ 18 Mbps;
-77dBm @ 24 Mbps; -73dBm @ 36 Mbps;
-69dBm @ 48 Mbps; -68dBm @ 54 Mbps
802.11n 20MHz:
-74dBm @ 65 Mbps;
-70dBm @ 130 Mbps;
802.11n 40MHz:
-70dBm @ 135 Mbps;
-67dBm @ 300 Mbps;
RF output lever
802.11b:
17 ±0.5dBm @11Mbps
802.11g:
15 ±0.5dBm @ 54 Mbps; 16 ±0.5dBm @ 48 Mbps;
17 ± 1dBm @ 6 ~ 36 Mbps
802.11n 20MHz:
14 ± 0.5dBm @ 130 Mbps; 15 ± 0.5dBm @ 78 Mbps;
18 ± 0.5dBm @ 6.5 Mbps
802.11n 40MHz:
14 ± 0.5dBm @ 300 Mbps; 15 ± 0.5dBm @ 162 Mbps;
18 ± 0.5dBm @ 13.5 Mbps
Encryption Mode
802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
Network application
Typical Solution:FTTH Typical Business:INTERNET, IPTV, VOD, IP Camera, WIFI
Ordering Information
Product Name
Product Model
Descriptions

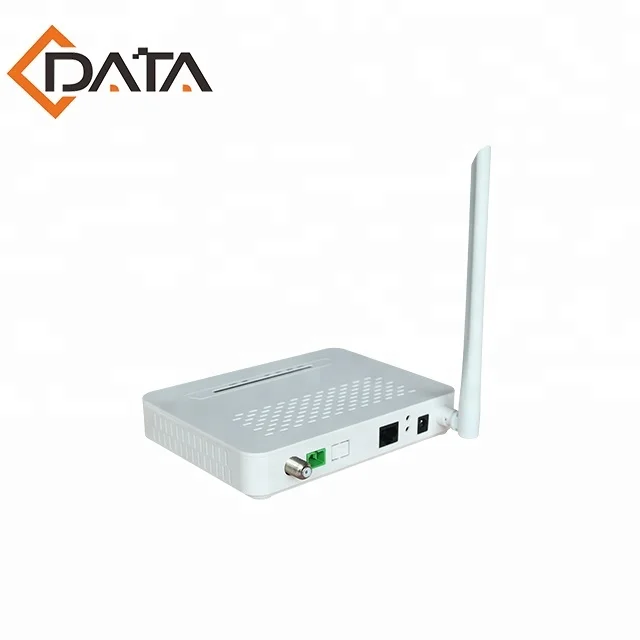

1GE+CATV+WIFI
Single fiber
FD600-701GAW-HR220
1*10/100/1000M Ethernet interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm,support WiFi function and AGC function, Plastic casing, external power supply adapter
Our Services
1.Good Reply: Your inquiry related to our products or price will be replied within 24 hours. 2.OEM&ODM: We can help you to design and put your good idea into products. 3.Warranty: 1-years warranty.
5.Training service support: Provide free training service on installationanddebugging.
FAQ
1.Can we get a lower price? Yes,price is not a problem,everything could be negotiated based on the quantity.
2.What is your MOQ? No MOQ for any sample test.
3.OEM,ODM Service is available? Yes, C-Data have strong ability to offer customers ODM&OEM products of highest quality. And it will requirement about your quantity.
