Deep Cycle GEL cyclic discharge 6v 200ah sealed lead acid battery
- Category: >>>
- Supplier: Guangzhou Zhonglian Building Material Co. Ltd.
Share on (60706658531):
Product Overview
Description
Deep Cycle GEL cyclic discharge 6v 200ah sealed lead-acid battery
Product Description
DG (Deep Cycle GEL) series is designed for frequent cyclic charge and discharge applications under extreme enviroments. By using strong grids, high purity lead and patented Gel electrolyte, DG series offers excellent recovery after deep discharge under frequent cyclic discharge, and can deliver 400 cycles at 100% DOD. Suitable for solar, CATV, marine , RV and deep discharge UPS etc..
Product Features:
- Capacity range ( C10): 33Ah—3000Ah
- Voltage :2V/6V/12V
- Long design life: 12years for 6V/12V 18years for 2V
- Low self-discharge rate: ≤2.5 % per month
- High sealed reaction efficiency :≥ 98%
Specification
| Model | Voltage (V) | Capacity (Ah) | Weight(kg) | Terminal | Dimension(l*w*h)(mm) | Internal(mΩ) |
| DG6-100 | 6 | 100 | 16.5 | F14 | 194*170*205(212) | 5 |
| DG6-150 | 6 | 150 | 23.5 | F12 | 260*180*245(252) | 4.5 |
| DG6-180 | 6 | 180 | 26.5 | F12 | 306*168*220(227) | 5 |
| DG6-200 | 6 | 200 | 29 | F14/F16 | 322*177.5*226(231) | 4 |
| DG6-200S | 6 | 200 | 30 | F12 | 260*180*245(252) | 4 |
| DG6-225 | 6 | 225 | 32 | F14/F16 | 322*177.5*226(231) | 4 |
| DG6-225S | 6 | 225 | 32 | F14 | 243*187*275(275) | 4 |
| DG6-310 | 6 | 310 | 44.5 | F14 | 295*178*346(364) | 2.1 |
| DG6-280 | 6 | 280 | 41.7 | F14 | 295*178*346(364) | 3 |
| DG6-335 | 6 | 335 | 45.5 | F14 | 295*178*346(364) | 2 |

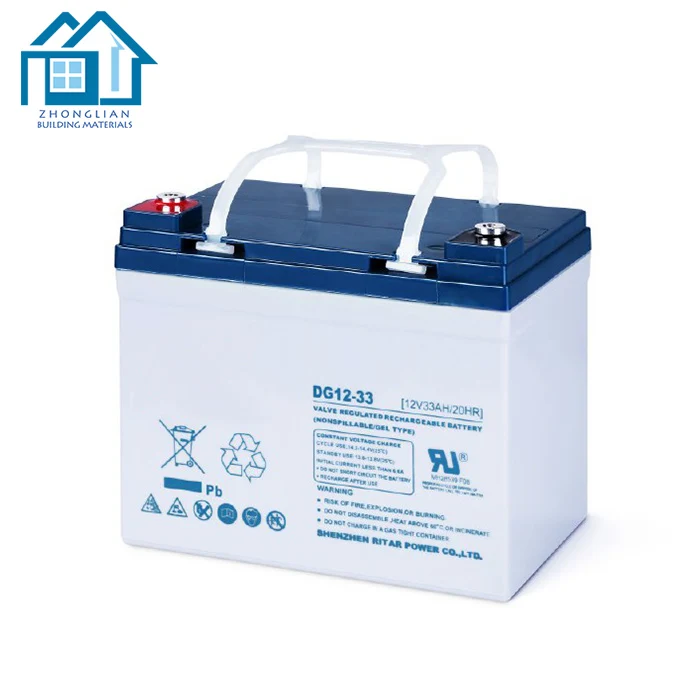

| DG12-33 | 12 | 33 | 10.2 | F7/F11 | 195*130*155(168) | 9.5 |
| DG12-40 | 12 | 40 | 13.2 | F4/F11 | 198*166*169(169) | 9 |
| DG12-55 | 12 | 55 | 17 | F11/F15 | 229*138*211(216) | 8.6 |
| DG12-60 | 12 | 60 | 20.5 | F11/F15 | 260*169*211(218) | 8.5 |
| DG12-65 | 12 | 65 | 21 | F5/F11 | 350*167*182(182) | 8 |
| DG12-70 | 12 | 70 | 22.5 | F5/F11 | 350*167*182(182) | 8 |
| DG12-70S | 12 | 70 | 21.5 | F11/F15 | 260*169*211(218) | 8 |
| DG12-75 | 12 | 75 | 23.5 | F11/F15 | 260*169*211(218) | 7 |
| DG12-75S | 12 | 75 | 22.5 | F5/F11 | 350*167*182(182) | 7 |
| DG12-80 | 12 | 80 | 25 | F11/F15 | 260*169*211(218) | 7 |
| DG12-85 | 12 | 85 | 26 | F11/F15 | 306.5*168.5*210(215) | 6 |
| DG12-90 | 12 | 90 | 28.5 | F12/F15 | 306.5*168.5*210(231) | 6.5 |

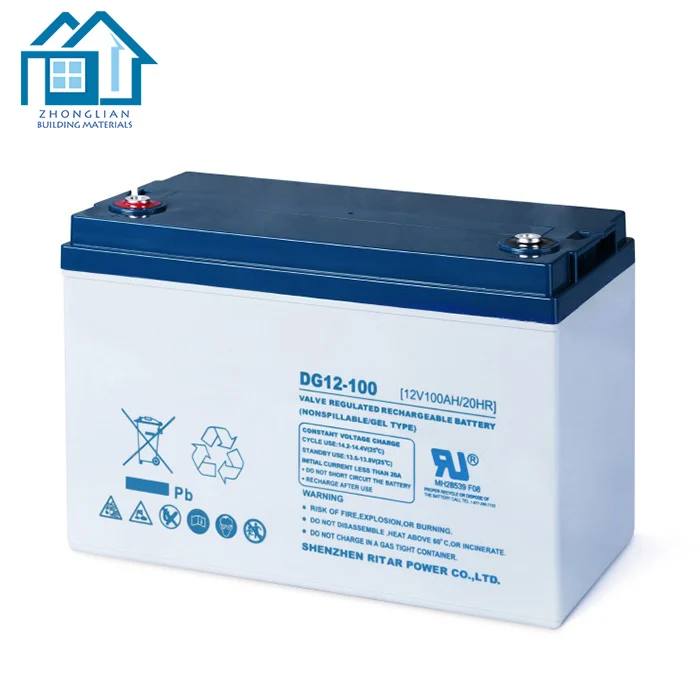

| DG12-100 | 12 | 100 | 30 | F5/F12 | 328*172*215(220) | 7.5 |
| DG12-120 | 12 | 120 | 35.5 | F5/F12 | 407*177*225(225) | 5.5 |
| DG12-134 | 12 | 134 | 41.5 | F5/F12 | 340*173*280(287) | 5 |
| DG12-145 | 12 | 145 | 44 | F5/F12 | 340*173*280(287) | 5 |
| DG12-150 | 12 | 150 | 44.5 | F5/F12 | 483*170*241(241) | 6 |
| DG12-160 | 12 | 160 | 50 | F12/F16 | 532*207*214(219) | 6 |
| DG12-160S | 12 | 160 | 48 | F5/F12 | 483*170*241(241) | 6 |
| DG12-180 | 12 | 180 | 53 | F12/F16 | 532*207*214(219) | 5.5 |

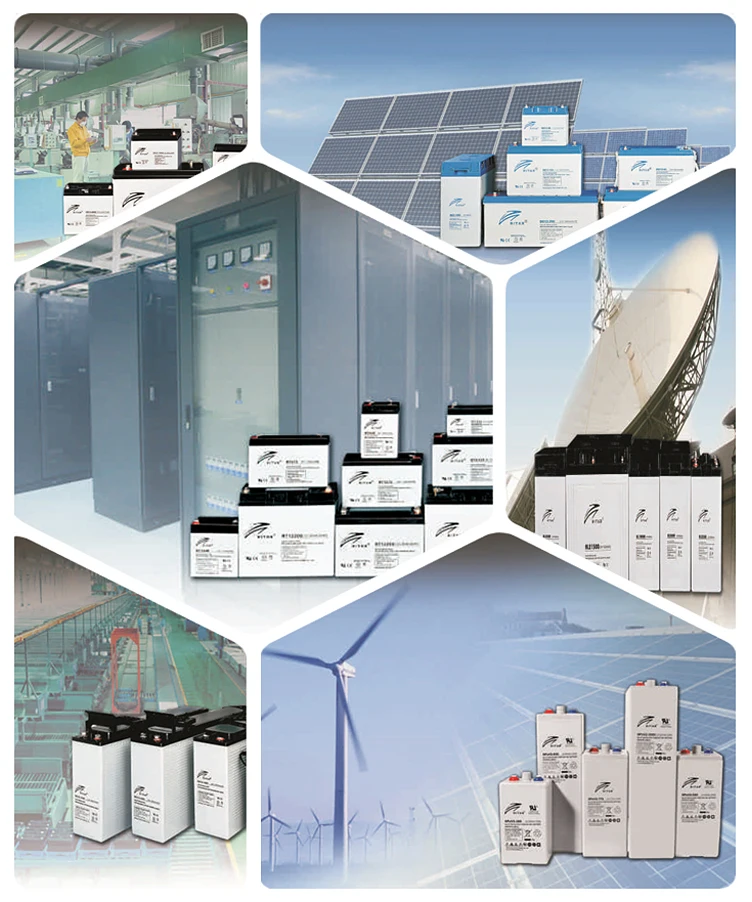

Application

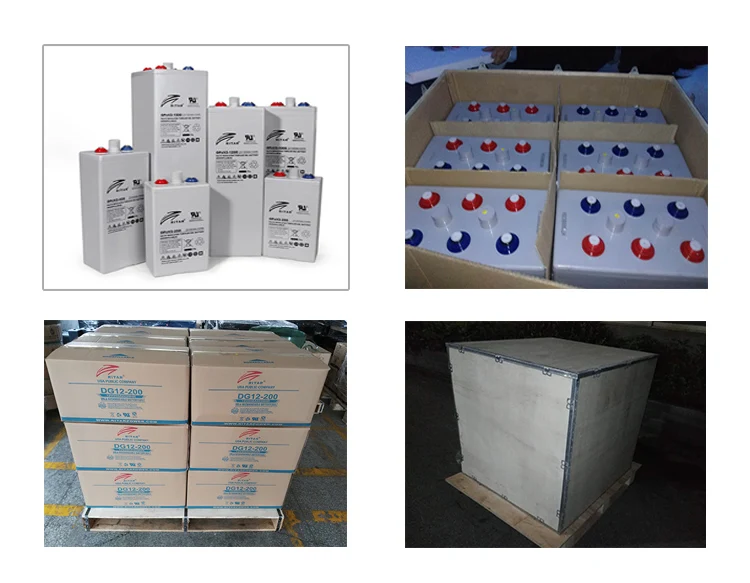

Pakcing of our lead acid battery

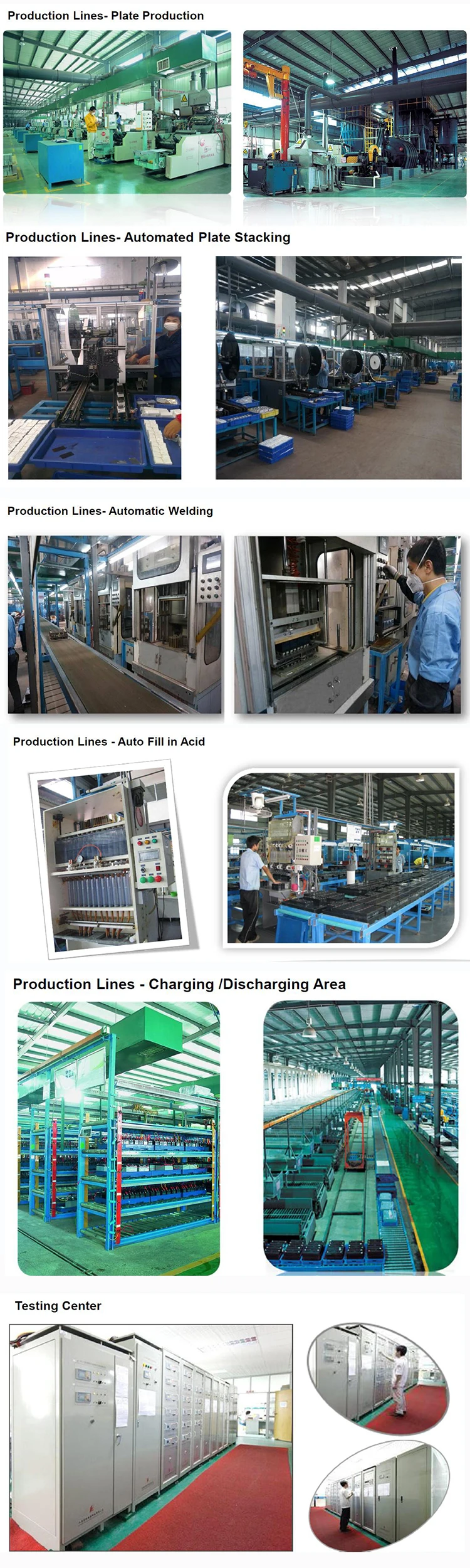

Lead acid battery production line
Any interested about our lead acid battery, pls contact with me
