Product Application

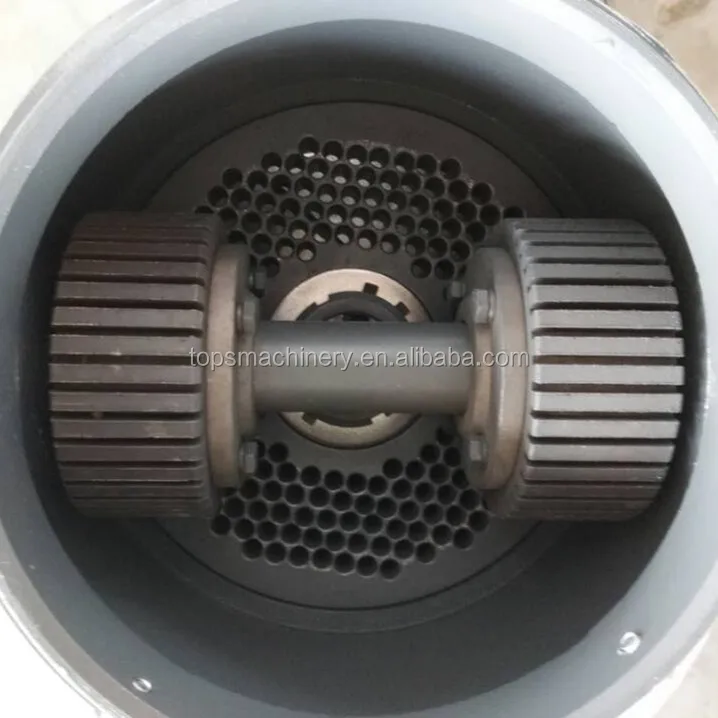

Roller and die is used on feed pellet machine or wood pellet mill machine, they are the wearing parts or spare parts.  This machine is widely used in farm for feed  and woodworking machinery for fuel.

Roller, mainly is the roller wheels as the wearing parts. The shaft and bearings no need change oftenly, just grease the bearings.

Dies, it's a main part in a machine,  it must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity. Our expertise enables us to precisely match the die specification to your required formulation, even if it means customizing a die pattern to meet your exact needs. The wide range of used dies with hole diameters from 2 mm to 12 mm guarantees the production of pellets with a required size.

Specification of pellet machine parts die and roller

Main Features

1. Used in various pellet mills made in China and overseas
2. Customized specifications are accepted
3. Sort of roller: corrugation roller
4. Materials: alloy steel
5. Technical parameters: open end, closed end, HCE, HOE, HTP, straight dimple, opening of dimple

Machine Parts

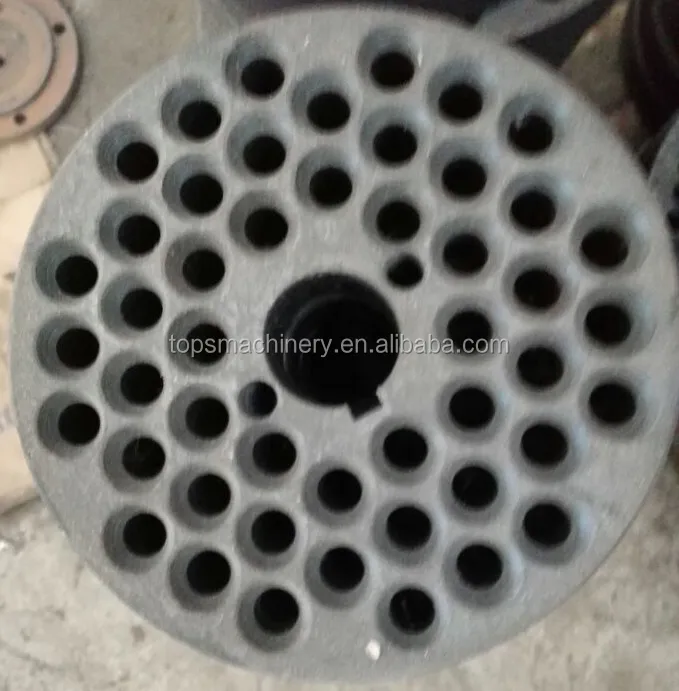

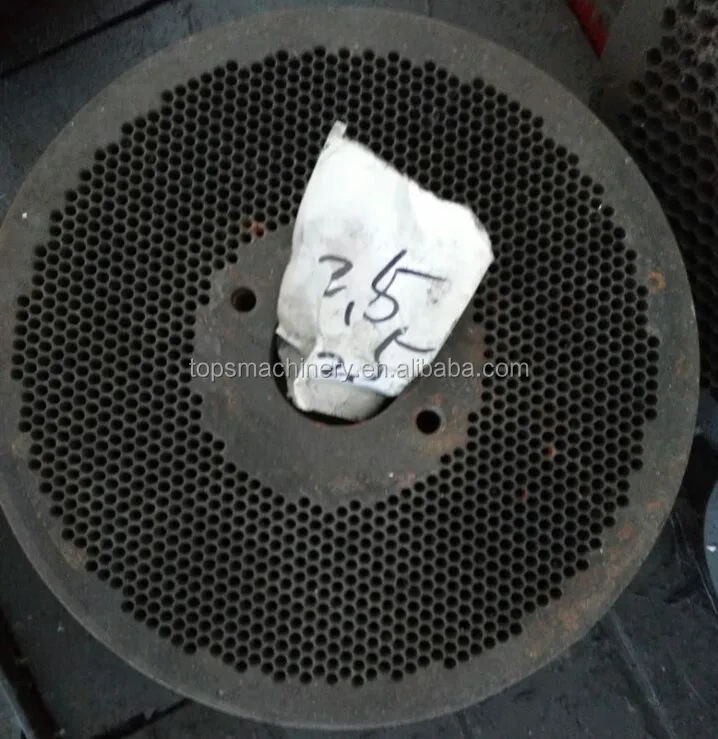

Name: Flat die/ matrix/ mold

Brand: TOPS

Original: Shandong, China

This die made by alloy steel, the hole diameter you can choose from 2.5mm-10mm.

Main Features

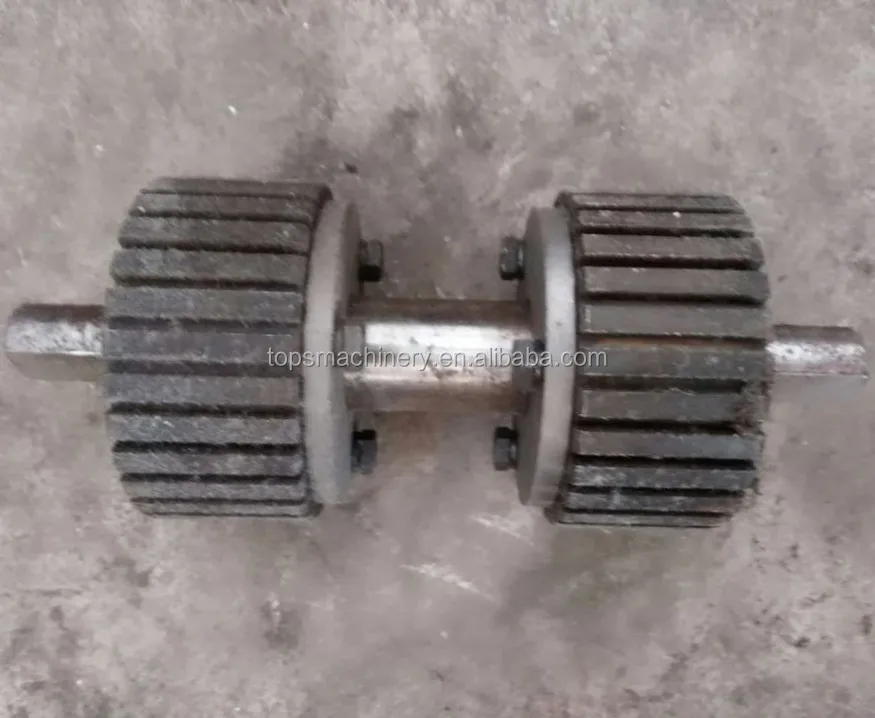

Name: Roller
Brand: TOPS
Original: Shandong, China

The roller contains the roller wheels, bearings and roller shaft. The wearing part is the roller wheels, just grease the bearigns.
