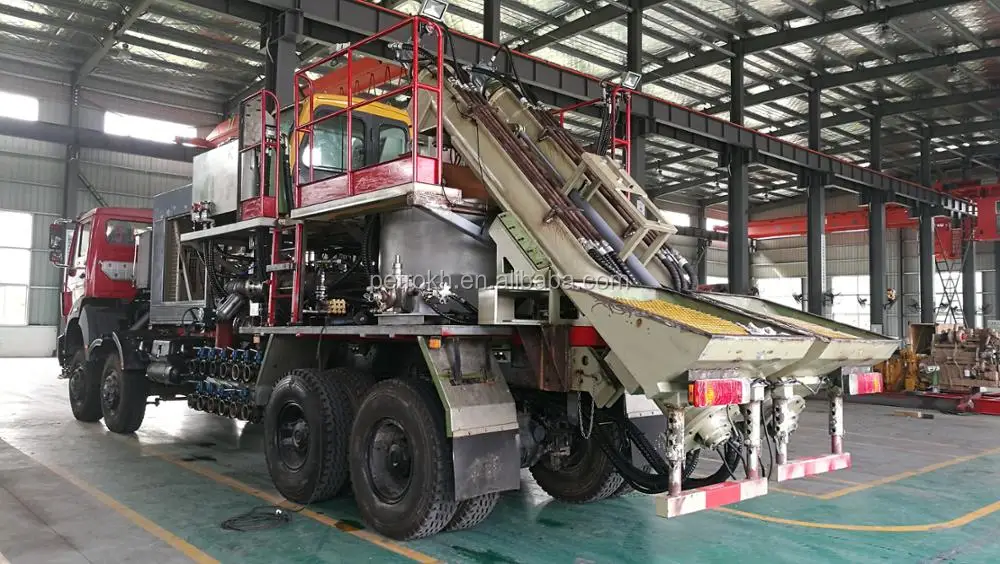

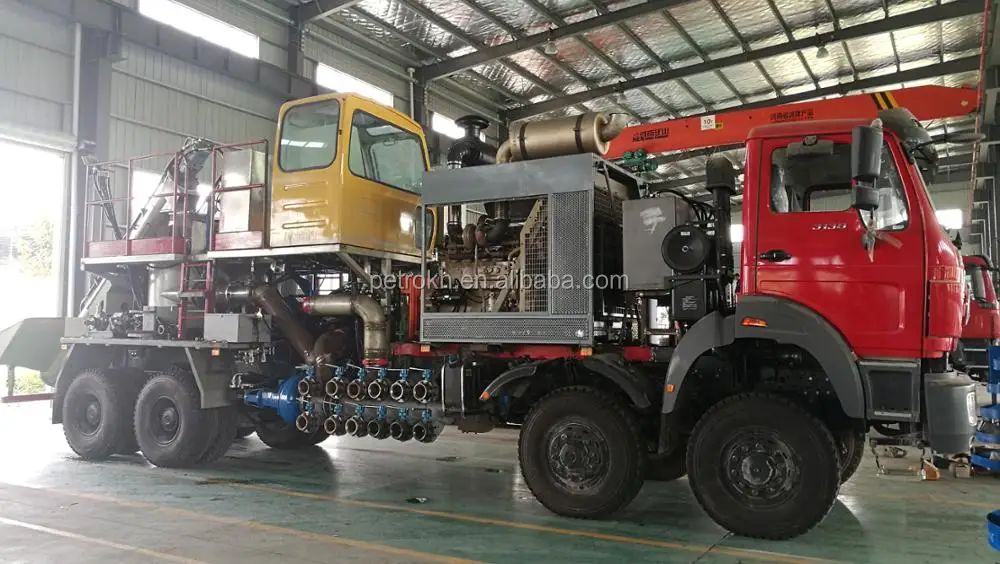

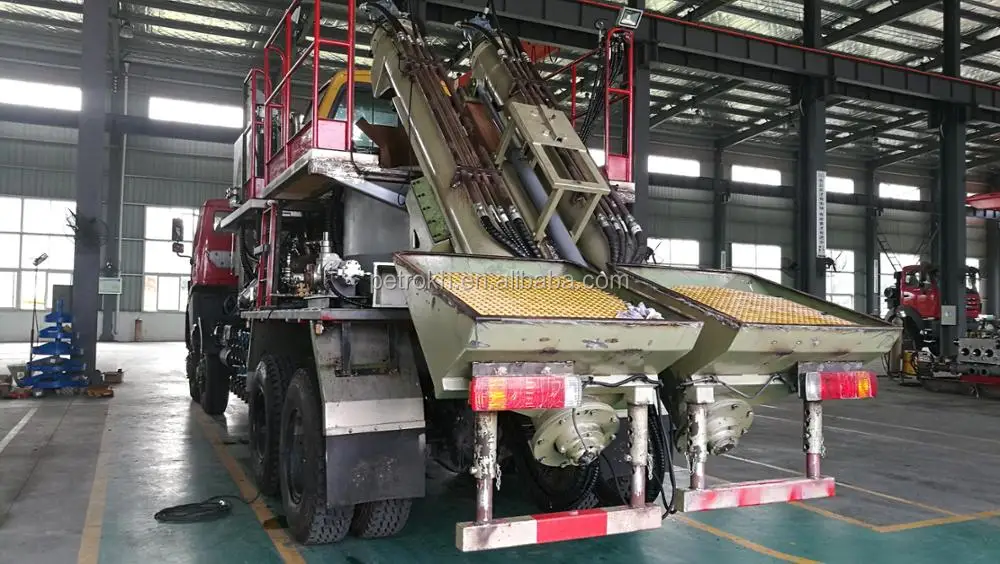

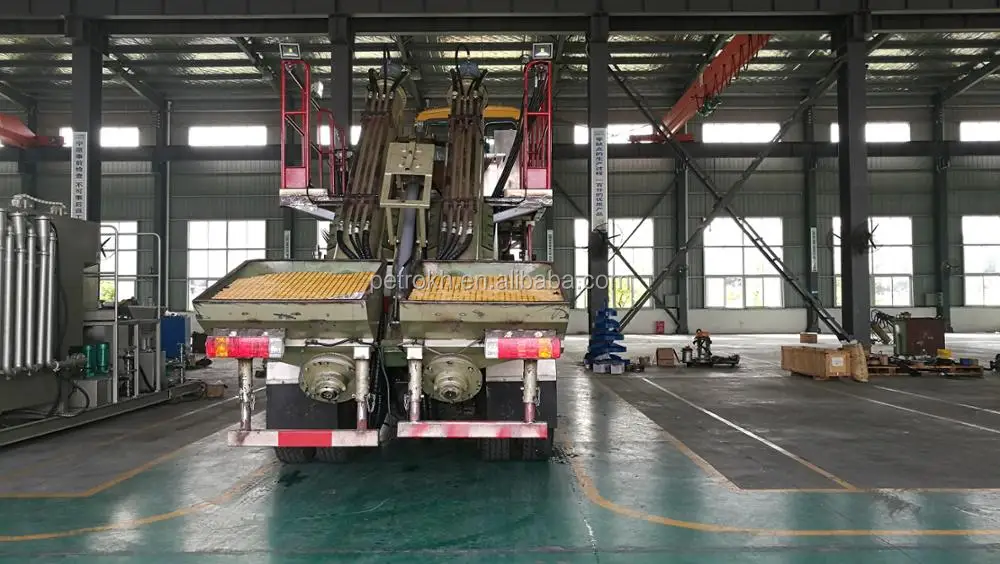

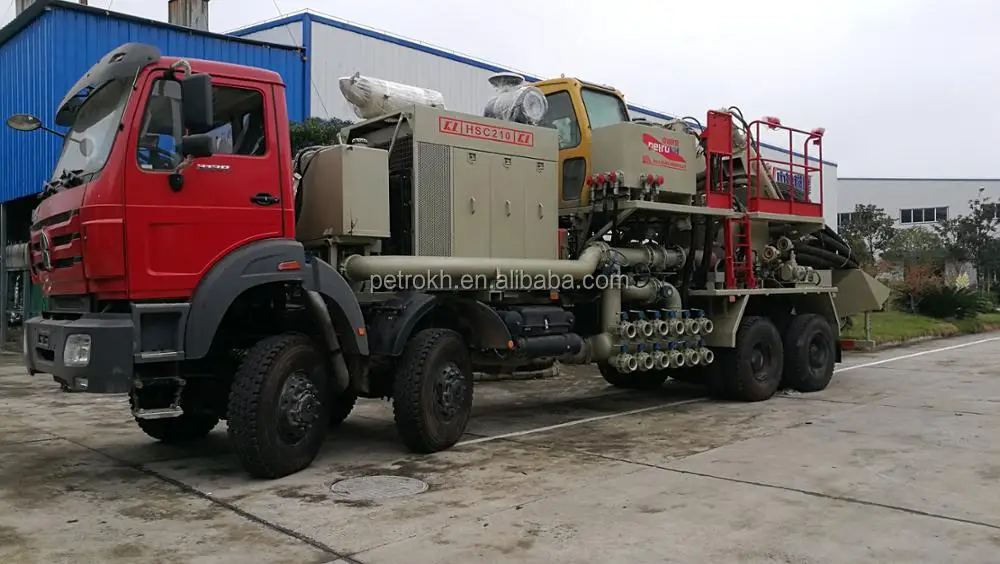

210 HSC oilfield use cement mixer and sand blender

75 barrels of sand mixing truck is composed of a KTA19-C525 diesel engine by BQ435 transfer case drive the hydraulic pump, the hydraulic pump hydraulic drive the corresponding actuator to complete the proportion of sand mixing operation. Vehicle complete instrument and control system, to achieve the control of the whole vehicle and sand mixing operation monitoring.

The sand mixing equipment is installed on the self-propelled truck chassis (made in China on the North 6 x 4 chassis). The vehicle consists of two parts: chassis and top. The chassis is mainly completed vehicle movement; the upper part is mainly composed of an engine, transfer case, operation platform, mixing tank, screw conveyer, suction manifold, exhaust manifold, hydraulic system, hydraulic system, Tim Tim dry system, fuel system, circuit system, pneumatic system, instrumentation and control system, cooling system etc. composition.

The maximum displacement: 12 m fand /min (water)

The maximum discharge pressure of the pump: 0.5 MPa

Maximum sand transport: 7456 kg/min

The suction line valve: 4 "butterfly valve 16

Discharge pipe valve: 4 "butterfly valve 12

On board engine: KT19-C525 diesel engine

Transfer case: BQ435 transfer case

Operation control system: network operation control system with remote control box

Vehicle dimensions (length * width * height): less than 11900 mm * 2500 mm * 4000 mm

The vehicle gross weight: less than 24000 kg (containing water)

The minimum distance from the ground of the equipments: 400 mm

The minimum ground clearance: 300 mm

Departure angle: 19 degrees

Approach angle: 33 degrees

Climbing is not less than 21 degrees

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

Machine Parts

Name:  Chassis

Brand: North Benz

Original: China

Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name: 3ZB-265 horizontal triplex plunger pump
Brand: KH
Original: China
Domestic famous fluid end, strong driving force, low fuel consumption, high economic benefits.

Machine Parts

Name: ACM-III Automatic Mixing System or Digital display mixing system
Brand: KH
Original: China
Domestic famous, strong driving force, low fuel consumption, high economic benefits.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is iron box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
