ASME stainless steel 95% alcohol recovery tower distillation column

Share on (60706763074):


Price:$2,000.00

Quantity:


Product Overview

Description



Product posters

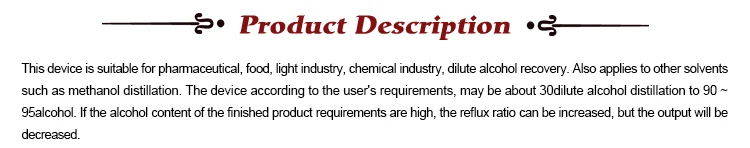

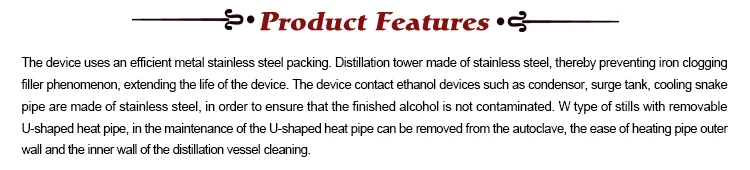

_01.jpg _02.jpg_03.jpg_04.jpg

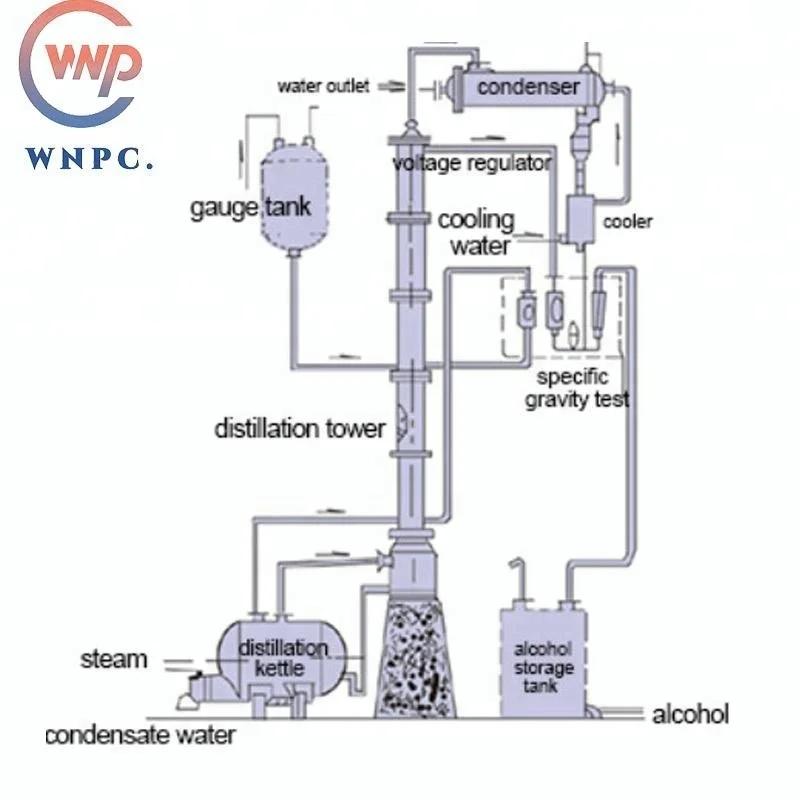

Accept custom order stainless steel 95% alcohol recovery tower distillation column











































































































                       Model
Item
HT200HT300HT400HT500HT600HT800
Tower Capacity(L)64012201450230025003200
Tower Height(mm)60007000800080001000012000
Hight Level Tank Capacity(L)23040065080010001500
Condensation Area(m²) 911222540
Cooling Area(m²)11.52.26815
Heat Exchange Area(m²)3612172530
Recovery Capacity(kg/h)45-5090-100150-160280-300420-440600-620
Recovery Concentration(%)>90℃-95℃
Packing Formstainless steel corrugated plate packing
Vessel ClassificationClass D
Weight(kg)110019002300380045007800
Size(mm)

2300*700


*7300



2600*800


*7500



2500*1000


*9000



3000*1200


*9000



3500*1400


*9000



4200*1800


*1400






Company Information


Wuxi Nanquan Pharmaceutical Chemical Container Factory is located at Hudai Industrial Park in Wuxi, Jiangsu,China.Our company is dedicated to designing and manufacturing the pressure vessels with high quality and excellence. The company has the manufacture license of D1,D2 pressure vessels, which are class I and class II vessels with middle or low pressure. In addition, the company has the ASME certificate with “U” steel seal.


Our factory occupies a land of over 13,000 square meters and the workshop occupies an area of 8,000 square meters. We have more than 20 sets of advanced equipment for the manufacturing and testing of the pressure vessels. The lifting capacity of the overhead crane in the factory is 50 tons.We are led by a professional team consisted of the field experts (some of them have obtained the post-graduate degrees outside of China). 30% of the employees have good technical ability. The backbone of the workshop is composed of employees acquiring relevant experience of over 20 years. So far, the annual output of the pressure vessels manufactured is as high as 10,000 tons. And our pressure vessels cover all over the world now,such as Australia,Turkey,Russia,India,Thailand,Canada,etc.
