UV curing light Hight Quality 8 color uv led printer digital a3 uv offset printing machine price with one year warranty
- Category: >>>
- Supplier: Shenzhen Renwei Optoelectronic Co. Ltd [Guangdong China]Shenzhen
Share on (60706765663):
Product Overview
Description

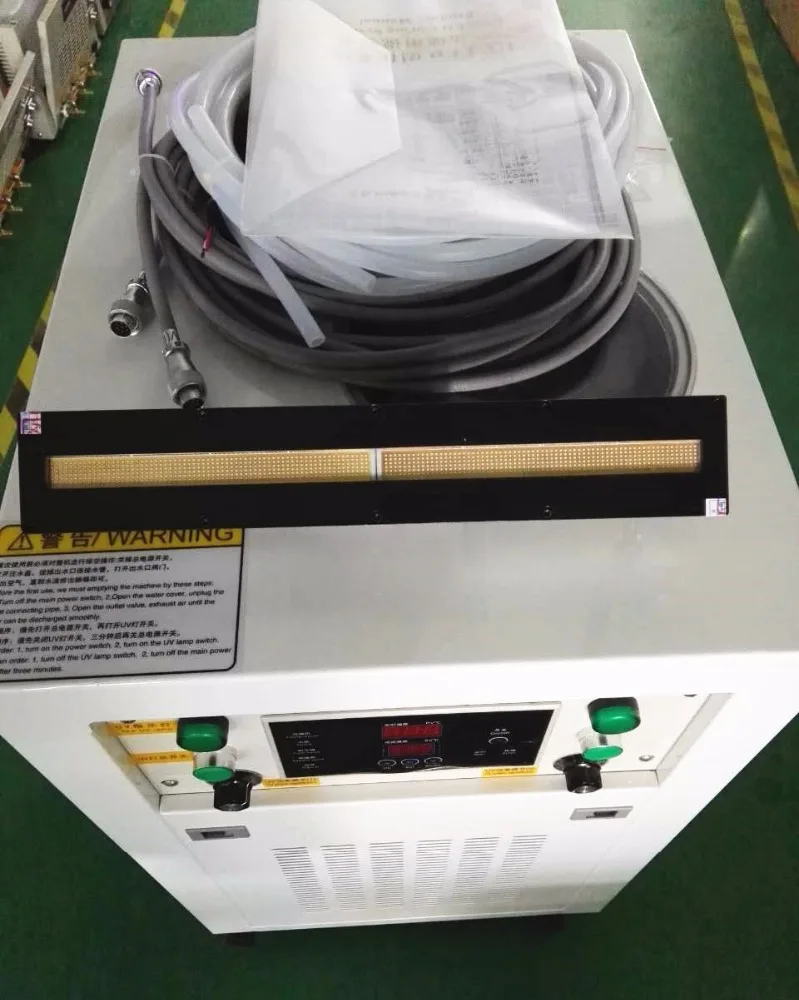

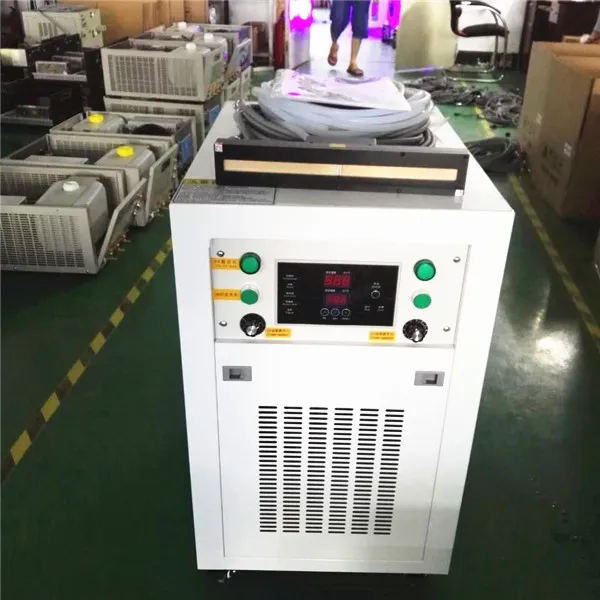

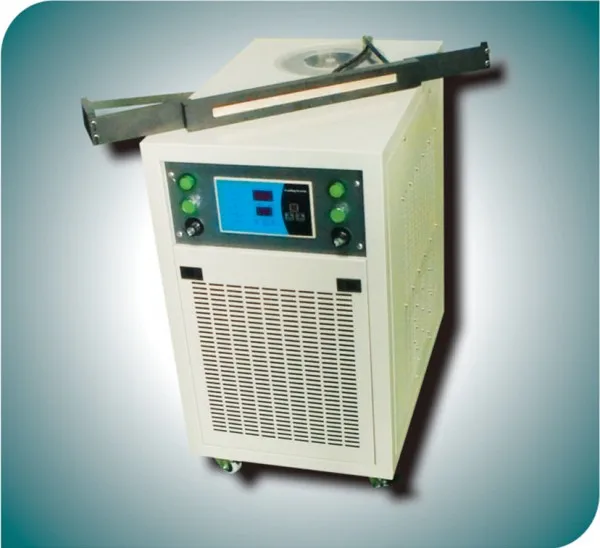

Water cooling system
UV curing light Hight Quality 8 color uv led printer digital a3 uv offset printing machine price with one year warranty
| led uv 395nm system's specification | |
| Controller size | 690*470*790mm |
| LED size | 390*60*30mm |
| UV Emitting window sizes | 160*14 mm |
| LED QTY | 1pcs |
| Wavelength | 365-405 nm |
| Intensity | above 8w/cm2 |
| LED Voltage | 48V |
| Cooled method | Water cooled |
| led uv 395nm machine's specification | |
| Controller size | 600*500*850 mm |
| UV Emitting window sizes | 200 mm*22 mm |
| LED QTY | 1 pcs |
| Wavelength | 365-405 nm |
| Intensity | above 8w/cm2 |
| LED Voltage | 24V |
| Cooled method | Water cooled |
| led uv 395nm machine's specification | |
| Controller size | 600*500*850 mm |
| UV Emitting window sizes | 200*22 mm |
| LED QTY | 1 pcs/6 pcs |
| Wavelength | 365-405 nm |
| Intensity | above 12 w/cm2 |
| LED Voltage | 48 V |
| Cooling method | Water cooled |
| led uv 395nm system's specification | |
| Controller size | 600*500*700mm |
| UV Emitting window sizes | 350mm*14mm |
| LED QTY | 1 pcs |
| Wavelength | 365-405 nm |
| Intensity | above 8w/cm2 |
| LED Voltage | 24V |
| Cooled method | Water cooled |
| led uv 395nm system | |
| Controller size | 650*500*780mm |
| Chiller size | 715*635*1200mm |
| LED size | 149*55*42mm |
| UV Emitting window sizes | 1075mm*16mm |
| LED QTY | 1 pcs |
| Wavelength | 365-405 nm |
| Intensity | above 12 w/cm2 |
| LED Voltage | 48 V |
| Cooled method | Water cooled |
RWUVLED Description

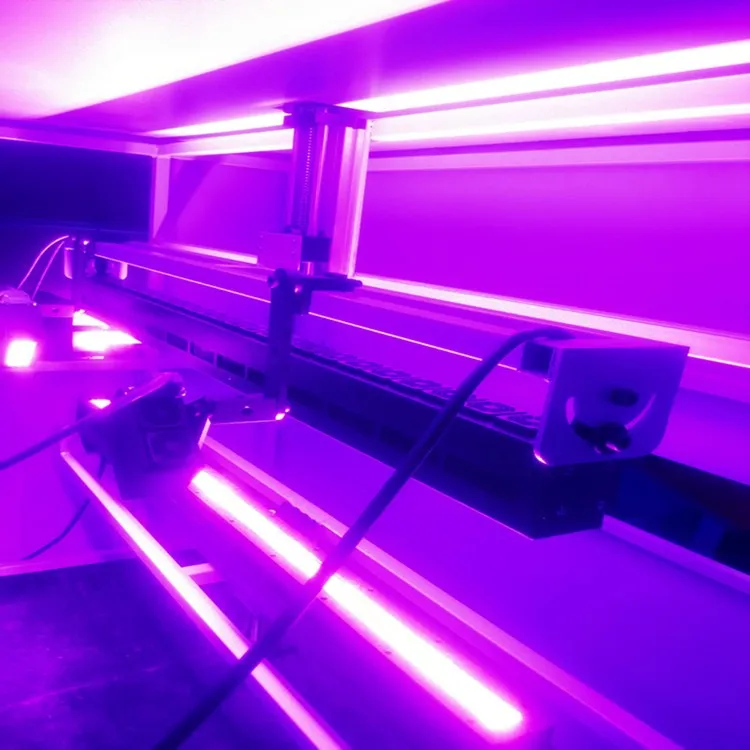

1300mm length 395nm Water cooling UV LED curing system for wooden coating

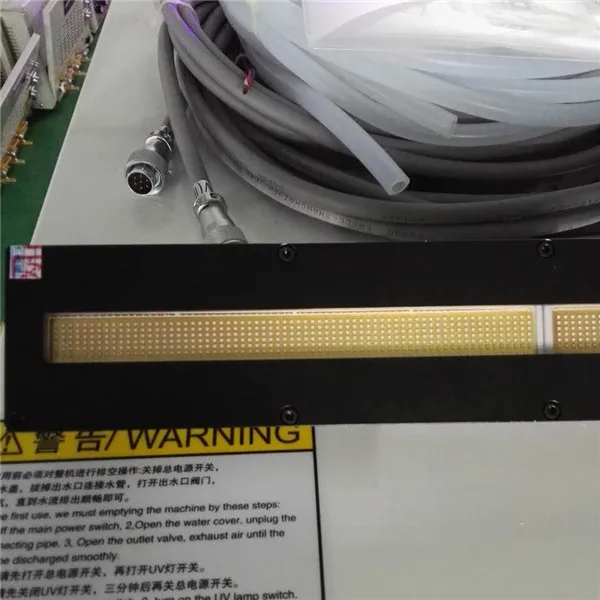

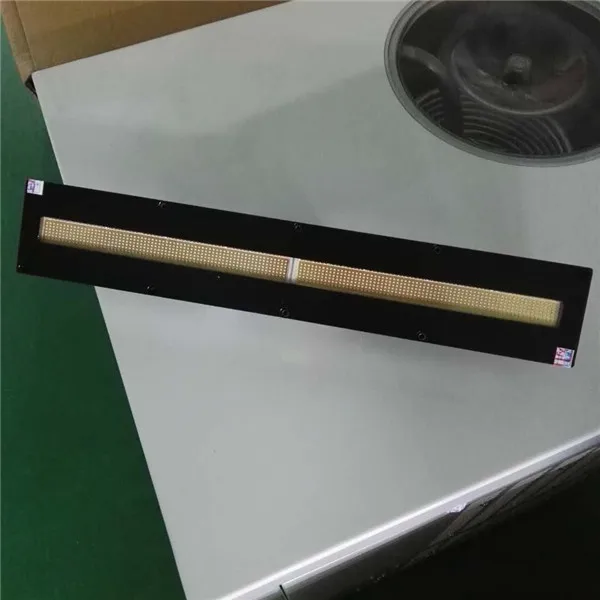

COB technology (Chip On Board)
Our UVLED unit use chip assembly instead of lamp, it makes our products efficient and high intensity with a small form-factor.
Quartz package
Our UVLED system use quartz for encapsulation chips. It is anti-radiation, high temperature resistance, easy maintenance and have a lower cost.
1300mm length 395nm Water cooling UV LED curing system for wooden coating
The water cooling UV LED curing system is ideal for wood coating that can scale to cover any conveyor width and the consistent UV output enables end users to run their production lines at maximum speeds
Curing Steps:
1. liquids appliced, inks, coatings, adhesives,
2. UVLED exposure causes chemical reaction
3.liquids harden, final product is UV cured
1. liquids appliced, inks, coatings, adhesives,
2. UVLED exposure causes chemical reaction
3.liquids harden, final product is UV cured
365nm 1200mm Air cooled LED UV curing system for silk screen printer
The UV curing system is suit for Ceramic Labeling, glass surface printing, bottle printing etc.
It increasing productivity, reducing cost, and decreasing their impact on the environment
It also allows for printing on heat-sensitive substrates and ever-thinner labels.
35mm 395nm UV LED digital printer curing system
RWUVLED enabling end users to print high quality material at maximum speeds.
higher productivity,
lower enrgy usage,
reduced heat load for thinner substrates,
smaller footprints
clear environmental benefits
Water & Air cooling

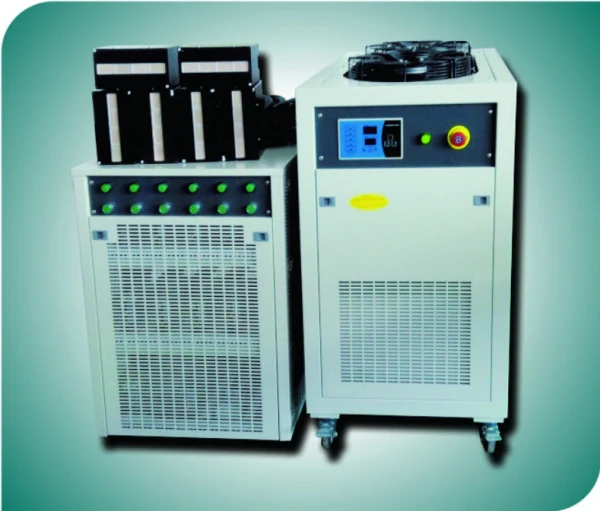

Water Cooled UV LED lamp's advantange
Small form factor
High peak irradiance
Custom sizes available for longer curing lengths
Ideal for narrow & wide web curing
All water-cooled systems are designed to be rugged and reliable to succeed in the toughest customer environments.

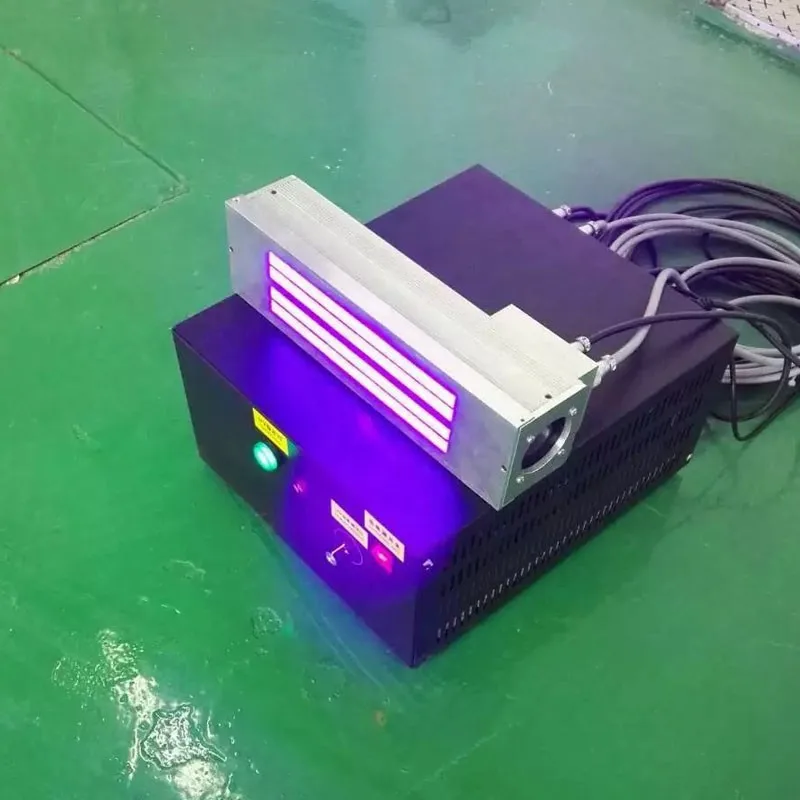

Air cooled UV LED lamp's advantage
Simple integration
No external cooling required
Low operating cost
Scalability
All air-cooled systems are designed to be versatile and can be used for high performance curing, pinning, and small area curing.
UV LED Applications
UV curing light Hight Quality 8 color uv led printer digital a3 uv offset printing machine price with one year warranty application field
UV LED for Adhesive
Electronics ( TOuch Panel, Mobile Phone, Micro Speakers, Disk Drives and etc)Medical Industrial
UV Coating LED curing machine
Wood products( Edge coating and Roller coating)
Automotive ,Industrial
UV ink LED curing system for Printing
Digital printing( Labels,bottle, 3D, Coding,Poster and etc)Screen printing
Flexo and Narrow web printing
LED VS Mercury lamp
led uv 395nm Advantages
| Benefits | Features |
| Advanced Capabilities | Heat-sensitive, thin substrates Deep, through curing Small, compact machines Controlled curing intensity |
| Operating Economics | Energy Efficient Long ligetime&Low maintenance Increased yields Low operating temperatures |
| Environmental Advantages | Mercury free Ozone free Workplace safety UV-A wavelength |
Certifications
UV curing light Hight Quality 8 color uv led printer digital a3 uv offset printing machine price with one year warranty certification
Company and package
FAQQ4. Will the coating have the same performance as before?
Q5. How to proceed an order for led light?
Q6. Do the UV LED units need to cool down or warm up?
UV curing light Hight Quality 8 color uv led printer digital a3 uv offset printing machine price with one year warranty FAQ
Q1. Why choosing RENWEI UV LED curing system?
A: RenWei focus on high power UV curing technology for 5 years and got seven national patents. RenWei has 2 COB lines with K&S equipment, 1 assembling workshop and high quality accessories.
Q2. Why and how do I replace a UV LED Lamp?
A:UV LED’s working time is more than 20,000 hours, 10 times longer than the traditional lamp, Besides, UV LED curing is effective, energy saving and environment friendly.
Q3. Will current coatings/inks work with UV LED?
A: No, The coatings/inks must be specifically to take advantage of the narrow Wavelength, Ask for your supplier for the best wavelength, we can customized the UVLED’s Wavelength.
Q4. Will the coating have the same performance as before?
A: Yes, The coatings/inks suppliers have solved this problem to ensure the same performance.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Do the UV LED units need to cool down or warm up?
A: No. UV LED System can be turned on/off instantly.
UV curing light Hight Quality 8 color uv led printer digital a3 uv offset printing machine price with one year warrantyr services
1.Engineer is online for 12-hours, UVLED curing system Technical support is available in time.
2.With one year’s warranty,and lifelong maintenance(except the wearing parts).
3.Please rest assured that operation video and user-friendly English manual will be offered along with uvled machine.
