Контроллер нагрузки ветровой турбины на продажу, 5 кВт, 10 кВт, 20 кВт

Share on (60706811999):


Price:

Quantity:


Product Overview

Description


 On Grid Wind Controller

Product Description



FKJ-GT ON GRID CONTROLLER  Characteristics
1Big LCD Display
real-time wind turbine voltage,current,solar panel voltage,current,DC output voltage,current,total power generation.
(The main board is with button battery,in case of power failure, history data can be saved for 30 days)
2PWM constant voltage system & Three-phase dump load system.
3The controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake,hydraulic brake, electromagnetism brake and other brake functions foror the different wind turbine
4Support WIFI and GPRS
Customers can monitor the real-time working state via PC & mobile and query history working state.
5Manual three-phase dump load switch
The wind turbine will brake by using the switch.
6Emergency stop switch
The wind turbine will immediately brake  when press down the emergency stop button







Technical Data



TypeFKJ-GT 1.5KWFKJ-GT 2KWFKJ-GT 3KW
Wind turbine rated power1.5KW2KW3KW
Wind turbine Max. power3KW4KW6KW
Wind turbine rated voltageAC220VAC220VAC220V
FunctionRectifier,control,DC output
Automatic protection functionOver voltage protection, network electric cut off protection, regulated supply output, arrester
Manual functionManual brake, reset, emergency switch
Display modeLCD
Display contentWind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage≥320dc≥320dc≥320dc
Wind turbine 3-phase dump load voltage350±5Vdc350±5Vdc350±5Vdc
Wind turbine 3-phase dump load time-lapse12-20 min12-20 min12-20 min
PWM dump load fuse10A10A16A
Fuse of DC output16A16A20A
Work environment temperature-30-60°C



TypeFKJ-GT5KWFKJ-GT5KWFKJ-GT10KW
Wind turbine rated power5KW5KW10KW
Wind turbine Max. power10KW10KW20KW
Wind turbine rated voltageAC220VAC380-400VAC380-400V
FunctionRectifier,control,DC output
Automatic protection functionOver voltage protection, network electric cut off protection, regulated supply output, arrester
Manual function Manual brake, reset, emergency switch
Display modeLCD
Display contentWind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage≥320dc≥520dc≥520dc
Wind turbine 3-phase dump load voltage350±5Vdc540±5Vdc540±5Vdc
Wind turbine 3-phase dump load time-lapse12-20 min12-20 min12-20 min
PWM dump load fuse25A16A32A
Fuse of DC output32A20A40A
Work environment temperature-30-60°C



TypeFKJ-GT15KWFKJ-GT20KWFKJ-GT30KW
Wind turbine rated power15KW20KW30KW
Wind turbine Max. power30KW40KW60KW
Wind turbine rated voltageAC380V-400VAC380V-400V   AC380V-400V
FunctionRectifier,control,DC output
Automatic protection functionOver voltage protection, network electric cut off protection, regulated supply output, arrester
Manual function Manual brake, reset, emergency switch
Display modeLCD
Display contentWind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage≥520dc≥520dc≥520dc
wind turbine 3-phase
dump load voltage1
540±5Vdc540±5Vdc540±5Vdc
wind turbine 3-phase
dump load voltage2
------------540±5Vdc550±5Vdc
Time-lapse of the wind turbine
 3-phase dump load2
12-20 min12-20 min12-20 min
PWM dump load fuse50A63A80A
Fuse of DC output63A80A100A
Work environment temperature-30-60°C

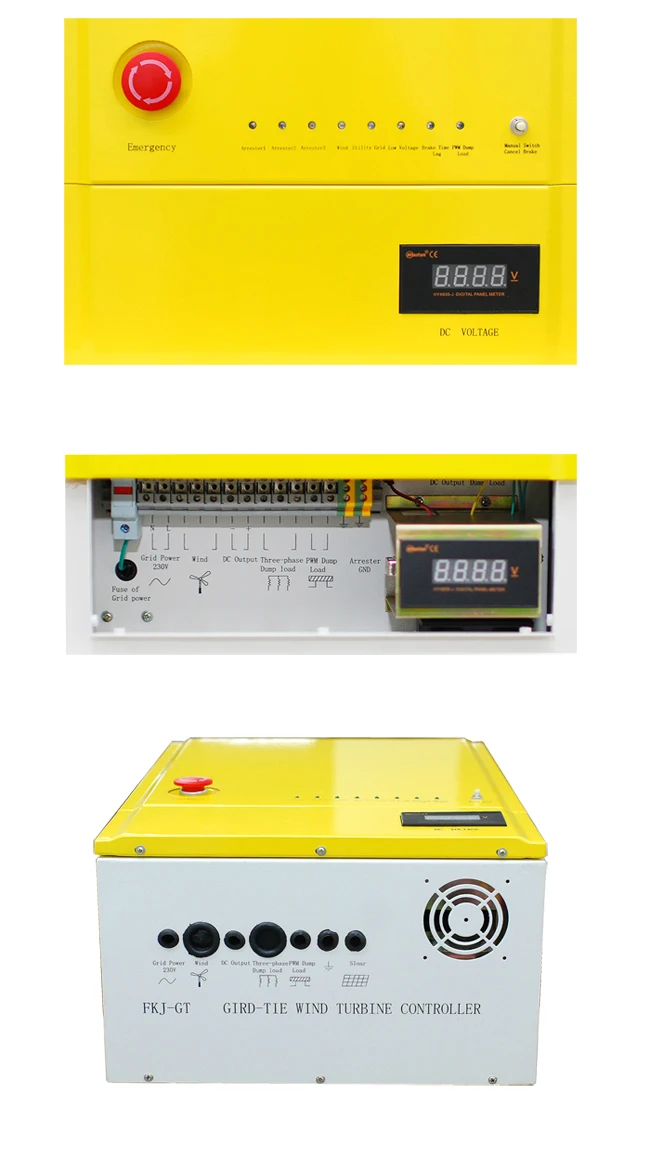

Detail Pictures

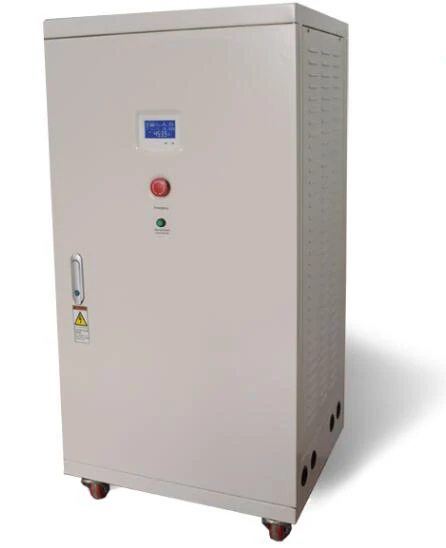

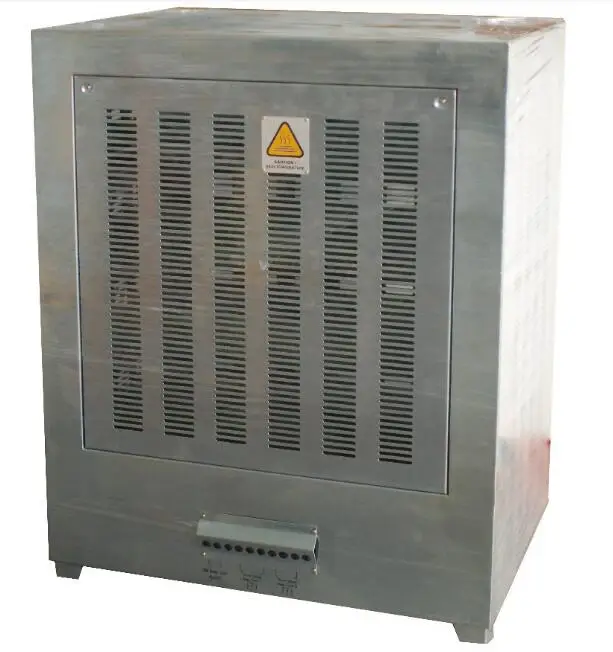

 1-10KW.JPG.jpg50kw on grid inverter.jpgdump load.jpg

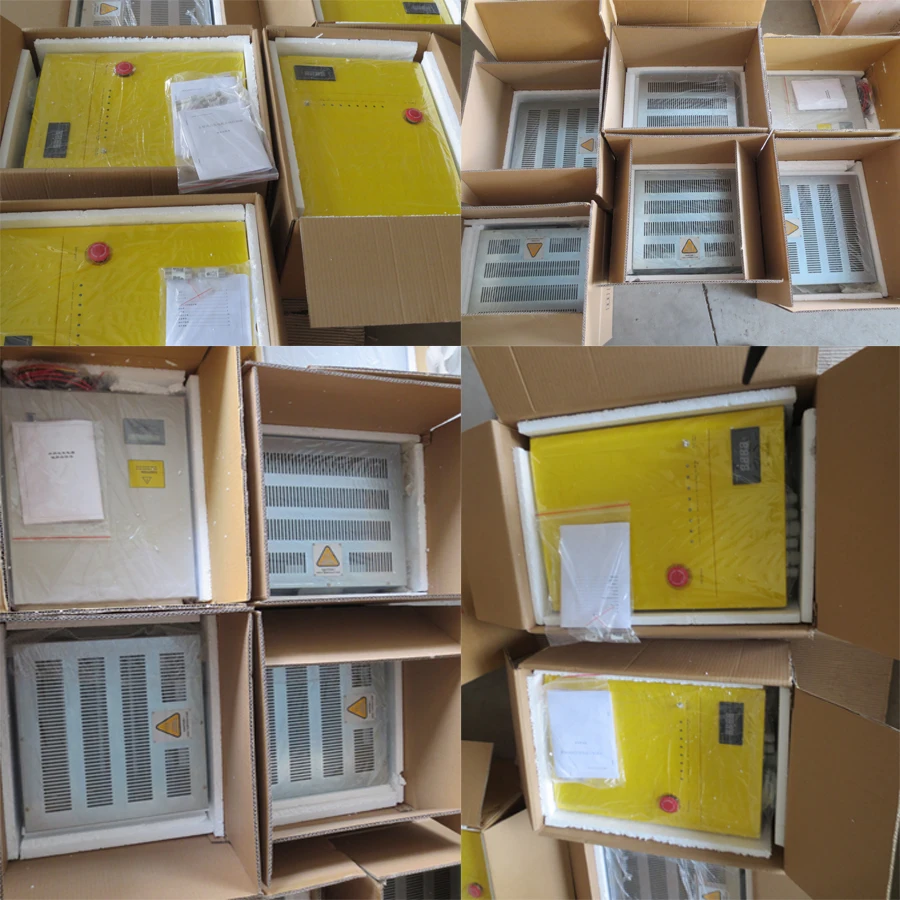

Packaging & Shipping



1. Greef generator use inner foam protection, outer Plywooden case.

2. Pakage size and weight, please contact our sales.

3. Shipping by sea with FCL LCL or by air or by Express(DHL/FedEx/TNT/UPS etc.).

If you have any request in package and shipping please tell our sales we will do according to your request.

.jpg

Our Services



The controller is 1 year warranty for free, All lifelong  technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

Other Hot Products

GREEF can also provide :

On grid inverter

On grid solar inverter

Off grid wind controller

Off grid wind solar hybrid controller

Off grid solar controller

Off grid inverter



Any new inquiries ,please kindly contact us for free.
