1.5.7 inch LCD screen with Infrared remoter controller
2.Adopt advanced digital signal processing control replaced
3.traditional analog signal control, better stability.
4.Friendly windows interface, both Chinese and English program, easy to operate.
5.Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working
frequency.
6.Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)

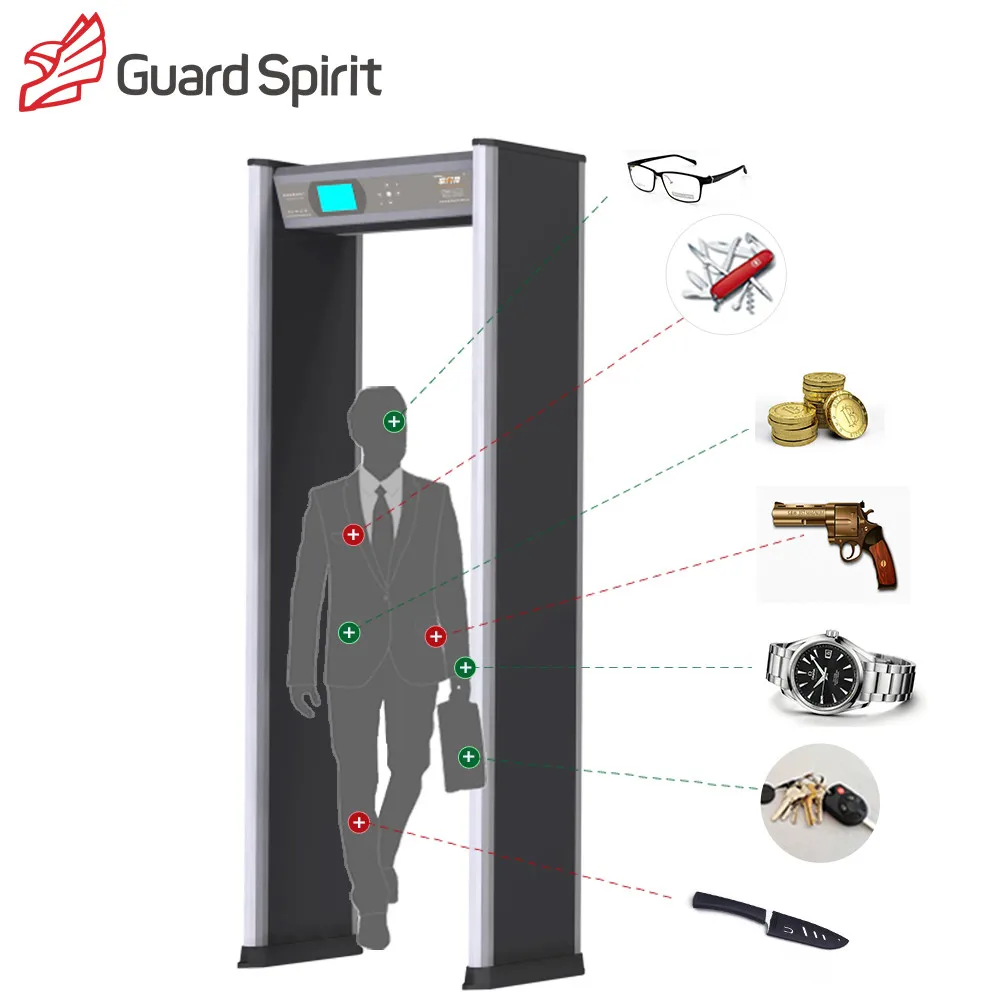

7.Detecting Zones: 8 detecting loops, can extend to 16,24zones by separate left, right, ,middle side detection to pinpoint detection
(As follow picture)
8.Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements.
Preset the metal size, weight, volume, location to exclude the coin, key, belt..
9.Sound Alarm: 1-25s alarm time, 255 different sound volume and 12 tones for choose
10.LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of
metal articles
11.2 set of Password protection and Lock
12.Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from
4K-8K to avoid frequency interference
13.21 preset programs for security application versatility
14.PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
15.Integrated and modularized circuit design lead to simple installation and more convenient after services.
16.Adjustable Passing speed: up to 100 persons/min
17.Background light: 0-99 seconds for choose
18.Calendar function: real time display year, month, date, hour, minute, second
19.Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
20.4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.
21.Network support: (For Option)
22.Turnstile control function (For option)
23.Tunnel width can be up to 75cm ( For option )
Specification
Model Number
XYT2101LCD
Door External Size
2230mm(H)X835mm(W)X580mm
Door Internal Size
1990mm(H)X700mm(W)X500mm
Packing type
Carton box
Net weight
65KG
Gross weight
70KG
Detection zones
8 / 16 / 24 zones
Working voltage
AC90V~264V50/60Hz
Power consumption
15 W
Each zone sensitivity
0-255 Level
Security level
0-255 Level
Working frequency range
4 K- 8K
Relative Humidity
0 – 95 %
Working environment temperature
-20ºC~65ºC
Application
Airports, Sporting Events, Prisons, Nuclear Facilities, Correctional Facilities, Transportation Terminals, Public and Private Buildings, Loss Prevention, Schools, Corporate Security, Stadiums/ Concerts, Historical Landmarks
