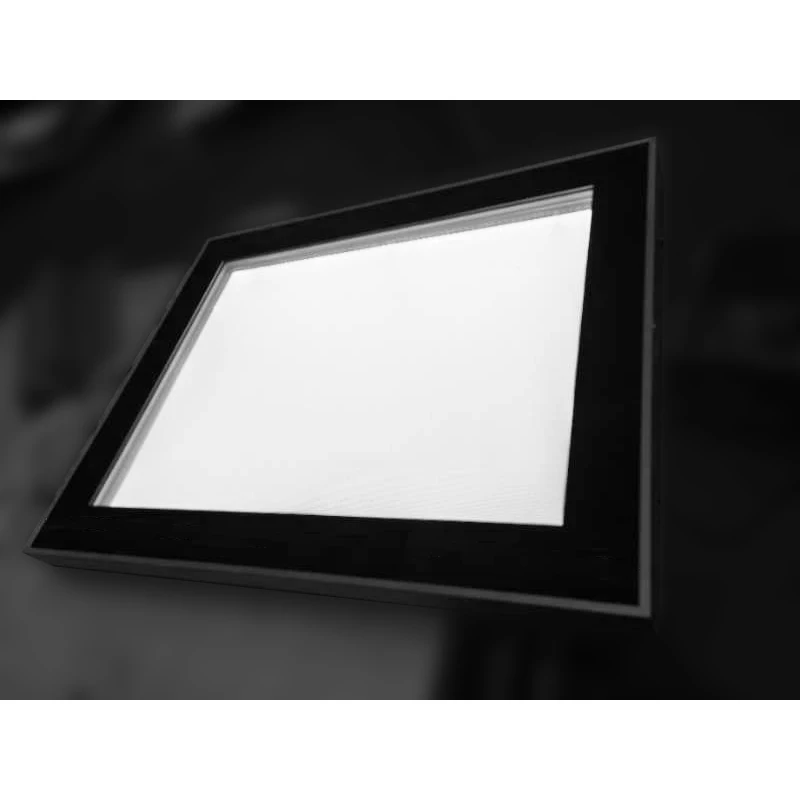

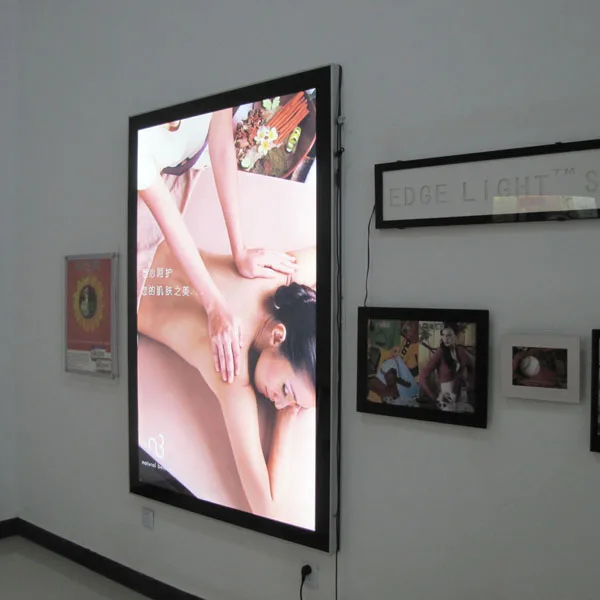

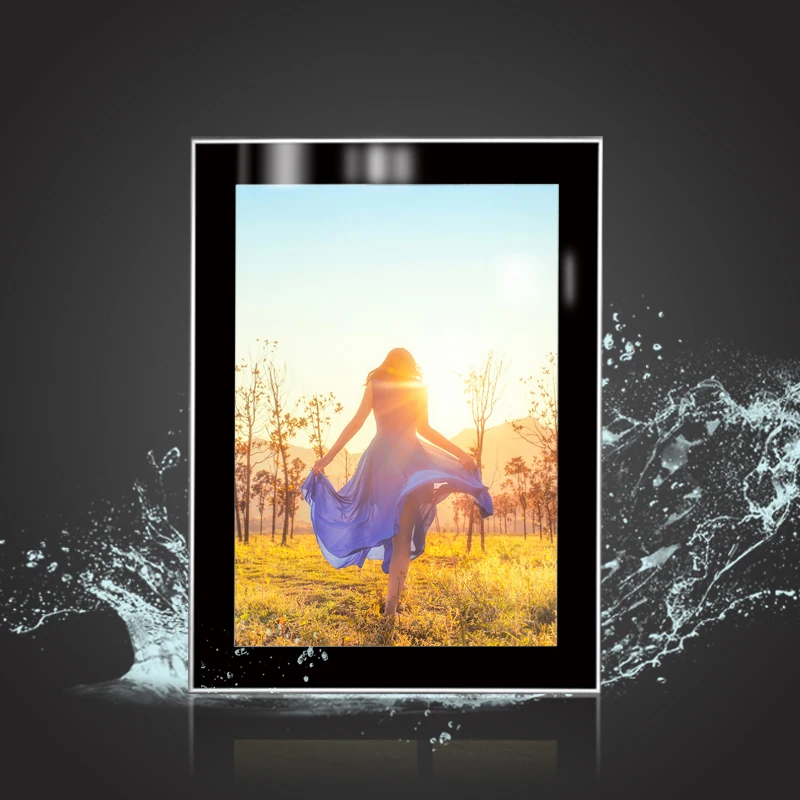

AF50 light box Edgelight AF50A waterproof door open type with low price top quality led advertising light boxes sign

Product Overview

Description

Introduction:

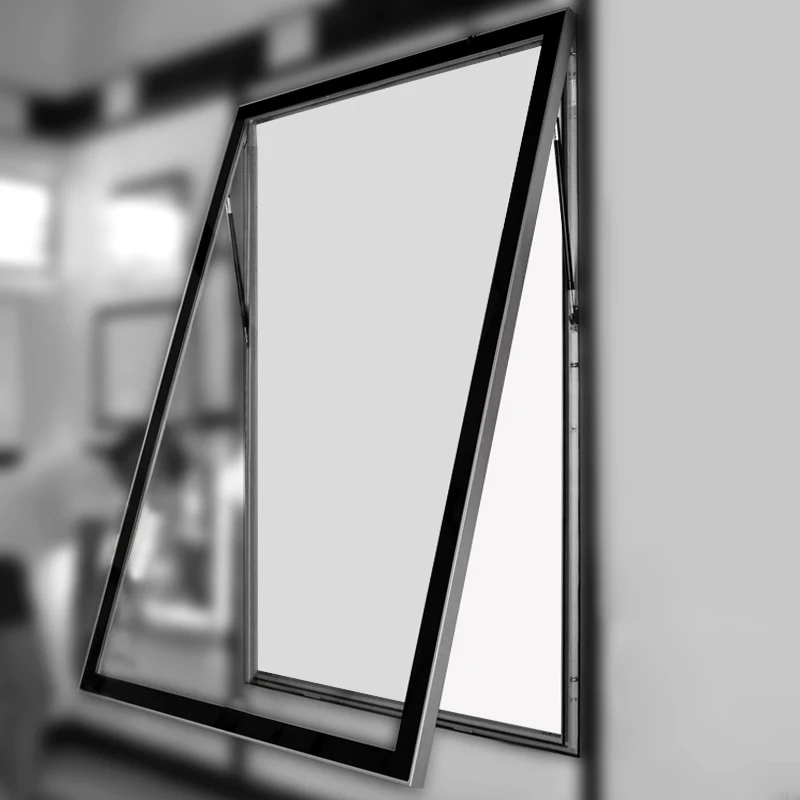

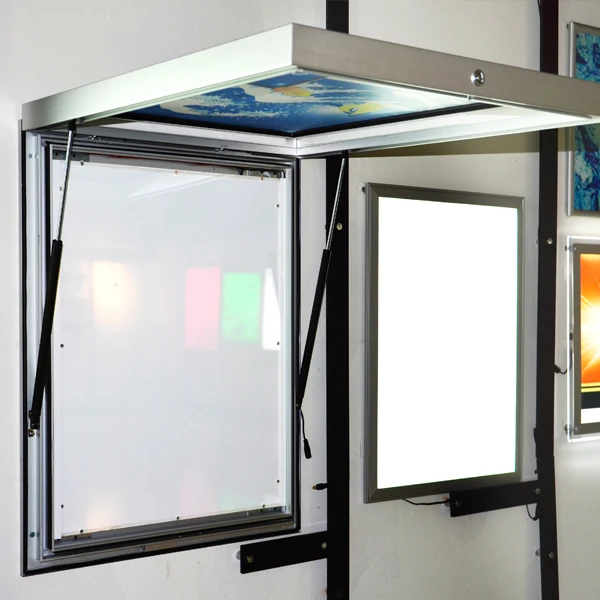

Open mode	Key lock type , use a key to open the front door to change image
Shape	Rectangle/square
Package	bubble bag , cartons , wood box for long distance transport
Material	the Edgelight LGP , aluminum frame , other accessories
LGP	Laser dotting technology , V-cutting engraved grid
Light source	SMD LED light source , with 3528 , 2835 , 5050 , 3535 or others
LED light source	3528/2835/5050/3535 LED strips ; LED IC chip:Epistar or CREE
Frame color	oxidated alloy aluminum frame , other colors can be customized
Thickness	Ultra thin
Life span	LED life time more than 50000 hours
Mounting	wall mouting , hanging type
Input voltage	12V/24V
Suitable size	size can be customized
Visible surface	single
Power	12W-120W



Mechanical  parameters
Item		Frame size /mm	Viewing size /mm	Thickness /mm	Film Size/mm	Packing size/cm	Volume/m3	Gross weight/Kg
AF50A   (Single side door open type)		1886*1286	1760*1160	58	1800*1200	192*9*132	0.14	58.0
	B0	1500*1086	1374*960		1414*1000	154*9*112	0.18	53.5
	B1	1086*793	960*667		1000*707	112*9*82	0.05	24.0
	B2	793*586	667*460		707*500	82*9*62	0.05	12.0
	A0	1275*927	1149*801		1189*841	131*9*96	0.07	34.0
	A1	927*680	801*554		841*594	96*9*72	0.04	18.0
	A2	680*506	554*380		594*420	72*9*55	0.02	9.0

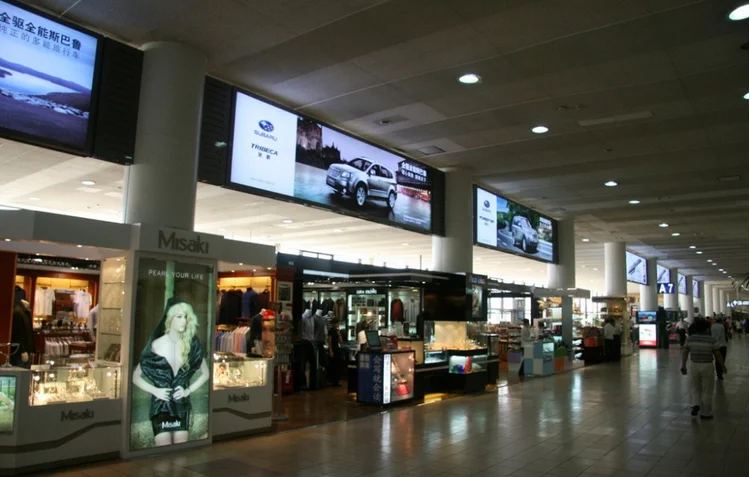

Application:



 Packaging&Delivery:

Packaging Details:1piece led modular per carton,If you need we can design as your request.

high strength carton.effectively prevent the led modular is damaged in the process of transportation.

Delivery Detail:1-3days sample/5-8days small bulk/10-20days big bulk
