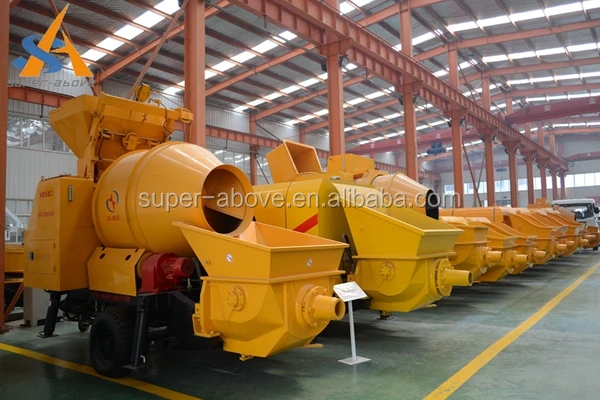

1. Description: Portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during
concrete construction process.
2. Application: Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete. Convey greening soil in ecological environment construction. Convey all kinds of engineering construction in the plain concrete, fiber concrete.
Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete
mixer at the scene.
3. Features: Mixer and pump in one machine. Transfer concrete through pipeline. It is fast and safe. It has small size and suitable for more special environment. Optional part: cement boom, wireless remote control. This is easy to operate.
Item
Unit
Parameter
Pumping system
Max.Theo. Output
m3/h
30
Concrete delivery pressure(high/Low)
(high/low pressure)
MPA
8
Distribution valve
S tube
Pumping motor power
KW
37
Oil volume
L
200
Feeding Hopper capacity
L
560
Concrete cylinder diameter*stroke
mm
Φ160×800
Oil cylinder specification
mm
80/50*800
Feeding height
mm
1070
Discharging outlet diameter
mm
Φ125
The maximum aggregate size
mm
Pebble:30 Crush stone:25
Rated speed
r/min
1480
Hydraulic oil type
Full hydrauliccontrolled open loop
Mixer system
Max.Theo. Feeding capacity
L
600
Max.Theo. Mixing Quantity
m3/h
20
Mixing capacity
L
450
Mixing motor power
KW
5.5
Lifting motor power
KW
4.5
Water pump
KW
0.55
Main system maximum oil pressure(high/low pressure)
