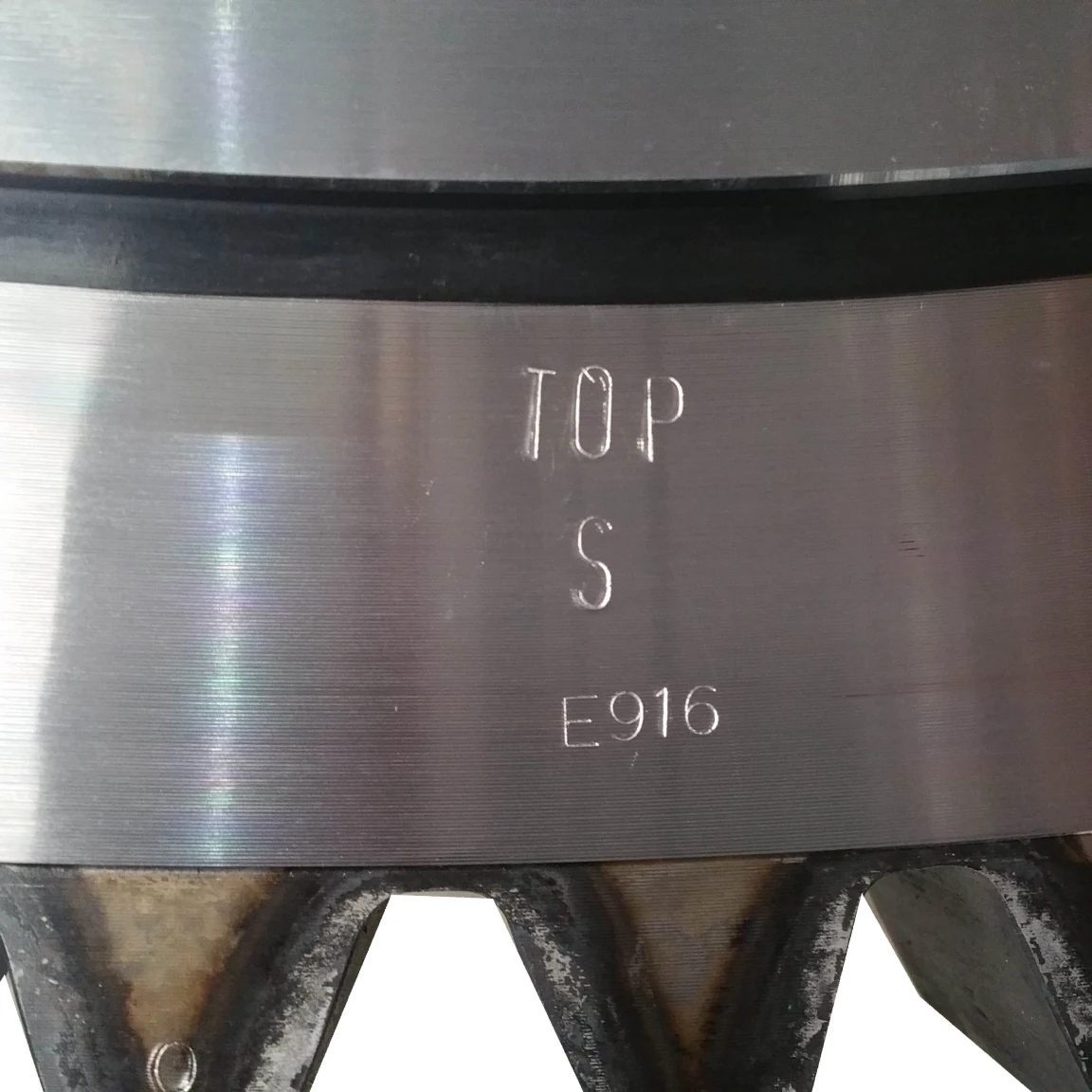

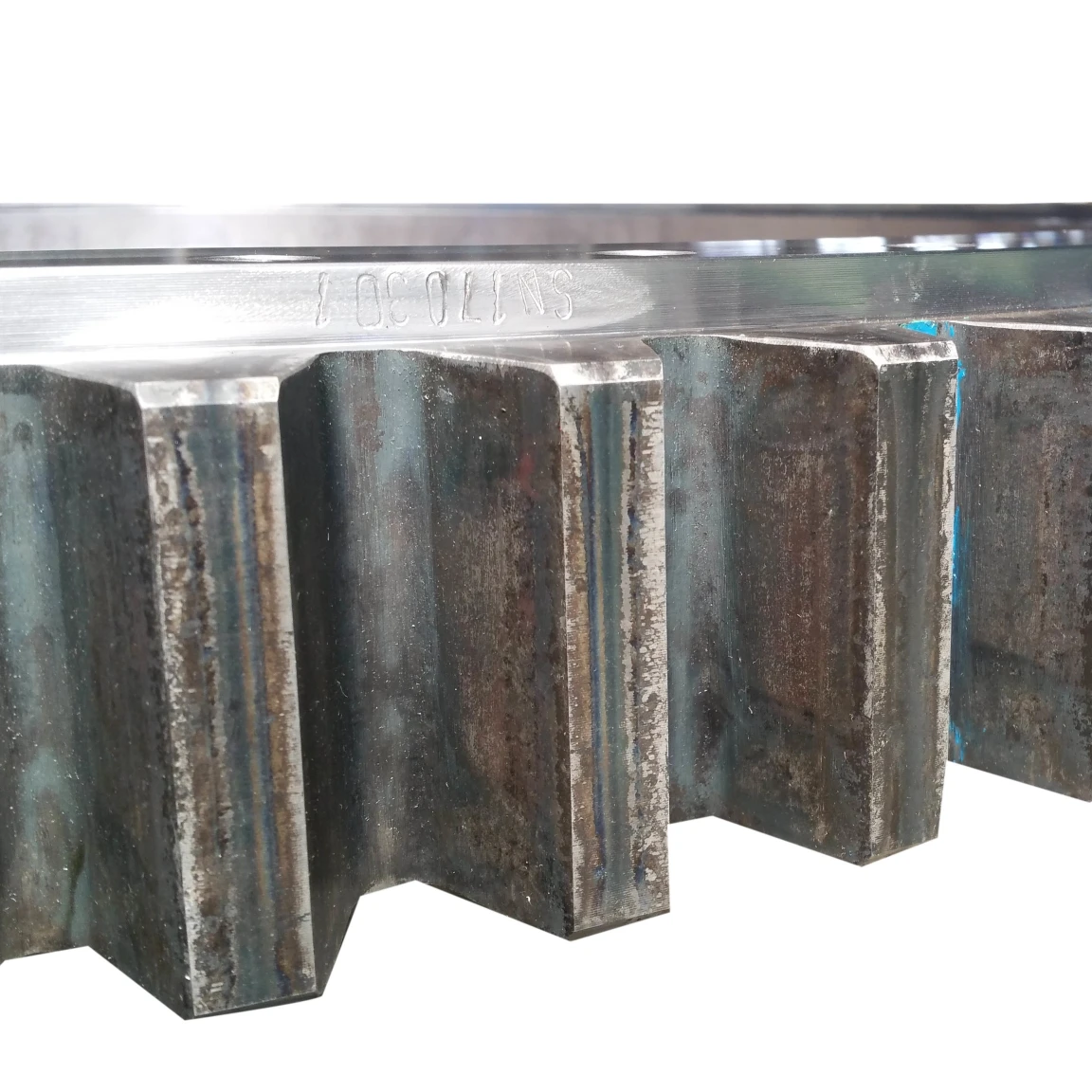

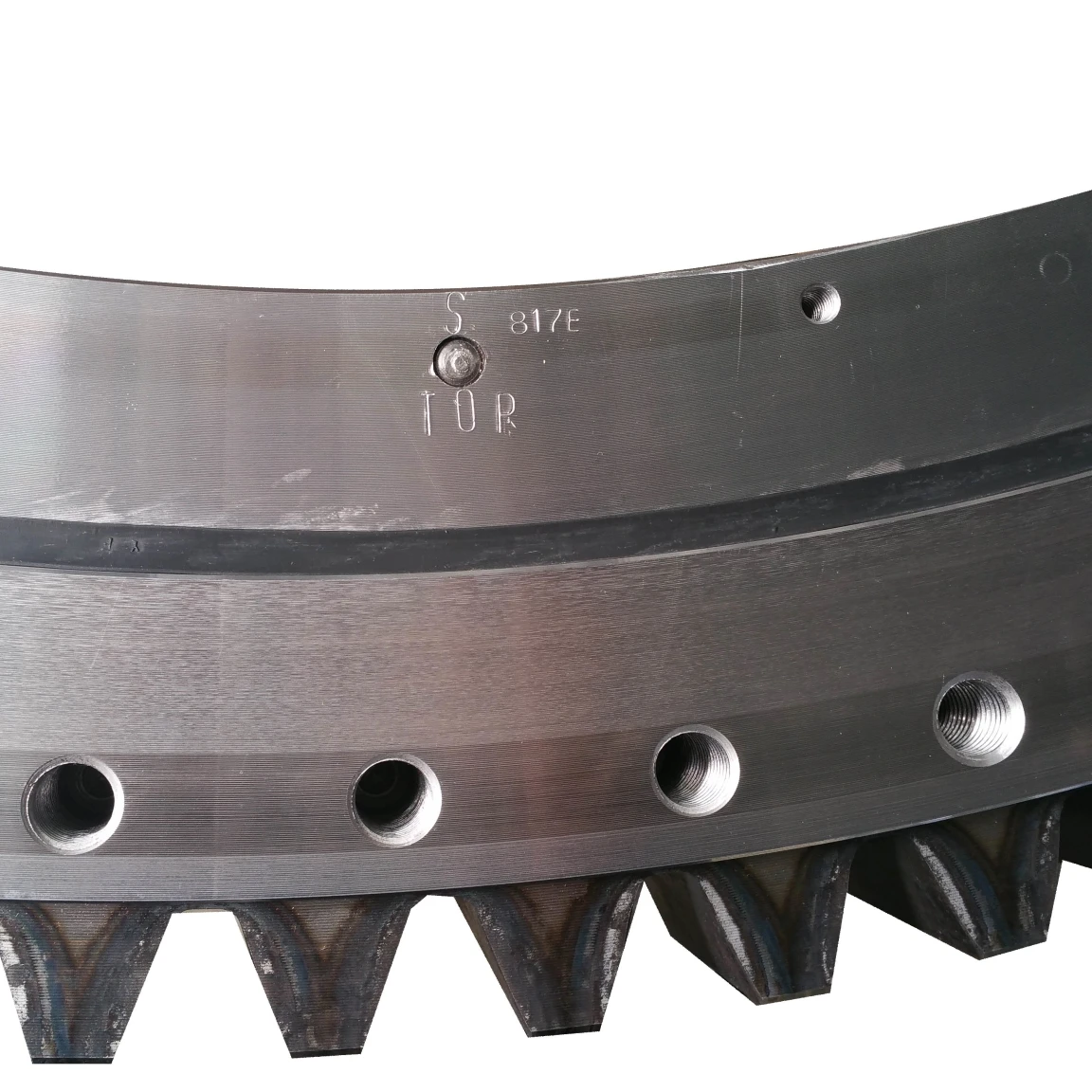

High Rigidity Roller Bearing Slewing Ring for Log Loaders
- Category: >>>
- Supplier: Shenyang Leadway Machinery Equipment Co. Ltd.
Share on (60706960123):
Product Overview
Description
Product Description

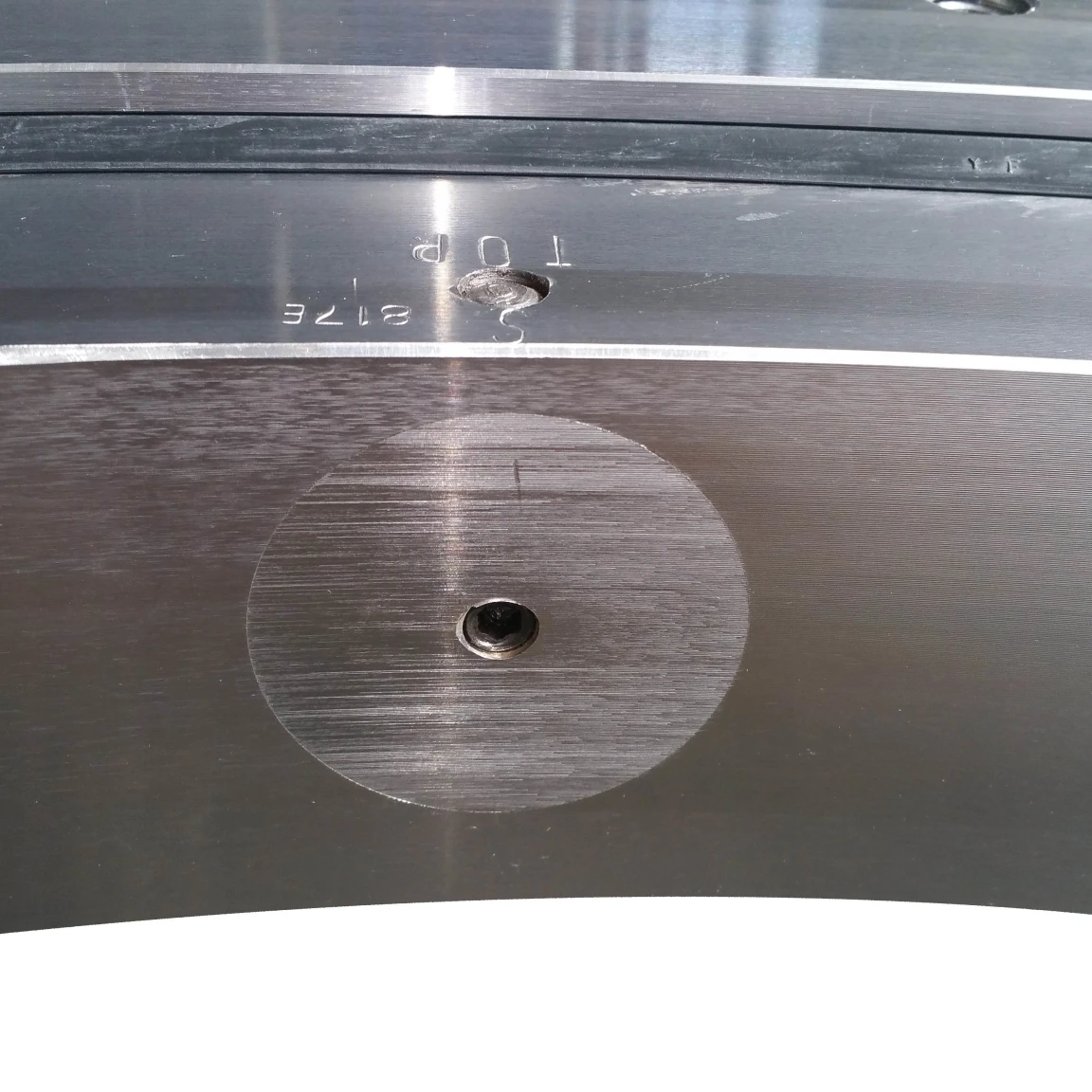

High Rigidity Roller Bearing Slewing Ring for Log Loaders
Slewing bearings are large-sized bearings which can accommodate a combined load, i.e., radial loads and tilting moment. They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition, they often enable the elimination of many components necessary in the classical bearing arrangement.
Slewing Bearing Details As Below:
Product Name | High Rigidity Roller Bearing Slewing Ring for Log Loaders |
Model Number | EGSCRM 1652 1308 114 |

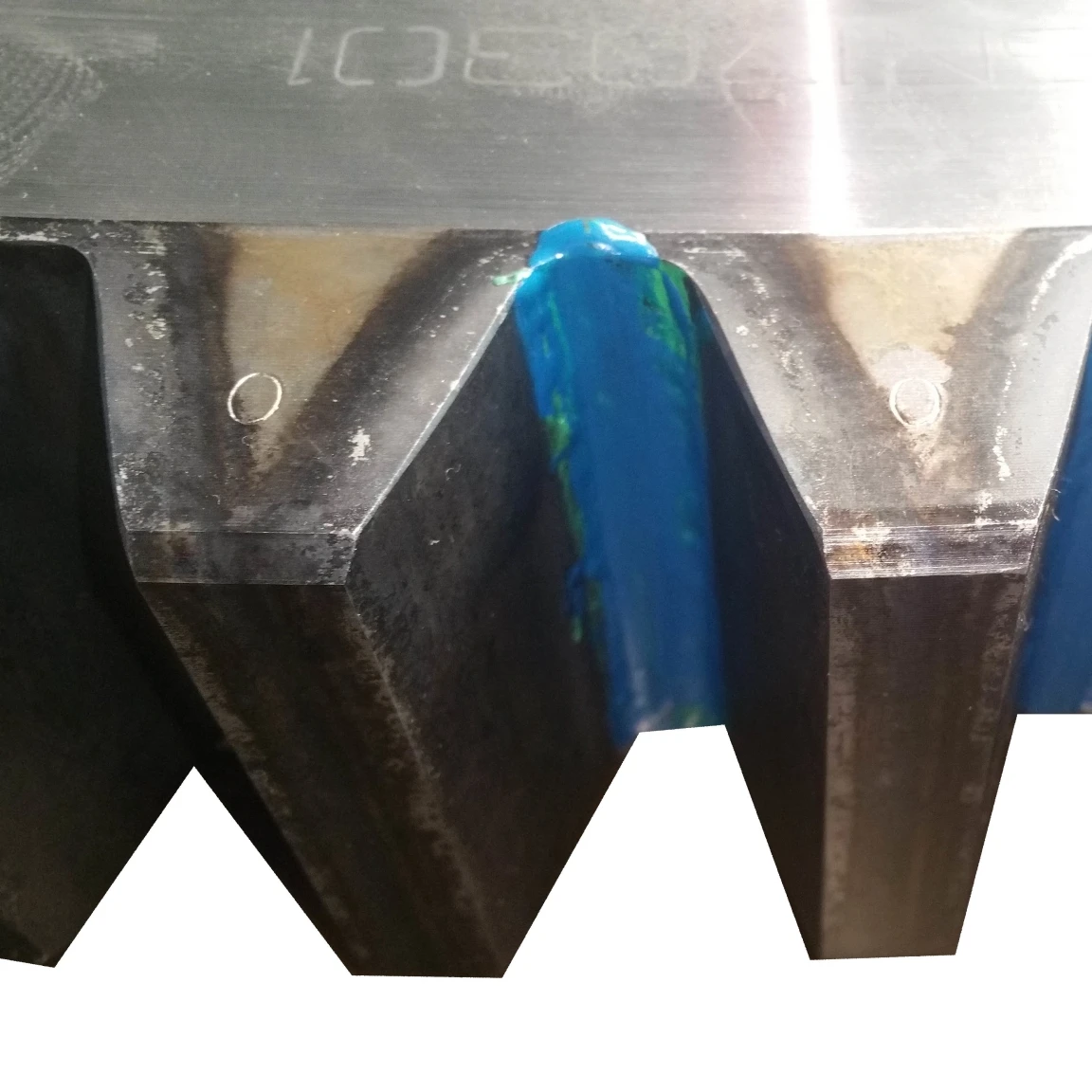

Gear Option | Internal Gear |
Seal Type | Rubber Sealed |
Features | Cross Roller Slewing Bearing |
Application | For Log Loaders |
Brand | Leadway |
Outer diameter: | 1652 mm 65") |
Inner diameter: | 1308 mm (51.5") |
Height: | 114 mm (4.5") |
Axial play: | 0.00 mm~0.06 mm |
Radial play: | 0.00 mm~0.06 mm |

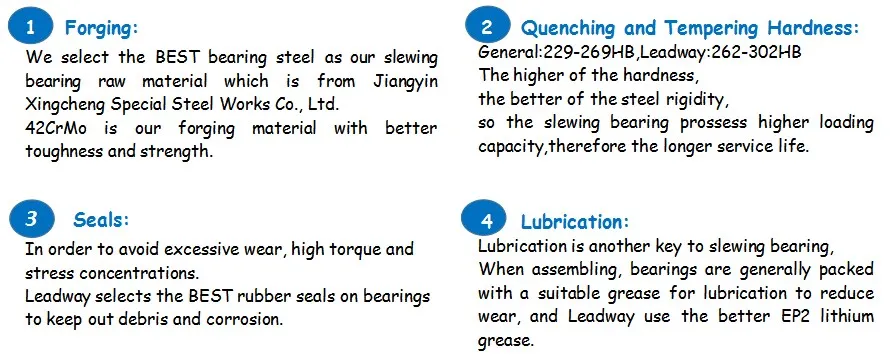

Core hardness: | 250-300 HB quenching and tempering |
Raceway Hardness: | 55-60 HRC quenching |
Raceway Effective Depth | ≥5 mm |
Material: | GB42CrMo (DIN42CrMo4/BS708A42/AISI4140) |
Standard | EN 10204 2.2; EN 10204 3.1.B ; EN10204 3.1.C |
Heat treatment | Quenching and tempering, Raceway induction quenching |
Operating Temperature | -40°C to +50°C |
Grease | EP2 lubricating lithium grease |
Weight | 515 KGS |
Place of Origin | Luoyang, Henan, China |
Certificate | API Q1 Certificate (American Petroleum Institute) Quality Assured Firm Qualified to be used in Petroleum machinery equipment. ISO9001:2008 Certificate |
Services | OEM Service, Customized Service, Design Service |
Our Company
Shenyang Leadway Machinery Equipment Co., Ltd. is the subsidiary corporation of Universal Industrial Products, Inc. (UIPI)
UIPI is a slewing bearing (slewing rings) manufacturer specialized in large diameter solutions. We have our own warehouse in LA, California, we can stock for customer or delivery to door anytime according to customer's request. In order to maintain our competitive edge, UIPI ran a sole proprietorship factory in China.
UIPI is a slewing bearing (slewing rings) manufacturer specialized in large diameter solutions. We have our own warehouse in LA, California, we can stock for customer or delivery to door anytime according to customer's request. In order to maintain our competitive edge, UIPI ran a sole proprietorship factory in China.
In 2017, Universal Industrial Products, Inc.(Luoyang ) has passed the API Q1 Certificate (American Petroleum Institute) Quality Assured Firm Qualified to be used in Petroleum machinery equipment. We are the first and for now the only slewing bearing manufacturer who has got API Q1 Certificate in China
UIPI insists on "Customer First, Quality First". Our goal is to use our resources to extend your company's capabilities and provide a comprehensive solutions package for all your application.
Certifications
UIPI (Luoyang) has passed the API Q1 Certification and to be the China first API Qualified manufactuer in bearing industry.
API (American Petroleum Institute) Quality Assured Firm Qualified to be used in Petroleum machinery equipment.
Production Process
1.Rough Lathing
2.Raceway Heat Treatment
3.Drilling Hole
4.Teeth Cutting
5.Teeth Heat Treatment
6.Final Turning
7.Assembling Ball and Spacer
8.Assembling seales
Packing & Shipping
1.Before packaing -coat the anti-rust oil
2. Plastic film packing
3. Kraft paper packing
4. Blue woven belt packing
5. Tape wrapping
6. Plywood pallet packing
Quality Control
Applications

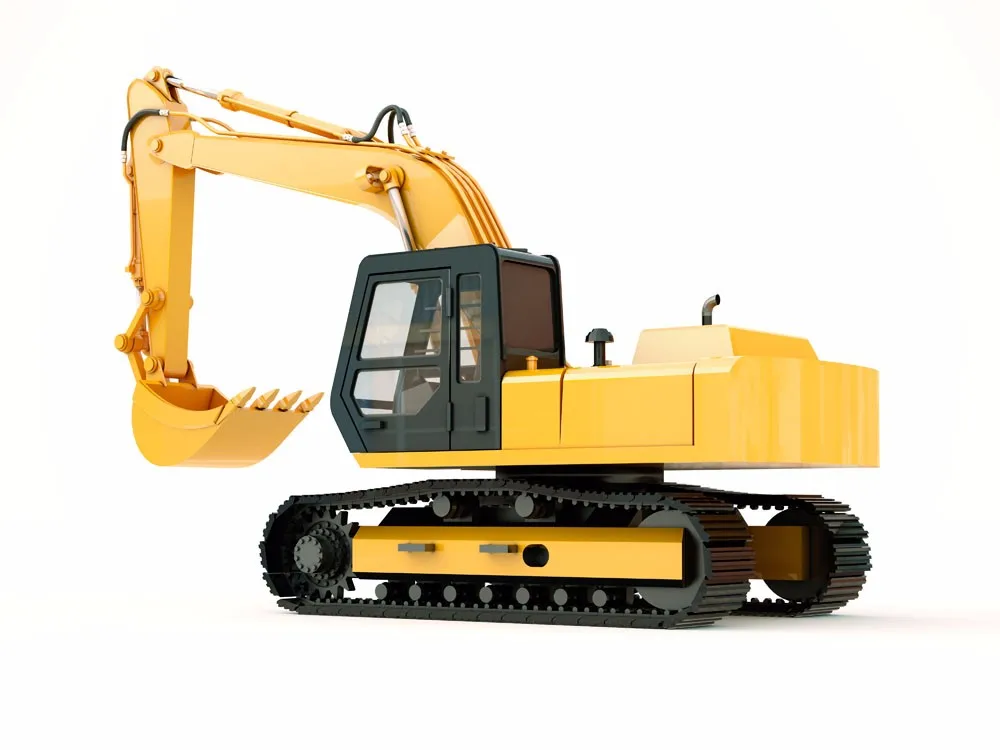

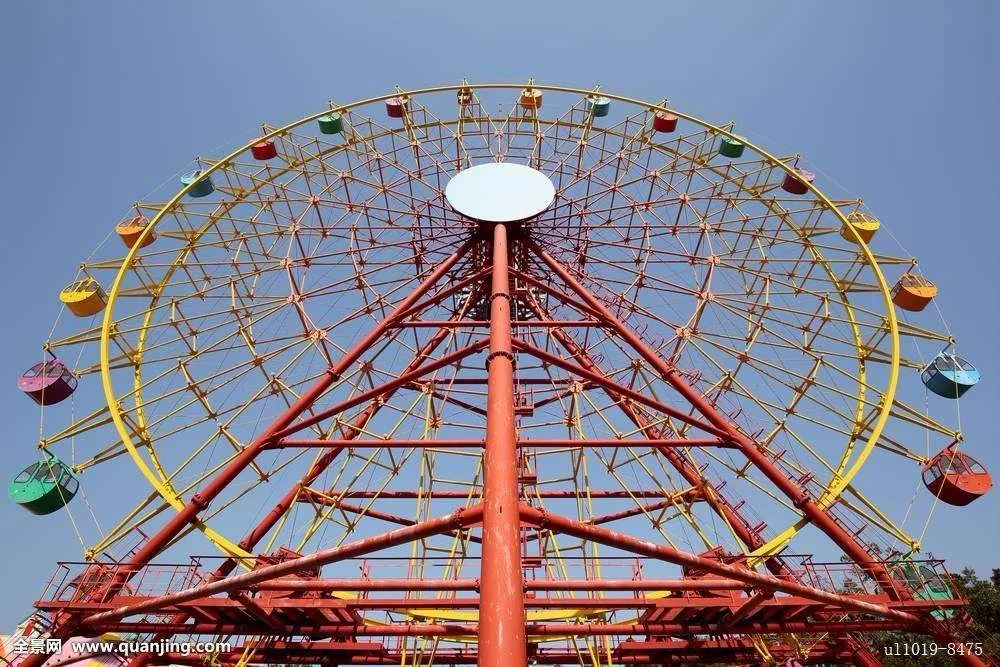

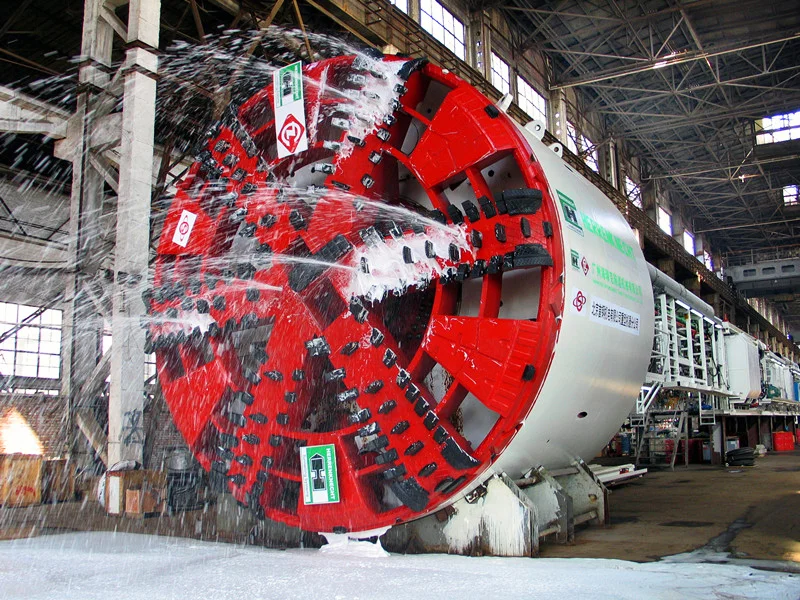

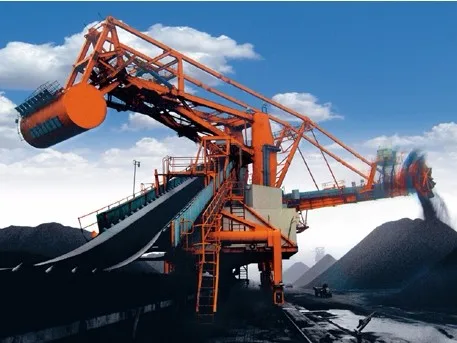

Slewing bearing is widely used in construction and energy industry. UIPI manufactures large diameter ball and roller slewing bearing utilized in many applications such as :
FAQ
Q:Are you trading company or manufacturer?
A: Leadway is a sales office in Shenyang, the facility is in Luoyang, both of them are attached to UIPI, the manufacturer of slewing bearings in USA and have nearly 20 years experience in bearing industry.
Q: Do you provide OEM service?
A:Yes. About 90% customers are OEM customers. A variety of products size, quality and quantity can be customized according to your requirements.
A:Yes. About 90% customers are OEM customers. A variety of products size, quality and quantity can be customized according to your requirements.
Year | Qty | OEM Customer | Aftermarket |
2014 | 4470 pcs | 3920 pcs | 550 pcs |
2015 | 6780 pcs | 6107 pcs | 673 pcs |
2016 | 7036 pcs | 6558 pcs | 478 pcs |
2017 | 8960 pcs | 8540 pcs | 420 pcs |
Q: How long is your delivery time?
A: Production time: 45-60 days generally speaking.
Shipping time: for small order quantity 1-2 pieces and needed urgently, we suggest transport by air about 7 days; for large order quantity, we suggest transport by sea about 30 days from Shanghai port.
Q: How do you guarantee the delivery time?
We have strict production schedule to assure the delivery time, kindly check the production schedule as below:
A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
We have strict production schedule to assure the delivery time, kindly check the production schedule as below:
A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
The final delivery time is 45days production time plus shipping time.
