1. Description for use

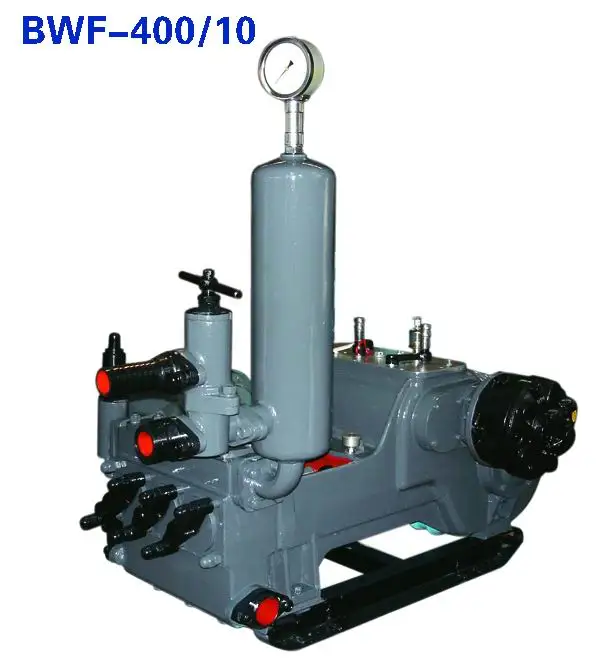

The BWF-400/10 pump has been sold to over twenty countries and districts, such as occident and Southeast Asia. It has been used in the industry of geology, coal, construction, metallurgy, chemical industry, railroad, water conservation, oil and so on. The viscosity of slurry pumped is 18-25 second, and the sand content of which is no more than 4%, Ph value is 7-10 and temperature is 0-50℃.
The pump has many merits such as multi shifts of discharge, low energy consumption, compact structure, light weight, high efficiency, long life, safe operation, convenient service and low cost for maintain. The pump is mainly used for geologic drilling, geologic engineering construction matching, foundation treatment and middle and low pressure grouting etc.
2. Main specifications
|
Type
|
horizontal, triplex, single acting reciprocation piston pump
|
|
Stroke (mm)
|
110
|
|
Cylinder bore (mm)
|
φ85
|
|
Shift
|
FastⅠ
|
FastⅡ
|
slowⅠ
|
slowⅡ
|
|
Pump speed (min-1)
|
220
|
137
|
79
|
49
|
|
Output volume (l/min)
|
400
|
242
|
140
|
85
|
|
Discharge pressure (M Pa)
|
2.2
|
3.6
|
6.2
|
10
|
|
Input speed (r/min)
|
511
|
|
Input torque (Nm)
|
335
|
|
Suction pipe dia.
|
φ93
|
|
Discharge pipe dia.
|
φ38
|
|
Overall size (length×width×height)
|
1220×1100×1300
|
|
Weight (kg)
|
670
|
