Full set adhesive asphalt waterproofing membrane production line

Product Overview

Description

SBS self adhesive waterproof membrane for roofs making production line



Production line part



 1.unwindering



 2.reinforcement-connecting device.

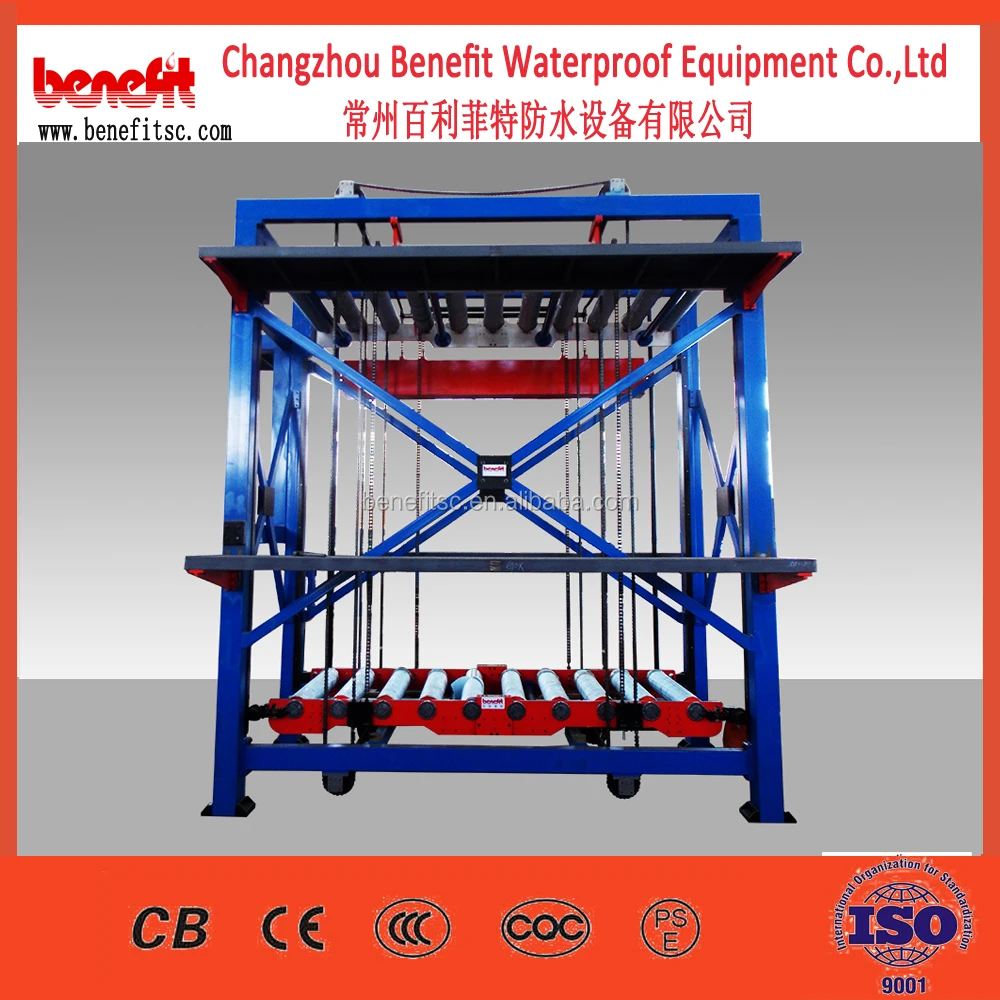

 3.storing and drying device.



 4.deviation device.



 5.asphalt coating device.



 6.sand-scattering device.



 7.sand-pressing device



 8.finished products storage device



 9.glue coating device.



10.electrical operation control device.



11.asphalt shingle forming device.



12.mixing-weighing device.



13.horizontal storage tank



14.power-conveying system.

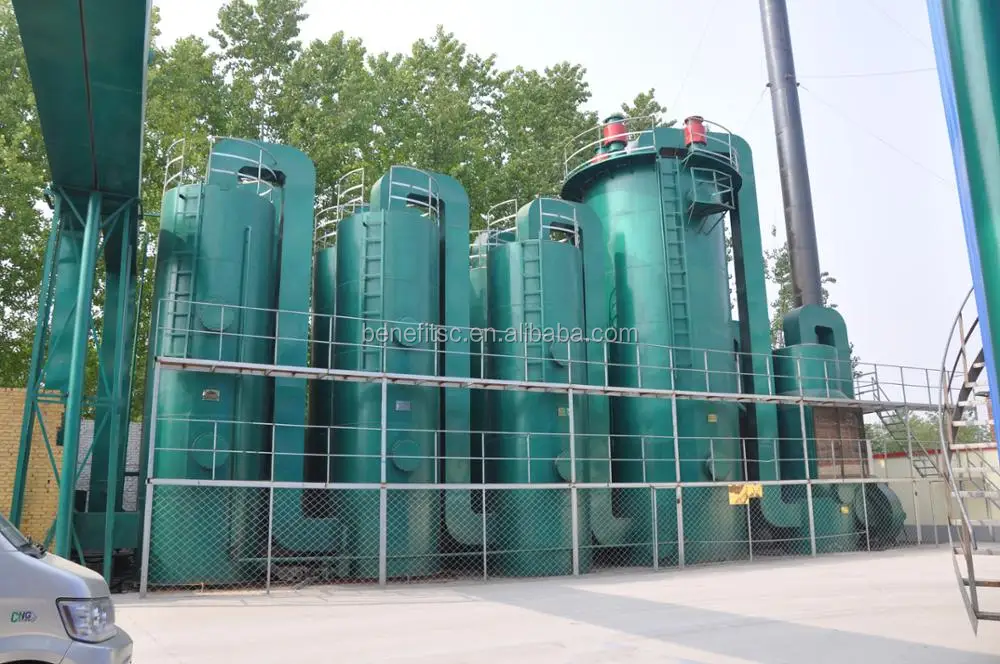

15.fume treatment device



16.oil heat boiler sysystem.





The equipment mainly includes five parts of waterproof membrane machine



1. Coiled material production line



2. Bitumen modification preparation system





3. Thermal oil heating system

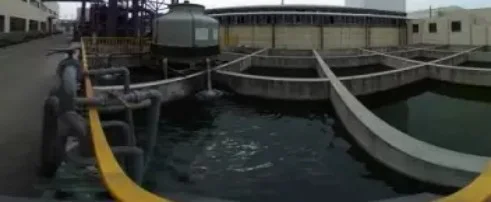

4. Cooling water recycling system

5. Lampblack management system







Technical Data



Item		Self-adhesive  Modified Bitumen Waterproofing Membrane Producion Line
Parameter
Scale		12 million sqm per year
Thickness		1.5-2.5mm
Standard Width		1000mm
Length		20m/roll
Speed		5-60m/min(adjustable)
Total length		48m
Total height		6m
Total installed capacity		100kw





The principle of technology



Self-adhesive rubber asphalt waterproofing membrane, is SBS and other elastomer asphalt base



material to polyethylene film, aluminum foil as the surface material or no film (double self-



adhesive), the use of anti-sticking layer of self-adhesivewaterproofing membrane. The



waterproofing membrane has a strong bond strength, a special rubber self-adhesive layer can



ensure that the coil and the grass, the membrane and the membrane of the adhesive seal, the



formation of the overall seal waterproof layer. Has a very good acid and alkali corrosion and



other chemical media erosion performance. Self-adhesive membrane surface with HDPE, with a



high tear strength, to meet the requirements of puncture and so on, can effectively resist the



grassroots cracking, deformation of the stress generated by the destruction of the waterproof



system.





Self-adhesive waterproofing membrane compared with ordinary waterproof material, has the following characteristics:



1, cold at room temperature construction, do not need hot melt. Construction as long as the release of isolation paper, you can directly paving, the construction is very convenient, can effectively shorten the duration;



2, with a high tear strength, can effectively resist the grassroots cracking, deformation of the stress on the destruction of the waterproof system;



3, with a high anti-penetration, impact resistance;



4, excellent adhesion to ensure the continuity of the web joints and sealing;



5, resistant to high and low temperature, anti-aging, long life



6, in the construction method, the work has the following characteristics:



   (1) the construction process is perfect, simple, operable, low labor intensity;



   (2) construction speed, high efficiency, to ensure the duration;



   (3) construction quality is easy to be guaranteed, to meet the high water requirements.





The scope of application



Self-adhesive rubber asphalt waterproofing membrane can be applied to the general industrial a



and civil construction and other waterproof performance has a higher requirements of the



waterproofing works.It can be used for all parts of underground buildings (including basement



floor, elevator shaft, basement exterior wall, basement roof, etc.) and roof, podium, balcony



(terrace), bathroom waterproof and moisture.



















Company information



Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional



manufacturer which is specialized in researching, producing, marketing and service waterproof



equipment. As a private-owned enterprise, Our company is a famous supplier in the line of



waterproof equipment in China, also an important supplier in the international markets. On the



basis of absorbing foreign advanced science and technology, our factory has developed various



kinds of advanced waterproof equipment plants, and has got many national patents. The



factory is strictly in accordance with international quality system to ensure product quality. Our



factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service



goal of honesty, customer-oriented and win-win situation. We are looking forward to



cooperating with you.
