Two nozzles semi automatic piston honey filler olive oil filling machine
- Category: >>>
- Supplier: Guangzhou Ming Na Packaging Machinery Co. Ltd.
Share on (60707040367):
Product Overview
Description
Product Description

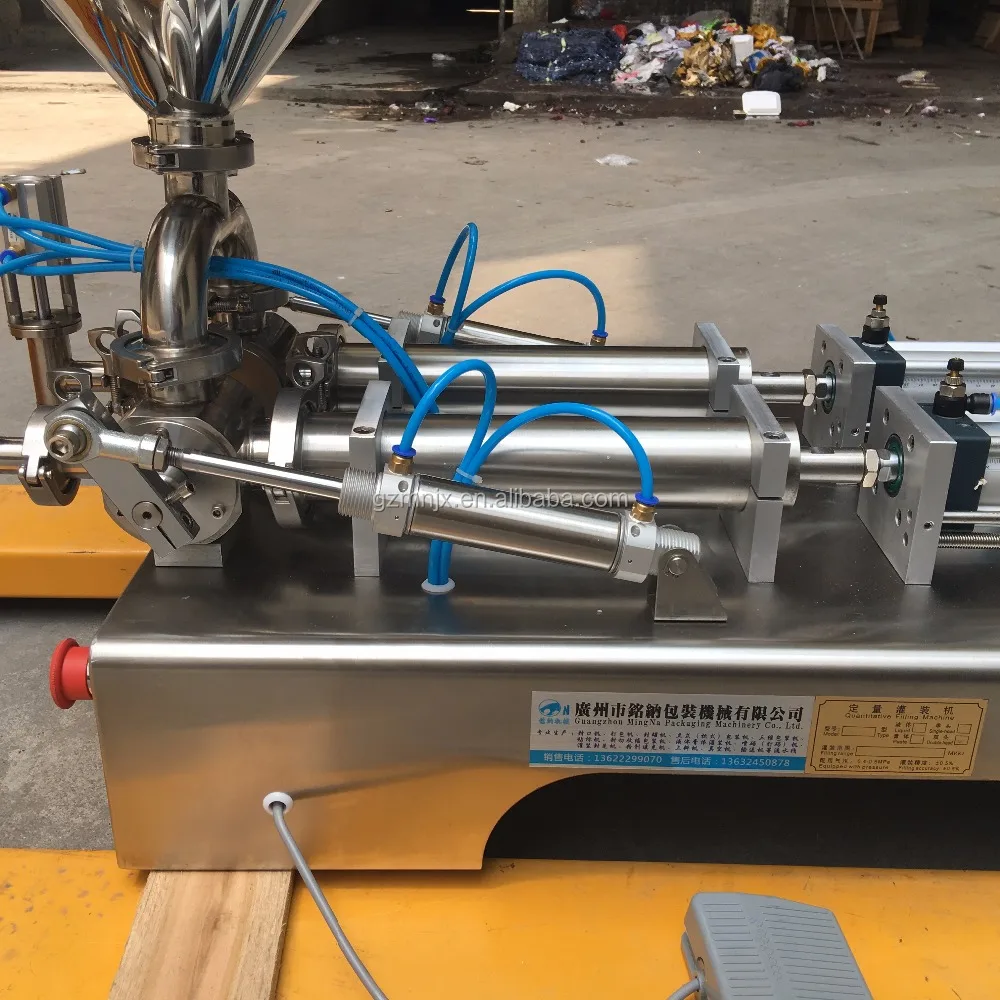

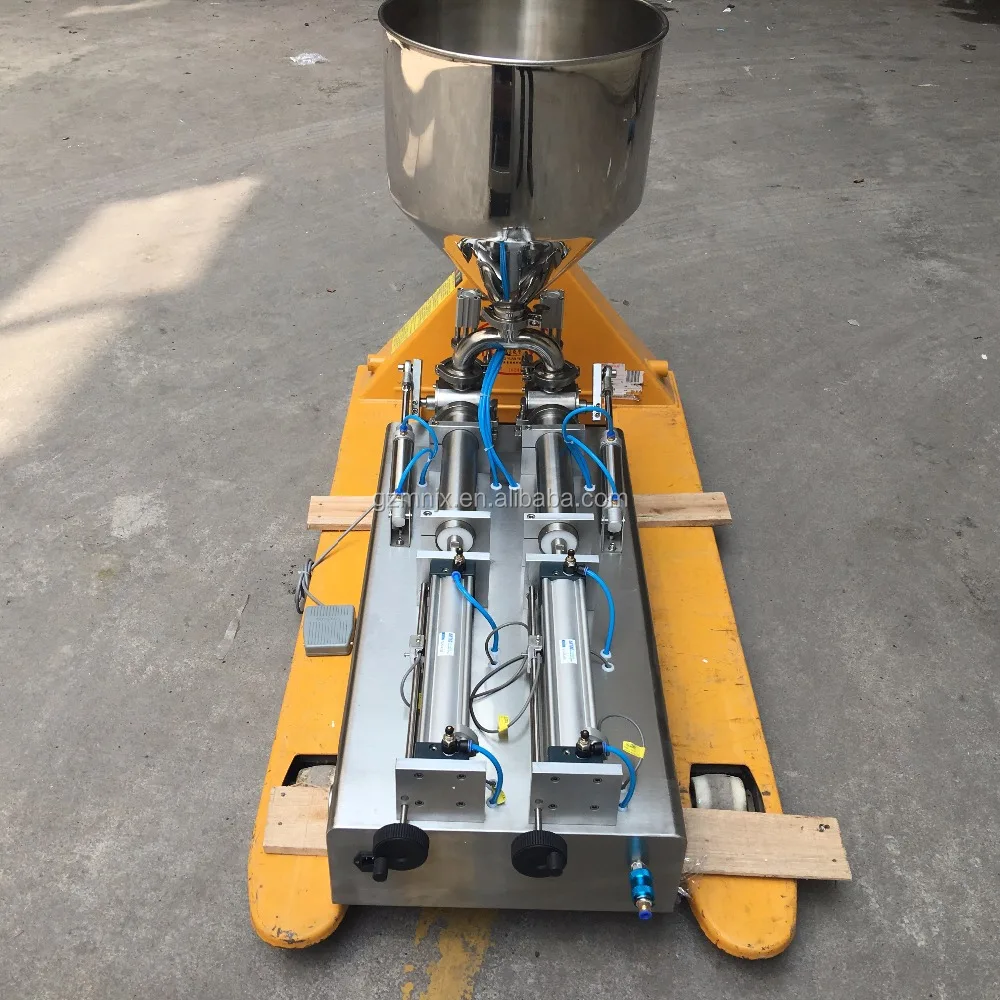

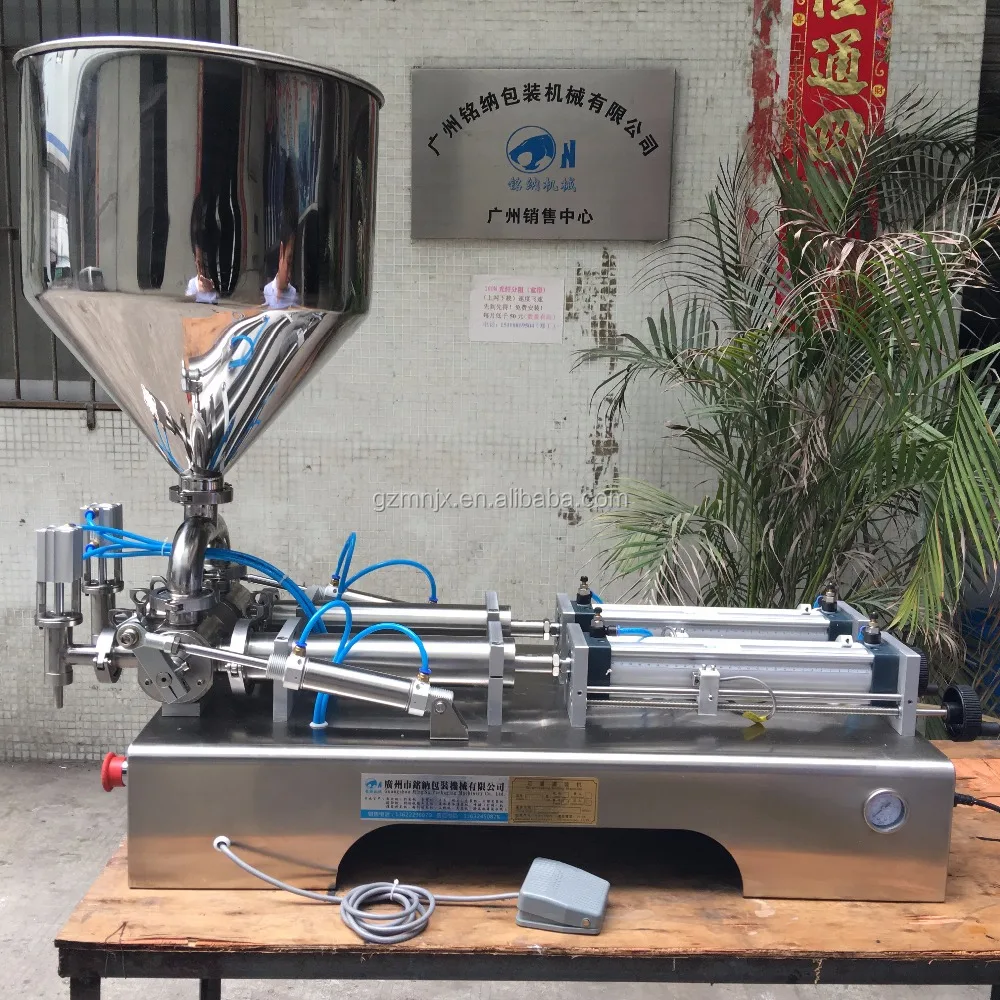

Two nozzles semi automatic piston honey filler olive oil filling machine
Work Principle:

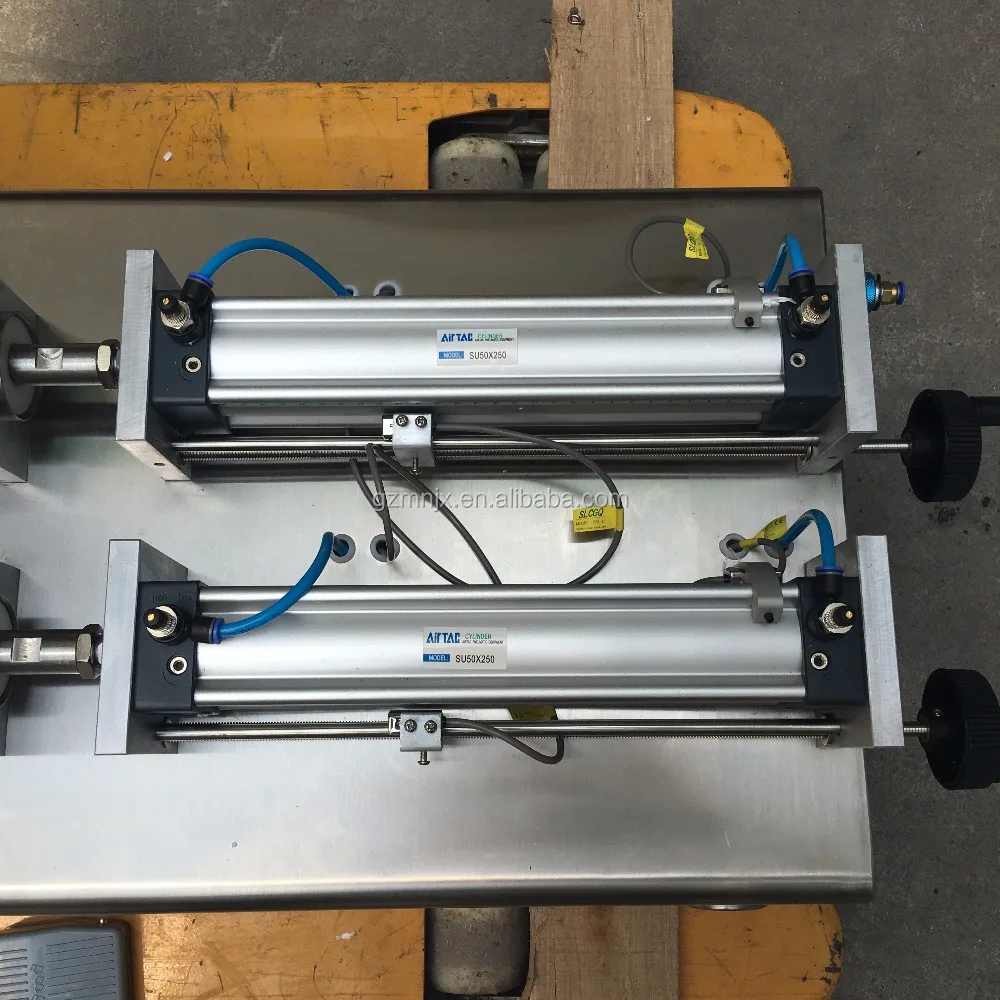

This piston paste filler, drives a piston to absorb and release the material by a cylinder, with an one-
way valve to controls the material flow and movement. In the same time, a magnetic switch controls
cylinder stroke and then can adjust the filling volume.
Model | YL / YLB |
Voltage | 200v±5v 110v±5v |
Current | 1A |
Power | 10W |

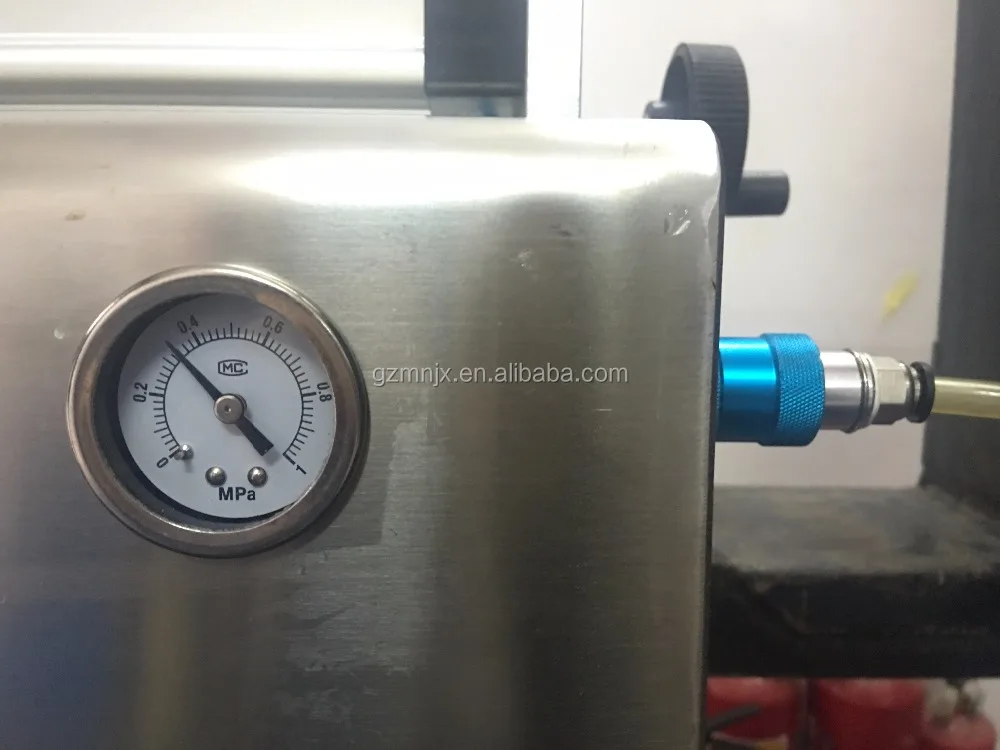

Air Pressure: | 0.4-0.6mpa |
Filling Speed | Single Head: 10-30 Bottles / Min Double Head: 20-60 Bottles / Min |
Precision | ±0.5%-±1% |
Filling Volume | 5-100ml, 10-200ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml |
Dimension(L*W*H) | 930*300*280(For Liquid type) 930*300*320(For Paste Type) |
Applcation:
This piston paste filler is suitable for fix quantitative of liquid,ointment,jam,viscious fluidity
or other kinds.It widely used in food, medicine, lubricating oil, oil, pharmaceutical, chemical,
cosmetic, pesticide and other refined chemistry industry.
Advantages:
1. This piston paste filler is hopper self- priming type manual filling machine, has reasonable structure compact shape, convenient operation, simple to maintain.
2. The pneumatic parts adopts Germany FESTO and Taiwan AIRTAC, SHAKO starting components.
3. Sealing parts are made of PTFE materials and silicone materials, with the advantages of corrosion resistance, aging resistance, high temperature resistance, good tightness, etc..
4. All the parts contacted with the material are made of 304 stainless steel,(316 steel is optional),meets the requirement of GMP.
5.This machine is the ideal machine for food, pharmaceutical, chemical, cosmetic, oil, pesticide and other industries.
6.The filling range can be adjusted lightly, safe, reliable and easily to operate.
7. Liquid filling machine or paste filling machine is optional according to your material, we also have single nozzle/ double nozzles/ no power pneumatic explosion-proof types for choice.
Product Details

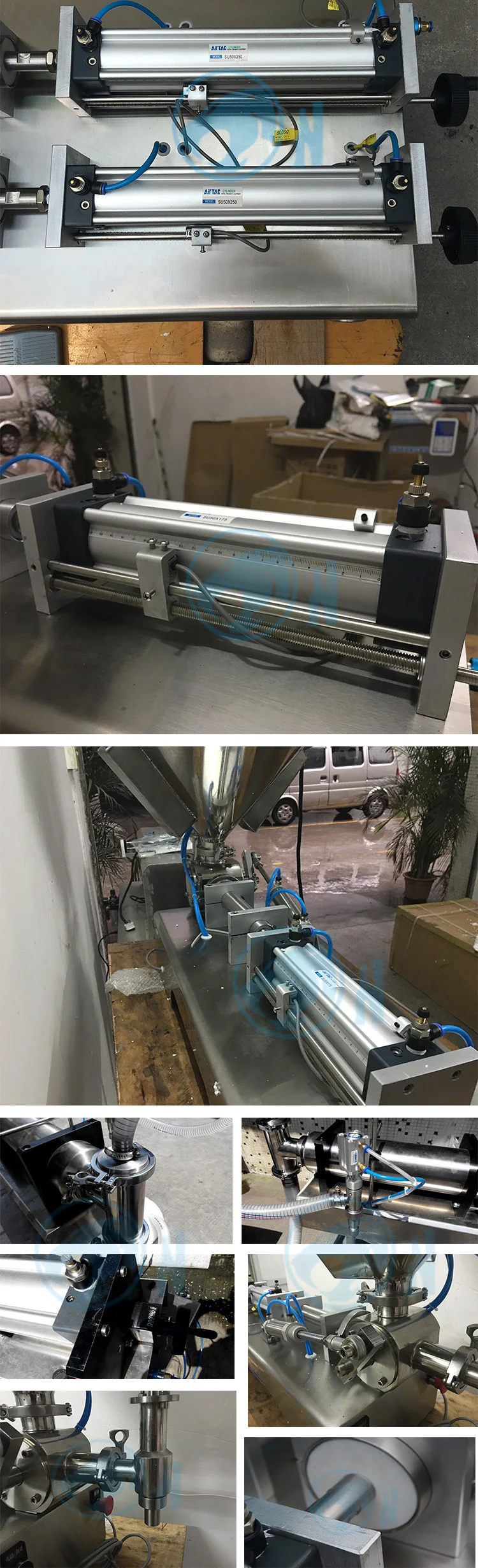

Deatiled Pictures:
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in bag / tube / powder / liquid pacakging machinery. Such as comestic sealing
filling machine, olive oil filling machine, 3D packaging machine, powder filling machine, labelling machine,code
inject printer so on.
Q2: Where is your factory location? How can I visit there?
A2: Locates in 1st Floor, Building A, No. 38, Nanpu Street, Luopu Road, Panyu District, near to Guangzhou
South Railway Station, welcome to visit our factory.
Q3: How can I choose the machine I needed?
A3: Please contact with us andlet us know the packaging type, packaging material.According this,we recommend
the suitable machine for you.You can also send your meterials to us then we can use our machine
to make samples according to your demand.
Q4: What’s the guarantee if we purchase from you?
- One year warranty time from the delivery date , we can repair and replace parts for free in one year.
- Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
- Life time free maintenance service.
- Free training course at our factory with professional engineers.
- We provide the consumable parts at agent price when you need replacement.
Q5: Will you help us to install the machine and train us to operate if we purchase your machine?
A5: We will install everything before we arrange shipment, and the our machine is very easy to operate, we will
offer operation vedio and user manual for your reference, and welcome to our factory to learn the olive oil filling machine, technical support will online in 24 hours.
Company Information
Guangzhou Ming Na Packaging Machinery Co., Ltd, a modern sole proprietorship located in Guangzhou, is a
professional packaging machinery manufacturer. We are engaged in R&D, design, manufacturing and sales as
well as after-sales service in pacakging machine industry for 15 years. We also has abtained the ISO900:2000
international quality system certification and the approval of relevant departments in China.
We are well known for our superior quality and service in the field of automatic packaging machines. Our main
products are including film sealing shrink wrapping machines, tube fiilling sealing machine, 3D transparent
callophane packaging machines, paste & powder filling machines, conveyor system, code inject printers and so
on, which are widely used in a lot ofindustries, such as foodstuff, daily chemicals, medicine and pesticides. And
Our machines have exported to more than 100 countries and regions including East Asia, Southeast Asia,
Europe, America and the Middle East. In addition, we formed a complete sales and customer service network in
China to ensure after-service.
