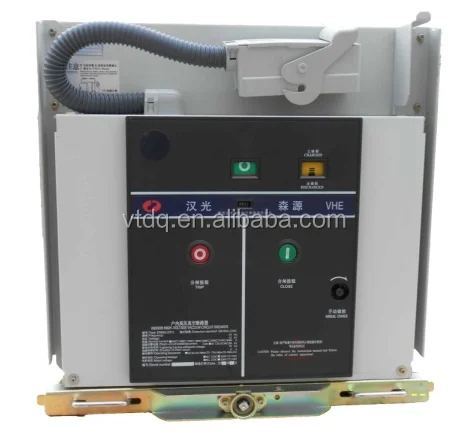

VS1 /VHE 12KV indoor high voltage vacuum circuit breaker for electrical switchgear(embedded pole structure)
- Category: >>>
- Supplier: Wuhan Feite Electric Co. Ltd. [Hubei China]Wuhan
Share on (60707060245):
Product Overview
Description
Production Description:
| Main Technical Parameter | |||||
| No. | Item | Unit | Value | ||
| 1 | Rated voltage | KV | 12 | ||
| 2 | Rated insulation level | Rated lightning impulse withstand voltage(peak) | KV | 75/80 | |
| Short-time power frequency withstand voltage(1min) | KV | 42/48 | |||
| 3 | Rated short-circuit breaking current | KA | 25 | 31.5 | |
| 4 | Rated Current | A | 1250/1600 | 1600/2000 | |
| 5 | Rated Peak Withstand Current | KA | 63 | 80 | |
| 6 | Rated Operations of Short-circuit Breaking Current Interruption | Times | 20 | ||
| 7 | Rated Duration of Short-circuit | S | 4 | ||
| 8 | Rated operations sequence | O-0.3S-CO-180S-CO | |||
| 9 | Rated power voltage of closing and opening operating loop | V | AC,DC220 AC,DC110 | ||
| 10 | Closing time | ms | 50-100 | ||
| 11 | Opening time | ms | 30-60 | ||
| 12 | Rated breaking current(a capacitor) | AS | 630/800 | ||
| 13 | Rated breaking current(back to back capacitor) | AS | 400/400 | ||
| 14 | Mechanical life | Times | 30000 | ||
| Paramters of the mechanical characteristics of circuit breaker assembly after adjustment | |||||
| No. | Item | Unit | Value | ||
| 1 | Contact Stroke | mm | 9±1 | ||
| 2 | Contact over travel | mm | 3.5±0.5 | ||
| 3 | Average Opening Speed | m/s | 1.0±0.2 | ||
| 4 | Average Closing Speed | m/s | 0.6±0.2 | ||
| 5 | Contact Bouncing Duration at closing operation | ms | ≤2 | ||
| 6 | Operating mechanism type | Sepcial spring mechanism | |||
| 7 | Three-pole simultaneity | ms | ≤2 | ||
| 8 | Conductive circuit resistance of each phases | µΩ | ≤60(630A) | ||

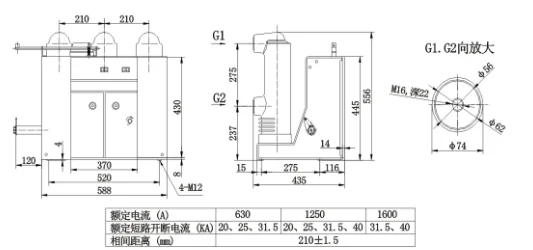

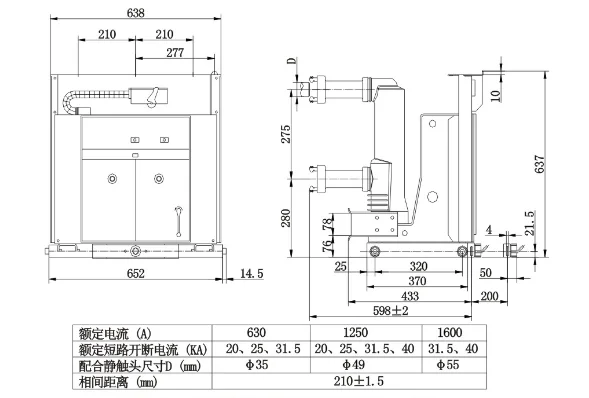

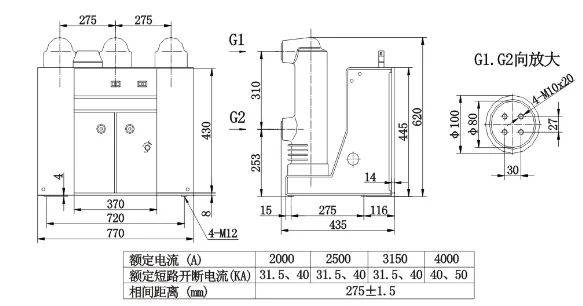

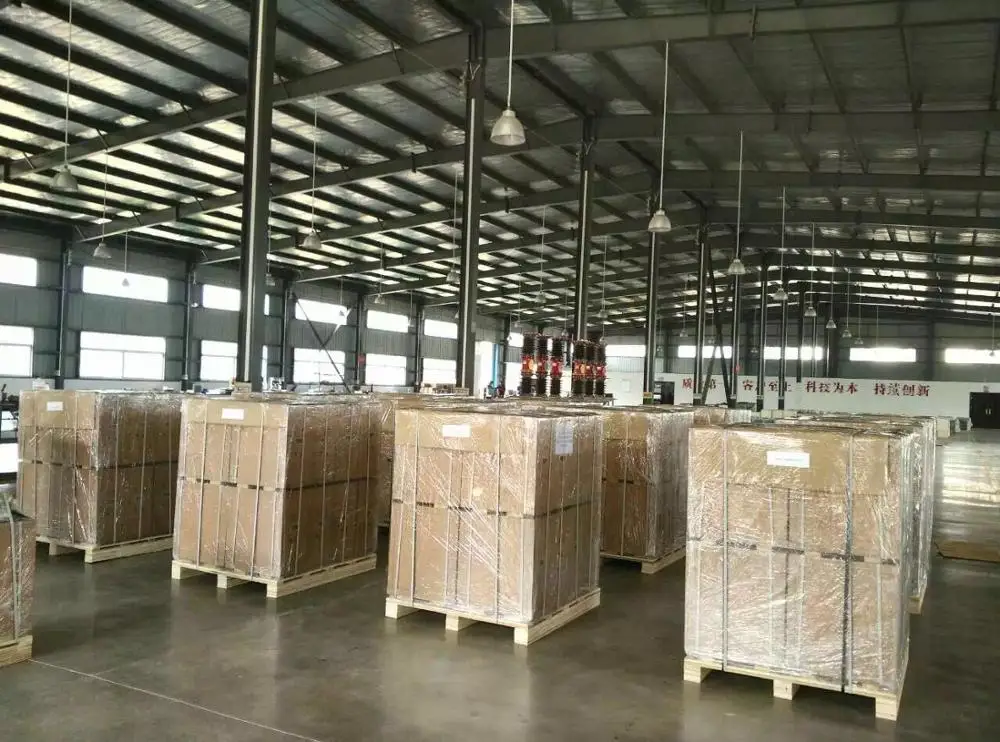

Packaging&Shipping
1) Standard export package:Wooden crate(Ploy bags, foam,pallet), or according to your requirements
2)Shipping port: Wuhan/Shanghai/Beijing/Ningbo/Shenzhen
3)Lead time:15-30days
Trade Capacity
Trade & Market
Main Markets | Total Revenue(%) |
Domestic Market | 51.50% |
Southeast Asia | 15.00% |
Eastern Asia | 10.00% |
North America | 5.00% |
Mid East | 5.00% |
Africa | 5.00% |
South America | 3.50% |
Western Europe | 2.50% |
Eastern Europe | 2.50% |
FAQ
Application and Attention
1. Precheck before putting it into use.
Check id packing is in good condition. Check the appearance of vacuum circuit and
Whether it corresponds to the test certificate after uppacking.
Power frequency withstand voltage should be tested before operating vacuum circuit breaker.
2. Mounting of vacuum circuit breaker
a. Clean the surface of vacuum interrupter with cotton or alcohol dipped silk cloth before mounting. Meanwhile clean the conducting pole and surface of electric connection in order that the vacuum cicuit breaker can have good electric contact with the equipment.
b. The interrupter should be adjusted in the line with the equipment after mounting. The mechanical date related to the interrupter must meet the given specification.
3. In mounting, attention should be paid to the following:
a. When operating, guide unite unit must be provided for the interrupter. The coaxality of moving conducting pole and axial line of interrupter must meet the requirement. There should not be torque force applied on the bellow.
b. When mounting, it is forbidden to beat or strike the interrupter envelop with hard things in case crack may occur to cause air leakage.
c. Take care to assure that the conducting pole must be coaxial with interrupter, and that the conducting pole must be vertical on the face of fixed end.
d. Take care not to disassemble the interrupter repeatedly to prevent screw from slipping. There should not be twisting on the moving conducting pole and over press on bellow to avoid that any torque force and scratch may occur to bellow to reduce its service life.
e. During mounting, the force applied on the face of both ends should not go beyond the static relief pressure stipulated in the specification.
4. Application.
a. Check the vacuum circuit breaker periodically by the way power frequency withstand voltage. For this, please see subclause3.1 b.
b. Periodically check how burnout is going on for contacts. When it comes to the burnout mark of moving conducting pole, it shows that the vacuum circuit breaker has finished its electrical endurance, and it should be replaced.
If you have any interest, please kindly contact me, anything can be discussed.
Tel:86-13618620689
whatsApp:8613247180211
Skype: Jennifer201561
