TWSL 700 power battery spot welding machine/ automatic spot welding machine

Product Overview

Description

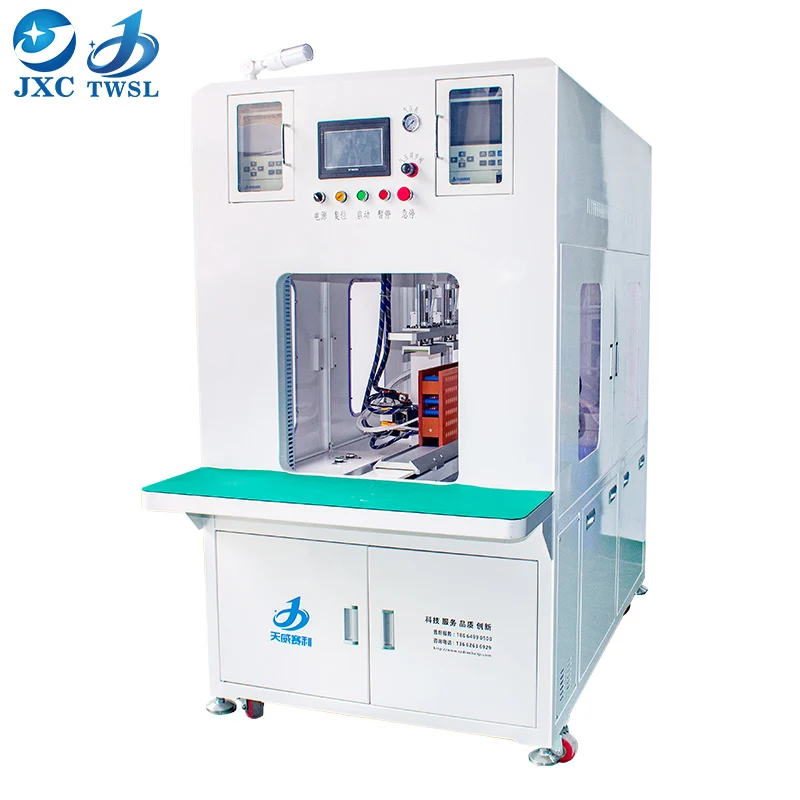

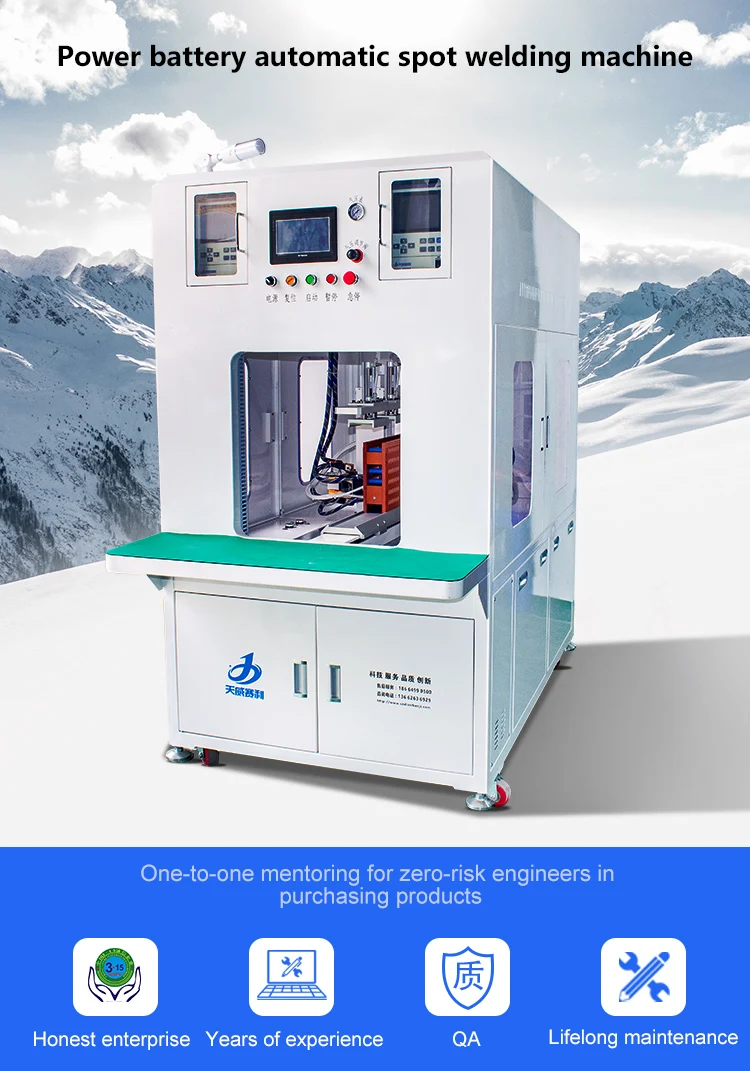

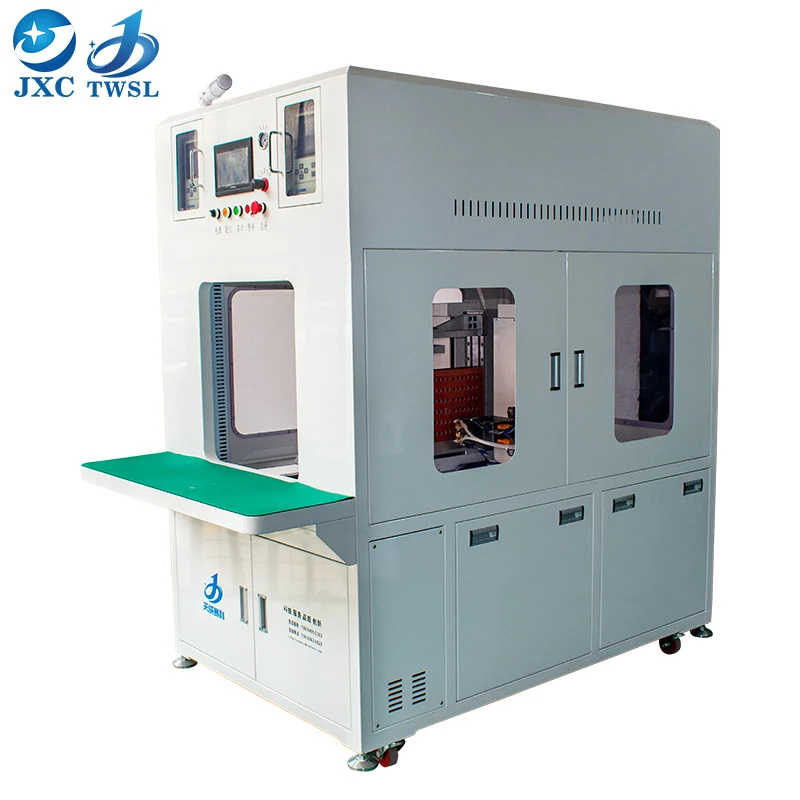

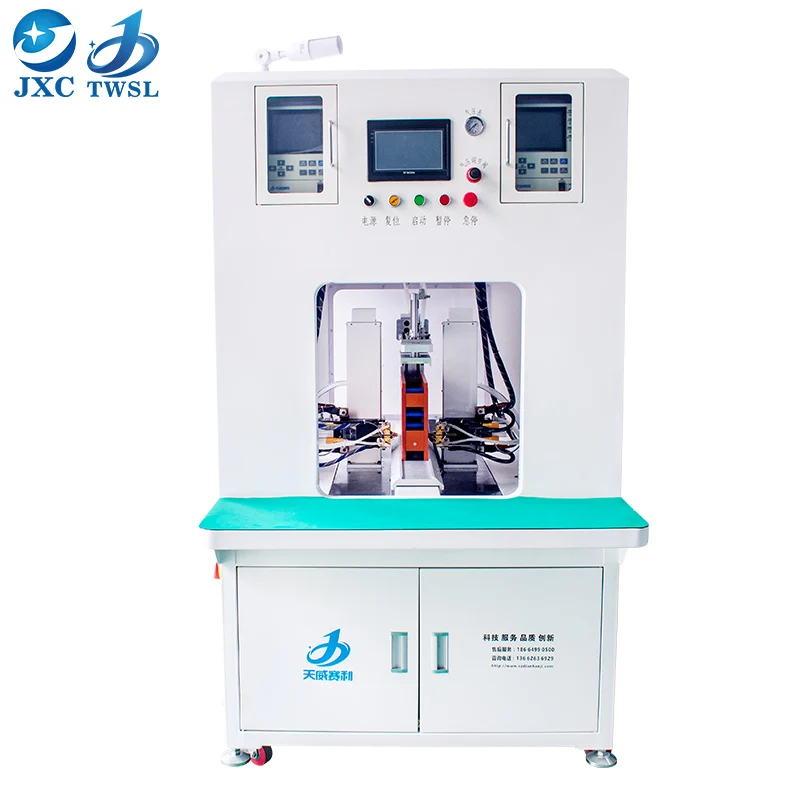

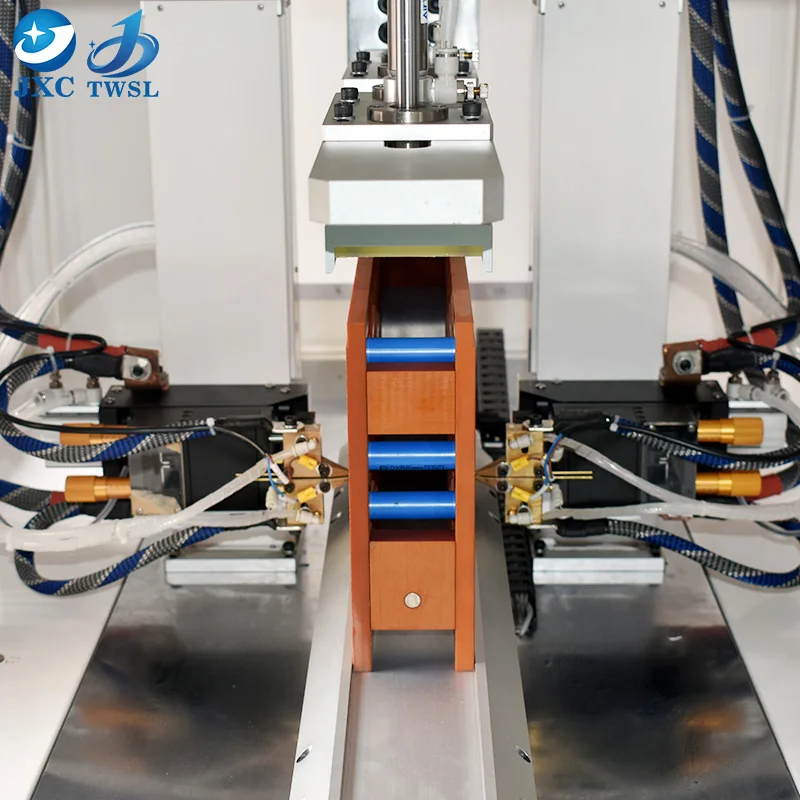

TWSL-700 automatic spot welding machine for cylindrical battery

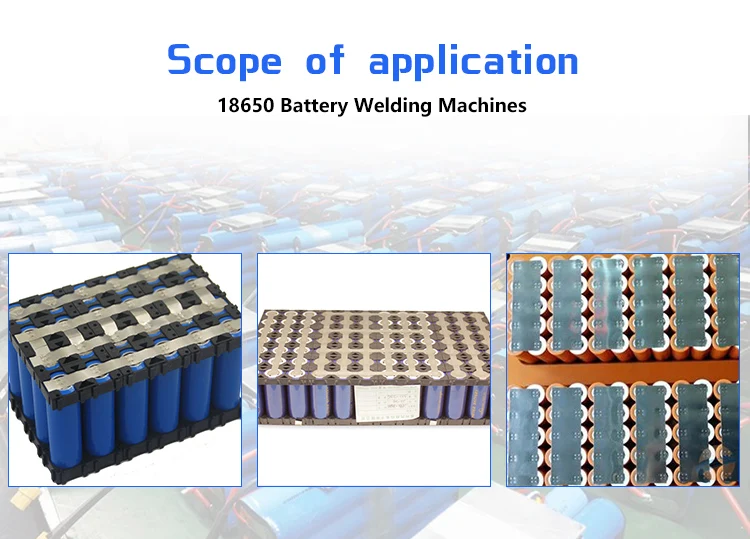

TWSL-700 car battery welderis designed for Lithium battery pack internal cell welding such as new energy vehicles battery pack welding and power tool battery pack welding and solar energy battery pack welding etc.

Automatic battery making machine of packing for mobile phone batteries,use as mobile phoner battery pack/cell phone battery production line/telephone making machine/mobile battery assembly line/li-ion battery assembly line/lithium batteries factory.lithium ion battery making&production machine/line/plant/equipments.



Features:

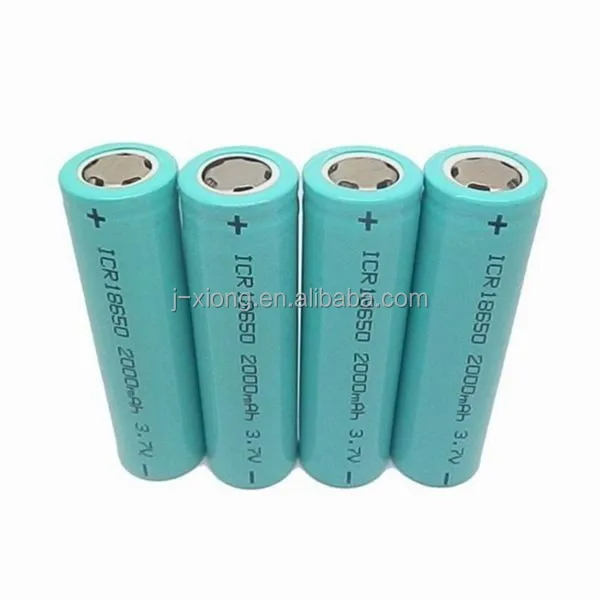

1 ,For 18650 battery. Mobile power and other standardized production. 2 , Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.
3 , Control system: PLC programming control, with fault alarm system.
4 , Cooling device comes with solder pin and prolong life.

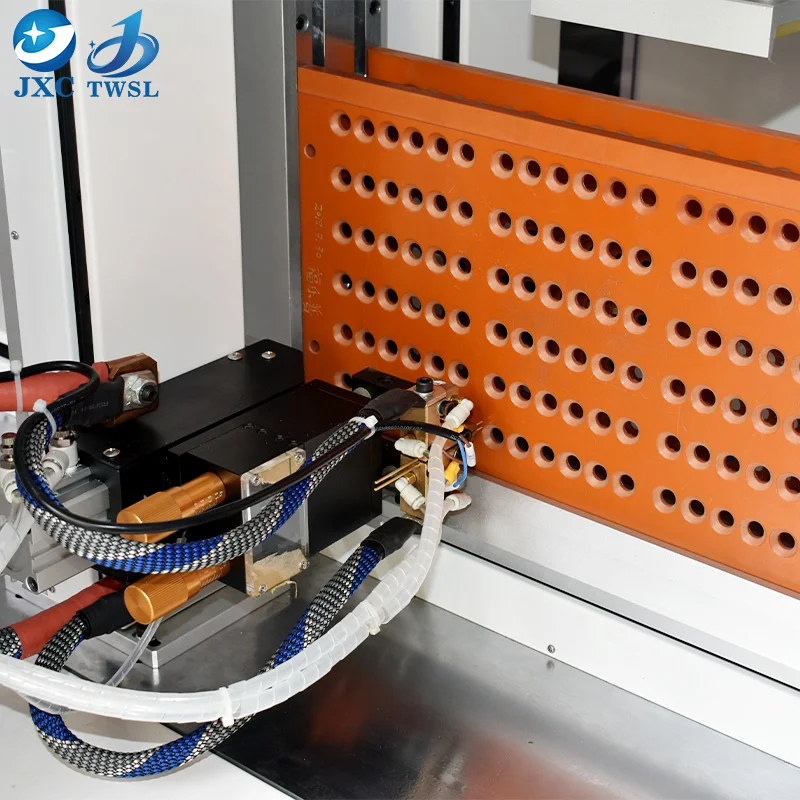

5 , X-axis and Y-axis ball screw design, the stepper motor driven.

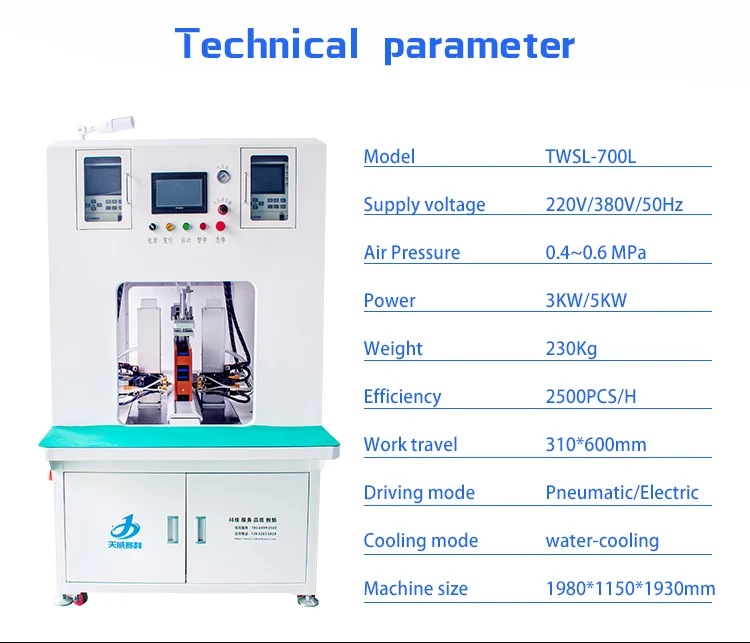

Technical Parameters:
model: TWSL-700
Power supply : 220V,50HZ  3.6Kw
Use pressure : 0.4-0.6Mpa
X Module travel : 0-450MM maximum 22 cores
Y Module travel : 0-200MM maximum 10 core
X-axis emission number of batteries : 22PCS within
Y-axis discharge batteries Number : Within 10 lines
Dimensions: L1450 * W1000 * H1700MM
Machine weight : 200KG

Productivity: 6 and 16 string, 5 and 16 strings, strings 4 and 16, 3 and 16 series, about 2000 batteries / hour

'
