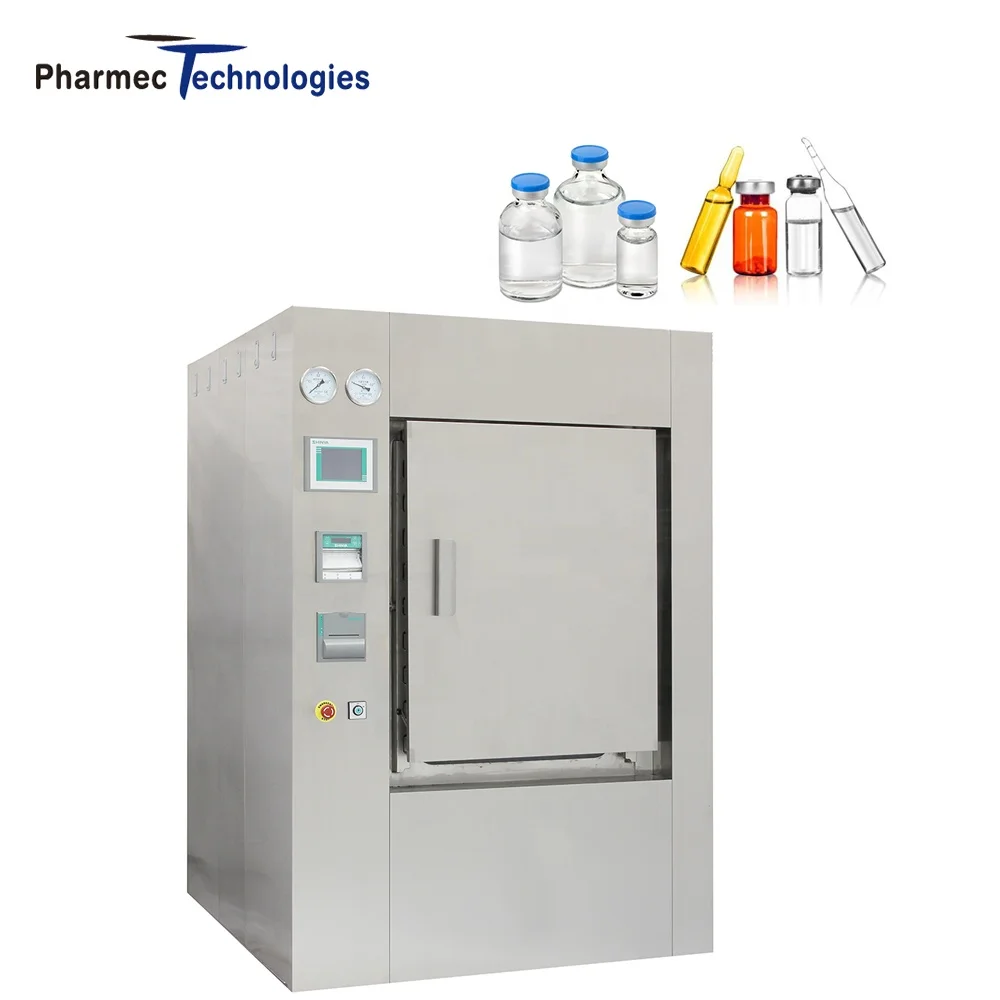

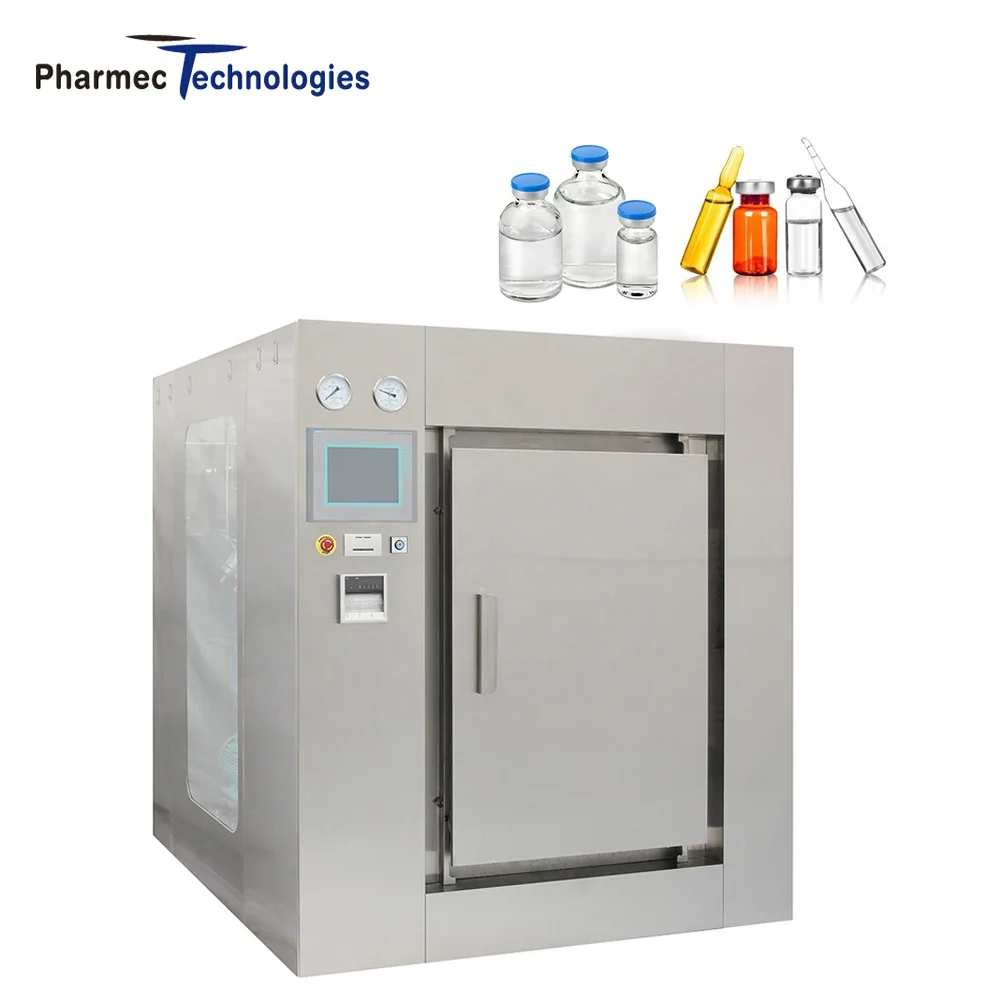

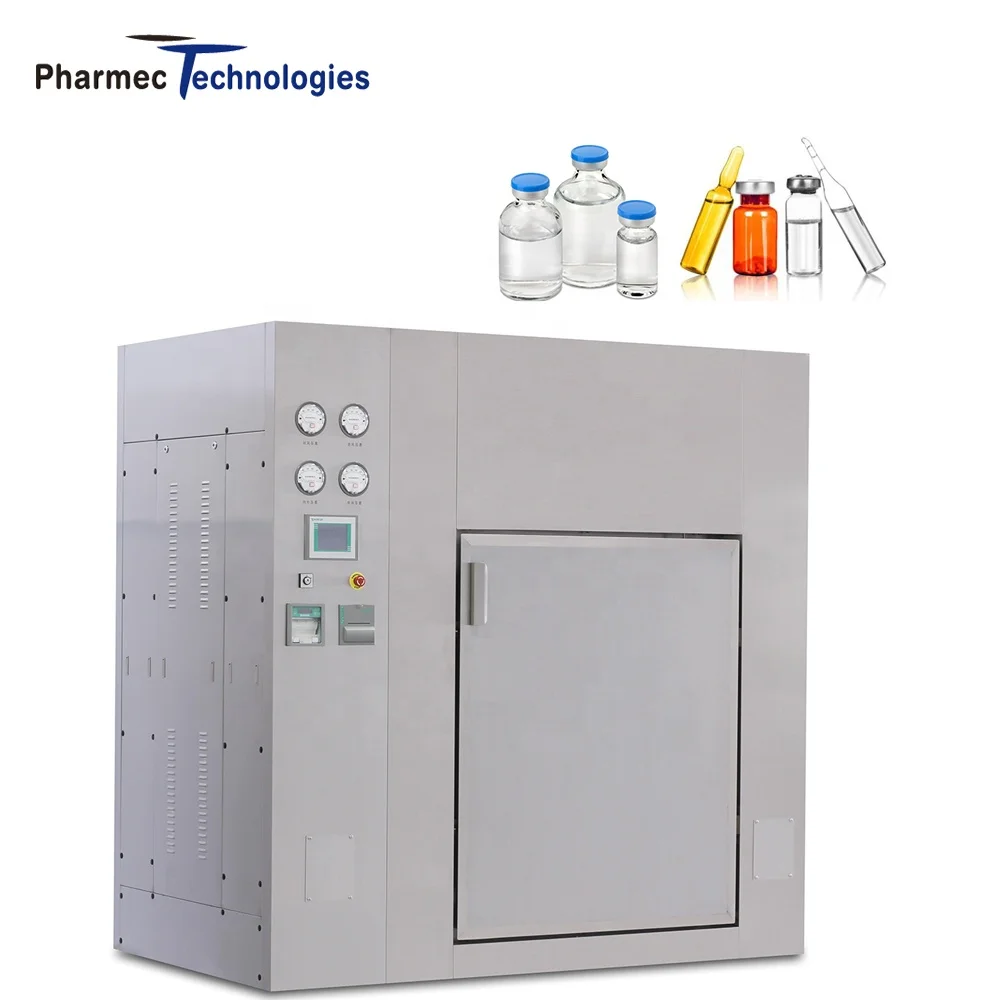

Pharmaceutical Ampoule IV Solution Medical Vertical Pressure Steam Autoclave Sterilizer
- Category: Sterilization Equipments >>>
- Supplier: Pharmec Technologies Co. Ltd.
Share on (60707240756):
Product Overview
Description
Products Description
Introduction
1. Pharmaceutical Ampoule IV Solution Medical Vertical Pressure Steam Autoclave Sterilizer is mainly used for the sterilization, leak test and washing of ampoule and IV solution with small capacity.
1. Pharmaceutical Ampoule IV Solution Medical Vertical Pressure Steam Autoclave Sterilizer is mainly used for the sterilization, leak test and washing of ampoule and IV solution with small capacity.
2. It adopts pressure steam as sterilizing medium to achieve the uniform sterilization between 105℃~127℃.
3. This sterilizer adopts heating mode of displacement and exhausting from multi-points to ensure the through elimination of cold air in chamber, uniform and rapid heating and eliminate the dead corner caused by the existing cold air.
4. Leak test by vacuum and color water is adopted to improve the detection rate of waste after sterilization, meanwhile provides the documents system that meets 2010 version GMP requirement.
Technical Data
Technical Data
Equipment Model | Door | Trolley | Chamber Dimension | Overall | Weight | Clean | Deionized | Clean |
Volume | Dimension | (Unloading) | Steam | Water | Water | |||
mm | mm | kg | Kg/cycel | L/cycel | L/cycel | |||
XG1.SDE-0.6 | 2 | 1 | 1200*610*910/0.67m3 | 1490*1390*1940 | 1500 | 28 | 260 | 230 |
XG1.SDH-0.8 | 2 | 1 | 1450*610*910/0.80m3 | 1742*1390*1940 | 1600 | 34 | 310 | 280 |
XG1.SDA-1.0 | 2 | 2 | 1700*610*910/0.94m3 | 1992*1390*1940 | 1800 | 48 | 350 | 280 |
XG1.SDB-1.2 | 2 | 1 | 1500*680*1180/1.20m3 | 1812*1465*1940 | 2300 | 58 | 400 | 280 |
XG1.SDC-1.5 | 2 | 2 | 1870*680*1180/1.50m3 | 2182*1465*1940 | 2550 | 74 | 650 | 400 |
XG1.SDD-2.0 | 2 | 2 | 1700*1000*1200/2.04m3 | 2062*1792*1990 | 2650 | 107 | 700 | 400 |
XG1.SDG-2.5 | 2 | 2 | 2100*1000*1200/2.52m3 | 2462*1792*1990 | 2900 | 138 | 750 | 400 |
XG1.SDN-3.0 | 2 | 3 | 2500*1000*1200/3.00m3 | 2862*1792*1990 | 3250 | 159 | 800 | 400 |
XG1.SDO-3.5 | 2 | 3 | 2900*1000*1200/3.48m3 | 3262*1792*1990 | 3450 | 175 | 1060 | 400 |
XG1.SDF-5.0 | 2 | 4 | 4200*1000*1200/5.04m3 | 4562*1792*1990 | 4300 | 277 | 1850 | 350 |
XG1.SDQ-6.0 | 2 | 5 | 5200*1000*1200/6.24m3 | 5562*1792*1990 | 4500 | 347 | 2000 | 350 |
Material | Stainless Steel |
Customized | Accept |
Service | OEM and OEM |
Package | Standard wooden packing for sea shipping |
