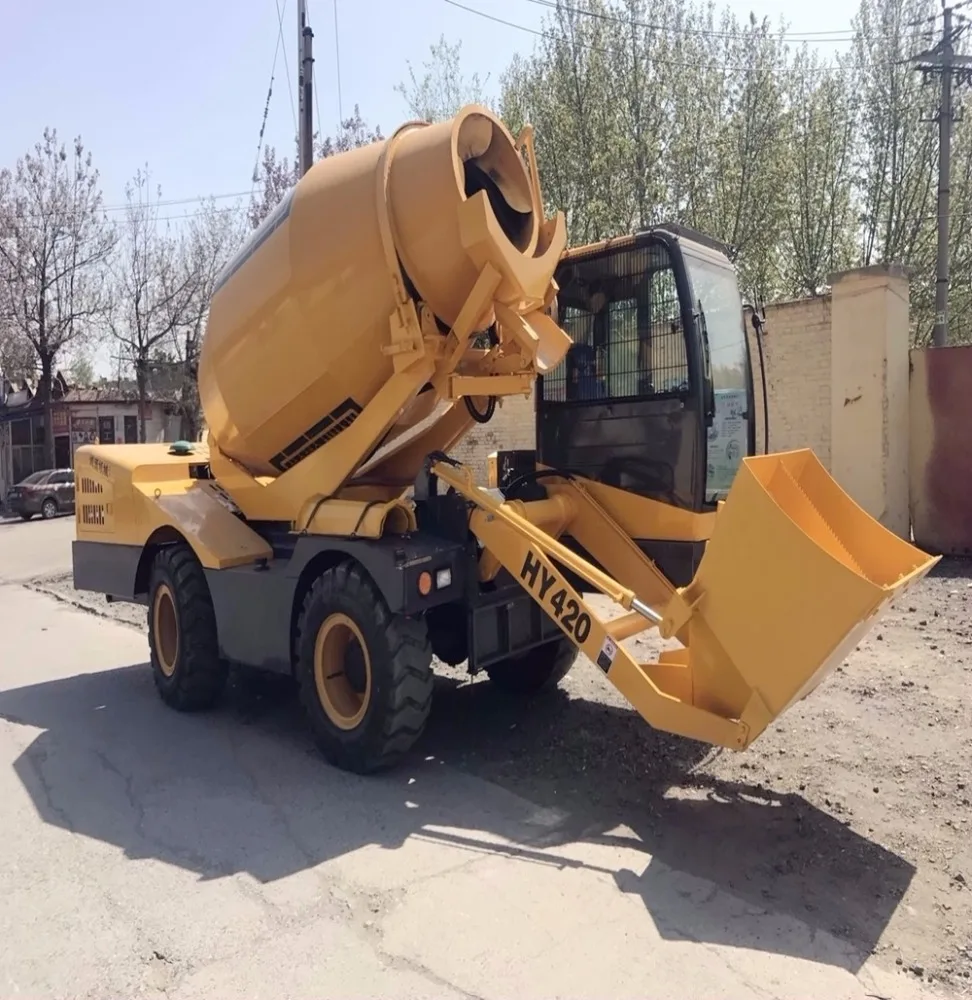

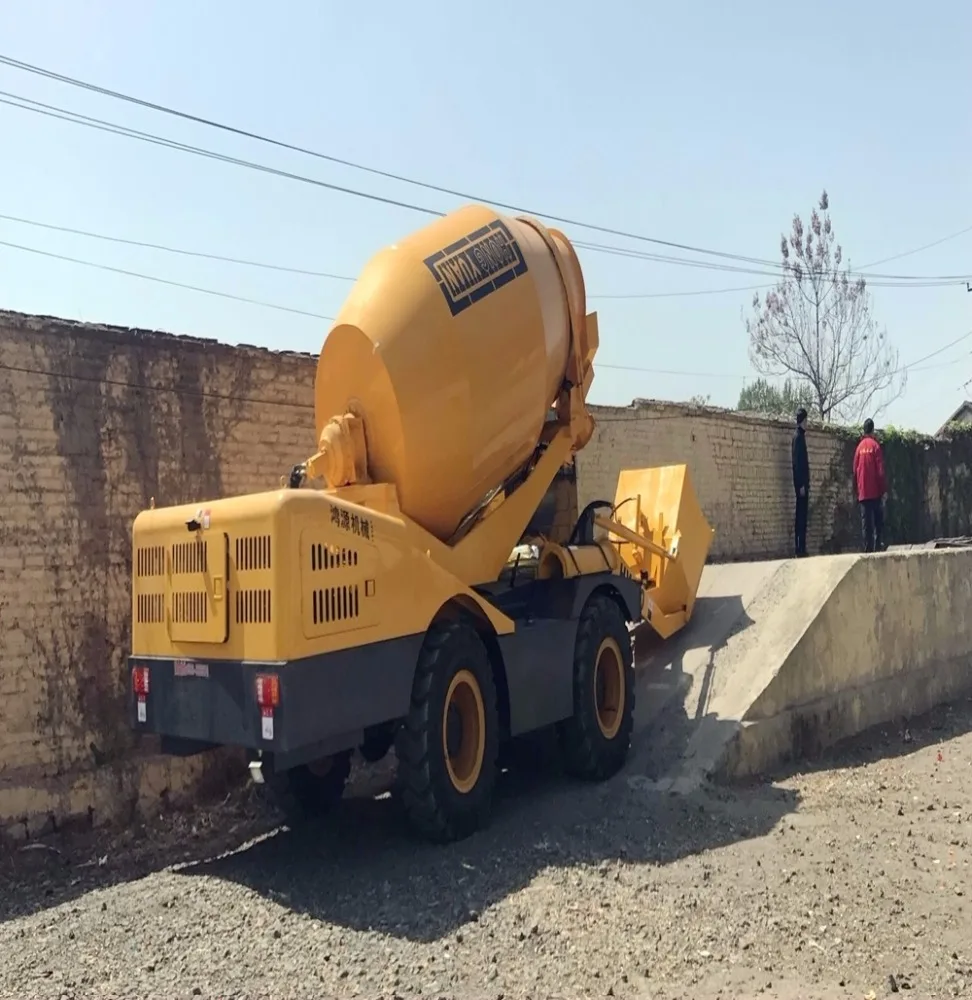

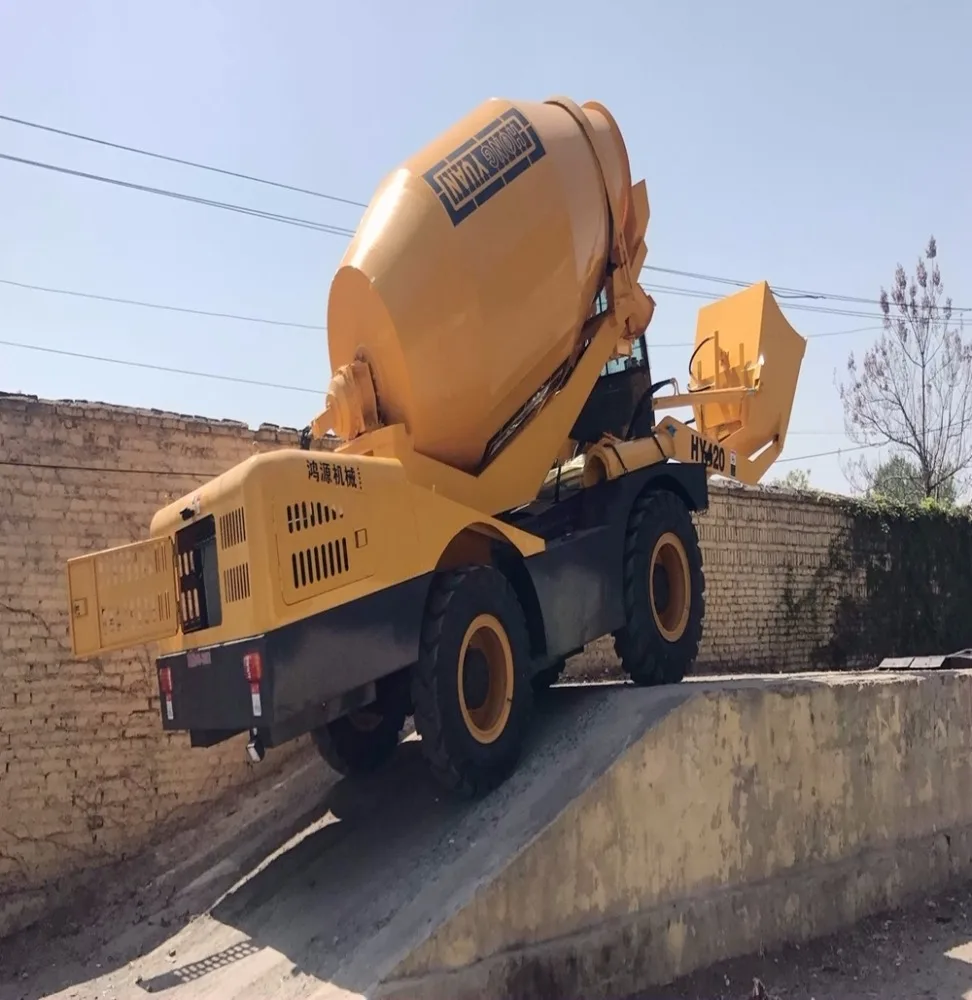

HONGYUAN self loading concrete mixer machine for sale
- Category: >>>
- Supplier: Qingzhou Hongyuan Vehicles Co. Ltd.
Share on (60707365692):
Product Overview
Description
Product Description
Advantages of self dumping mixer：
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Name | Item | Specification | |||||
Net | 8300 KG | ||||||
Transmission | 4 WD | ||||||
Brake | Air Brake | ||||||
Chassis | Off-road | ||||||
Loader bucket | capacity | 0.7m3 | |||||
Control | Hydraulic | ||||||
Tilt angle | 20% | ||||||
Speed | High | 0-30KM/H | |||||
Low | 0-9KM/H | ||||||
Mini turning radius | 3.5M/R | ||||||
Engine | Type | Yuchai | 4108 | ||||
Rated Power/RPM | 95KW/2200RPM | ||||||
Max.Torque/RPM | 360N.M/1400RPM | ||||||
Cylinder | 4 | ||||||
Starter | Electric | ||||||
Cooling type | water cooling | ||||||
Maxing Drum | Output capacity | 4.0M3 | |||||
Bank Angle | 16 ° | ||||||
Chute | Swing Angle | ≥50° | |||||
Loader control | Hydraulic 4 way stick | ||||||
Tyre model | 16/70-20 construction tyre | ||||||
Electronic parts | Waterproof circuit | ||||||
Drum Rotation | 270 degree to provided 4 ways discharge concrete | ||||||
Water tank capacity | 297L | ||||||
Hydraulic oil tank capacity | 150L | ||||||
Diesel oil tank capacity | 190L | ||||||
Overall size | 7500*2700*3380mm | ||||||
Wheelbase | 3000mm | ||||||
Tread | 1700mm | ||||||
Axle Capacity | 20tons | ||||||
Water Pump | By two separated water pump for faster add water | ||||||
Tank geometric volume | 6.8 cbm | ||||||

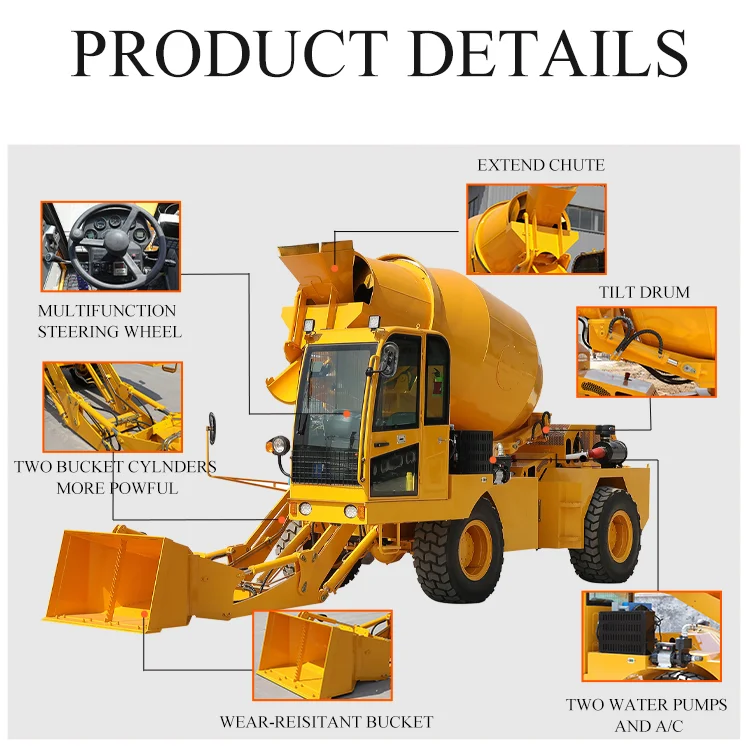

Main Features：
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

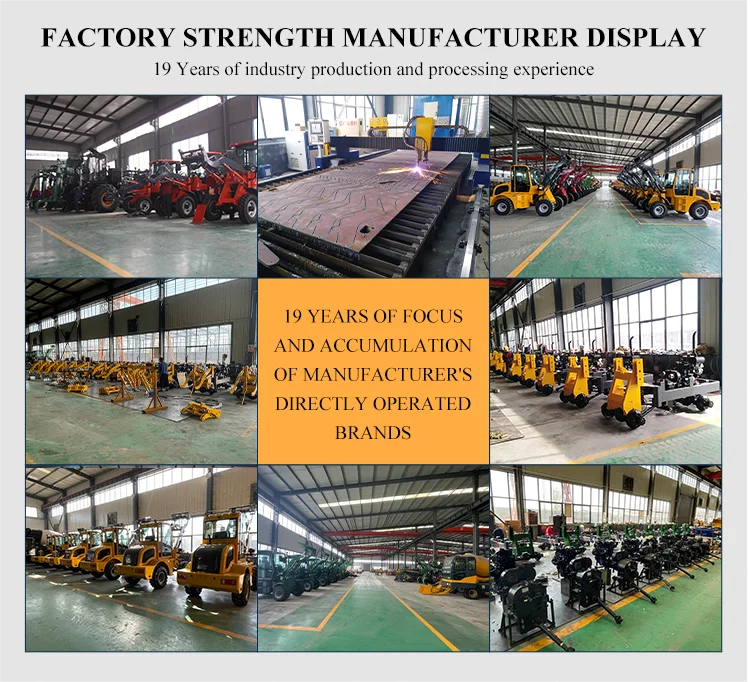

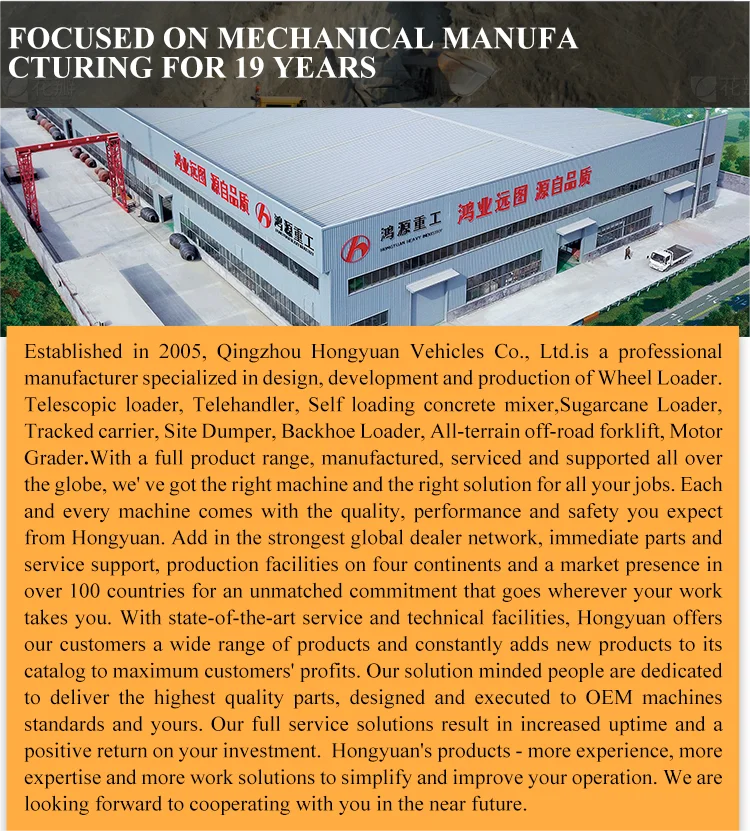

Company Profile
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2005,sell to Northern Europe(30.00%),Eastern Europe(28.00%),Western
Europe(24.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South Asia(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Mid East(2.00%).
There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wheel Loader, Self Loading Concrete Mixer, Telescopic Loader,Telehandler, Sugarcane Loader，Site Dumper, Backhoe Loader, Tracked Carrier, All-terrain off-road Forklift, Motor Grader.
4. why should you buy from us not from other suppliers?
We have more than 19 year's producing and exporting experiences of construction machinery and agricultural machinery. All the machine were produced by ourselves and we have very much learned about the strengths and weaknesses of these machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2005,sell to Northern Europe(30.00%),Eastern Europe(28.00%),Western
Europe(24.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South Asia(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Mid East(2.00%).
There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wheel Loader, Self Loading Concrete Mixer, Telescopic Loader,Telehandler, Sugarcane Loader，Site Dumper, Backhoe Loader, Tracked Carrier, All-terrain off-road Forklift, Motor Grader.
4. why should you buy from us not from other suppliers?
We have more than 19 year's producing and exporting experiences of construction machinery and agricultural machinery. All the machine were produced by ourselves and we have very much learned about the strengths and weaknesses of these machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
