Petroleum coke roller grinding and pulverizing mill machine

Petroleum coke roller grinding and pulverizing mill machine

It is drying and roller grinding type,ingenious using of arc grinding path,reasonable using of colliding,rolling,grinding mechanism.Integrating grinding and classifying process,qualified fine powder can be extracted in time,coarse powder will be continue to re-grinding,avoid the material be overground.

Working principle

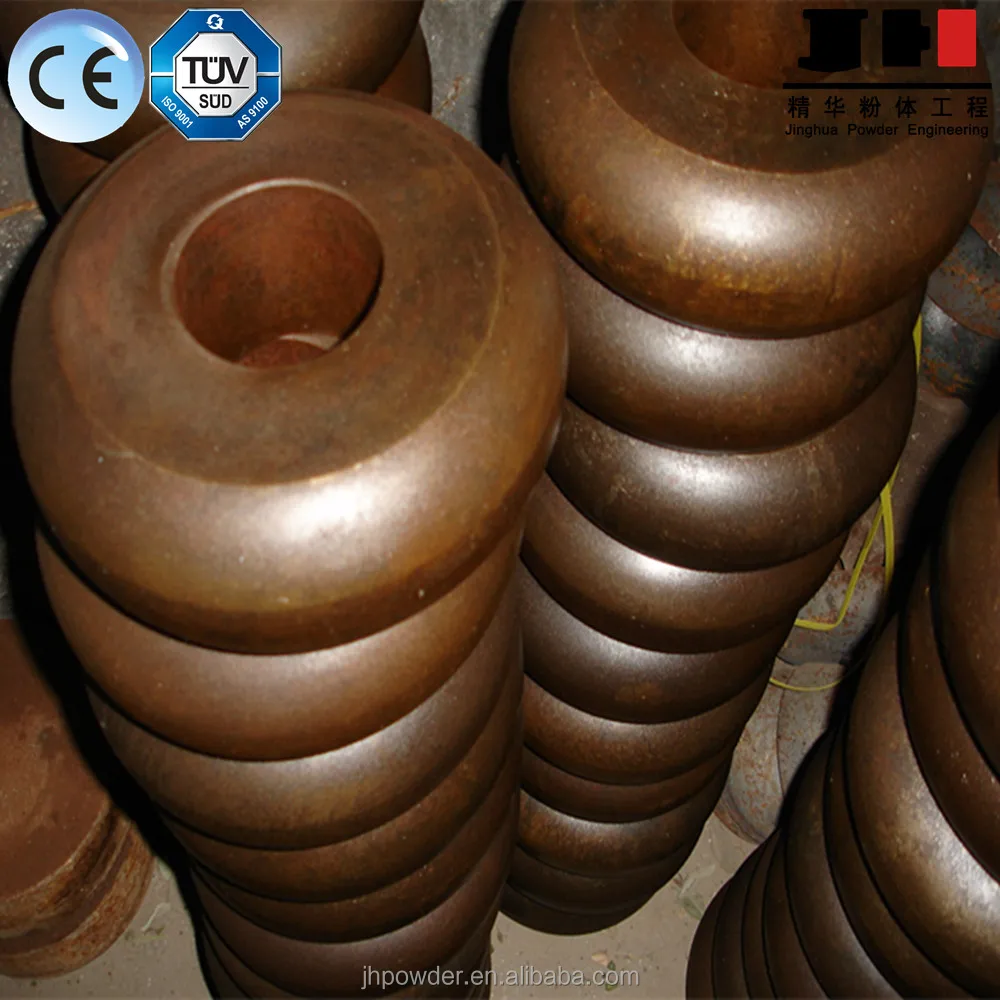

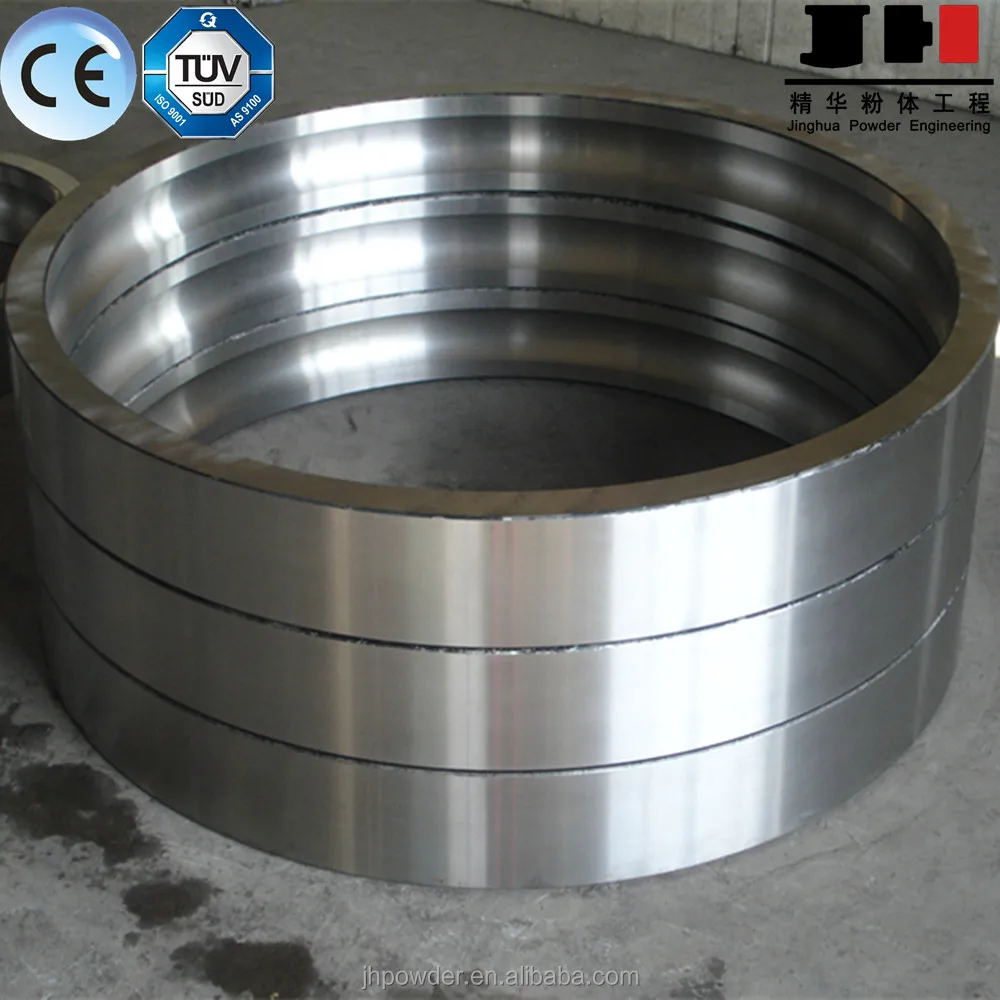

The roller mill is equipped with three layers of grinding roller,when they rotate along with supports,the material is thrown to the grinding ring,and the material between the grinding roller and grinding ring is ground into powder,the size reduction material enters into the classifying area on the top together with uprising airflow,under the action of centrifugal force from classifying wheel and draught fan,the oversized powder is repulverized and the qualified powder is collected by the cyclone and bag filter.

Application
Calcium carbonate, calcium oxide, calcium hydroxide,talc,bauxite,kaolin,diatomite,bentonite,graphite,limestone,calcite,activated carbon,marble,barite,gypsum,clay,
chalk,mica,illite,pyrophyllite,vermiculite,sepiolite,attapulgite,rectorite,potassium
alum stone, fluorite, phosphate rock, pitch coke, pyrolysis carbon black, ore ,
pumice, iron oxide red, iron oxide green, aluminum hydroxide, dyestuff, papermaking, flame retardants, building materials, the materials with Mohs hardness below 8 degree, etc.

Technical Parameter

Type	CXM300	CXM400	CXM500
Roller quantity(pcs)	15	21	30
Diameter of grinding ring(mm)	720	900	1200
Layers of grinding ring	3	3	3
Fineness (μm)	5-45	5-45	5-45
Total power(kw)	100	135	185
Capacity(CaCO3)	800kg/h	1300kg/h	1800kg/h
Power consumption/t	<90kw.h/t

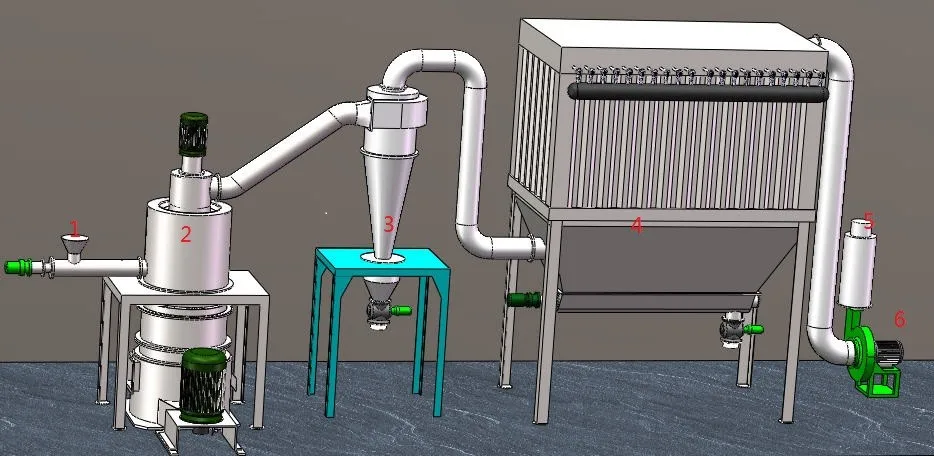

Process Flow Chart

1.Feed screw
2.Roller mill
3.Cyclone collector
4.Dust collector
5.Silencer
6.Draught fan

Our Service

Pre-Sales Service

1.To provide technical advisory services,for free testing and provide 1:1 technical parameter for the customers.

2.Provide technical data,equipment floor diagram,space diagram, installation detailed drawing and electric system drawing,etc.

After-Sales Service

1.We shall offer equipment schedule,equipment layout,foundation drawing etc.

2.Provide installation guide,commissioning and technical training,assure production operation on schedule and design requirement.

Our Company

Established in 1996,it is working on research and development of powder engineering equipments and technology, and it has become one of main suppliers of superfine powder engineering equipment,actived in the international powder Processing field,Many products have reached international leading level.

It has a modern pilot plant equipped with classic complete equipments as well as lots of advanced test instruments including advanced particle size laser analyser, and can offer 1:1 industrial test for fine grinding and classifying materials before purchasement for customer.

Technical support and service:
International leading optimum solution.
Grinding and classifying test
Design,manufacture,turn-key project
Installation and commissioning,technical support,operator training,maintenance
