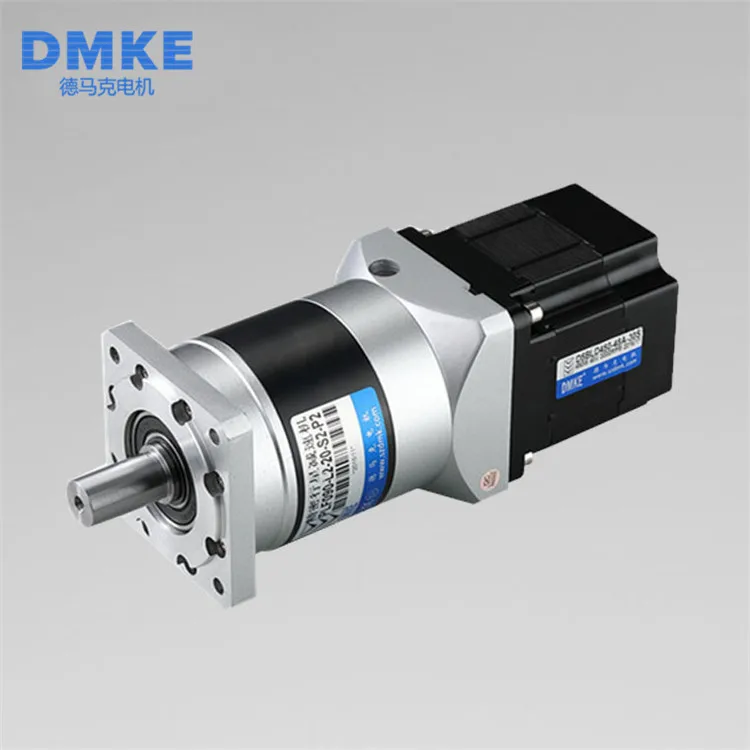

DMKE Wholesale 300w 30 rpm 37.5nm 12v 150rpm dc planetary gear motor 12 v
- Category: >>>
- Supplier: Guangzhou Dmke Motor Co. Ltd.
Share on (60707414943):
Product Overview
Description
Wholesale 300w 30 rpm 37.5nm 12v 150rpm dc planetary gear motor 12 v
Product detail
Feature:
B. No need cleaning and maintenance
C. Easy for speed adjustment and reversible direction
D. Removable location
E. Smaller size, compact and less weight design
F. Longer life, higher quality with reliability
G. Higher efficiency, low heat lose and high C/P
H. Higher speed, high performance
I. Lower emissions, lower EMI/RFI
J. Smart control, cleaner with smart function
| Model | D5BLD300-12A -30S | D5BLD300-24A -30S | D5BLD300-36A -30S | D5BLD300-48A -30S | D5BLD300-310A -30S |
| Power W | 300 | 300 | 300 | 300 | 300 |
| Voltage V | 12 | 24 | 36 | 48 | 310 |
| No load speed rpm | 3300 | 3300 | 3300 | 3300 | 3300 |
| Rated speed rpm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated current A | 31.25 | 15.63 | 10.42 | 7.81 | 1.21 |
| Rated torque N.m | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 |
| Peak torque N.m | 2.87 | 2.87 | 2.87 | 2.87 | 2.87 |
| No-load current A | <7.2A | <6.13A | <3.50A | <4.61A | <0.7A |
Recommended drive model | BLD-4850 | BLD-750 | BLD-750 | BLD-300B | BLD-350B |
Note: Above are only some typical models. For more information or a customized motor, Pls contact us.
Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.

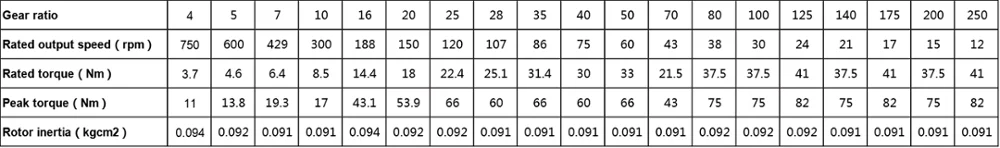

ALLOWABLE TORQUE BEING WITH GEARHEAD
Diagram

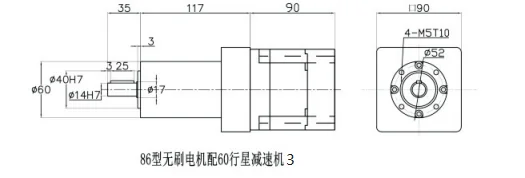

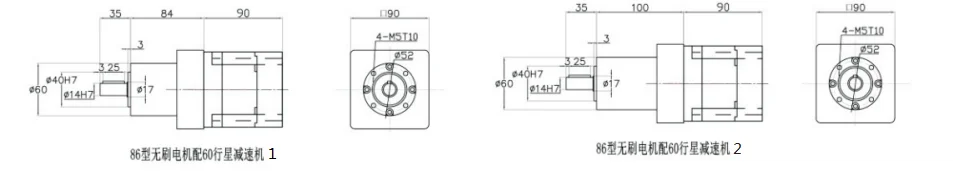

Dimensions (Unit: mm )
Mounting screws are included with gearhead
Application
Why DMKE
A.Certificates passed:CE,ROSH,LVD,EMC,ROSH tests passed for most of our motors and can supply reports.
B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement. |
Main Products
Company Information
FAQ
Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm.
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
