Ultrasonic Copper Harness Wire Splicer Welding Machine Spot Welder Metal Wire Splicing Multi Wire Bonding
- Category: Spot Welders >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (60707416945):
Product Overview
Description
Product Description

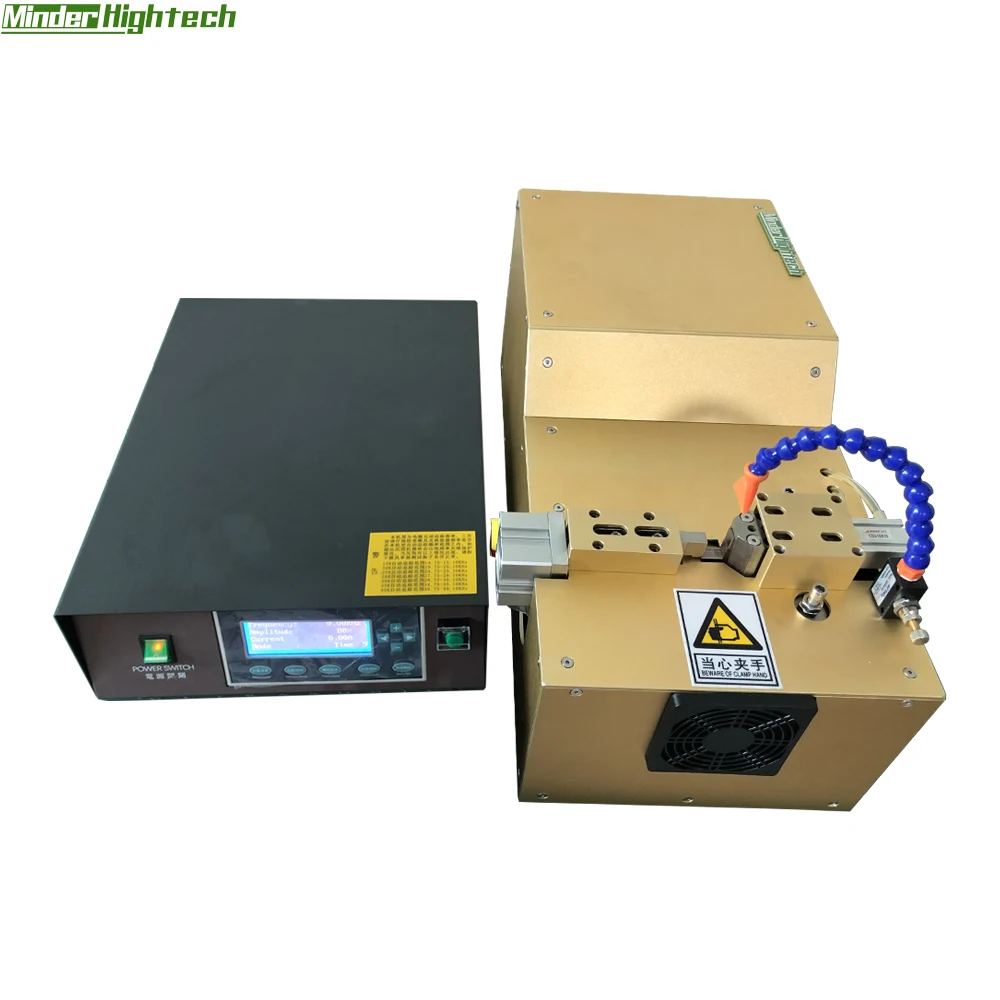

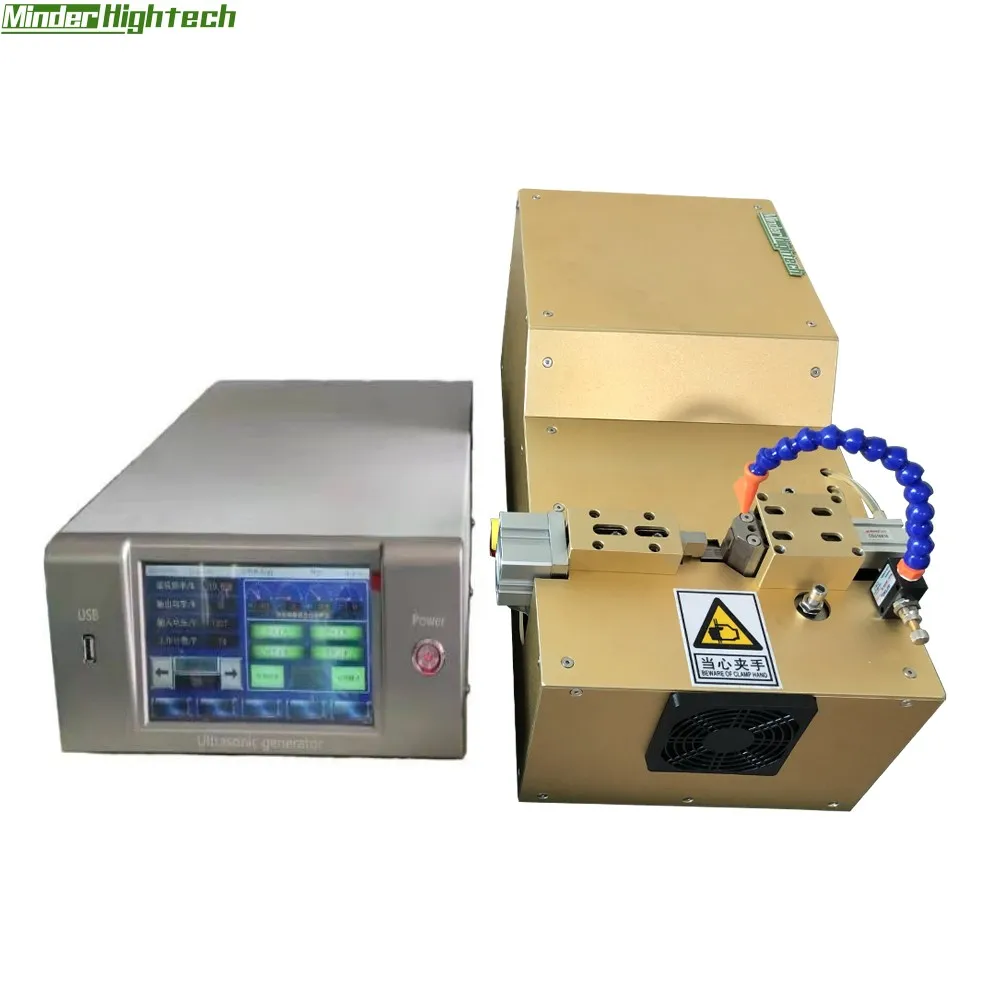

Ultrasonic wire splicing machine
1. Equipped with high-performance ultrasonic metal spot welding power supply, automatically tracking the frequency of the transducer, with two control modes of time and energy;
2. Ultrasonic welding has low requirements on the metal surface, no need to scrape the oxide layer or electroplating layer, and the welding efficiency and quality are high;
3. The welding material does not need to be melted, does not change the material characteristics, and has no pollution can realize the welding between different metal materials, such as nickel+copper,copper+aluminum,nickel+aluminum,etc.;
4. After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is suitable for welding of conductive materials.
5. The welding time is short, without any flux, shielding gas and filler.
2. Ultrasonic welding has low requirements on the metal surface, no need to scrape the oxide layer or electroplating layer, and the welding efficiency and quality are high;
3. The welding material does not need to be melted, does not change the material characteristics, and has no pollution can realize the welding between different metal materials, such as nickel+copper,copper+aluminum,nickel+aluminum,etc.;
4. After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is suitable for welding of conductive materials.
5. The welding time is short, without any flux, shielding gas and filler.
Specification
Medle | MD-ＸＳＢＷ2030 | MD-ＸＳＢＷ2040 | MD-ＸＳＢＷ２０５０ | ||||||
Ultrasonic frequency | 20KHz | ||||||||
Operating Voltage | AC220V/50Hz | ||||||||
Ultrasonic power | 3000W | 4000w | ５000W | ||||||
Air pressue | 0.4MPa~0.6MPa | ||||||||
Operating Voltage | 4.3 inch/7 inch touch screen | ||||||||
Control mode | time/energy/altitude | ||||||||
Maximum welding stroke | 30mm | ||||||||
Rack size | ５００*３００*２00mm | ６00*３００*２３０mm | ６00*３００*２３０mm | ||||||
Electric box size | 450*135*140mm | ||||||||
Weight | ８0kg | 90kg | １１０ｋｇ | ||||||

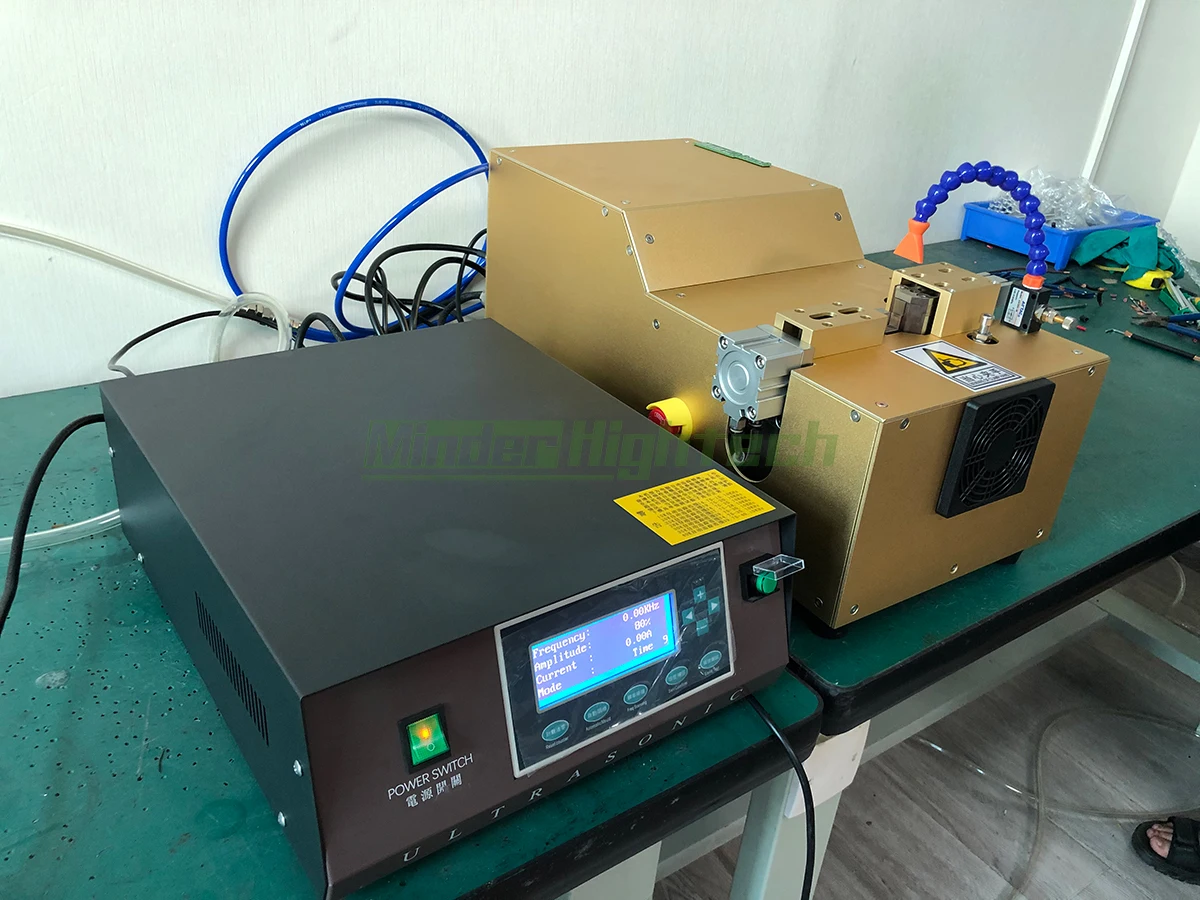

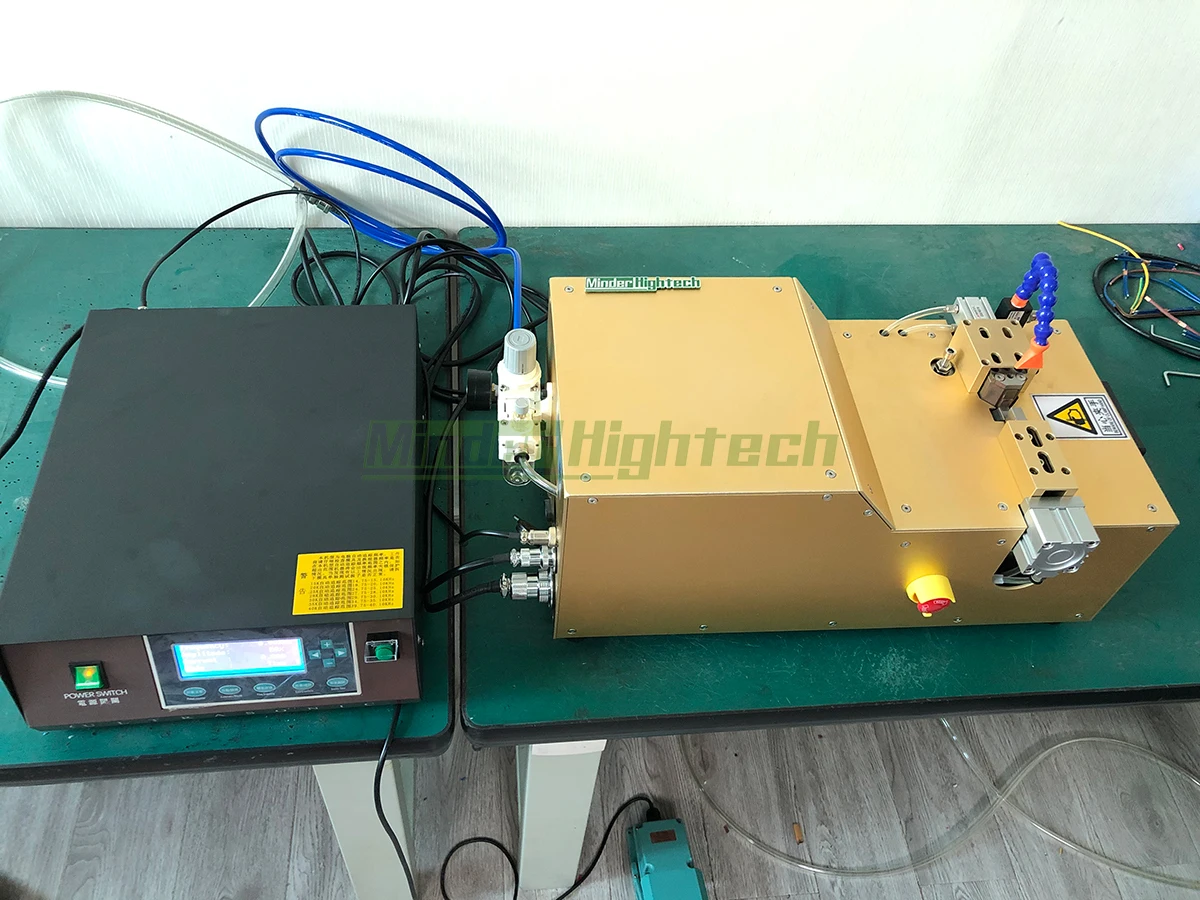

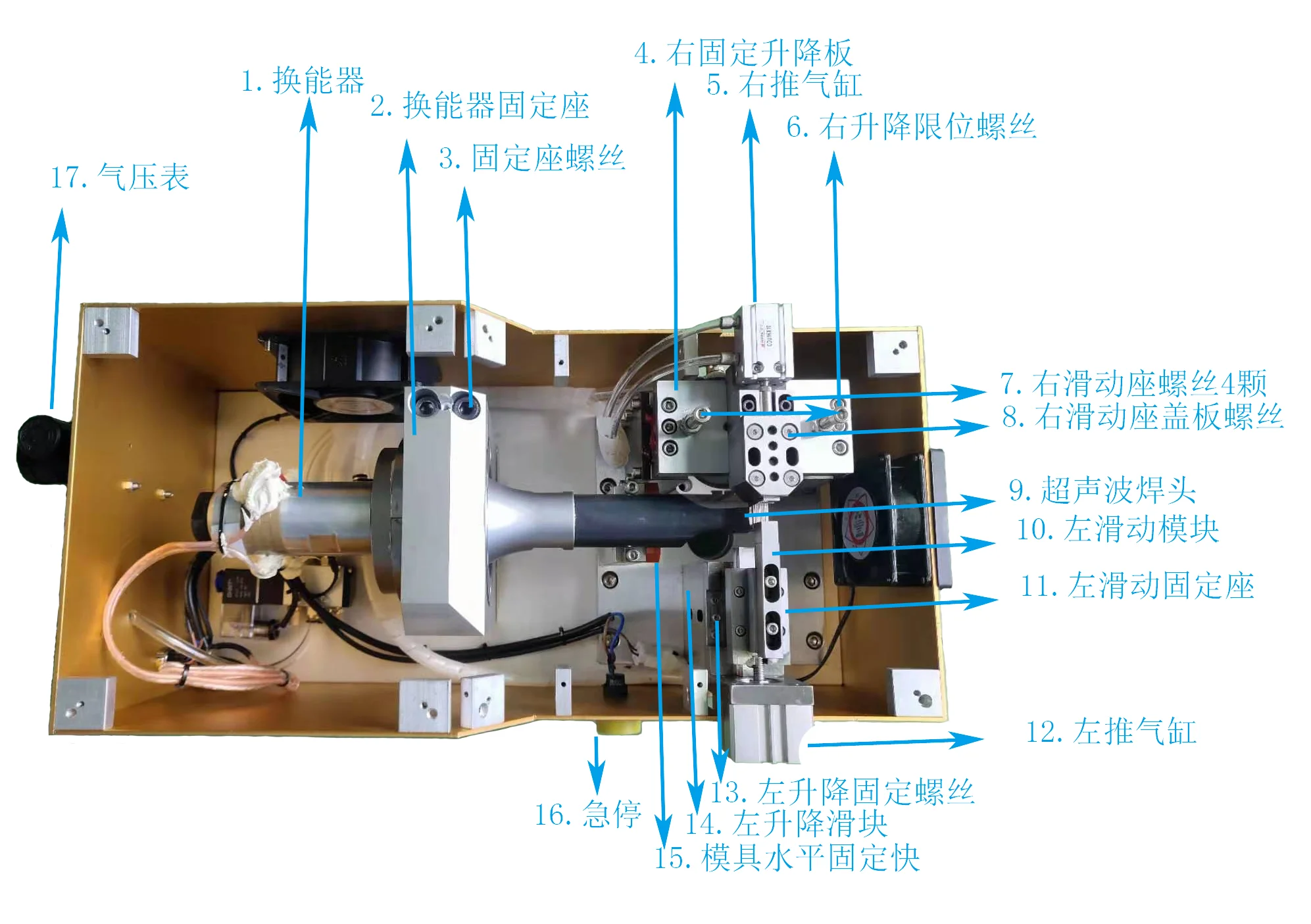

Detail display
Application
Stainless steel, carbon steel, general alloy steel, gold, silver, iron. aluminum, alloy, steel, diamond welding between the same materials or welding of different materials.

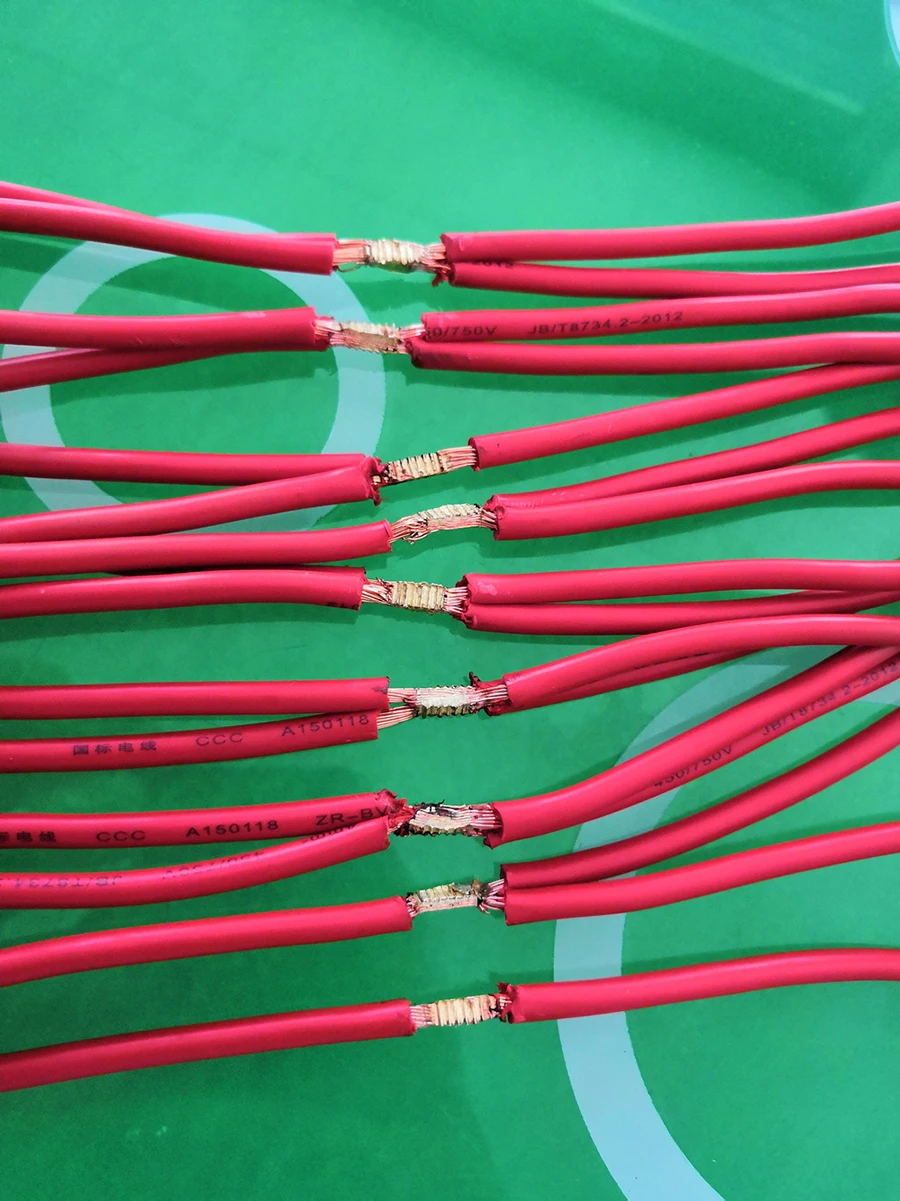

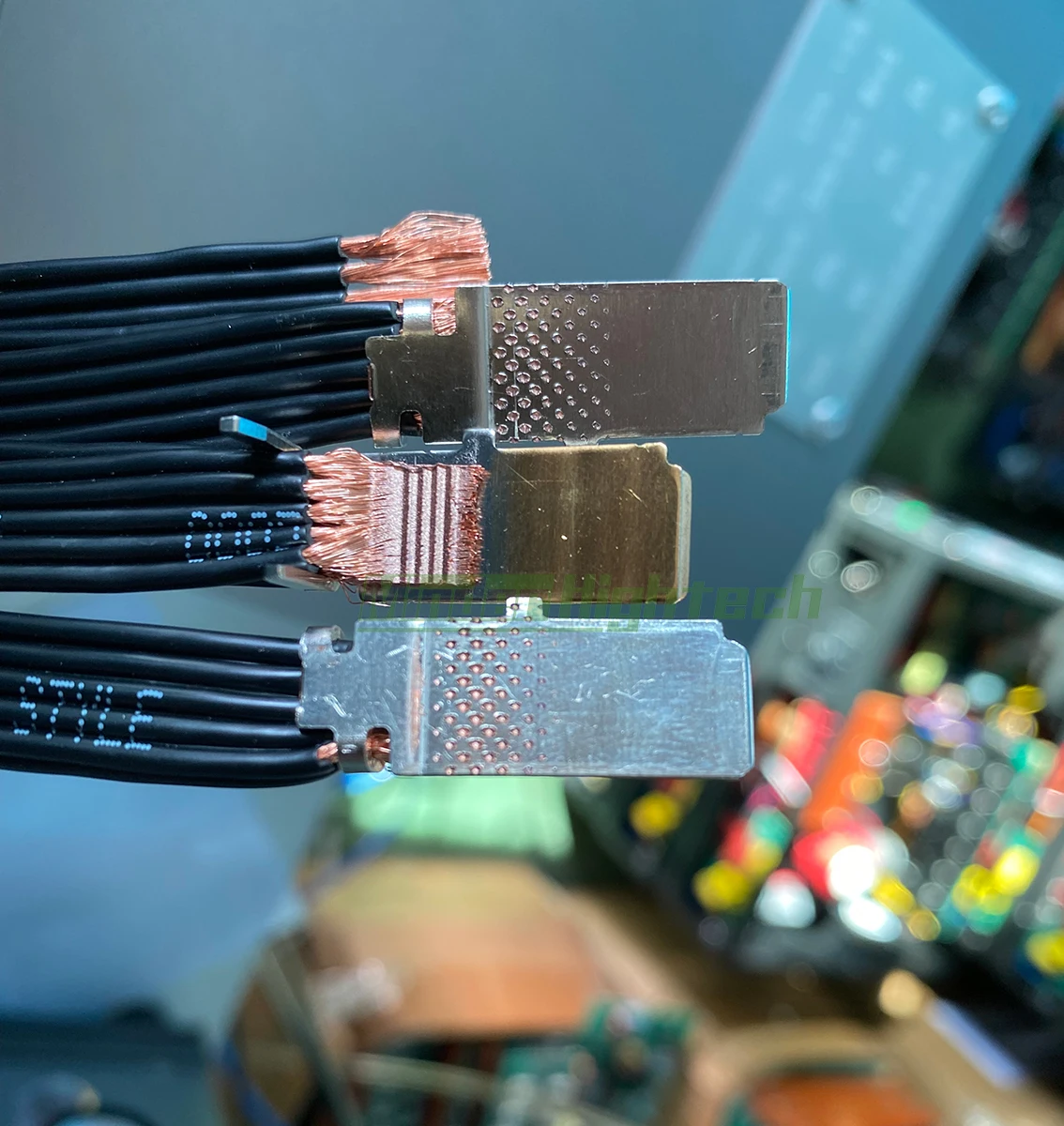

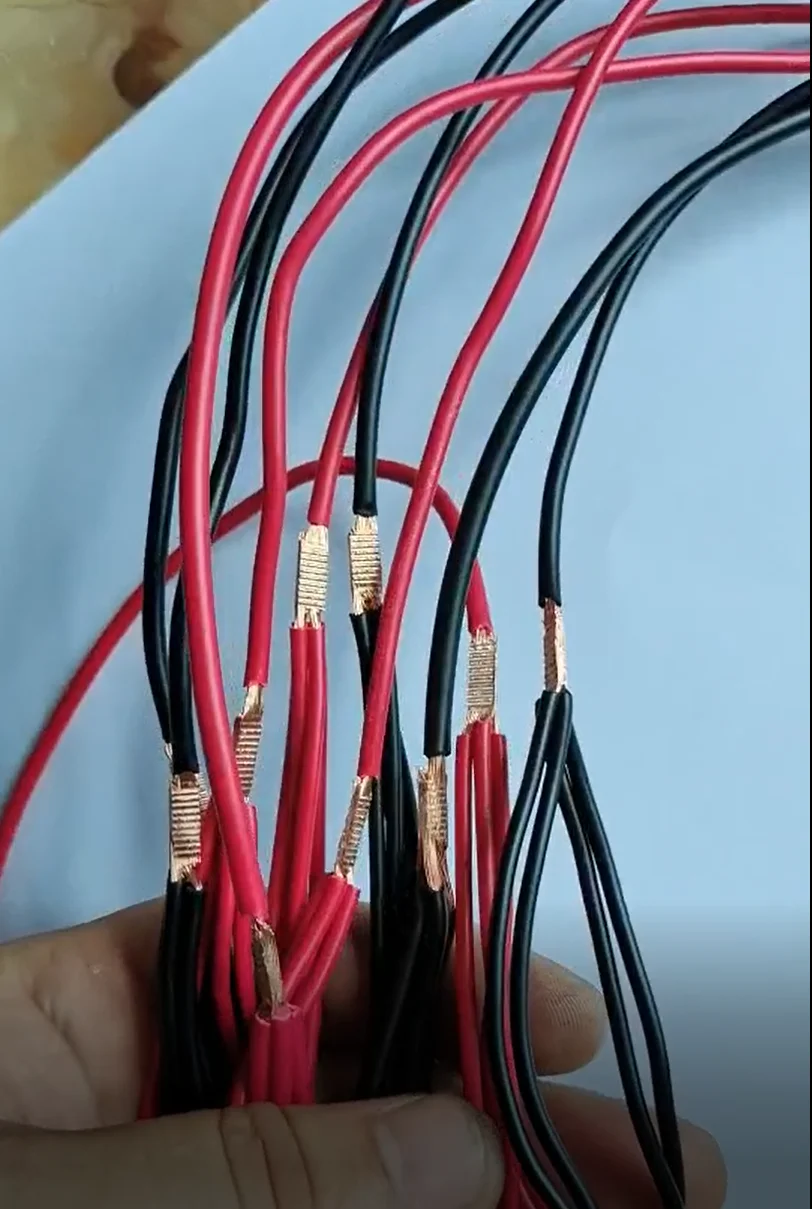

Sample
Factory
Packing & Delivery
If you want to konw more,please contact our sales engineer:
