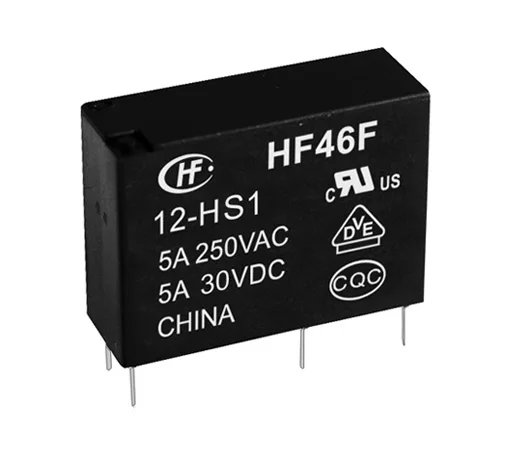

HF46F reverse power ac 220v relay

relay 220v ac * hf46f relay * reverse power relay



Picture:


 relay 220v ac * hf46f relay * reverse power relay

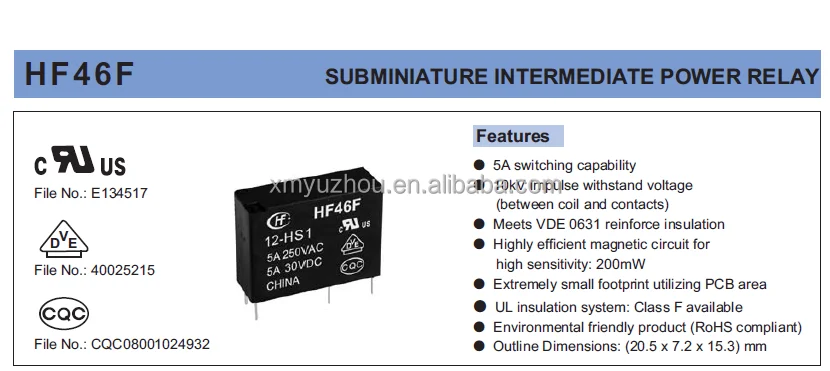

Features of Power Relay * ac 220V relay






Relay Type:HF46F

· 5A switching capability
· 10kV impulse withstand voltage
(between coil and contacts)
· Meets VDE 0700, 0631 reinforce insulation
· Highly efficient magnetic circuit for
high sensitivity: 200mW
· Extremely small footprint utilizing PCB area
· UL insulation system: Class F available
· Environmental friendly product (RoHS compliant)
· Outline Dimensions: (20.5 x 7.2 x 15.3) mm



Contact Data oF relay 220v ac * hf46f relay * reverse power relay
Contact Arrangement:1A
Contact Resistance:AgSnO2 , AgNi
Contact Rating:3A 250VAC/30VDC
5A 250VAC/30VDC
Max. switching Voltage:277VAC/30VDC
Max. Switching Power:1385VA / 150W
Mechanical Endurance:5×106OPS
Electrical Endurance:1×105OPS



Characteristics relay 220v ac * hf46f relay * reverse power relay
Insulation Resistance:1000MΩ
Dielectric Strength:4000VAC
Operate Time (max):10ms
Release Time (max):10ms
Ambient Temperature:-40℃ ~ 85℃
Terminal Type:THT



Coil Data relay 220v ac * hf46f relay * reverse power relay
Nominal Voltage:(3~24)VDC
Coil Power:0.2W



    Ordering Information relay 220v ac * hf46f relay * reverse power relay








relay 220v ac * hf46f relay * reverse power relay
