China Top Brand ANKAI 70 Seater Coach Bus for Sale
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60707454289):
Product Overview
Description

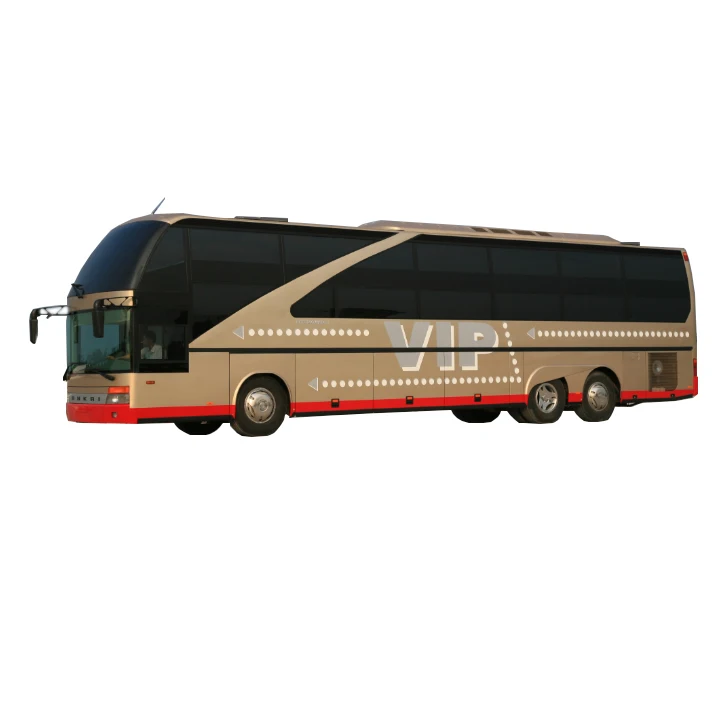

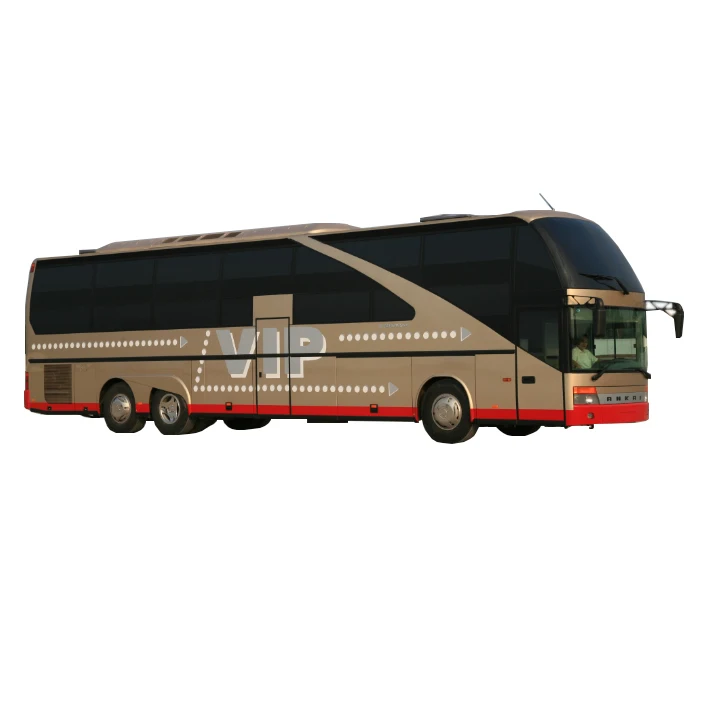

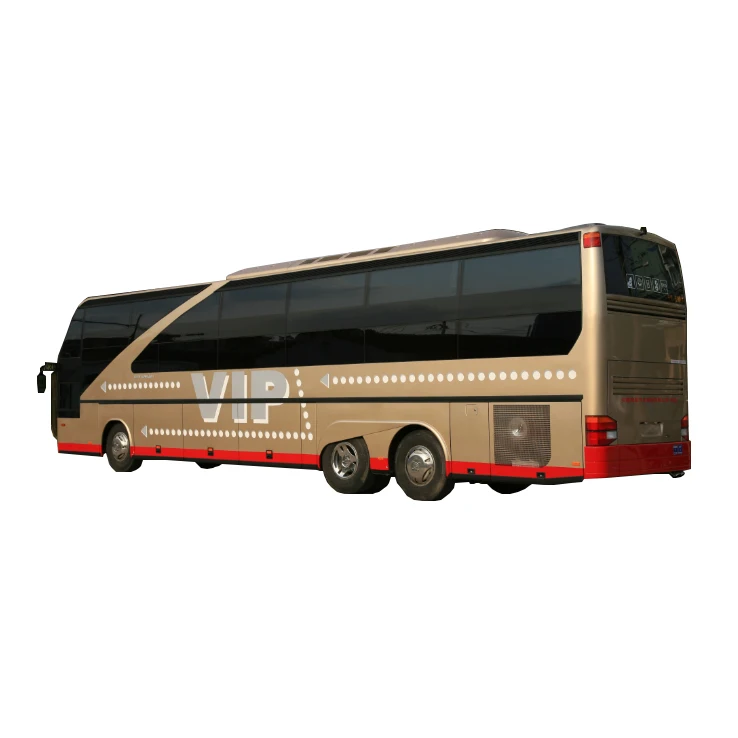

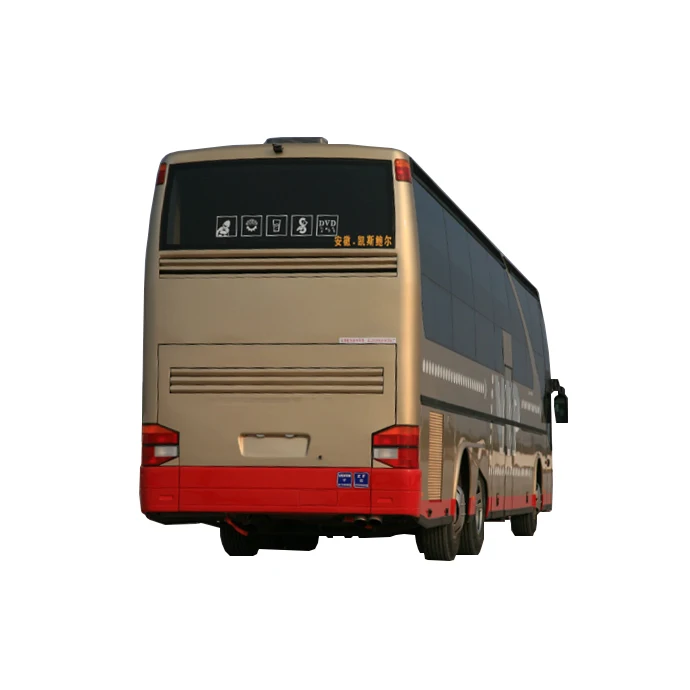

China Top Brand ANKAI 70 Seater Coach Bus for Sale
Product Description
| General Profile | |||
| Dimension L*W*H (mm) | 13700×2550×3950 | Overhang Fr/Rr (mm) | 2620/3080 |
| Approach/Departure Angle (0) | 8.5/8.5 | Curb weight (kg) | 16200 |
| Wheel base (mm) | 6500+1500 | G.V.W (kg) | 22000 |
| Wheel track(Fr/Rr) (mm) | 2060/1860 | Fuel tank(L) | 420 |
| Seat Capacity | 65+1+1 | ||
| Engine | |||
| Engine Model | WP12.400N | ||
| Engine Position & Type | Rear mounted,diesel,6 cylinders in line,four stroke ,turbo charger,inner cooler | ||
| Emission | EUROIII | ||
| Displacement(L) | 11.595 | ||
| Maximum power (kw/rpm) | 294/1900 | ||
| Max. torque (N.m/rpm) | 1920/1000-1400 | ||
| Chassis | |||
| Transmission | TB200 | ||
| Retarder | Telma eddy current retarder | ||
| Clutch | SACHSφ430 | ||
| Suspension | 8 gasbags air suspension | ||
| Air lift device ECAS | Yes | ||
| Front axle | ANKAI MERIOT technology /disc brake | ||
| Drive axle | ANKAI MERIOT technology /disc brake | ||
| Auxiliary axle | disc brake | ||
| Sevice brake | Dual-circuit air brake, automatic adjusting arm | ||
| Parking brake | Spring energy storage | ||
| Steering system | Power steering | ||
| Tyre | 295/80R22.5 | ||
| Electrical equipment | 24V | ||
| Body | |||
| Body frame | Monocoque | ||
| Air Conditioner | AC383B-II,BOCK compressor | ||
| Luggage compartment | Translational motion compartment door | ||
| Defroster | Yes | ||
| Floor | Bamboo plywood with leatheroid floor cover | ||
| Video | Radio with USB | ||
| Passenger seat | With seat belts,aluminum pedals | ||
| Rear-view Mirror | Integrated electrical | ||
| Paint | Chinese pure-colour paint | ||
| Windscreen wiper | Yes | ||
| Hatch | 2, with ventilator | ||
| Passenger door | Front and middle passenger door | ||
| Front windshield glass | Laminated glass with sunvisor | ||
| Rear windshield glass | Tempered glass | ||
| Side window | Hollow glass with folding glass | ||
Product Display
We have more Coach Bus models available for you and please kindly click on below photos:
Bus Display
