SHANGHAI WEN YOU INDUSTRY CO.,LTD.
DRY Type Epoxy Resin
LE-8214F/LH-8214F System
Version of 2019.10 No:2019108214F

Epoxy resin LE- 8214F 100pbw Formulation
Hardener LH-8214F 100pbw
Filler Silica Flour 250pbw
Color paste LC series * Appropriate pbw
Properties
Two-component epoxy resin system, liquid at room temperature, suitable for vacuum casting process
Lower curing shrinkage, dimensional stability of end product, excellent processing performance and high dielectric and mechanical
properties.
Application
Medium and high voltage electrical insulation products
such as dry type transformers, 10-66kV current and voltage transformers etc.

Storage
The components have to be stored in tightly sealed and dry original containers in an environment at 6~35℃;. Under these
conditions, the shelf life will correspond to the expiration date stated on the label ( normally 12 months). After this date, the
product may be reanalyzed to confirm if it validates yet. Partial emptied containers should be closed tightly immediately after
use.
Packing
Resin 20kg / barrel or 240kg / barrel or 1200kg / barrel, curing agent 20kg / barrel or 240kg / barrel or 1200kg / barrel
First aid
Contamination of eyes by resin, hardener of casting mix should be treated immediately by flushing with clean,running water for 10
to 15minutes, a doctor should then be consulted.
Material smeared or splashed on the skin should be dabbed off, and the contaminated area then washed and treated with a cleaning
cream. A doctor should be on the event of severe imitation of burns. Contaminated clothing should be changed immediately. Anyone
taken ill after inhaling vapors should be moved out of doors immediately,in all case of doubt call for medical assistance.
Page 2 of 3 8214F Specification Page 2 of 3

8214F Application process recommendation

1. Preparation of ingredients

1.1 The casting mold should be preheated in the oven at 100-110 ° C for more than 10 hours, and above 4000kva transformer coil
shall be given a longer preheating time,
To ensure that the coil is completely dry and its temperature is not less than 80 ° C when installed.
1.2 The silica powder shall be sealed to normal temperature for more than 6 hours in an oven at 110-120 ° C.

2. Ingredients

2.1 Static mixture degassing
2.1.1 Premixing
Material A (epoxy) is based on weight ratio, resin: filler: color paste 100:(125-color paste amount)：proper amount, and mixed
separately after adding resin, filler and color paste,
The temperature is 65-70 ℃, stirring and degassing for no less than 2 hours, and 100 < p < 200pa.
Material B (curing agent) is based on the weight ratio, curing agent: filler 100:125, mixed separately, temperature is 65-70 ℃,
stirring and degassing are not less than 2 hours, 100 < p < 200pa.
2.1.2 Final mixing
Then the components A and B are finally mixed， the accelerator agent is not needed, and put material A and B are mixed in the
proportion of 100:100 into (or vacuum suction) final mixing tank, and in order to stir well, we advise put the resin and hardener
at same or alternate time
2.1.3 Start stirring after feeding,make sure the the spiral lifter can lift the mixture onto the umbrella degassing hood at its
rotate speed
2.1.4 After stirring for 15 minutes, start the vacuum pump for degassing. The vacuum degree shall not be less than 300pa
2.1.5 The mixing degassing time is about 15-30 minutes, and the degassing is completed when there is no bubble on the umbrella
surface

3. Casting

3.1 Set the casting tank temperature at 80-85 ℃, preheating shall start 4-5 hours before batching, and to ensure that the
temperature of the mold during installation is not less than 80 ° C

3.2 After batching, the dried and preheated mold is pushed into the casting tank for vacuum treatment

3.3 The space temperature of the casting tank is 80-85 ° C, the vacuum degree is not less than 300pa, and the vacuum treatment
time is not less than 2 hours

3.4 , The feeding should not be too fast during casting. It can be stopped for 10-15 minutes, and the vacuum can be continued for
20-30 minutes after the material is full. If possible, it can be pressurized by 0.2-0.3mpa after vacuum treatment

3.5 The final mixing casting shall be completed within 90 minutes. Please strictly control the temperature and time to prevent
tank solidification. The excess single component resin and curing agent can be stored for several days, but it must be sealed and
the temperature should be well controlled

Product data

LE-9218V is a kind of modified BPA epoxy resin

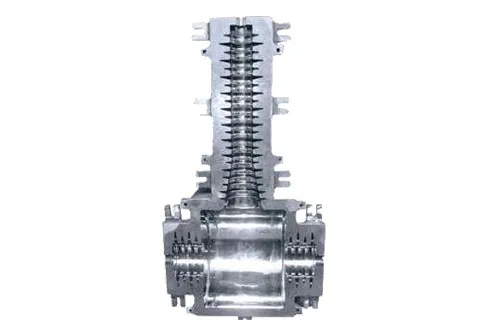

Our company products be used for Medium&high voltage insulation switch parts.

Our company products be used for Electrical insulators.

Our company products be used for transformers.

Fully automated packaging.

Put up the products to ensure products safety.

Our copany products are loading up waiting to be transported to port.

1.Do you think what is your factory's biggest adventage?

A:Technology is our core competitiveness

2.Can your factory supply samples with free if we need?

A: Yes,we can .

3.What is your product's MOQ?

A:We haven't exact MOQ for our products ,if you just need 200 KG we also sell .your satisfaction is our biggest pursuit .
