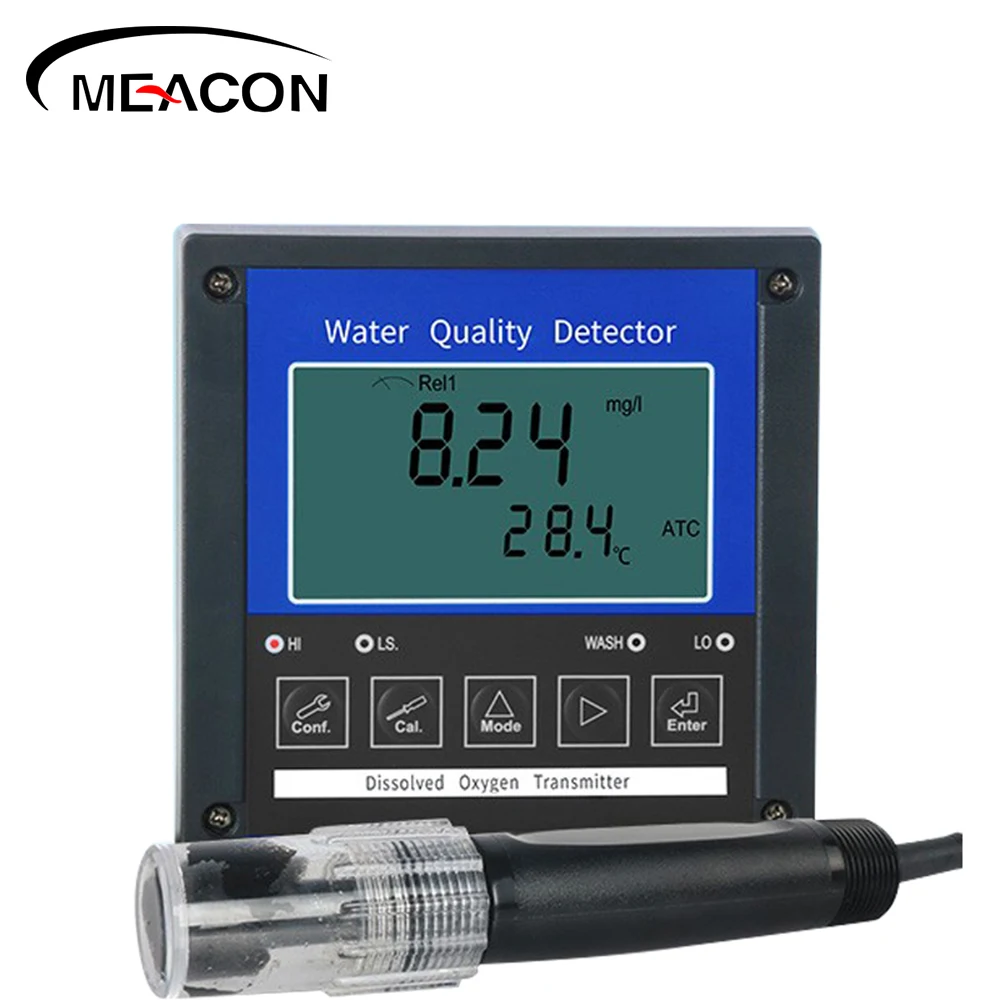

High quality dissolved oxygen transmitter meter controller for waste water treatment plant

Product Overview

Description





Dissolved Oxygen analyzer adopts fluorescence method to measure dissolved oxygen.The cap of the sensor is coated with a luminescent material. Blue light from an LED illuminates the luminescent chemical. The luminescent chemical instantly becomes excited and releases red light. The time and intensity of red light are inversely proportional to the concentration of oxygen molecules, So the concentration of oxygen molecules is calculated.



Application:

Wastewater treatment plants:

-O2 control in the aeration basin

-Process water treatment and monitoring

Water works:

-Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)

-Water quality monitoring in rivers, lakes or seas

Utilities of all industries:

-O2 control in the biological treatment

-Process water treatment and monitoring

Fish farming:

-O2 control for optimum growth conditions



Specification

Measurement range	DO: 0-20 mg/L,0-20 ppm; Temperature: 0-45℃
Measurement Accuracy	DO: ±3% of  the measured value; Temperature: ±0.5℃
Pressure range	≤0.3Mpa
Calibration	Air automated calibration,sample calibration
Main material	Body: SUS316L + PVC(fresh water), Titanium alloy (marine); O-ring: fluorine rubber; Cable: PVC
Power supply	AC:100-240VAC (50/60HZ)DC: 9~36VDC
Output	2-way 4-20mA
Relay	Setting three-way relays,programmed response parameter and response value.
Communication protocol	MODBUS RS485
Storage temperature	-15-65℃
Measuring temperature	0-45℃
Dimensions	Sensor: Dia55mm*L 342mm                                    Transmitter: 145*125*162mm(L*W*H)
Weight	Sensor: 1.85KG;                                              Transmitter: 1.35KG
Protective rate	Sensor: IP68/NEMA6P; Transmitter: IP65/ NEMA4X
Cable length	Standard: 10m, the maximum may be extended to 100m

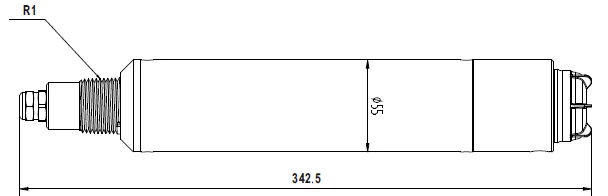

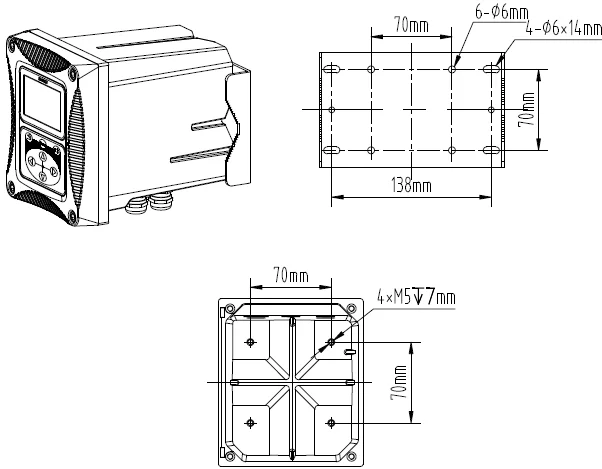

Dimension
