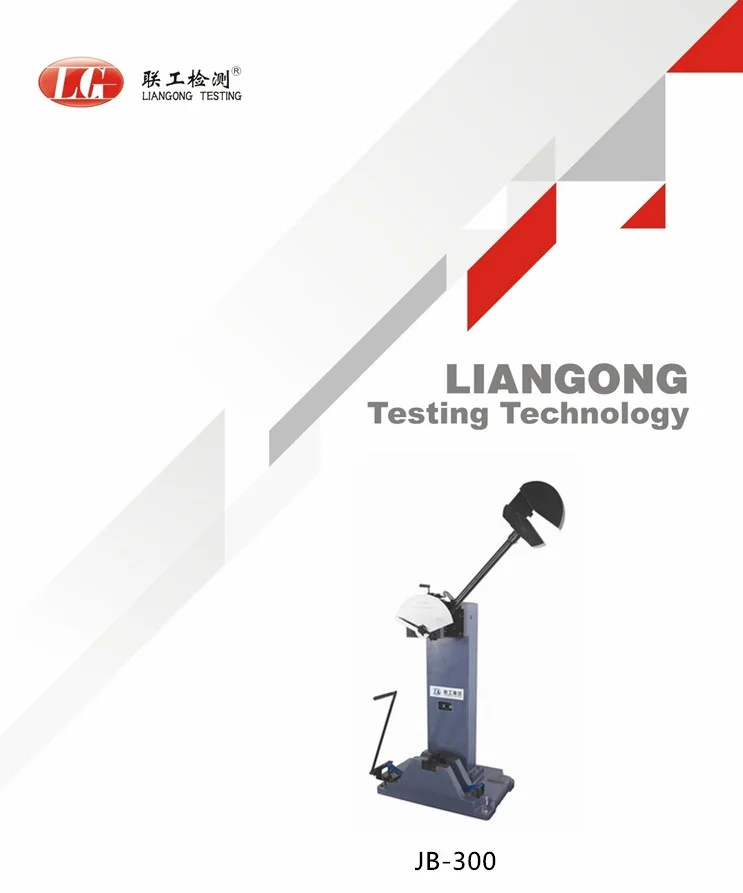

300J Manual Charpy Impact Tester / Manual metal impact testing machine manufacturer price JB 300
- Category: >>>
- Supplier: Jinan Liangong Testing Technology Co. Ltd.
Share on (60707627387):
Product Overview
Description
Product Description
*Usage and Characteristics*
JB-300 Type Impact Testing Machine is used to test anti-impact performance of metal material under dynamic load to judge the nature of material under dynamic load. This machine makes use of difference between gravitational energy before impacting and spare energy after impacting to display value on dial and get the sample absorbing energy.
*Advantages*
1. The main body and base of the machine are made of cast steel, which has good stability and ensures the running accuracy of the whole machine.
2. This machine adopts the internationally popular square pendulum structure. After three-dimensional software modeling design analysis, it ensured the accuracy of the strike center and pendulum torque.
2. This machine adopts the internationally popular square pendulum structure. After three-dimensional software modeling design analysis, it ensured the accuracy of the strike center and pendulum torque.
3. The swing shaft is supported by a cantilever beam structure, which is simple in structure and easy to install.
4. Manual operation, no need power supply, low cost.
5. The machine exterior surface uses the paint spraying, and the paint uses the high-grade special for automobiles, which is beautiful and elegant.
*Main Technical Parameters*
Machine model | JB-300 |
Impact energy | 300J, 150J |
Pendulum preparing angle | 135° |
Pendulum shaft center of rotation to the impact point distance (sample center) | 800mm |
Impact speed | 5.0m/s |
Specimen support span | 40mm |
Round corner of support jaw | R (1.0~1.5)mm (1mm is special ordered.) |
Blade curvature radius | R (2.0~2.5)mm (8mm is special ordered.) |
Specimen holder support surface angle | 11° |
Impact blade angle | 30° |
Impact blade thickness | 16mm |
Specimen dimension | 10×10×55 mm (Thickness 7.5mm, 5mm is special ordered) |
Machine outline dimension (Length×Width×Height) | 700×510×1350mm |
Machine host weight | 320kg |

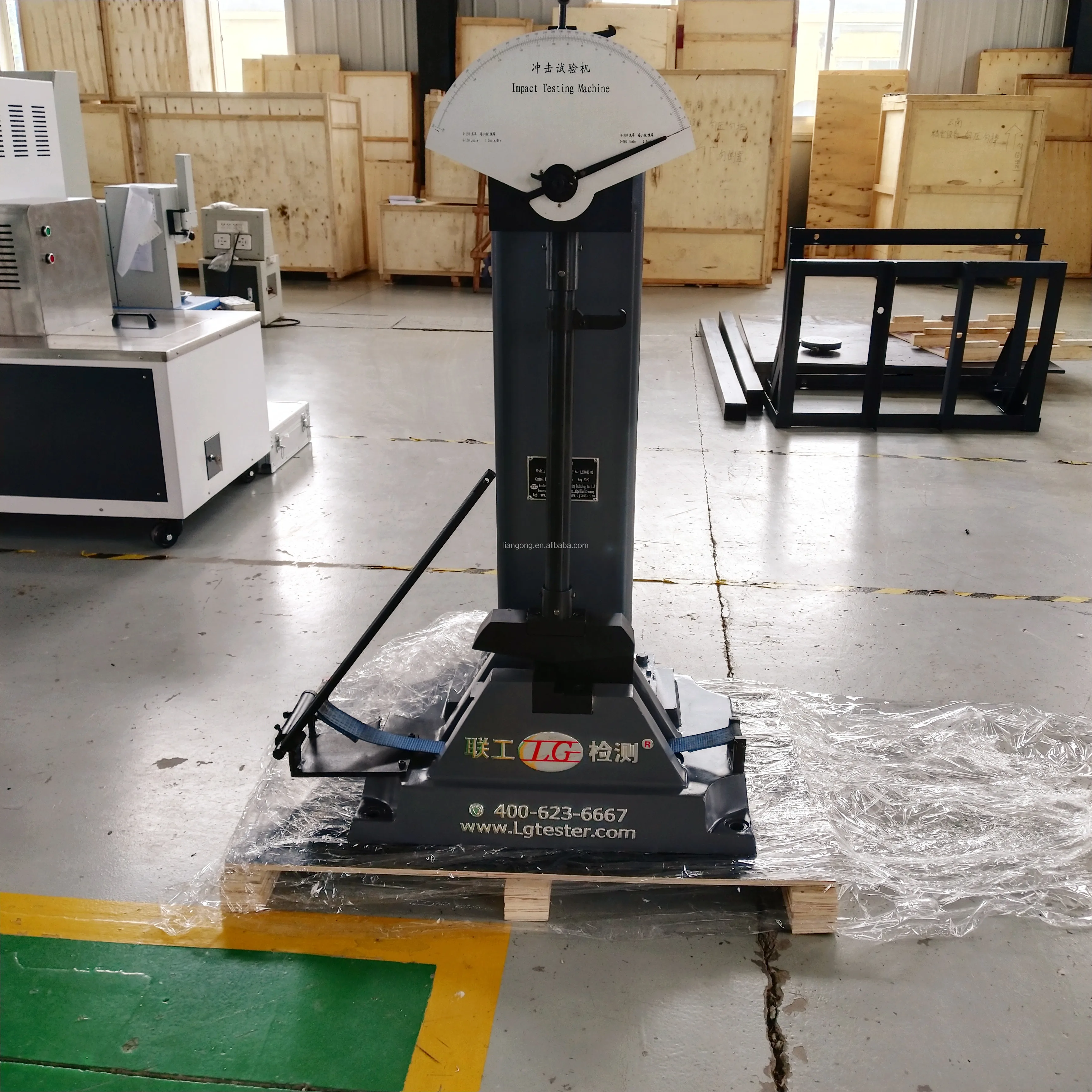

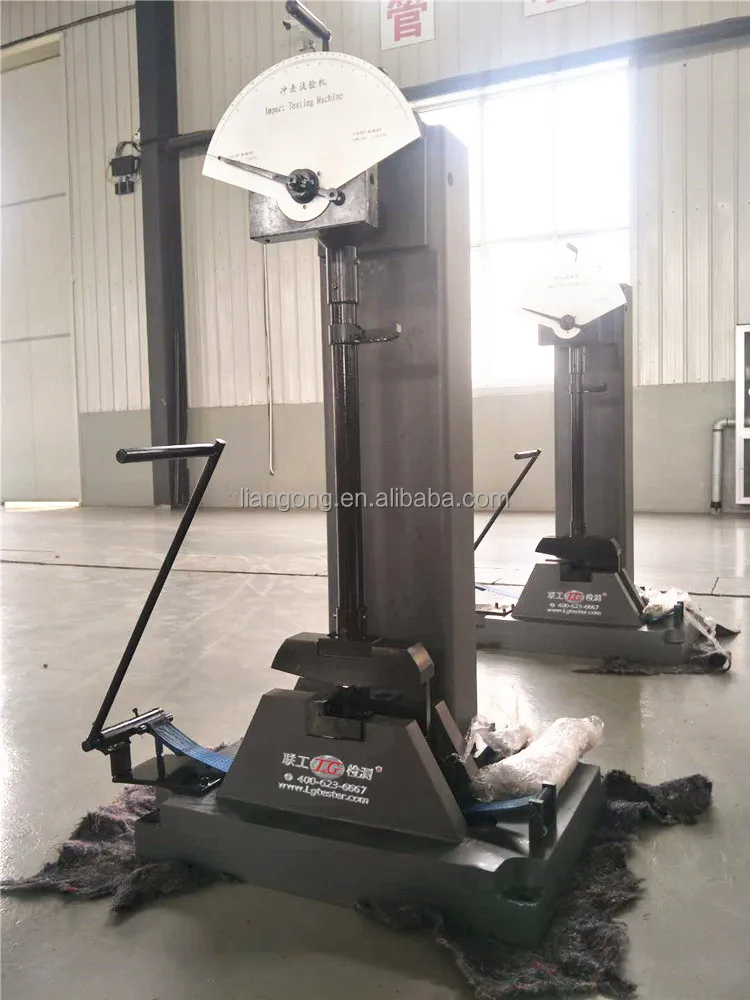

Detailed Images

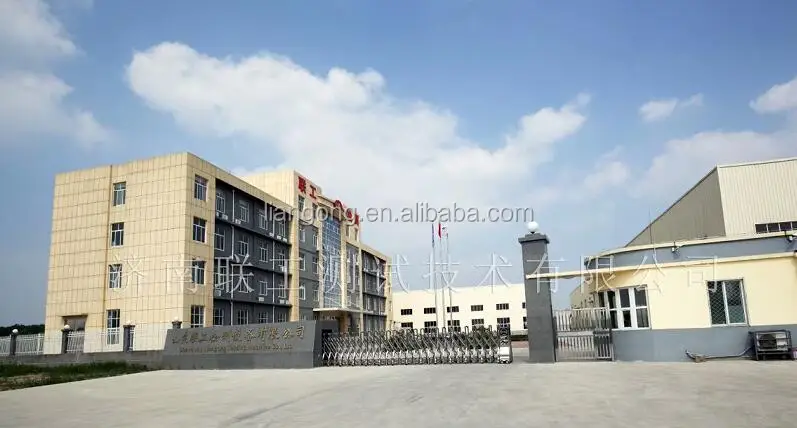

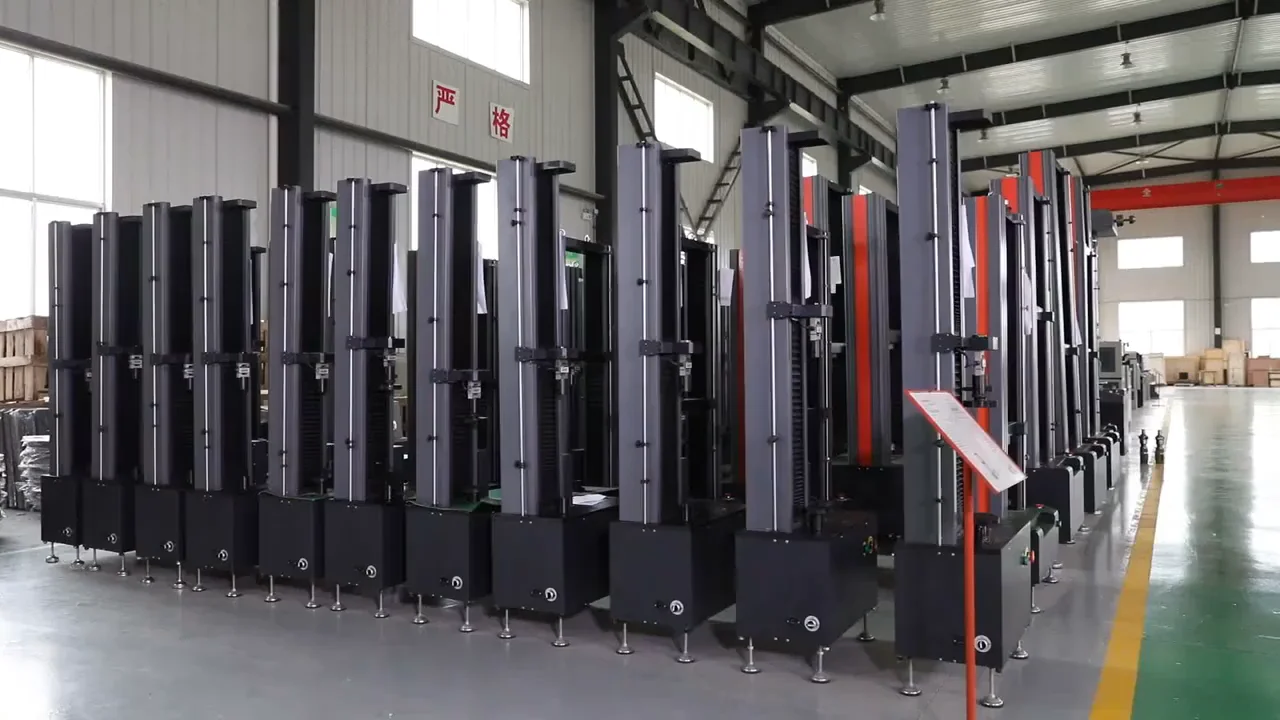

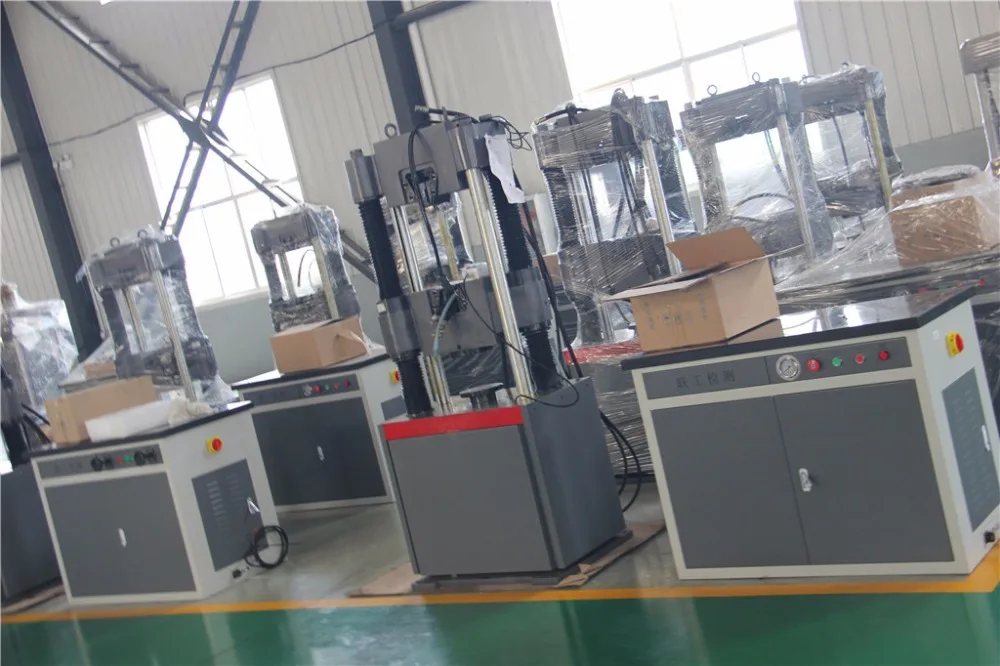

Company Introduction
Certifications
Customer Photos

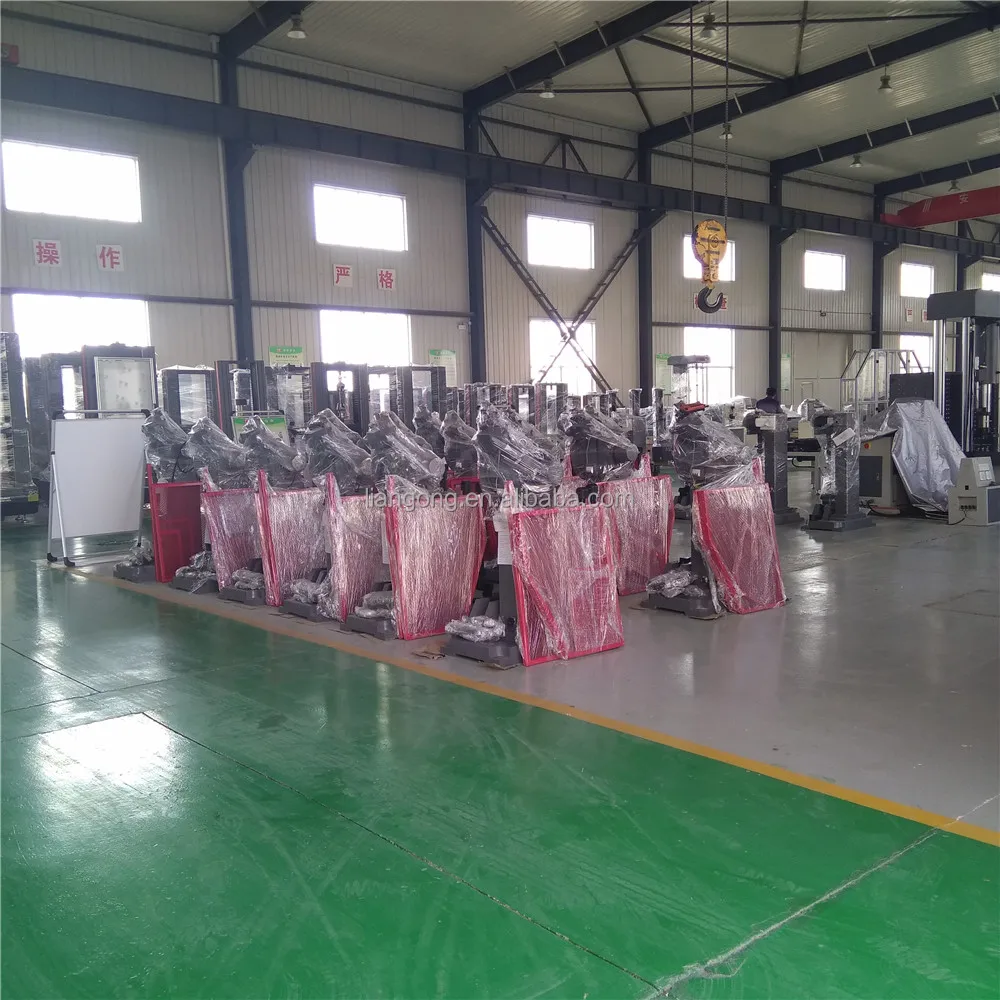

Packing&Shipping
Standard Export Plywood package per set
After Sales Service
Warranty
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance
Consultation services. We answer your question timely via the telephone or email. Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Because professional,its leading. We are committed to every customer to provide timely, efficient, high quality service!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer for making testing machine, charpy testing machine,broaching machine, temperature champer, etc for many years.
2. What is your payment terms?
We accept TT, West Union, L/C, and other payment terms.
3. What is your delivery time?
Generally is about 10 days for standard testing machine, but for non-standard machines, it needs to be customized.
4. Can you accept customers' inspection or third party inspection?
Yes, we totally accept inspection before shipment. Welcome to our factory.
5. Why choose your company?
We are manufacturing testing machines for more than 10 years, and our products have exported all the world. We constantly study and research new projects, and some of our products have won patents. We also get the CE, ISO certificates. High quality products and service are our main center.
