New Arrive 16x16 HDMI Matrix 16x16 with RS32 IR Remote Matrix HDMI Switch Splitter
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (60707643177):
Product Overview
Description
Product Description

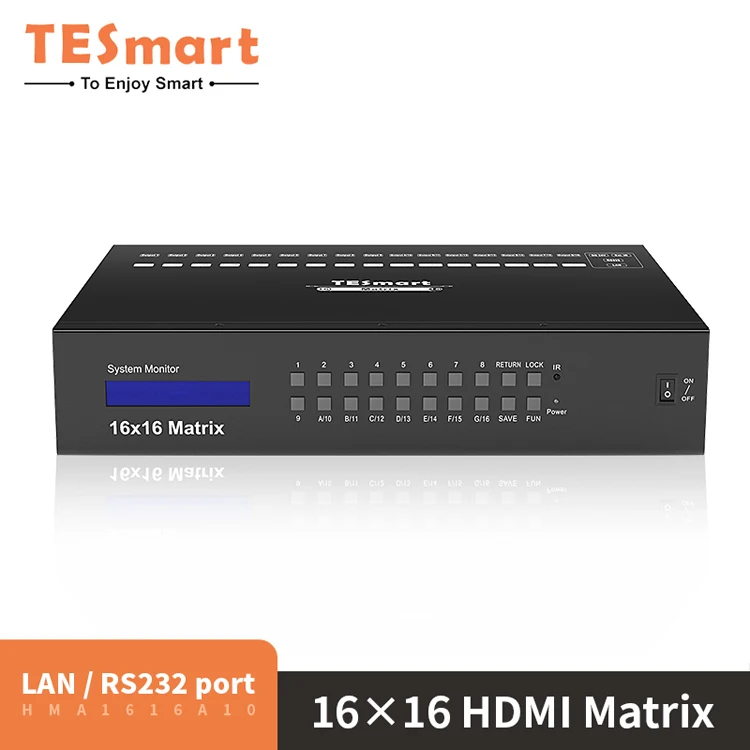

16x16 HDMI Matrix

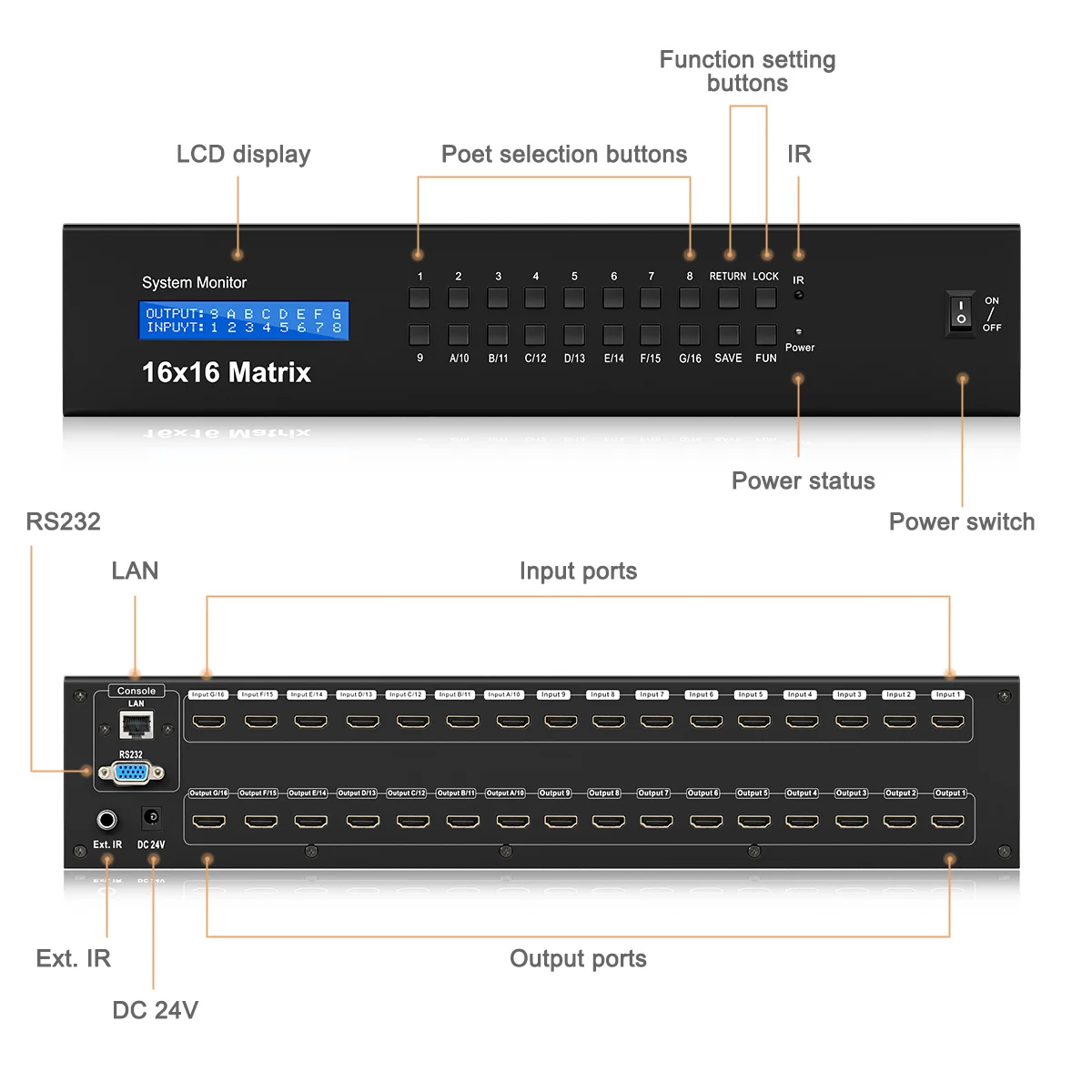

This 16x16 HDMI matrix routes 16 Ultra HD sources to 16 Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
Features
⭐Max. resolution up to 3840*2160@30Hz.

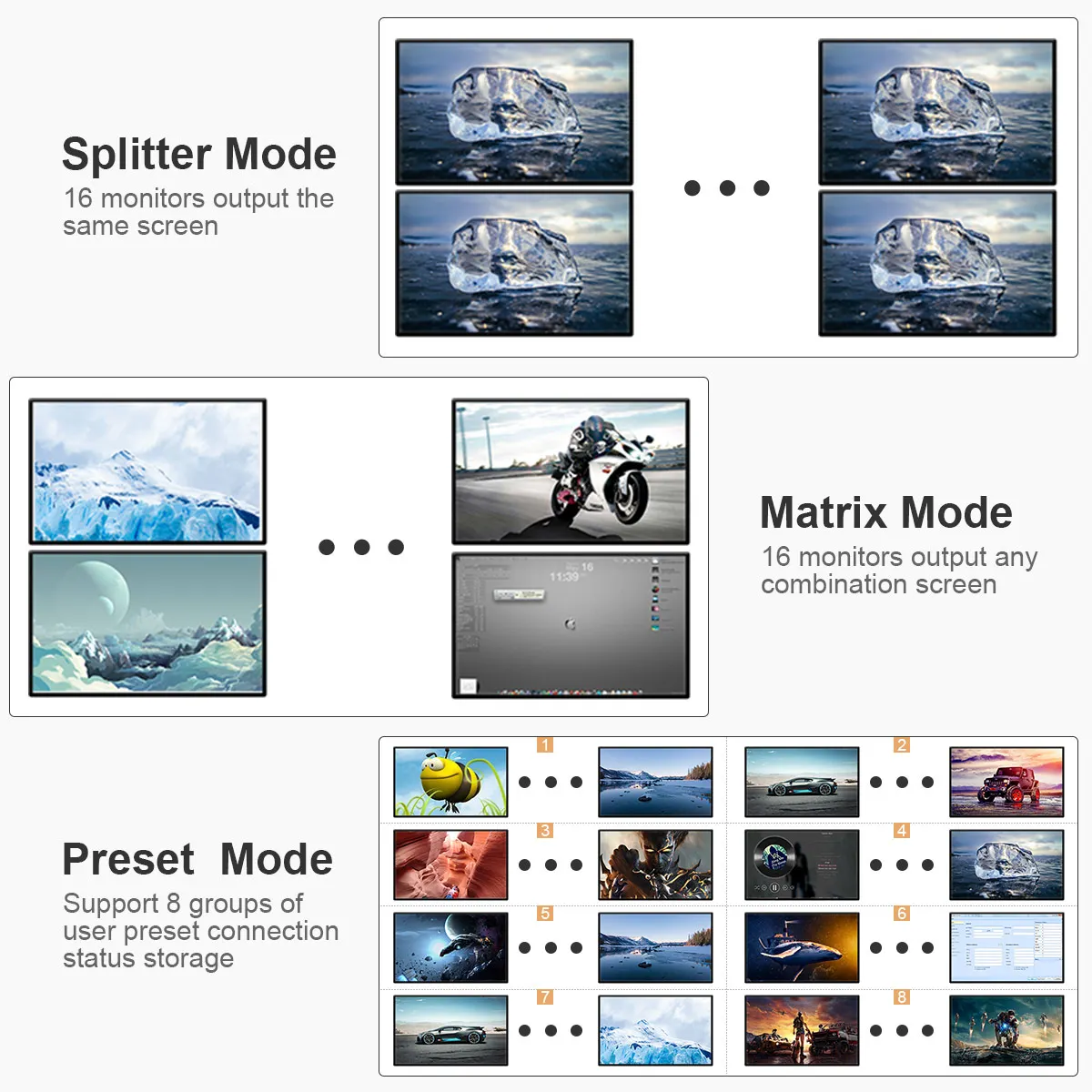

⭐Each HDMI output can share same input or select standalone input
⭐Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
⭐Smart EDID management, make it compatible with most display devices

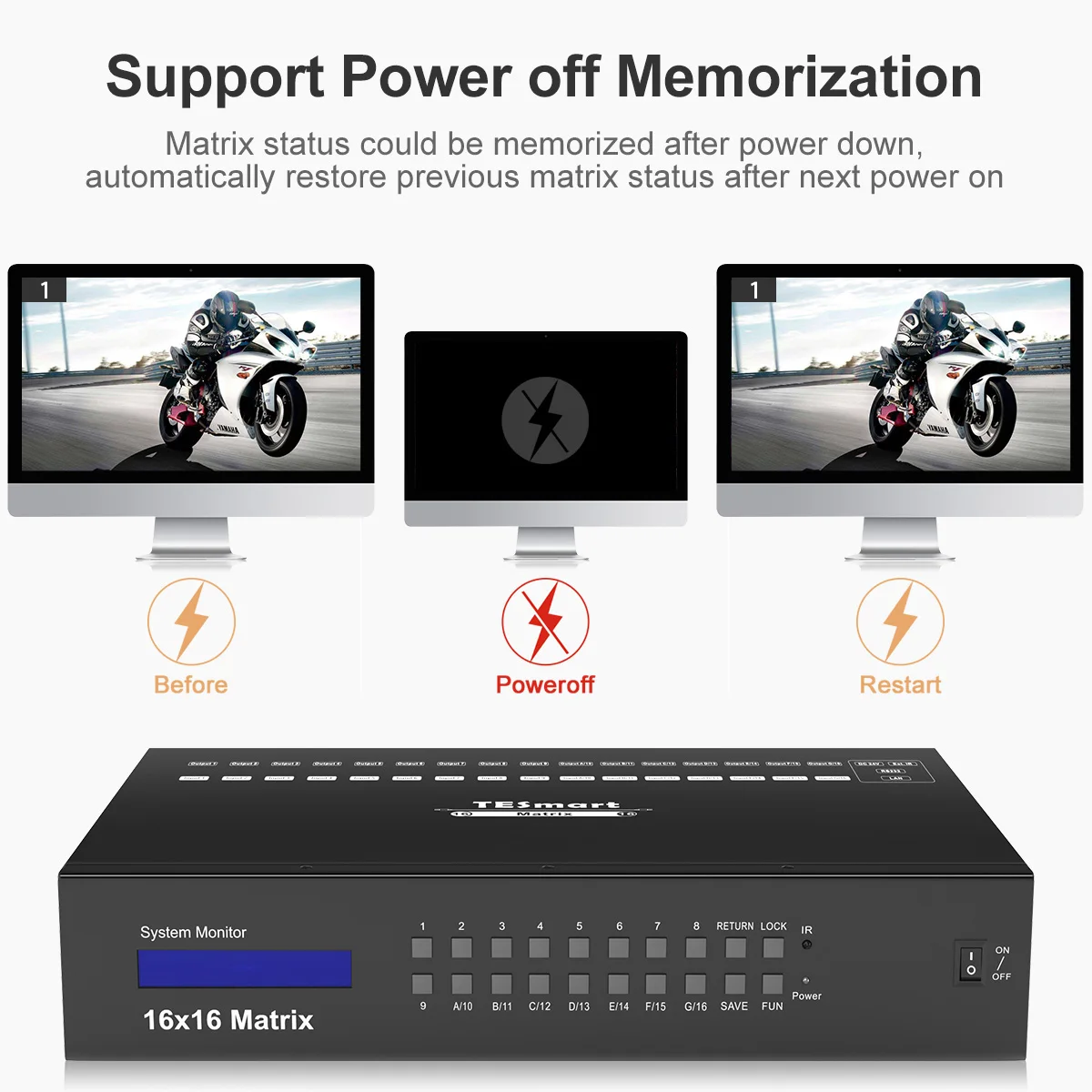

⭐Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

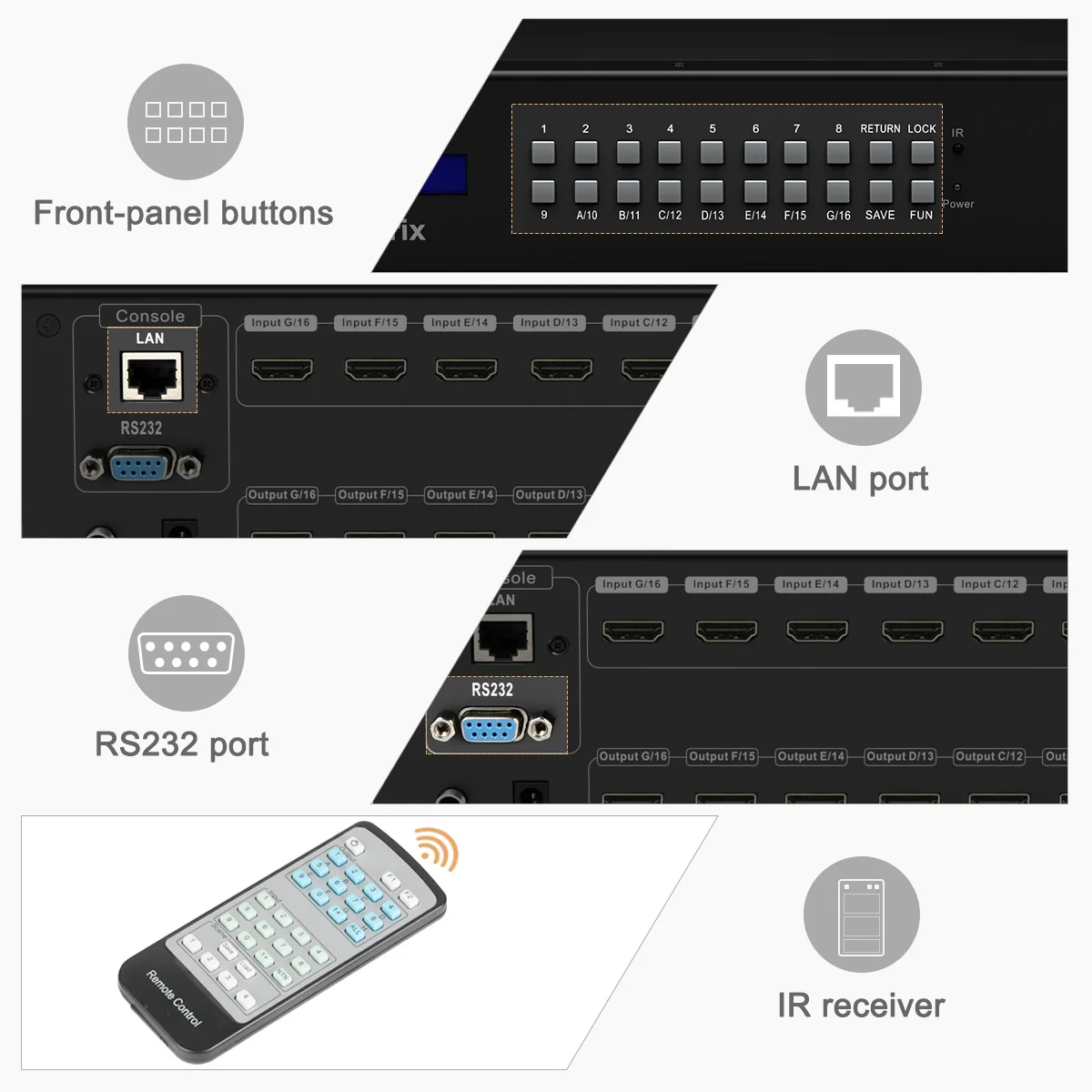

⭐Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
⭐Easy to view routing status via LCD display
⭐Supports user preset connections
⭐Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.

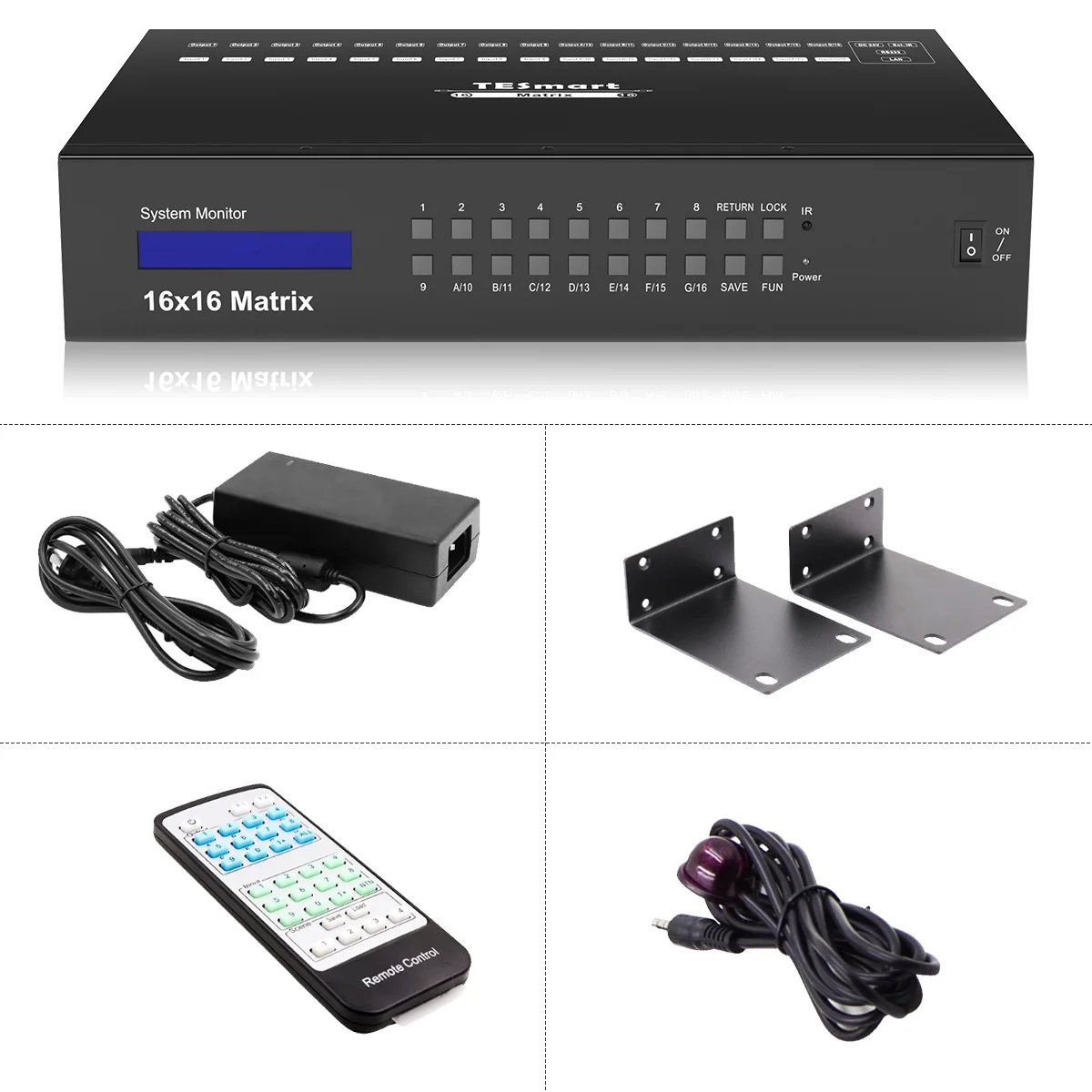

Package Included
1 * HDMI Matrix 16x16
1 * Remote control
1 * IR Receiver cable
2 * Rack-ears
1 * DC 24V 3A Power Adapter
1 * User manual
⭐Max. resolution up to 3840*2160@30Hz.
⭐Each HDMI output can share same input or select standalone input
⭐Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
⭐Smart EDID management, make it compatible with most display devices
⭐Matrix status could be memorized after power down, automatically restore previous matrix status after next power on
⭐Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
⭐Easy to view routing status via LCD display
⭐Supports user preset connections
⭐Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
Package Included
1 * HDMI Matrix 16x16
1 * Remote control
1 * IR Receiver cable
2 * Rack-ears
1 * DC 24V 3A Power Adapter
1 * User manual
Specification
HMA1616A10 | 16x16 HDMI Matrix | |||
Functionality | ||||
Port selection | Front panel buttons | Yes | ||
Console commands | RS232 / IP | |||
IR remote control | Yes | |||
LCD Display | 24x2 characters | |||
OSD | No | |||
Smart EDID | Yes | |||
Technical | ||||
Resolution | Up to 3840x2160@30Hz/ 1080P 3D 60Hz | |||
HDCP compliant | Yes | |||
Data rate | 10.2 Gbps | |||
Input | 16 * HDMI Type A | |||
Output | 16* HDMI Type A | |||
ESD protection | Human body model - ±8KV (Air-gap discharge) | |||
Mechanical | ||||
Chasing material | Metal | |||
Product dimensions | 440(L) x 298 (W) x 89 (H) mm | |||
Item weight | 4000 g | |||
Power supply | DC 24V | |||
Operating/storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating humidity | 10 to 90% RH | |||
