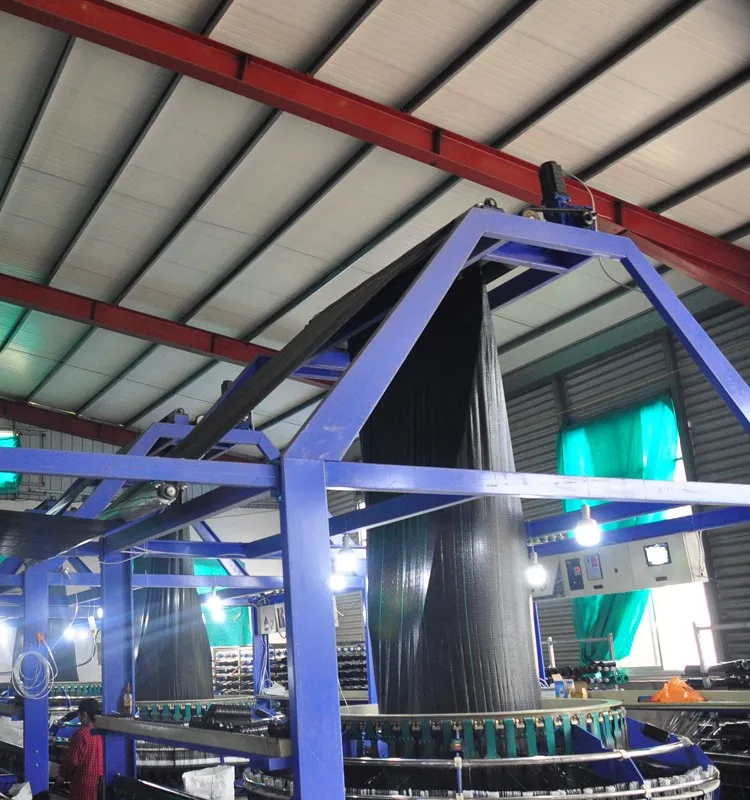

PP Woven Bag Circular Fabric Knitting Machine

Product Overview

Description

PP Woven Bag Circular Fabric Knitting Machine

Technical parameters of Circular fabric knitting machine

Model	YZJ-4/750
Number of shuttle	4
Finished cloth width	350-750mm
Max warps	768 pcs
Rotational speed of main motor	140-180 r/min
Main motor power	1.5/2.2 KW
Total power	2/2.7 KW
Out put	1.4-1.8m/min
Mounting dimension	8400*2200*2650mm
Weight	1800kg

Characteristic of Circular fabric knitting machine

 1.using the most advanced plane cam and link wheel drive, low load operation smooth and easy.
 2.canceled the slider and the slider to reduce the vulnerability of all rolling drive mechanism, not lubricating oil.
 3.can be equipped by the broken weft break, weft detection device after automatic shutdown, stop sensitive and reliable.
 4.environmentally friendly products, noise ≤ 82DB.
 5.can use 100% recycled plastic flat yarn woven low intensity.
 6.energy efficient, host maximum speed up 180r / min, using 1.5 / 2.2kw motor, and the original four shuttle circular loom of electricity a year to save up to 10,000 degrees.
 7.according to user feedback, installation of smart lifting equipment, can replace traditional mechanical gear change-dimensional line density, weft density can be arbitrarily set and weft

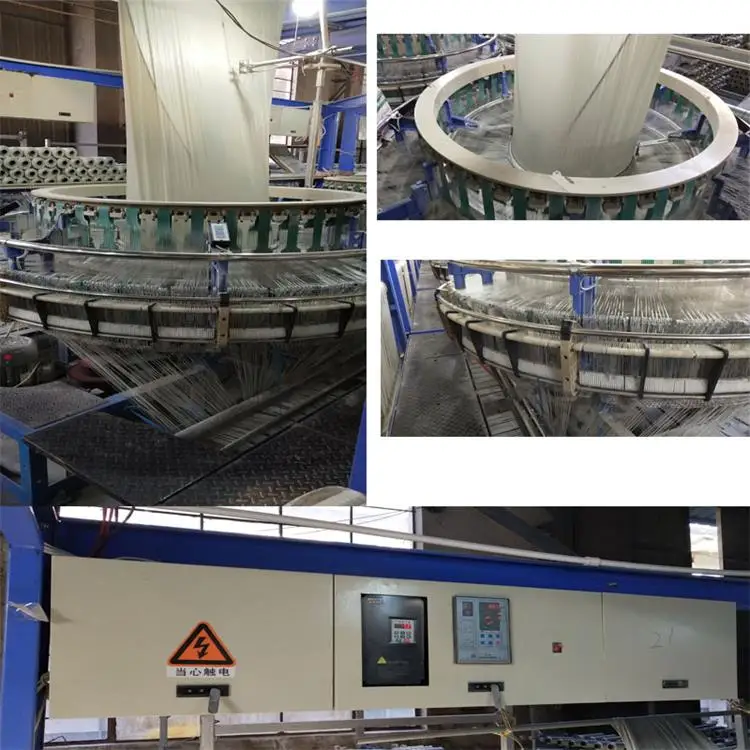

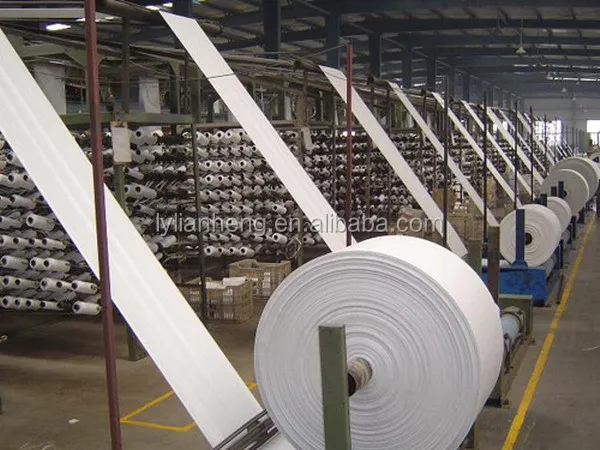

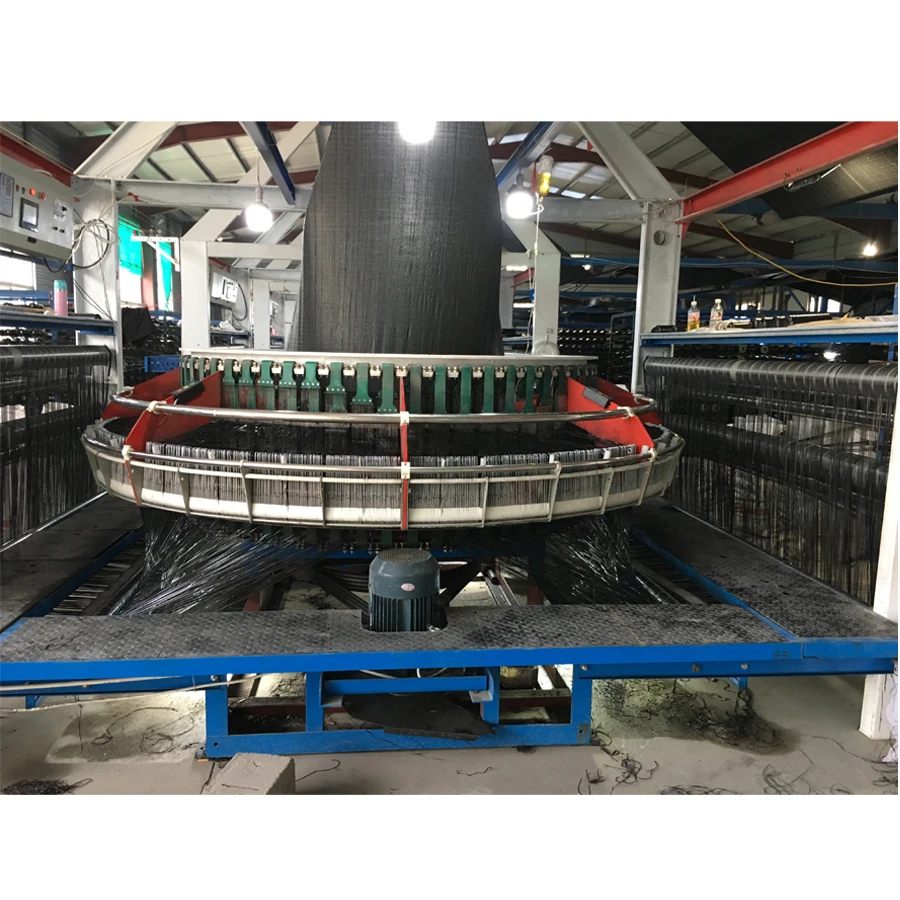

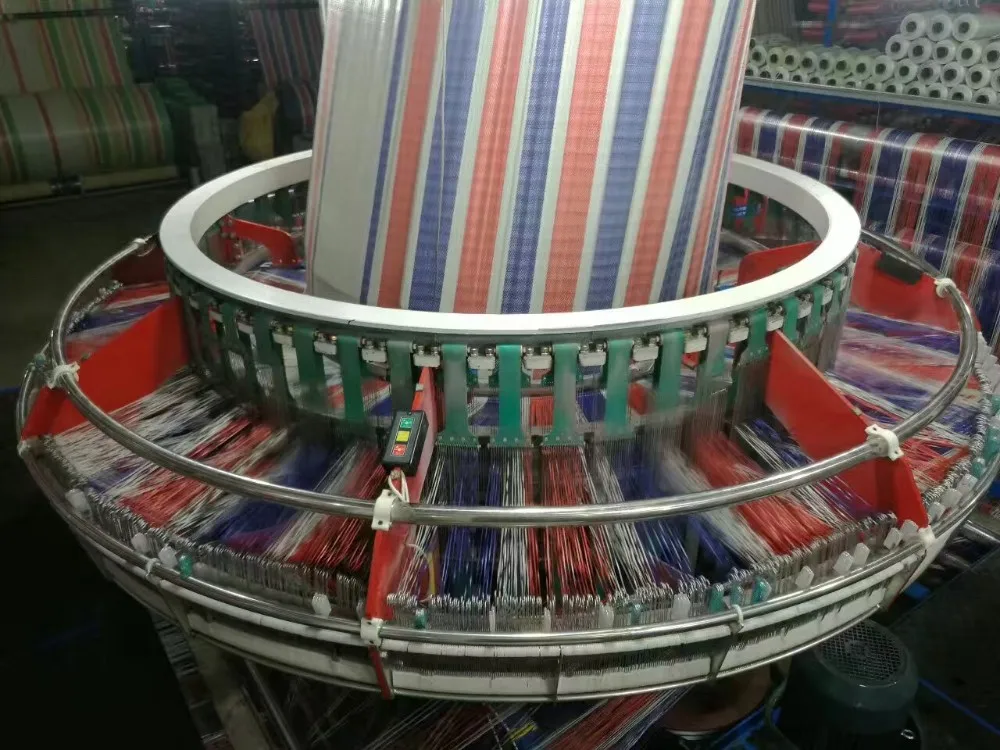

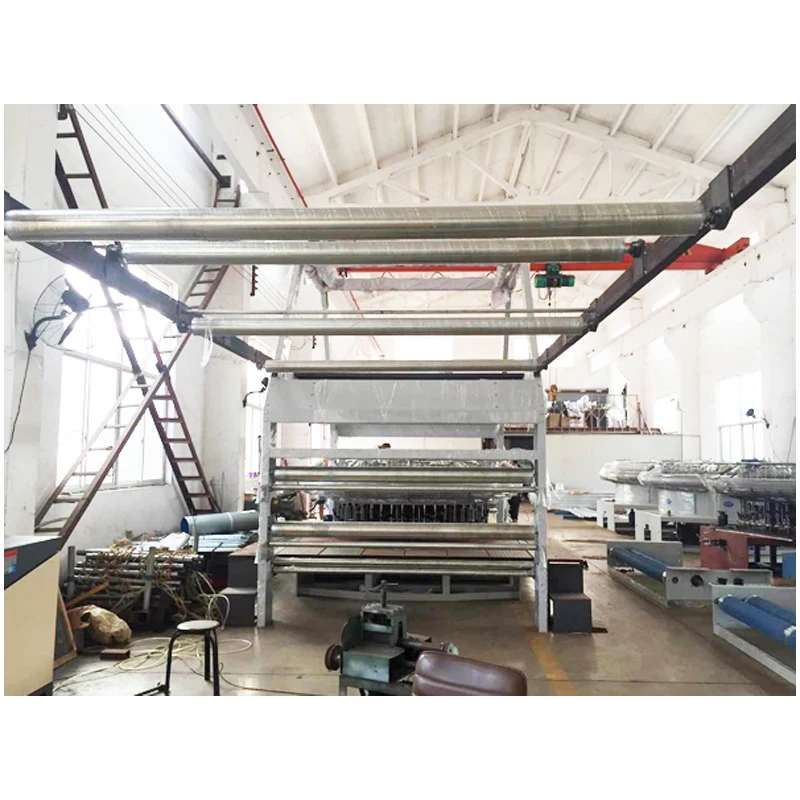

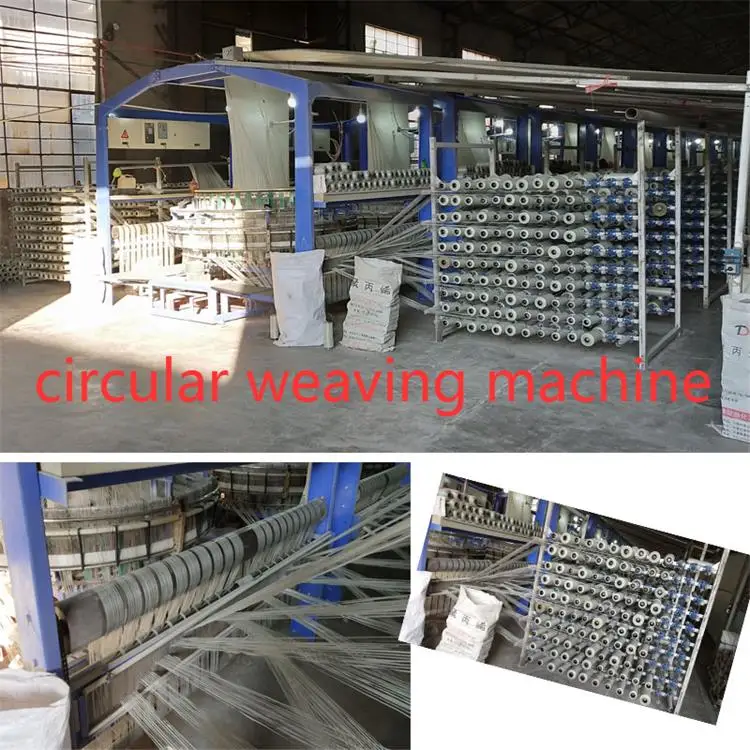

Detailed pictures
