Product Overview
Description
Product Description
Description | Aluminum frame wall & column formwork |
Material | Frame: High strengh aluminum alloy |
Panel: 12mm thick birch plywood | |
Size | Standard Height: 2.4m, 1.2m, 0.9m & 0.6m - also available at 3m & 3.3m |
Standard Width : 0.9m, 0.6m, 0.45m, 0.3m - also job specific sizes acceptable | |
Panel Weight | Average 23 KG/m2 |
Allowable concrete pressure | 60 Kn/m2 |
Finish | Powder coating |
Packaging | Pallet |
Application | Indoor & outdoor construction |
Certification | ISO 9001:2008 ISO 3834 part2 |
Performance | High strength, easy assembly |
Techinque | Automatic welding |
Category | Wall & column Formwork |
All KITSEN scaffolding and formwork products will be covered by RMB10,000,000.00 product liability insurance.

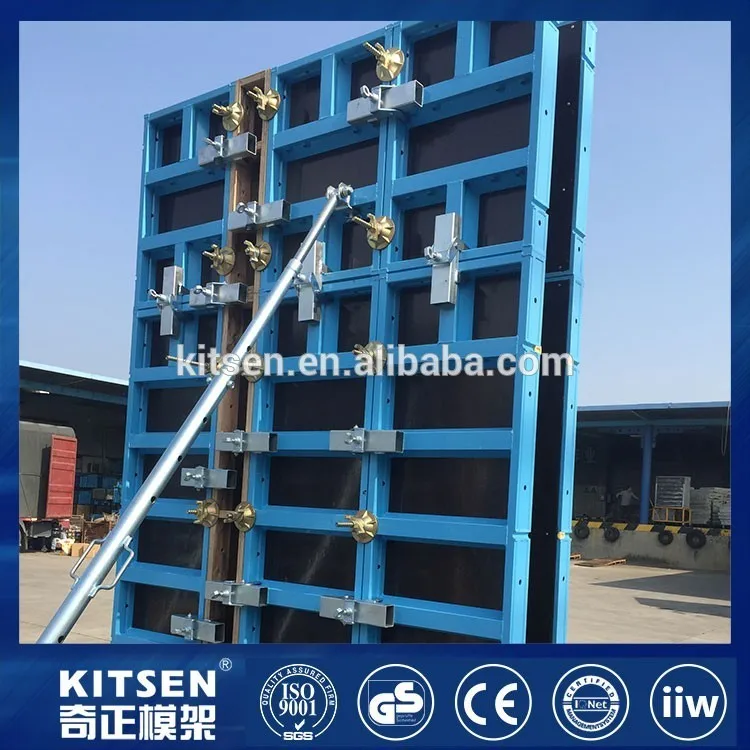

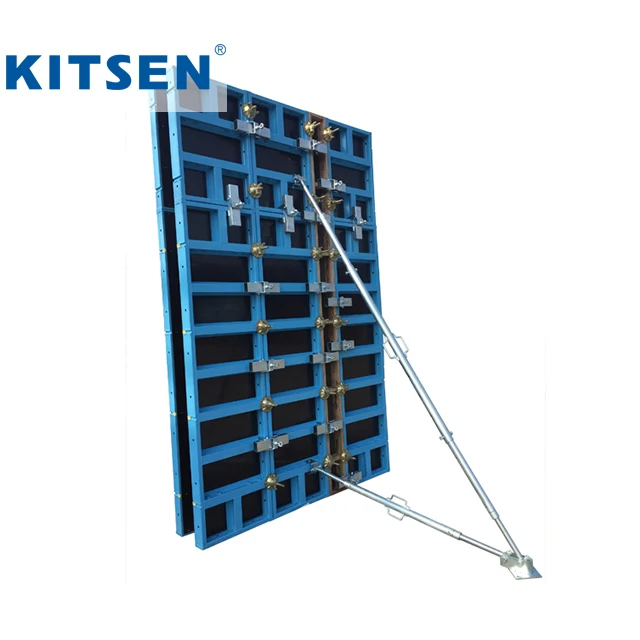

The innovated K100 Wallform System designed to minimize the number of components and improve
site and yard efficiency.

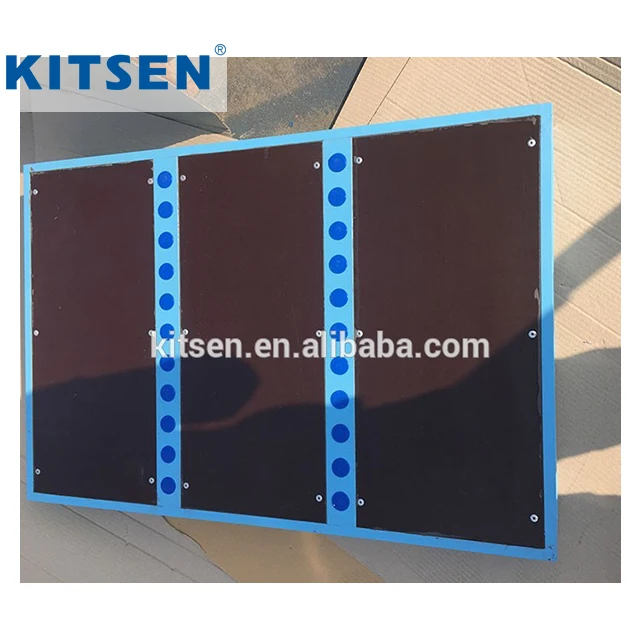

The all aluminum frame reduces the weight of the panels, while its high strength combined with 12mm
Birch plywood, can resist comcrete pressures up to 60KN/m2.

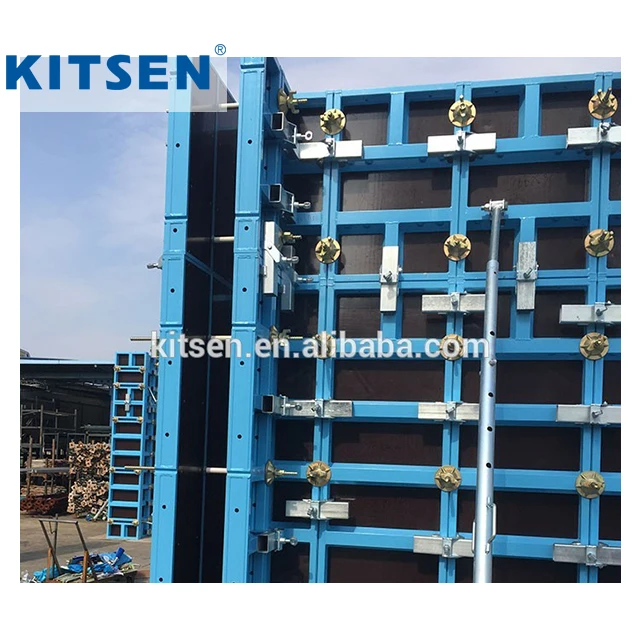

The panel clamps guarantee effective and quick connection of panels. K100 Wallform System a com
plete system with fixed and hinged corners which allow the formation of any wall shapes on site.
The column panels can form column sizes ranging from 250 to 750mm using the same accessories
as the wall panels.
