Tungsten carbide standard welding brazed inserts cemented carbide tips inserts

Product Overview

Description

Tungsten carbide standard welding brazed inserts cemented carbide tips inserts

The tungsten carbide bearing parts adopts the advance technology with the high strength and long life features. The cemented carbide bearing surface with the cemented carbide material, special solder and welded to a whole body with the basis part through sinter treatment, makes the cemented carbide bearing with the high strength, long life, anti-wear, anti-impact and high load.

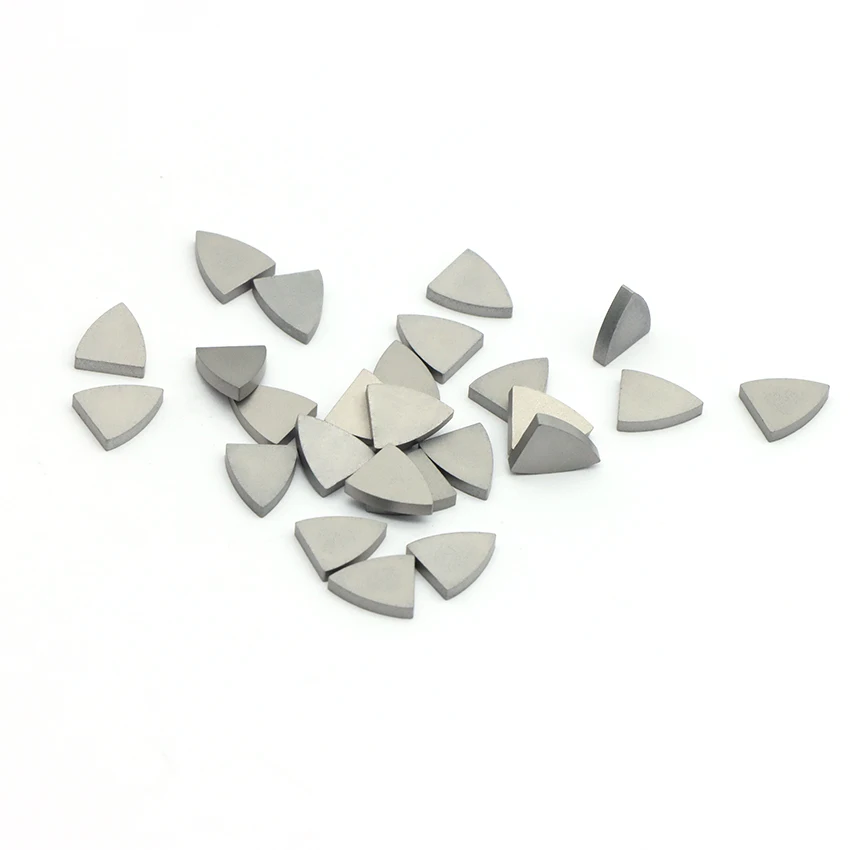

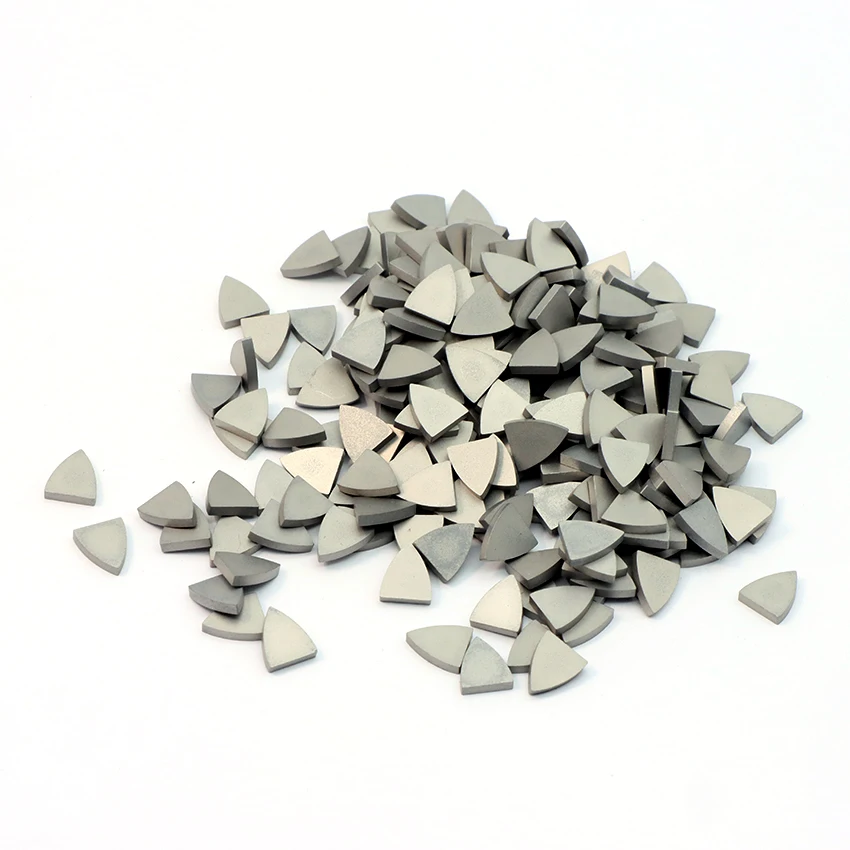

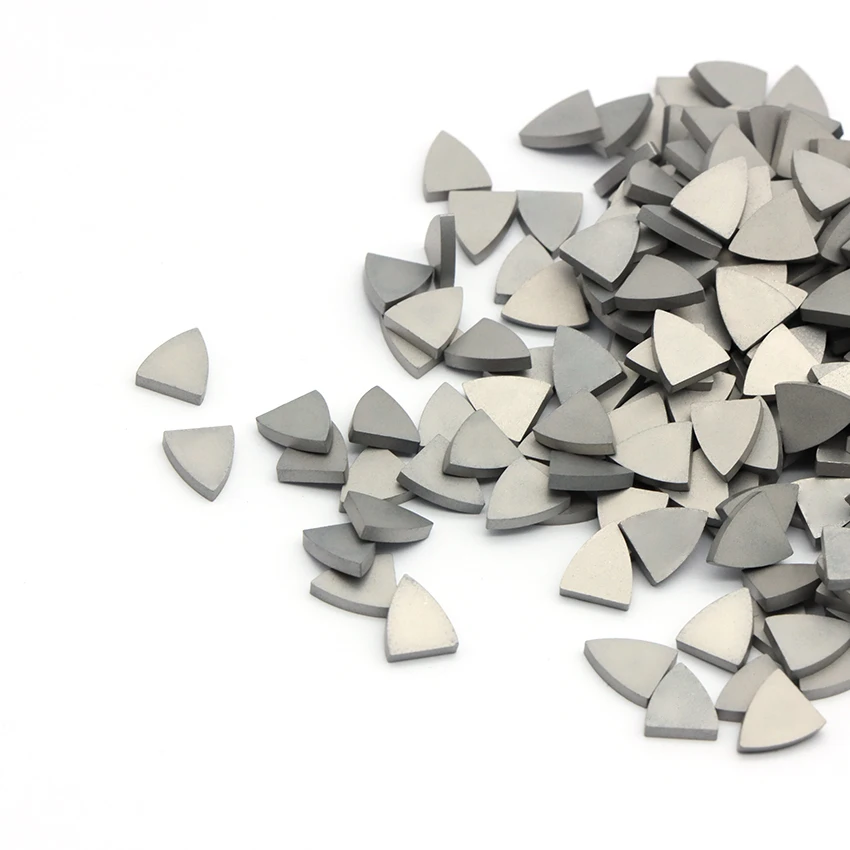

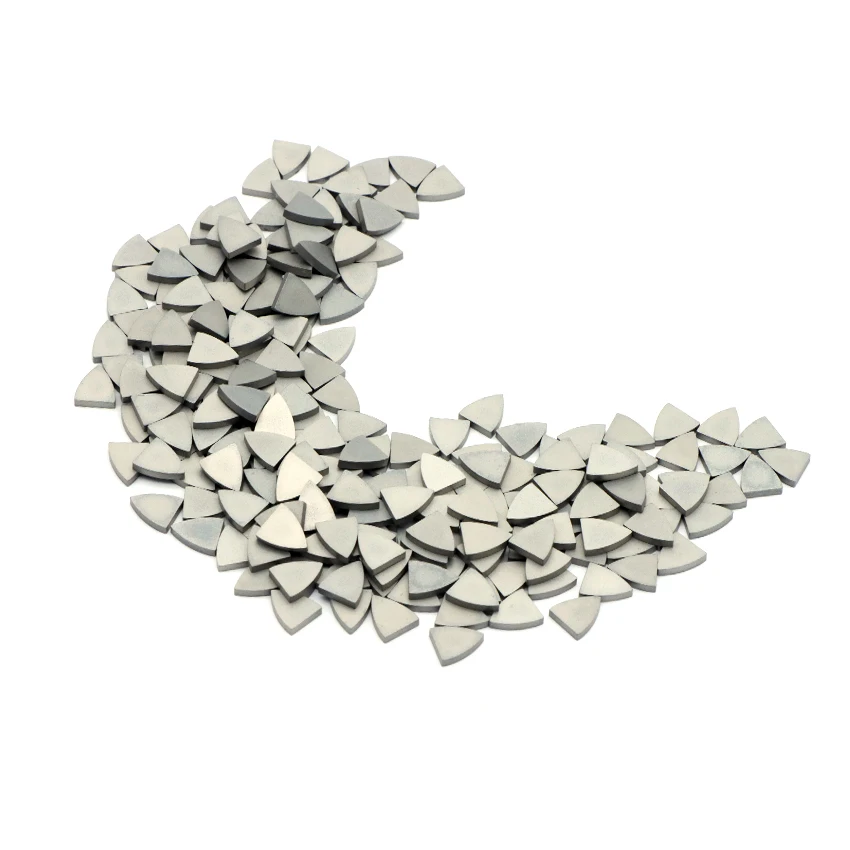

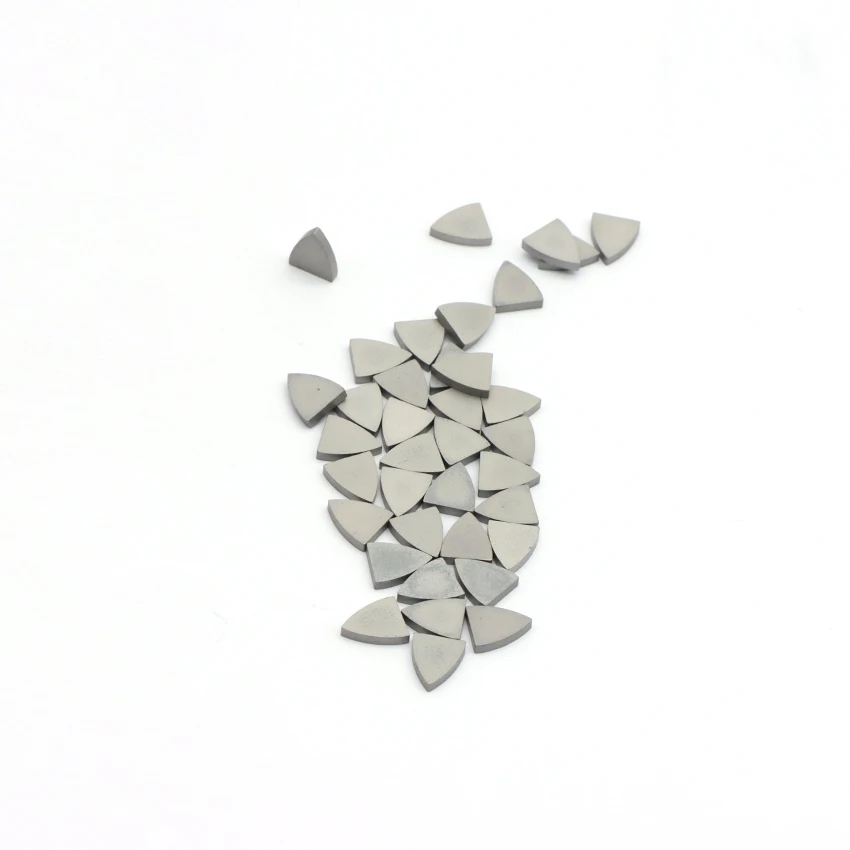

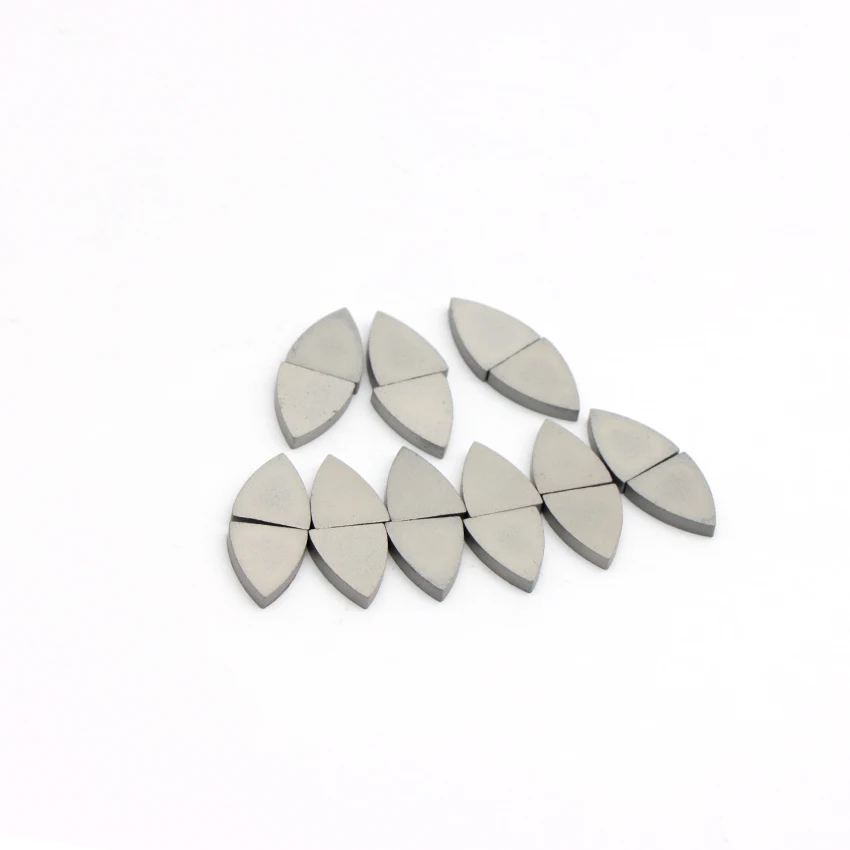

Pictures of cemented carbide tips:







Specifications of cemented carbide tips:



Garde	Density (g/cm3)	Hardness (HRA)	TRS (N/mm2)	ISO Code	Applications
JGR05	15.15	94	2000	K05	With excellent wear resistance,suitable for making nozzles,small sized drawing dies and micropore drawing dies
K10UF	14.9	93	2600	K05
K10S	14.9	91	2450	K20	With excellent wear resistance,suitable for making nozzles,small sized drawing dies and woodworking carbide strips
YG6	14.9	91	2450	K20	Medium grain,with good wear resistance and toughness,suitable for making medium and small sized drawing ies and woodworking carbide strips
YG8	14.7	90	2000	K20	Medium grain,with extensively applicable wear resistance and toughness,suitable for making various-sized drawing dies material and woodworking carbide strips
JG08	14.65	90	3000	K20	Medium grain,with high toughness,suitable for making various top grade die material and woodworking strips
YG11	14.45	88.5	2600	K30	Medium grain,with good impact resistance and toughness,suitable for making medium and large sized drawing dies
YG15	14.1	87	2600	K40	Suitable for making steel pies and steel rods under strong stress and big compressibility,also can be making punching dies under large impact load
JG15A	14	87.5	3000	K40	With high toughness and excellent impact resistance,suitable for making vaious top grade step processing dies
YG20	13.6	85	2600	K50	Suitable for making punch dies,such as bolts and nuts
JG20	13.65	85	3200	K50	Suitable for making punch dies,such as bolts and nuts
YG20C	13.6	83	2600	K50	Suitable for making punch dies such as watch components,musical instrument reeds,small sized steel bals,normal impact resistance forging dies

• Other high performance material can be developed by our Doctor Chen's Reseach team

Our guarantee:

1. 100% raw material.
2. Professional manufacture for tungsten carbide items with 22 years experience.
3. Size standard as per your requirements
4. Professional suggestion on products
5. Feedback within 24 hours

6. ISO9001: 2008 certificate, ISO14001:2004
7. Fully adopted in advance technology and equipment.

8. Sintered in HIP Furnace
9. Quality Control System and strict inspection.

>>>> Welcome to contact us for more details!welcome to contact us for more details

1. We are a REAL factory located in Zhuzhou, with over 400 employees here for over 22 years.

2. We are Alibaba Assessed 12 years Gold Supplier.

3. Our output is over 80 tons per month.

4. Certificated by RoHS, ISO 9001:2008, ISO 14001:2004.

5. 100% QC inspection before shippment

6. Our products are produced by 100% Virgin material.

7. We can produce the non-standard items according to your samples or drawings.
