Goldenest Complete Pig Farm Equipment for Pig
- Category: Animal Feeders >>>
- Supplier: Shandong,Goldenest,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
China Supplier Complete Pig Farm Equipment for Sale
For complete pig house farm equipment,our company provide complete farming equipment system for pig as following:
1.Main Feed Filling System
2.Feedling Line System
3.Drinking Line System
4.Pig Stall System
5.Pig Slats Floor System
6.Environment Control System
and so one
1.Main Feed Filling System---Feed Silo
Features:
1.Capacity from 2Ton to 22 Ton,satisfy different size pig house.
2.Galvanized weight reach 275g/m2,overrall hot galvanized,anti-corrosion,anti-oxidant,acidoresistance,keep 15 years life outdoor using.
3.Optimized feed convenrsion,keeping feed fresh,reduce feed waste.
4.Patent sealed lid guard,prevent rain and snow flow into the silo.
| Capacity (Ton) | Diameter (m) | Height (m) | Legs(pc) | Plate Thickness(mm) Vertebral / Cylindrical |
| 2 | 1.83 | 3.6 | 4 | 1mm / 0.9mm |
| 3.5 | 1.83 | 4.5 | 4 | 1mm / 0.9mm |
| 5.5 | 1.83 | 5.4 | 4 | 1mm / 0.9mm |
| 8 | 2.8 | 4.5 | 6 | 1mm / 0.9mm |
| 10 | 2.8 | 5.4 | 6 | 1mm / 0.9mm |
| 12 | 2.8 | 6.3 | 6 | 1mm / 0.9mm |
| 15 | 2.8 | 7.1 | 6 | 1mm / 0.9mm |
| 15 | 3.68 | 6.1 | 8 | 1.2mm / 1.2mm |
| 17.5 | 3.68 | 6.4 | 8 | 1.2mm / 1.2mm |
| 22 | 3.68 | 7.27 | 8 | 1.2mm / 1.2mm |
2.Pig Feedling System--- AUGER Straight Feeding System&Chain-Disc Cycle Feeding System
1)Auger Straight Feeding System

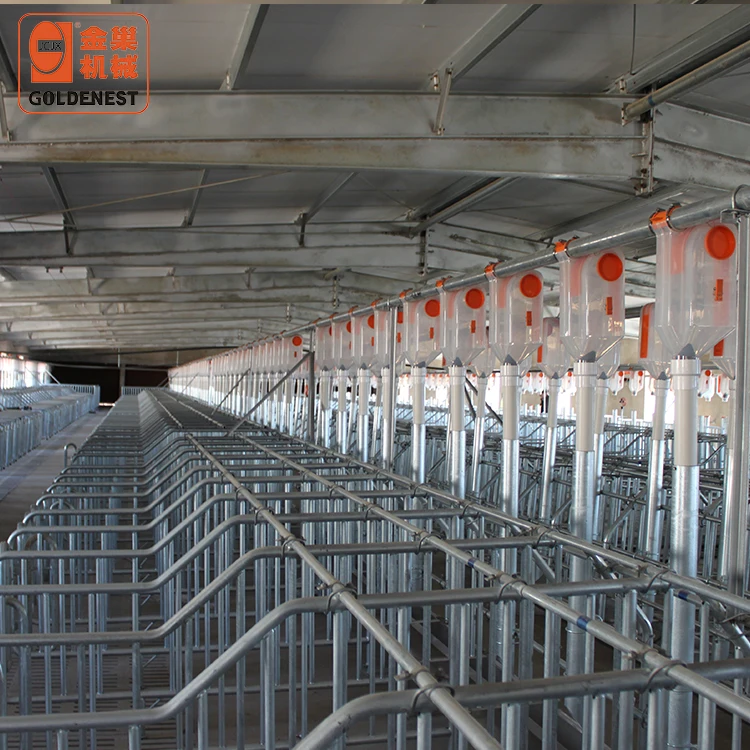

--Dispenser feeding line for gestation pig
The sow should be feed-limited around the period of farrowing,the transparent dispenser of this system.can control the amount accurately for each sow,and feed them at the same time.

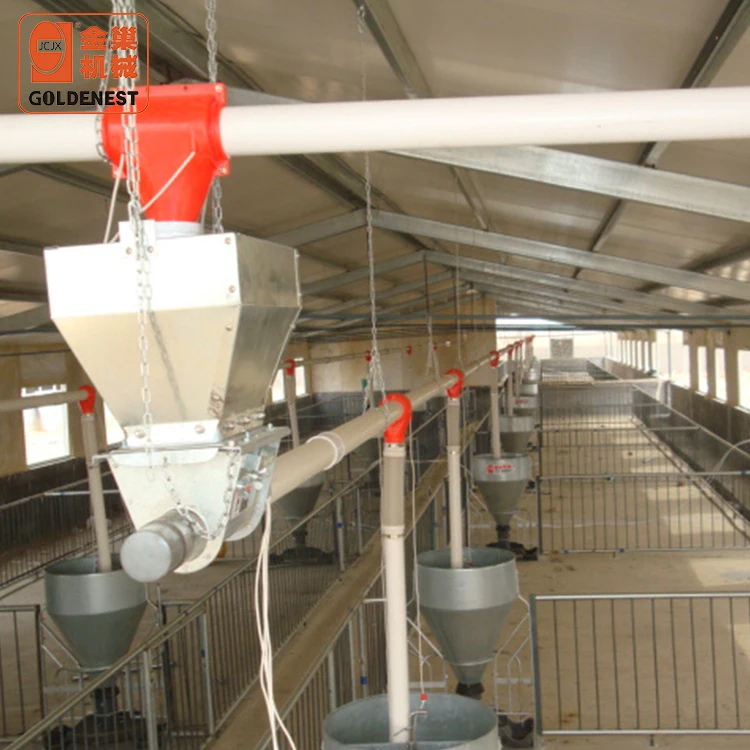

--Dropper feeding line for fattening pig
Single drop system Double drop system
>Large diameter pipe and auger,the length of the feedling line can reach as long as 200m or above,transmission efficiency,1.5T/h.2.5T/h,4T/h,etc available.
>Manuture techonogu,reliable performance,to be used in variety scale of pig houses
Advantages:
Low cost,easy to assemble,easy to ship,low error,but has high request to the section and length of the auger.
2)Chain-Disc Cycle Feeding System
Chain-disc Hot galvanized Corner Feed dispenser
>Uesd for dry power feeding in gestation,nursery,farrowing house.
>Main parts of this system are imported products.
>The end of the chain-disc feed line choose special feeding controller to ensure an accurate feedstuff amount.
>Driving parts made by stainless steel,hign quality motor.
1.Driving system 2.Silo 3.Feed tube 4.Corner 5.Sensor 6. Automatic feed droop system 7.Feed-drop system 8. Metering feed dispenser 9.Electrical control system 10.Dry-wet feeder
3.Pig feeder& Drinker
4.Pig Stall& Pig Slats Floor
5.Environment Control System
Shangdong Goldenest Machinery Manufacturing Co.,Ltd is the earliest enterprise with engaged in the design,research and manufacture of the automatic farming equipment for poultry and livestock since 1987.
