Product Overview
Description
Products Description

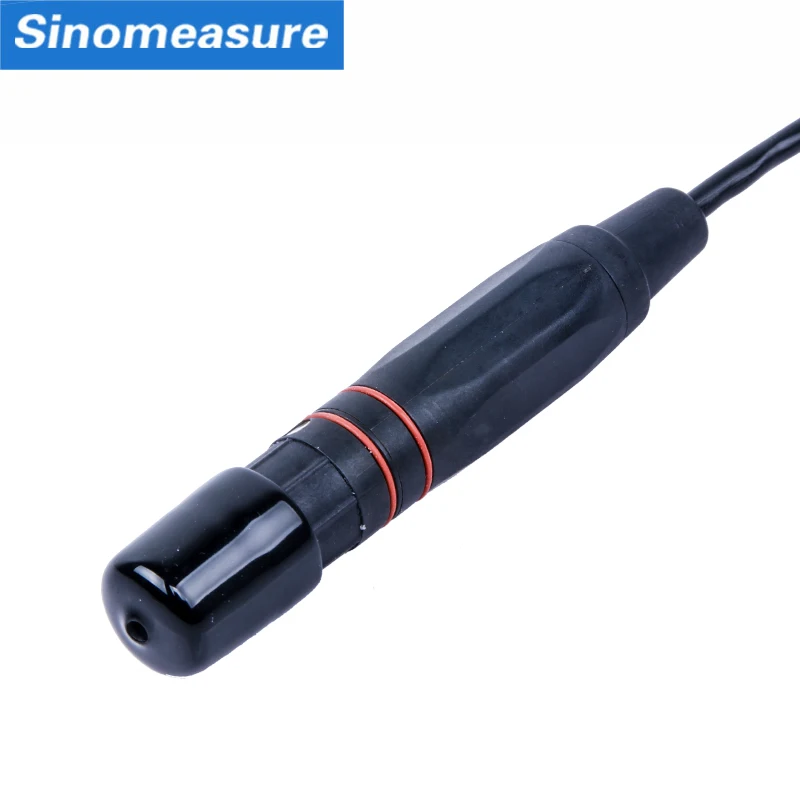

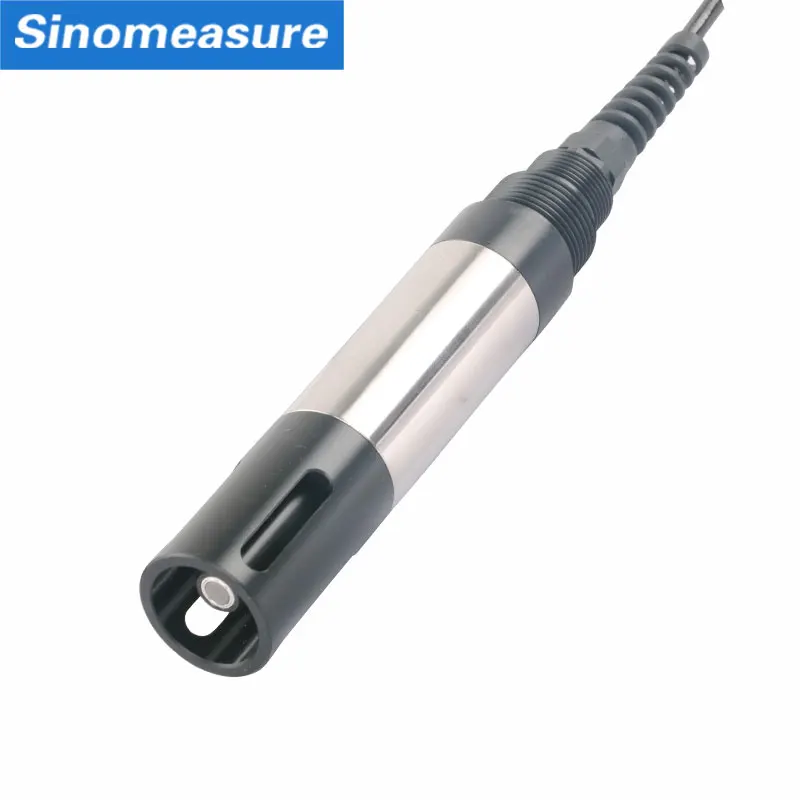

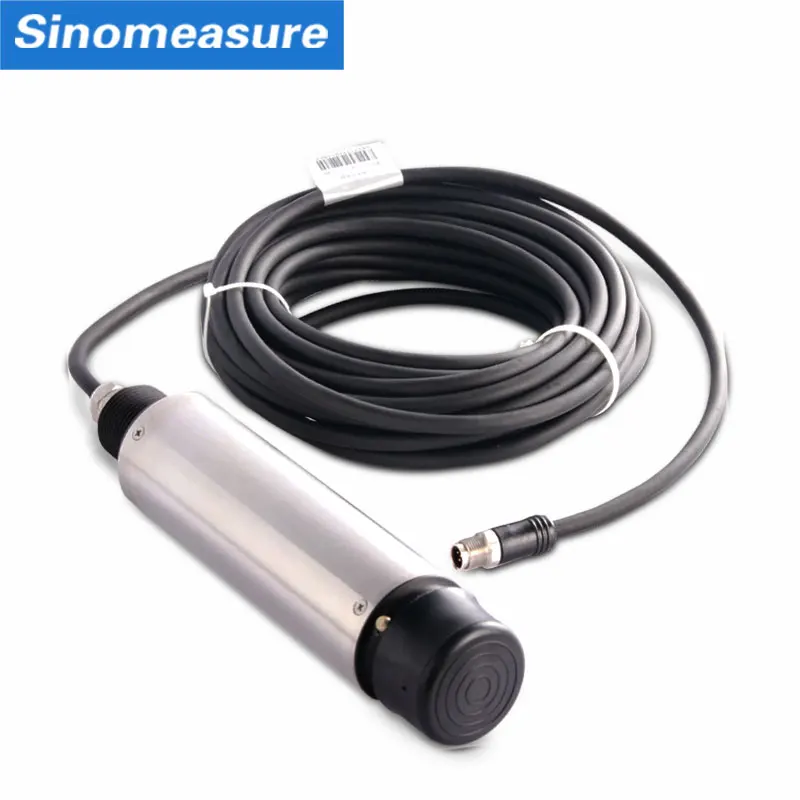

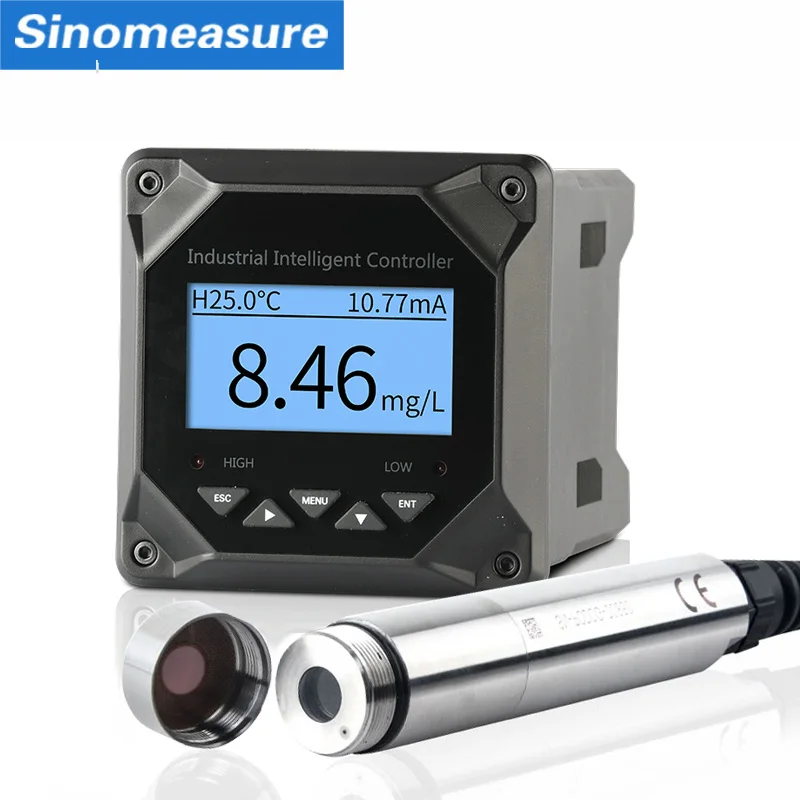

1. The Optical Dissolved Oxygen technology is based on luminescent optical technology. The Optical Dissolved Oxygen sensor is approved by the ASTM International Method D888-05.
2. Without calibration requirements and thanks to an ultra low power technology, the Optical Dissolved Oxygen sensor meets the demands of field works and short or long term campaigns.
3. Without oxygen consumption, this technology allows you an accurate measure in all situation and especially in very low oxygen concentrations
2. Without calibration requirements and thanks to an ultra low power technology, the Optical Dissolved Oxygen sensor meets the demands of field works and short or long term campaigns.
3. Without oxygen consumption, this technology allows you an accurate measure in all situation and especially in very low oxygen concentrations
Applications :
Urban wastewater treatment
Urban wastewater treatment
Industrial effluent treatment
Surface water monitoring,
Sea water monitoring, fish farming, aquarium
Drinking water
Surface water monitoring,
Sea water monitoring, fish farming, aquarium
Drinking water
Measure principle | Optical measure by luminescence |
Measure ranges | 0.00 to 20.00 mg/L |
0.00 to 20.00 ppm | |
0-200% | |
Resolution | 0.01 |
Accuracy | +/- 0.1mg/L |
+/- 0.1 ppm | |
+/- 1 % | |
Response time | 90% of the value in less than 60 seconds |
Temperature compensation | Via NTC |
Stocking temperature | - 10°C to + 60°C |
Signal interface | Modbus RS-485 (standard) and SDI-12 (option) |
Sensor power-supply | 5 to 12 volts |
Dimensions | Diameter : 25 mm ; length : 146 mm |
Weight | Stainless steel version 450g (sensor + cable 3 m) |
Titanium version 300 g (sensor + cable 3 m) | |
Material | Stainless steel 316L, New : body in Titanium |
Maximum pressure | 5 bars |
Protection | IP68 |

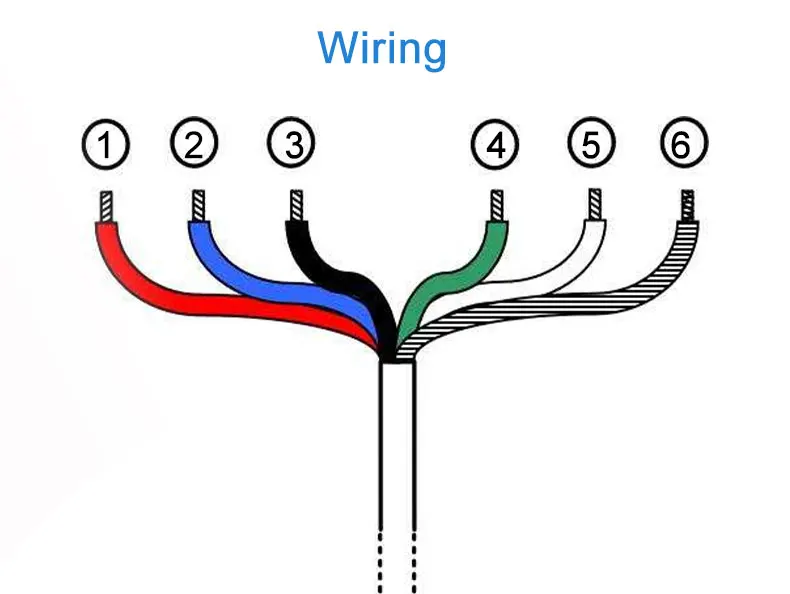

Cable length up to 15m | Cable lenght 15 to 100 meters | ||||
1- Red | Power supply V+ | Red Purple Yellow Orange pink | Power supply V+ | ||
2 - Blue | SDI-12 | 2 - Blue | SDI-12 | ||
3 - Black | Power supply V- | 3 - Black | Power supply V- | ||
4 - Green | B " RS-485 " | 4 - Green | B " RS-485 " | ||
5 - White | A " RS-485 " | 5 - White | A " RS-485 " | ||
6 - Green/yellow | Cable shield | 6 - Green/yellow | Cable shield | ||
