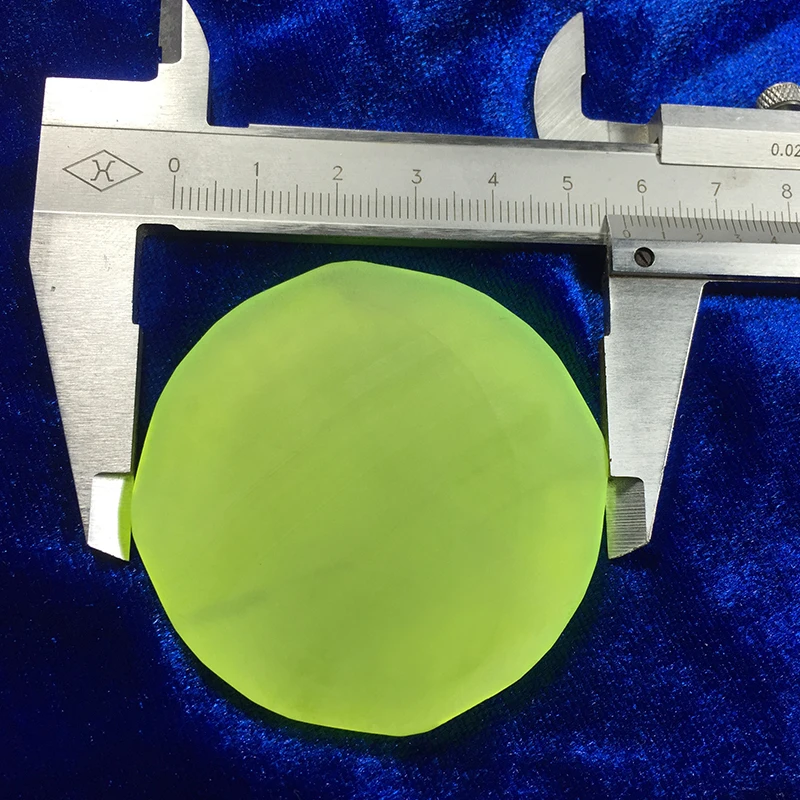

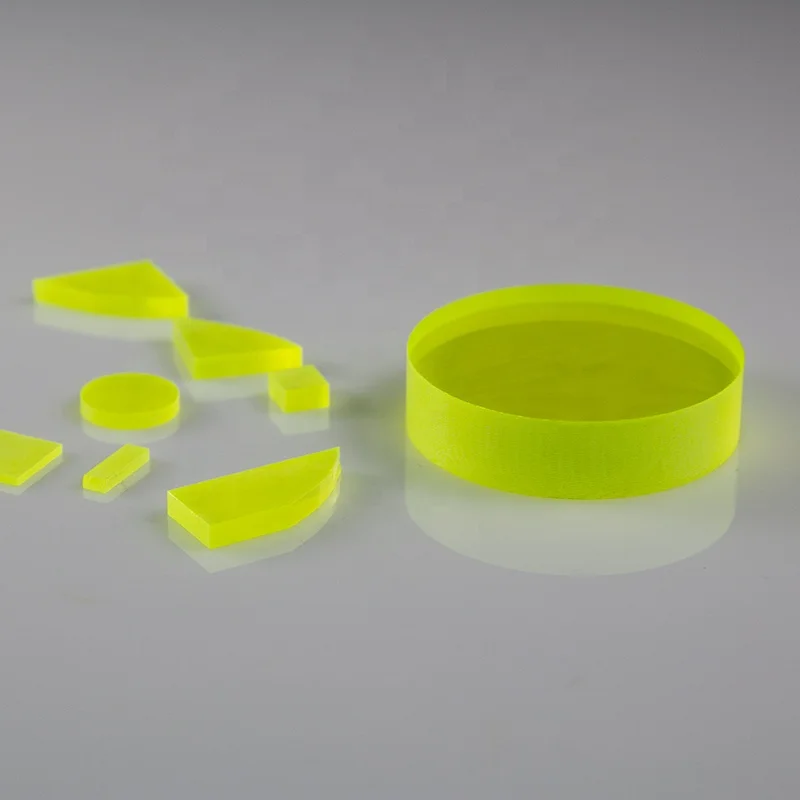

Fast decay time Scintillation Detector LuAG:Ce crystal medical equipments

Product Overview

Description

Fast decay time Scintillation Detector LuAG:Ce crystal  medical equipments

Cerium doped yttrium-aluminum garnet (Ce:LuAG) is a well established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce:LuAG is also a very appropriate crystal for imaging screens, LED lighting and laser lighting.



Feature Cerium doped yttrium-aluminum garnet Ce:LuAG crystal

Property	Ce:LuAG
Chemical composition	Lu3Al5O12
Melting (℃)	1970℃
Symmetry	Cubic
Structure	Ia3d
Cell parameters(Å)	11.914
Hardness	8.5
Density(g/cm3)	6.73
Thermal conductivity(W/℃cm,25℃)	0.08
expanding coefficient(10-6/℃)	8.8
Refractive index(λ=1.079μm)	1.84





Cerium doped yttrium-aluminum garnet Ce:LuAG crystal



Emission peak (nm)	510
Light yield (Photons•Mev-1)	15000
Decay time(ns)	80
Energy resolution	<8%
Zeff	60.6



Cerium doped yttrium-aluminum garnet Ce:LuAG crystal



Polishing Specification for Laser Grade
Orientation Tolerence	<0.5°
Thickness/Diameter Tolerance	±0.05 mm
Parallel	10''
Perpendicular	5'
surface Quality	10/5
Clear Aperture	>90%
Chamfer	<0.2×45°
Maximum dimensions	dia 95 mm



                    Transmittance of LiF crystal





Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 1pcs Q3: What’s the lead time?

A: Sample :2-3 days.Mass production: 15-20 days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. OEM is also acceptable.
