JX Servo CLS6036HV water proof 36kg high voltage 7.4v coreless digital servo
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (60707866538):
Product Overview
Description

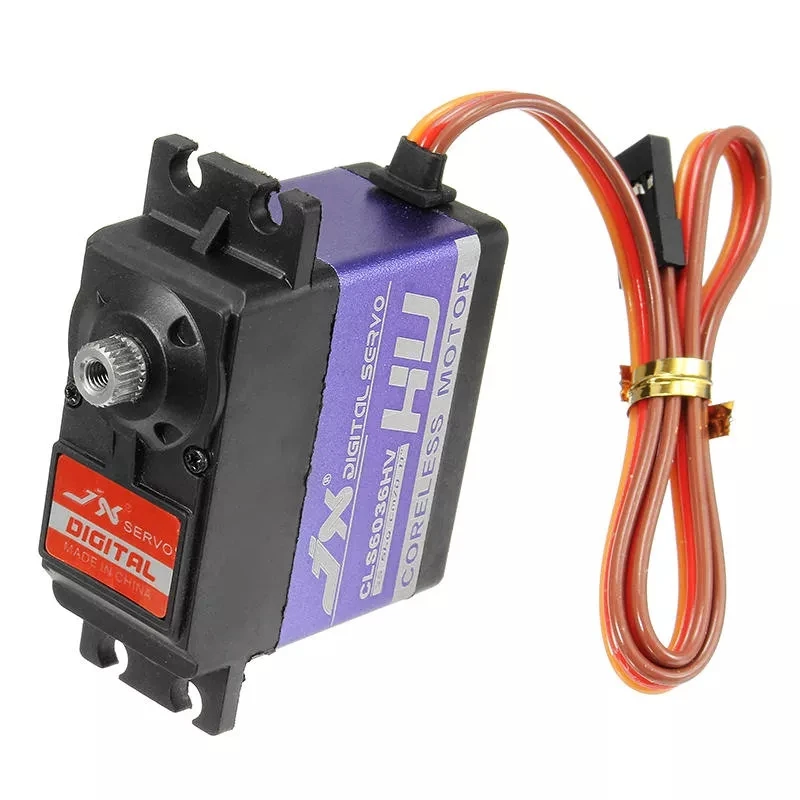

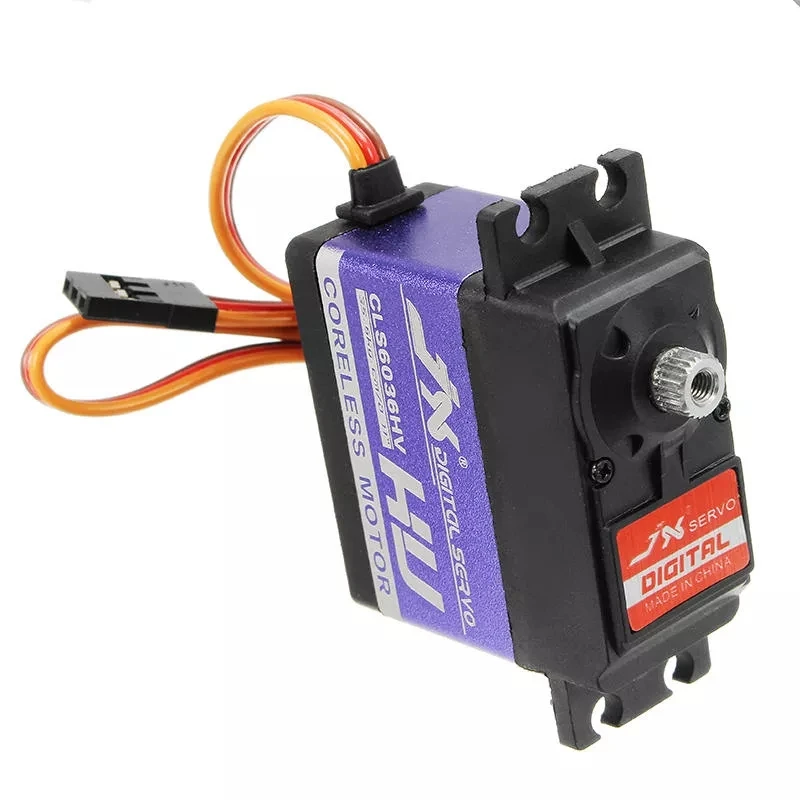

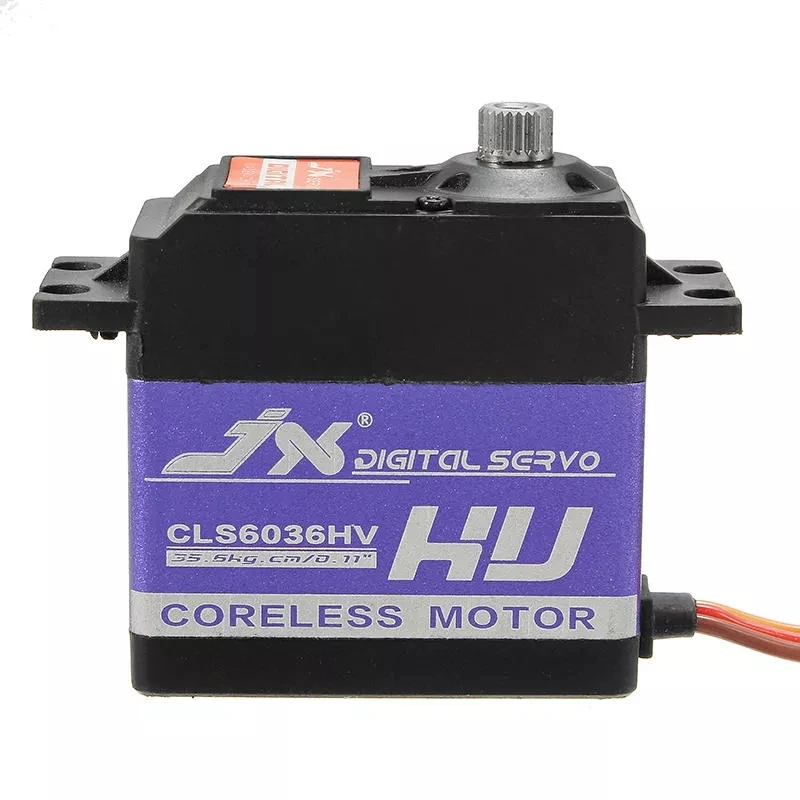

JX Servo CLS6036HV water-proof 36kg high voltage 7.4v coreless digital servo
Product Description
Feature:
CNC metal On the middle cover of the shell
High-precision Taiwan-made metal gears with hard anodizing
High Quality Coreless Digital Servo
17 pcs waterproof Rings around each servo, completely water-proof
Specifications:
Dead band: 1μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.14sec/60°
Operating Speed (7.4V): 0.11sec/60°
Stall Torque (6.0V): 27.8kg.cm (386.06oz/in)
Stall Torque (7.4V): 35.6kg.cm (494.37oz/in)
Dimensions: 40.5X20.5X40mm /1.59 X0.80X1.57in
Weight: 60g (1.9oz)

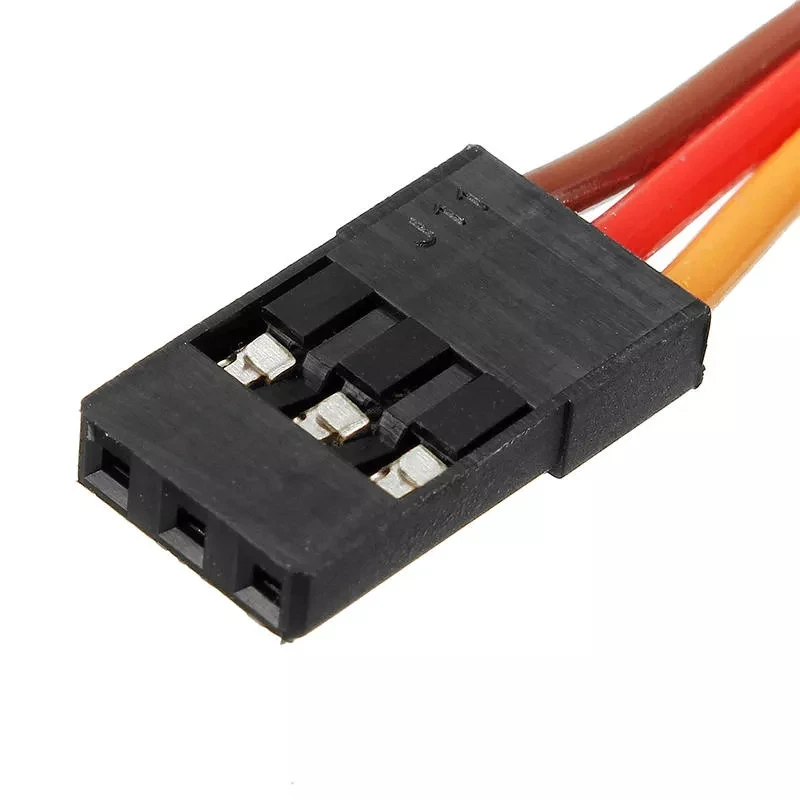

Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
OEM/ODM Order question
| * For the SERVOS please let us know your requirements: 1. Which Area you used for? RC Servo or Industry Servo? 2. What's your expected torque? 3. What's your expected speed? 4. Do you have serice life requirement? 5. Your working voltage please. 6. Do you have location dimension limited? If so, please let us know the maximum size. 7. Do you need it waterproof? 8. How many qtys you need? 9. Other requirements if you need, for example, wire length, connector types and so on. * For the MOTORS please let us know your requirements: 1. Please choose inrunner motor or outrunner motor you need. 2. Do you have motor diameter and length limited? 3. What working voltage you will use for this motor? 4. What's your expected rated power? 5. What's your expected RPM? 6. You battery pack can bear how high peak current? 7. You estimated yearly sales qty? 8. Do you need the speed controller as well or if you have yours,let us know the spec. 9. Other requirements if you need, for example, wire length, connector types etc. Contact us directly via Trade Manager or send us email, we will reply ASAP in 24 hours. Below our custom made motors for other clients for your information. |

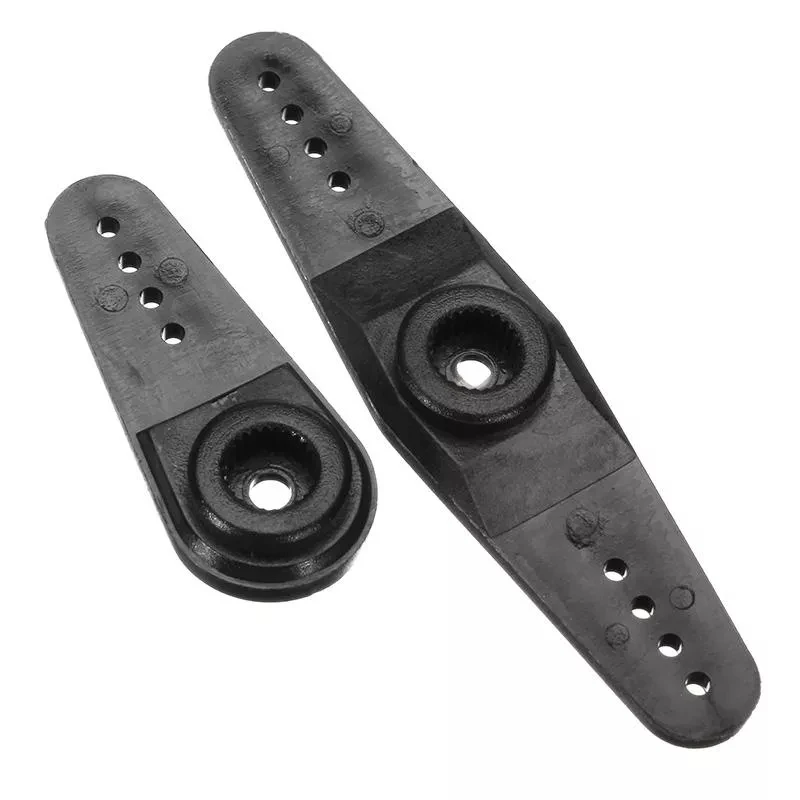

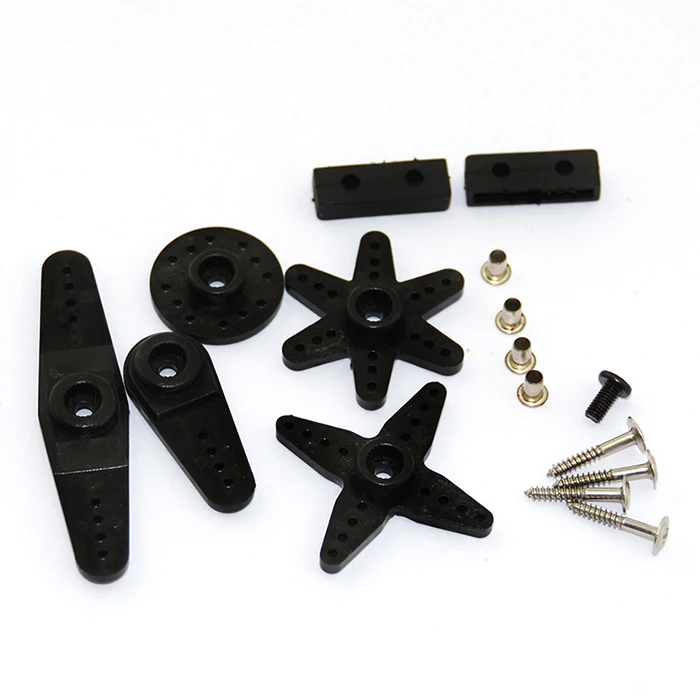

Product Pictures
Product Packing
Certifications

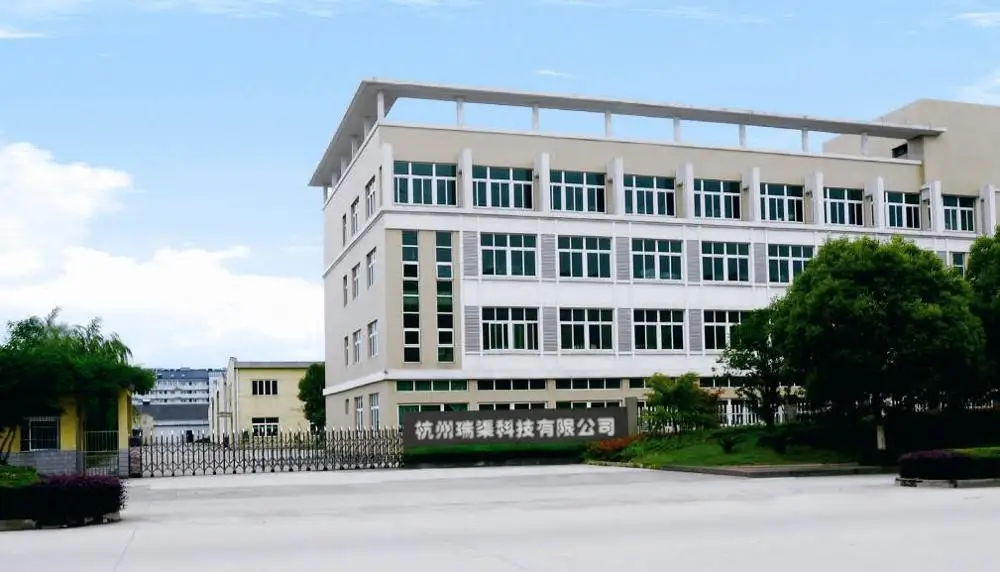

Our Factory
Our Exhibition
About US
Reacher Technology Co., Ltd is devoted in designing,manufacturing and selling Brushless Motors,
ESCs, Propellers, Analog and Digital Servos, Battery and Charger for RC models, such as RC
aircrafts, Helicopters, Boats, Cars and Truggies,Surfboards.Currently new developing areas like
Go Kart motors, sailboat motors sales are increasing.
The owner has more than 10 years professional experience in RC Areas. Our products conform to
the requirements of the EU environmental standards ROHS , FCC, CE.
Special design requirement, OEM and ODM orders are warm welcomed!
We provide customers with high quality and stability of the products and professional services
at "customer first, service first" philosophy. It is our goal, our mission, to provide the best brushless
products at the best prices.
Our Clients
Shipping Advice
Shipping Methods Optional
1.For normal products, we suggest to ship via EMS/UPS/DHL/FEDEX/TNT Express, we will
choose the economic one for you depends on the different discount.
2.For product like motor, servo with magnet inside, China inland express refused to ship magnet
product except to do the extra magnetic inspection. So we always ship via Hongkong DHL, to
save time and cost.
3.For the special product with battery or the pure battery products, as it’s very serious for battery
shipping. We choose the battery special shipping line, every day shipping charge is floating.
4.For big jet plane sample, as the length+(width+height)*2>3m, all the China inland EMS refused
to ship, the only shipping way is via Singapore Post.
5.For Bulk qtys order, we will choose shipping via Air or by sea depends on the final volume and
weight.
